Operating instructions

Object recognition sensor

O2D22x

704435 / 00 08 / 2008

Object recognition sensor O2D22x

Contents

1 Preliminary note.................................................. 4

1.1 Symbols used.................................................. 4

2 Safety instructions ................................................ 4

3 Items supplied4

3.1 Accessories 4

4 Functions and features ............................................ 4

5 Installation 5

5.1 Mounting accessories............................................ 5

5.2 Mounting dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5.3 Installation location.............................................. 6

6 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6.1 Wiring 7

6.2 Wiring diagram ................................................. 7

6.3 External illumination ............................................. 8

6.4 External trigger source ........................................... 8

6.4.1 Timing diagram inputs/outputs.................................... 8

7 Operating and display elements .....................................11

7.1 LED display 11

7.2 Display 12

7.2.1 Operation indication........................................... 12

7.2.2 Connection via operating program ............................... 13

7.2.3 Error messages .............................................. 13

7.3 Pushbuttons 13

8 Set-up 13

8.1 Parameter setting on the device................................... 14

8.2 Verify and set the IP address on the unit ............................ 14

8.3 Adjustable parameters .......................................... 15

8.3.1 Parameter structure........................................... 16

8.4 Lock / unlock the sensor......................................... 17

8.4.1 Reset device to factory settings.................................. 17

8.5 Parameter setting via PC operating program ......................... 17

9. Operation 17

9.1 Evaluation mode (normal operating mode) .......................... 17

10 Scale drawing ................................................. 18

11 Technical data ................................................. 19

11.1 Operating distance L........................................... 19

11.2 Factory settings .............................................. 19

12 Process data protocol ........................................... 20

12.1 Establishing TCP/IP connection .................................. 20

12.2 Basic communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Object recognition sensor O2D22x

12.3 Protocol version .............................................. 21

12.4 Type of commands ............................................ 21

12.5 Requesting the trigger pulse..................................... 21

12.6 Select the protocol version ...................................... 22

12.7 Select the application .......................................... 22

12.8 Activate/deactivate the result output............................... 22

12.9 Transmit the image to the device for evaluation...................... 23

12.10 Transmit the application data set to the device ..................... 23

12.11 Request the assignment of the application data from the device ........ 23

12.12 Request the statistics from the device ............................ 24

12.13 Request the error code from the device ........................... 24

12.14 Request the last image from the device ........................... 24

12.15 Request the last result from the device ........................... 25

12.16 Release trigger, evaluate the image and result output via process interface if

output is active 25

12.17 Request the protocol version ................................... 25

12.18 Request the device information ................................. 26

12.19 Request the last "bad" image from the device ...................... 26

12.20 Result message ............................................. 27

12.21 Error codes from the device .................................... 28

13 Maintenance, repair and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

14 Approvals / standards ........................................... 30

15 Note regarding the software ...................................... 30

Object recognition sensor O2D22x

1 Preliminary note

1.1 Symbols used

►  Instruction

> Reaction, result

[…] Designation of pushbuttons, buttons or indications

Reference to the kind and source of a hazard

Instruction to avoid a hazard

→  Target,reference

2 Safety instructions

These instructions are part of the device. They contain texts and drawings

concerning the correct handling of the device and must be read before installation

or use.

Observe the operating instructions.

Non-observance of the instructions, operation which is not in accordance with use

as prescribed below, wrong installation or handling can affect the safety of people

and machinery.

The installation and connection must comply with the applicable national and

international standards.

Responsibility lies with the person installing the unit.

Only the signals indicated in the technical data or on the device label may be

supplied to the connections or wires.

3 Items supplied

object recognition sensor O2D22x●

operating instructions "object recognition sensor O2D22x“, ident no.: 704435●

The device is supplied without installation/connection accessories and software.

3.1 Accessories

www.ifm.com

→Datasheetdirect→e.g.O2D220→Accessories

4 Functions and features

The sensor uses incident light or backlight to detect the contours of an object and

compares them with the contours of one or several models in a reference image.

Depending on the degree of conformity the output can indicate if a model was

found or which one was found.

Object recognition sensor O2D22x

5 Installation

5.1 Mounting accessories

The device is compatible with the mounting accessories of ifm's photoelectric

sensors for the O2Ixxx (multicode reader), O2Mxxx (EthernetCamera) series etc.

Example mounting with clamp and bracket

Use the mounting accessory E2D101.►

 







focal setter1.

mounting accessory2.

object to be recognised3.

field of view size W X H4.

operating distance L5.

Depending on the intended location and type of mounting the following mounting

accessories are available:

Description Art. no.

Mounting set for shaft Ø 12 mm

(clamp and bracket for types O2Dxxx, O2Mxxx, O2Ixxx)

E2D110

Shaft, straight Ø 12 mm, length 130 mm, M10 E20938

Shaft, angled Ø 12 mm, length 200 mm, M10 E20940

Mounting set for shaft Ø 14 mm

(clamp and bracket for types O2Dxxx, O2Mxxx, O2Ixxx)

E2D112

Object recognition sensor O2D22x

Description Art. no.

Shaft, straight Ø 14 mm, length 130 mm, M12 E20939

Shaft, angled Ø 14 mm, length 200 mm, M12 E20941

You can find more information about the available accessories at

www.ifm.com

→Datasheetdirect→e.g.O2D220→Accessories

or directly

www.ifm.com

→Datasheetdirect→z.B.E2D110

5.2 Mounting dimensions

The device is mounted using the mounting accessories or 2 M4 screws and nuts.

Holedimensions→chapter10Scaledrawing.

5.3 Installation location

Mount the sensor in front of or above the area to be monitored. The detectable►

fieldofviewsizedependsontheoperatingdistance→chapter11.1Technical

Data.

Back light or scattered light situations and continuously changing light►

conditions are to be avoided.

Do not position room lights directly facing the camera lens.►

Position the optional external illumination (e.g. O2D909) opposite the camera►

lens.

To avoid adverse effects on the image detection, avoid installation in heavily►

polluting areas of the machine.

The connected cables must be provided with a strain relief.►

6 Electrical connection

NOTE

The unit must be connected by a qualified electrician. Disconnect power before

connecting the unit.

Object recognition sensor O2D22x

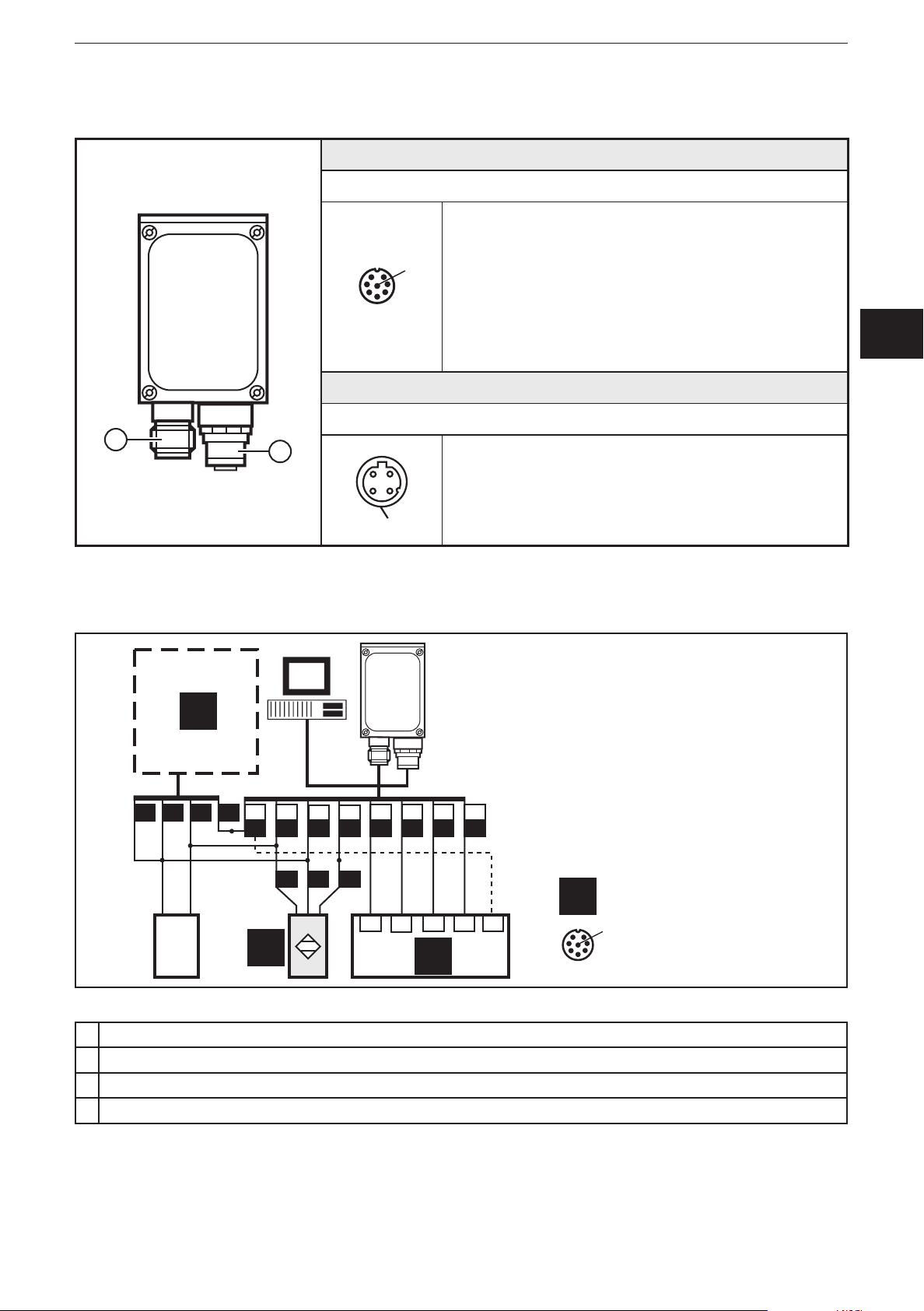

6.1 Wiring



Process interface (1)

M12 connector, A-coded, 8 poles



 







1 U+

2 trigger input

3 0V

4 switching output / trigger output

5 switching output (ready)

6 switching output (OUT)

7 switching output / input 1

8 switching output / input 2

Parameter/process interface (2)

M12 socket, D-coded, 4 poles









1 Ethernet TD +

2 Ethernet RD +

3 Ethernet TD -

4 Ethernet RD -

S Shield

6.2 Wiring diagram















 





  





 





  

process interface (M12 connector, A-coded, 8 poles)

controller e.g. PLC

external trigger

external lighting (optional)

Object recognition sensor O2D22x

Pin Use (factory setting)

Output signal "READY" provides the status of the sensor:

"1" after the evaluation has been carried out.

"0" as long as the evaluation is being carried out, a different application is being selected or in

case of an internal error (trigger signals are ignored).

Output signal "OUT" provides the result of the evaluation:

”0“ no matching model

”1“ matching model

6.3 External illumination

Connect external illumination to the trigger output of the device.►

Example Art. no.

Illumination unit, transmitter red light 630 nm O2D909

For information about the a.-m. example see:

www.ifm.com

→Datasheetdirect→O2D909

6.4 External trigger source

Connect an external trigger source (e.g. a diffuse reflection sensor) to the►

trigger input of the device.

If you use an external trigger source (e.g. a diffuse reflection sensor),

connect the trigger signal to the trigger input of the sensor. If you use

external illumination, it must be controlled via the trigger output of the

sensor. Depending on the device setting, one of four configuration

files saved in the sensor can be selected via two switching inputs.

Information about the test result is provided via switching outputs.

6.4.1 Timing diagram inputs/outputs

��

1: triggering on positive edge 2: trigger input 3: output READY

4: output OUT 5: error 6: ok 7: OUT invalid 8: OUT valid

Object recognition sensor O2D22x

The evaluation time tAdepends on

the size of the field of view selected●

the model size●

the smoothing degree●

the sensitivity●

the orientation●

the number of models●

Typical evaluation times are between 50 and 800 ms.

With the corresponding unit configuration the first four applications can be selected

via the switching inputs.

Object recognition sensor O2D22x

Input Application no.

2 1

0 0 1

0 1 2

1 0 3

1 1 4







1: selection of the application

2: switching input 1

3: switching input 2

4: output READY

5: trigger input

A trigger enabled

B trigger disabled

Depending on the application the trigger disable time tPis 3...10 s.

Otros manuales para efector 250

Tabla de contenidos

Otros manuales de Accesorios de IFM Electronic

IFM Electronic

IFM Electronic efector500 PC3 Series Manual de usuario

IFM Electronic

IFM Electronic Efector 200 Manual de usuario

IFM Electronic

IFM Electronic VSA003 Manual de usuario

IFM Electronic

IFM Electronic EFECTOR 500 PI26 Manual de usuario

IFM Electronic

IFM Electronic efector200 O7H2 Series Manual de usuario

IFM Electronic

IFM Electronic Efectror 200 OGE2 Series Manual de usuario

IFM Electronic

IFM Electronic O1D100 Manual de usuario

IFM Electronic

IFM Electronic Efector 500 PN3 Manual de usuario

IFM Electronic

IFM Electronic efector 200 OGT Series Manual de usuario

IFM Electronic

IFM Electronic OGP Manual de usuario

IFM Electronic

IFM Electronic Efector 200 OL Series Manual de usuario

IFM Electronic

IFM Electronic TUV NORD Efector 110 GM701S Manual de usuario

IFM Electronic

IFM Electronic EFECTOR200 OC Series Manual de usuario

IFM Electronic

IFM Electronic efector200 OJ51 Series Manual de usuario

IFM Electronic

IFM Electronic LR7300 Manual de usuario

IFM Electronic

IFM Electronic Efector 410 JN2100 Guía de aplicación

IFM Electronic

IFM Electronic efector200 OGP50 Series Manual de usuario

IFM Electronic

IFM Electronic Efector 300 Manual de usuario

IFM Electronic

IFM Electronic Efector 200 Guía de instalación

IFM Electronic

IFM Electronic efector 300 SU9004 Manual de usuario

IFM Electronic

IFM Electronic Efector 200 Manual de usuario

IFM Electronic

IFM Electronic PN72 Series Manual de usuario

IFM Electronic

IFM Electronic efector160 LR7000 Manual de usuario

IFM Electronic

IFM Electronic Efector 200 OL Series Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manual de usuario

IFM Electronic efector 250 Manual de usuario

Manuales populares de Accesorios de otras marcas
