IEI Technology HPE-4S2 Manual de usuario

HPE-4S2

PICO/PICOe 4SlotsBackplane

with PCI Slots

Quick Installation Guide

Version 1.1

Nov. 10, 2006

1. Fan Connectors

The product provides fan connector, This connectors can supply

12V/500mA to the cooling fan.

•FAN1 : CPU Fan Connector

PIN NO. DESCRIPTION

1 Ground

2 +12V

3 NC

123

2. Backplane to Mainboard ATX Power Control Connector

Power source from Backplane with ATX Connector

•ATXCTL1 : Backplane to Mainboard Connector

PIN NO. DESCRIPTION

1 GND

2 PS_ON#

3 5VSB

123

3. ATX Power Connectors

This connector supports Mainboard ATX power.

•ATXPWR1 : ATX Power Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +3.3V 11 +3.3V

2 +3.3V 12 -12V

3 GROUND 13 GROUND

4 +5V 14 PS_ON#

5 GROUND 15 GROUND

6 +5V 16 GROUND

7 GROUND 17 GROUND

8 PWR_ON 18 NC

9 +5VSB 19 +5V

10 +12V1 20 +5V

12345678910

■ ● ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ● ● ●

11 12 13 14 15 16 17 18 19 20

4. AT Power Connectors

This connector supports Mainboard AT power.

•PWR1 : AT Power Connector

PIN NO3 DESCRIPTION

1 +5V

2 GROUND

3 -12V

4 +12V

1 2 3 4

■ ●● ●

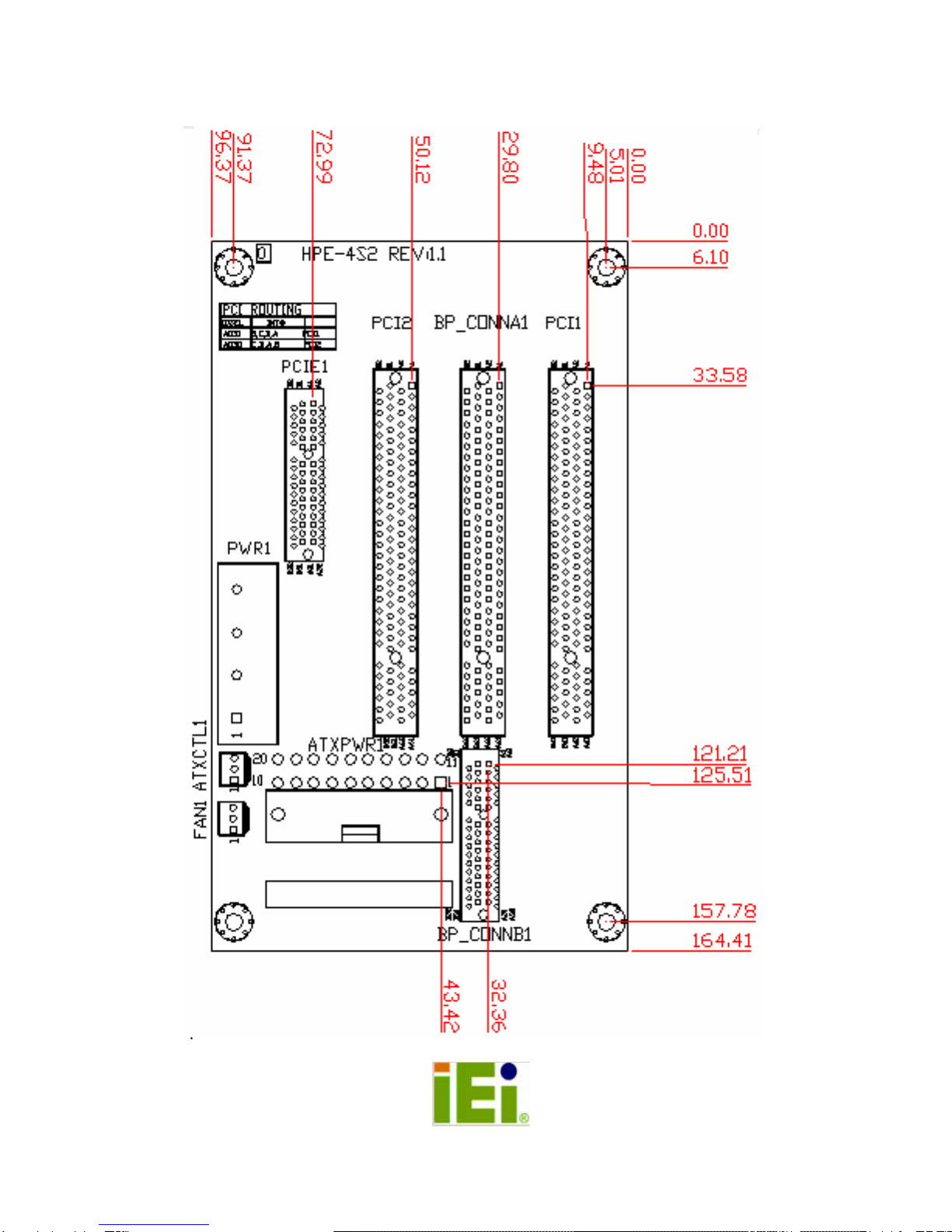

5. Mechanical drawing

©2006 Copyright by IEI Technology corp.

All rights reserved.
