IBM System x3630 M4 Manual de usuario

򔻐򗗠򙳰

Systems X3630 M4 Hot-Swap Rear HDD Drive Cage Option

See the server documentation for detailed instructions for installing this option in the server.

3.5-inch

SAS/SATA

backplane

3.5-inch

hard disk

drive cage

SATA signal cables

LED signal cable

Power cable

1U PCI riser-card

assembly 2

1U PCI riser-card

assembly 1

The option kit contains the following items:

vOne 3.5 inch hard disk drive cage

vOne 3.5 SAS/SATA backplane

vOne LED signal cable

vTwo SATA signal cables

vOne power cable

vOne 1U PCI riser-card assembly 1

vOne 1U PCI riser-card assembly 2

vIBM warranty information document

vImportant notices document

vThis document

To install the optional rear hot-swap SAS/SATA hard disk drive cage, complete the following steps:

1. See the server Problem Determination and Service Guide for installation guidelines and additional safety

information.

2. If the server is operating, turn off the server and peripheral devices and disconnect the power cords

and all external cables.

3. Remove the cover, using the instructions in your server documentation.

4. If a drive filler cage is installed in the chassis, loosen the screw that secures the drive filler cage to

the chassis; then, rotate the drive filler clockwise and remove the drive filler out of the bay from the

server. Go to step 8.

Note: If 2U PCI riser-card assemblies are installed in the server, go to step 5.

5. If 2U PCI riser-card assembly are installed in the server, remove all 2U PCI riser-card assembly and

adapters, using the instructions in your server documentation.

6. Install the removed adapters and/or ServeRAID adapter into the relevant 1U PCI riser-card

assembly, using the instructions in your server documentation.

7. Install the 1U PCI riser-card assembly, using the instructions in your server documentation.

8. If an air baffle partition is installed in the air baffle, remove it from the air baffle.

Air baffle

Air baffle partition

9. Open the two respective blue latches on the chassis 1 .

10. Align the two moveable levers of the rear hard disk drive cage with the two chassis support

brackets. Slide the cage into the chassis support brackets until it firmly sits into place 2. Then,

rotate the cage inward until it firmly sits into place 3.

Release latch

11. Close the latches on the chassis.

12. Remove the power cable that currently connects the hot-swap hard disk drive backplane in the

server to the power-paddle card.

Power cable

Cable tie

13. Connect the LED signal, SATA signal and power cables to the hot-swap backplane used for the rear

hard disk drive cage. They can all be found from the option package.

SATA 0 connector

LED signal

connector

Power connectorSATA 1 connector

14. Align the backplane with the slot on the optional rear hard disk drive cage.

15. Lower the backplane into the optional rear hard disk drive cage. Make sure the three alignment pins

securely engages the three holes on the hard disk drive cage.

SAS/SATA

backplane

Hard disk

drive cage

Alignment pins

16. Connect the other end of the LED signal cable to the hot-swap hard disk drive backplane in the

server.

17. Find the rear hard disk drive detect pin of the hot-swap backplane signal (I2C) cable located near the

system fan cage; then, connect with the rear hard disk drive detect pin of the LED signal cable from

the option package.

LED signal cable

(from option package)

Rear hard disk drive

detect pin

Hot-swap backplane

signal cable (I C cable) Cable tie

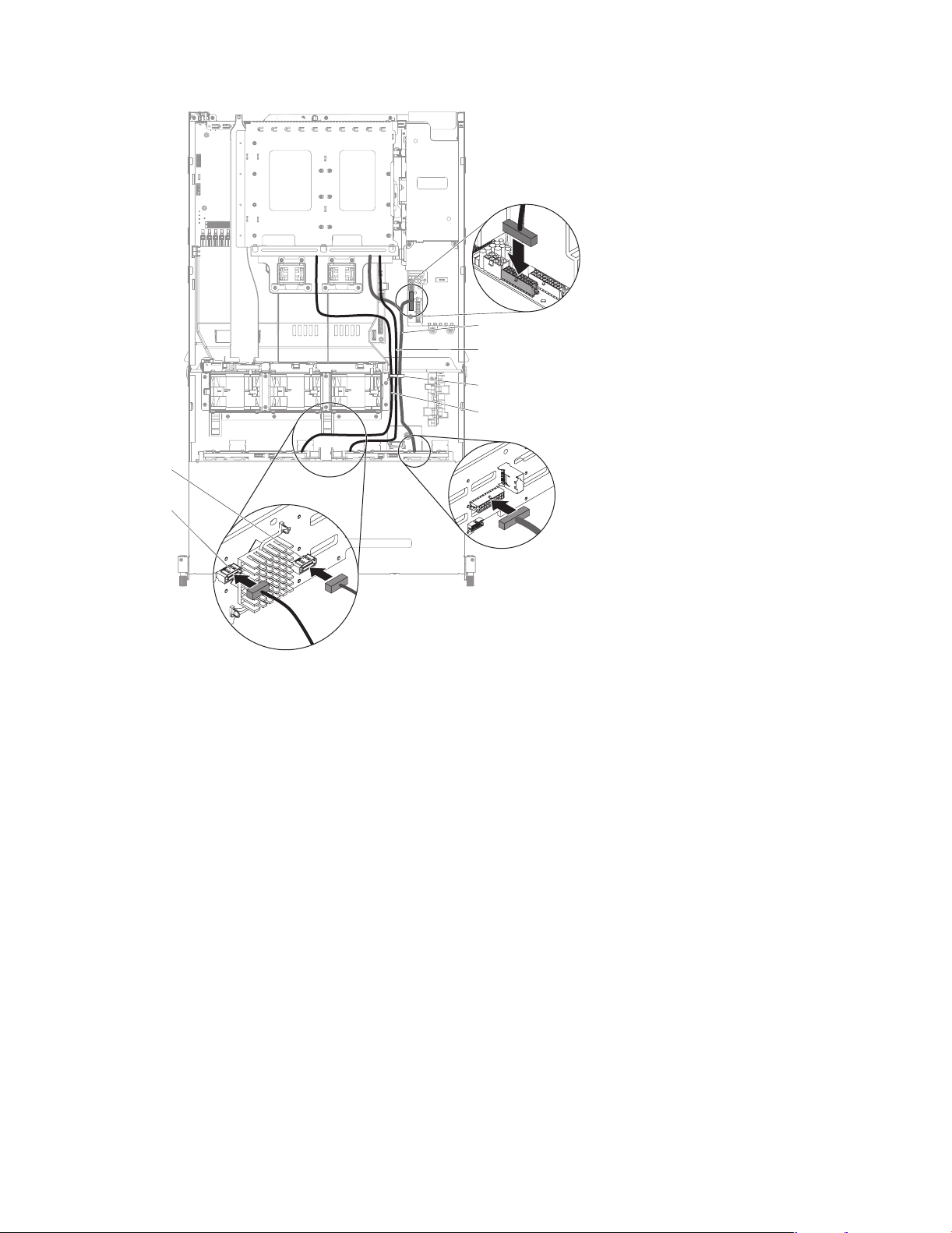

18. Connect the other end of the SATA signal and power cables to the power paddle card and hot-swap

hard disk drive backplane in the server. Make sure the labels of both connectors are matched.

S ATA 0

Power cable

SATA signal cable 0

SATA signal cable 1

S ATA 1

Cable tie

Note: Make sure the cables are routed in the proper locations without blocking the airflow. It is

recommended to press all the cables downwards to make the cable routing easier. Secure the

cables with any cable retention clips.

19. Install the server top cover, using the instructions in your server documentation.

20. Reconnect the external cables; then, reconnect the power cords and turn on the peripheral devices

and the server.

First Edition (May 2012)

Printed in USA

IBM is a trademark of the IBM Corporation in the United States, other countries, or both.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract

with IBM Corp.

(1P) P/N: 00D3244
