IBASE Technology IB940 Manual de usuario

IB940

LGA775 Core2 Duo

Intel®Q965 Chipset

Full Size CPU Card

USER’S MANUAL

Version 1.0A

IB940 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Core 2 Duo are registered trademarks of Intel

Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

IB940 User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

Specifications......................................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on IB940.........................................................12

BIOS Setup.......................................................25

Drivers Installation......................................45

Intel Q965 Chipset Software Installation Utility...............46

Intel Q965 Chipset Graphics Driver..................................48

Realtek Codec Audio Driver Installation..........................50

Intel LAN Drivers Installation ..........................................51

Appendix...........................................................53

A. I/O Port Address Map...................................................53

B. Interrupt Request Lines (IRQ)......................................54

C. Watchdog Timer Configuration....................................55

D. Digital I/O Sample Code..............................................59

IB940 User’s Manual

ATTENTION:

It is strongly recommended that only heatsinks that have corresponding

(metal) backplates be used on the CPU card. This is to avoid the CPU

card being bent/distorted, causing the CPU card to become damaged. A

reference picture of a backplate and heatsink that has backplate are

shown below.

INTRODUCTION

IB940 User’s Manual 1

Introduction

Product Description

The IB940 CPU card is based on the Intel Q965 chipset and supports the

Intel® Core™2 Duo processor with 1066/800/533 MHz System Bus. It

supports the PCI Express x16 graphics interface for the latest

high-performance graphics cards. The PCI Express x1 I/O ports offer up

to 3.5X the bandwidth over traditional PCI architecture, delivering faster

access to peripheral I/O devices.

The Intel GMA 3000 graphics on board supports Dual Independent

Display and delivers richer visual color and picture clarity without the

need for additional discrete graphics cards, and the integrated audio

support enables premium digital sound and delivers advanced features

such as multiple audio.

The CPU card also supports Dual-Channel DDR2 memory in four

DIMM sockets and delivers up to 12.8 GB/s of bandwidth and 8 GB

memory addressability for faster system responsiveness. Dimensions of

the board are 338mm x 126mm.

The main features of the CPU card are:

yIntelQ965 Express Chipset Based

ySupport LGA775 IntelCore2 Duo Processors

ySupport FSB 1066/800/533MHz

ySupport up to 4GB DDRII 800/667/533 memory

y1 x Mini PCI Express Slot

ySupport one 10/100 or two Gigabit LAN on board

y4 x SATA II, 1 x IDE, 1x Floppy, 6 x USB 2.0, 2 x

COM, 1 x Parallel,

y5.1Ch. Audio, 1 x TMDS

yDual channel LVDS support 18/24 bit

INTRODUCTION

IB940 User’s Manual

Checklist

Your IB940 Core 2 Duo CPU Card package should include the items

listed below:

The IB940 Card

This User’s manual

1 x IDE cable

1 x Floppy cable

1 x SATA cable

1 x TMDS cable

2 Serial Port Ribbon Cable and 1 Parallel Port Attached to a

Mounting Bracket

1 Y-Cable supporting a PS/2 Keyboard and a PS/2 Mouse

Audio cable with bracket (Audio-18K)

USB cable with bracket (USB2K-4)

1 CD containing the following:

Chipset Drivers

Flash Memory Utility

Optional SATA Power Cord (PW34)

INTRODUCTION

IB940 User’s Manual 3

Specifications

Form Factor Full Size CPU Card (PICMG1.0)

Processor Support for Intel Core 2 Duo processor (Conroe core) in

LGA775 socket

FSB 533/800/1066 MHz

Chipset Intel Broadwater (Q965) Chipset consisting of:

Intel Q965 Graphics Memory Controller Hub (GMCH)

Intel ICH8/ICH8DO I/O Controller Hub

BIOS Award BIOS: footprint for both SPI & LPC I/F

Support for ACPI, SMBIOS

Memory 2x 240-pin DDRII 533/667/800 DIMM sockets, supports

single channel, max. 4 GB

Video Intel Q965 integrated graphics subsystem GMA3000

DVI Chrontel CH7307C x1 for DVI

LVDS Chrontel CH7308B x1 for 24-bit single/dual channel LVDS

LAN LAN1: dual footprint support option:

Intel 82566DM Nineveh 10/100/1000 (IB940F)

Intel 82562V Ekron-N 10/100 (IB940)

LAN2: Intel 82573L PCI-e gigabit LAN (IB940F)

Audio Intel ICH8 built-in high definition audio w/ Realtek ALC888

Codec supports 5.1 CH audio (line-out, line-in & mic)

LPC I/O Winbond W83627EHG: IrDA x1, Parallel x1, COM1 (RS232),

COM2 (RS232/422/485), floppy, Hardware monitor (3

thermal inputs, 4 voltage monitor inputs & 2 fan headers)

USB Intel ICH8 built-in two High Speed USB host controller,

supports 6 USB 2.0 ports (support for USB port disable) w/

over-current protection

SATA II Intel ICH8 built-in SATA II controller (3.0Gb/sec) w/ 4 ports

IDE JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel

PCI-to-ISA

bridge ITE IT8888G x1 for high drive ISA bus

Expansion Mini PCI-express socket x1 for Wireless LAN or other

module

Edge Connector PS/2 connector x1 for PS/2 keyboard & Mouse, DB15 x1

for VGA, RJ45 x2 for LAN 1, 2

On Board

Headers /

Connectors

Standard SATA (7-pin shrouded vertical) connector x4

40 pins, 0.1” pitch, standard box-header x1 for IDE

DF13-20 header x2 for LVDS

DF11-20 header x1 for DVI

34 pins box-header x1 for floppy

26 pins box-header x1 for printer

5x2 pins box-header x2 for COM1-2

4 pins pin-header x1 for CPU fan

3 pins pin-header x1 for system fan

4x2 pins pin-header x3 for USB1-6

RTC ICH8 built-in RTC with on-board lithium battery

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

Digital IO 4 in and 4 out

System Voltage +5V, +3.3V, +12V, -12V & 5VSB

Board Size 338 x 122mm

INTRODUCTION

IB940 User’s Manual

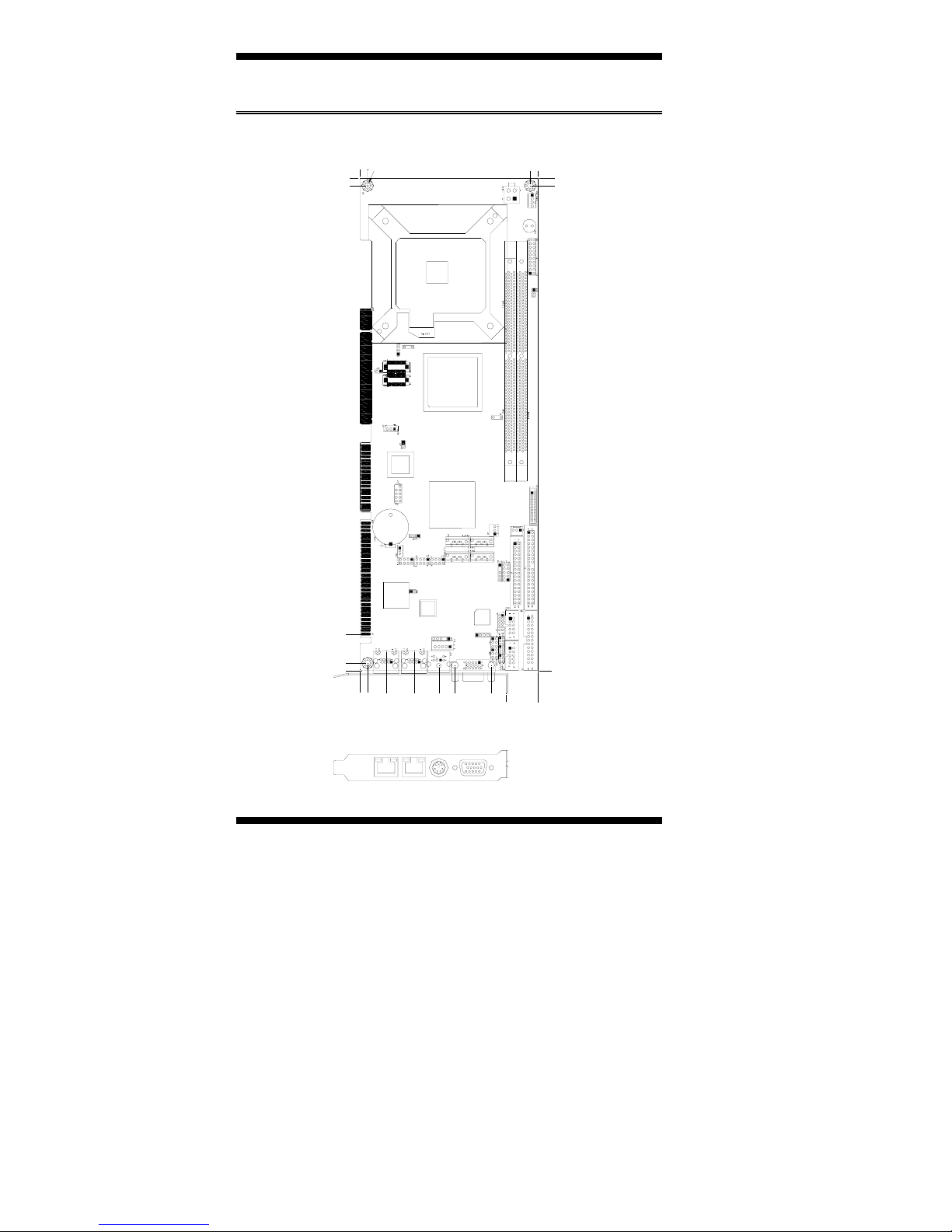

Board Dimensions

338.25

333.17

313.18

338.25

121.92

100.34

90.07

65.07

53.95

36.93

17.78

5.08

116.84

121.92

5.08

5.07

O4.06

5.08

JP8

J24

INSTALLATIONS

IB940 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the IB940 in order to set up a workable system. The topics

covered are:

Installing the CPU........................................................................ 6

Installing the Memory.................................................................. 7

Setting the Jumpers...................................................................... 8

Connectors on IB940 ................................................................. 12

INSTALLATIONS

IB940 User’s Manual

Installing the CPU

The IB940 CPU Card supports an LGA 775 processor socket for Intel®

Core 2 Duo processors.

The LGA 775 processor socket comes with a lever to secure the

processor. Refer to the pictures below, from left to right, on how to place

the processor into the CPU socket. Please note that the cover of the

LGA775 socket must always be installed during transport to avoid

damage to the socket.
