IBASE Technology MI912 Manual de usuario

MI912

Intel ®CoreTM 2 Duo/

Celeron GME965

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0A

MI912 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel Core 2 Duo and Intel Celeron processors are

registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI912 User’s Manual iii

Table of Contents

Introduction...................................................... 1

Product Description............................................................1

Checklist.............................................................................2

MI912 Specifications .........................................................3

Board Dimensions..............................................................4

Installations...................................................... 5

Installing the CPU ..............................................................6

Installing the Memory.........................................................7

Setting the Jumpers.............................................................8

Connectors on MI912.......................................................12

BIOS Setup.......................................................27

Drivers Installation......................................49

Intel Chipset Software Installation Utility.........................50

VGA Drivers Installation..................................................52

AC97 Codec Audio Driver Installation ............................54

LAN Drivers Installation ..................................................55

Appendix...........................................................59

A. I/O Port Address Map..................................................59

B. Interrupt Request Lines (IRQ)......................................60

C. Watchdog Timer Configuration...................................61

IMPORTANT NOTE: When the system boots without the CRT being

connected, there will be no image on screen when you insert the

CRT/VGA cable. To show the image on screen, the hotkey must be

pressed (CTRL-ALT-F1).

MI912 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MI912 User’s Manual 1

Introduction

Product Description

The MI912 Mini ITX board incorporates the Mobile Intel®GME965 Express

Chipset for Embedded Computing, consisting of the Intel®GME965 Graphic

Memory Controller Hub (GMCH) and Intel®I/O Controller Hub (ICH8-M), an

optimized integrated graphics solution with a 533MHz and 800MHz front-side

bus. Dimensions of the board are 170mm x 170mm.

The integrated powerful 3D graphics engine, based on Intel®Graphics Media

Accelerator X3000 (Intel®GMA X3000) architecture, operates at core speeds of

up to 400 MHz.It features a low-power design, is validated with the Intel® Core 2

Duo and Intel®Celeron processors on 65nm process. With dual channel DDR2

667MHz two DIMM sockets, the board supports up to 4GB of DDR2 system

memory.

Intel®Graphics supports a unique intelligent memory management scheme called

Dynamic Video Memory Technology (DVMT). DVMT handles diverse

applications by providing the maximum (384MB) availability of system memory

for general computer usage, while supplying additional graphics memory when a

3D-intensive application requests it. The Intel®GMA X3000 graphics

architecture also takes advantage of the high-performance Intel processor. Intel®

GMA X3000 graphics supports Dual Independent Display technology.

The main features of the board are:

Supports Intel®CoreTM 2 Duo (Merom 800MHz), Intel® Celeron

Supports up to 2.4GHz, 533MHz/800MHz FSB

Two DDR2 SDRAM DIMM, Max. 4GB memory

Onboard 10/100/100 and optional Intel 82574L Gigabit LAN

Intel®GME965 Express VGA for CRT / LVDS

2x SATA, 6x USB 2.0, 2x COM, Watchdog timer, 1394

1x MiniPCI, 1x PCI, 1xPCI-E(x1) slots, optional DVI

Optional daughter cards:

ID390: Chrontel 7308, supports 24 bit single or dual LVDS channel

ID390C: Chrontel 7021, supports CRT

ID391: Chrontel 7307C, single DVI (connector on cable)

ID391D: Chrontel 7307C, dual DVI (connector on cable)

ID392D: Chrontel 7307C, dual DVI (one connector on card and one on cable)

MI912E/MI912EL only

INTRODUCTION

MI912 User’s Manual

Checklist

Your MI912 package should include the items listed below.

•The MI912 Mini-ITX motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION

MI912 User’s Manual 3

MI912 Specifications

CPU Supported

Intel®CoreTM 2 Duo, Intel®Celeron mobile processors

CPU Voltage

0.700V ~ 1.5V (IMVP-6)

System Speed

Up to 2.4GHz or above

CPU FSB

533MHz/800MHz FSB

Cache

1MB/2MB/4MB

Green /APM

APM1.2

CPU Socket

mPGA 478MN Socket

Chipset

Intel®GME965 Chipset

GMCH: GME965 1299-pin Micro-FCBGA

ICH8M: 82801HBM 678-pin mBGA

BIOS

Award BIOS, supports ACPI Function

Memory

DDR2 667/533 SDRAM DIMM x2 (w/o ECC function), Max. 4GB

VGA

GMA965 built-in, supports CRT,RCA,S-VIDEO,HDTV

SDVO (Dual CH)

Through ID390 card (Chrontel 7308, 24 bit single/dual channel

LVDS, Chrontel 7021, CRT, RCA, S-VIDEO or HDTV)

Through ID391 card (Chrontel 7307C,DVI single or Dual)

LVDS LCD Panel

GME965 built-in, supports 24-bit (Type 1 only), single or dual channel

LVDS

LAN

1. ICH8M 10/100/gigabit MAC + PHY

•Intel 82566DM Nineveh 10/100/1000 (MI912E)

2. Intel

82574L Gigabit LAN controller x1 (MI912EF)

USB

ICH8M built-in USB 2.0 host controller, support 6 ports

Serial ATA Ports

ICH8M built-in SATA controller, supports 2 ports

1394

TI TSB43LV22 (dual port)

Parallel IDE

ICH8M built-in one channel Ultra DMA 33/66/100,CF Type II

Audio

ICH8M built-in Audio controller + High Definition Audio Codec ALC885 w/

7.1 channels, SPDIF-OUT

LPC I/O

W83627EHF: COM1, COM2 (RS232/RS422/RS485), Slim FDC 1.44MB,

IrDA x1 & hardware monitor (3 thermal, 4 voltage monitor inputs, 2 fan

headers)

Digital IO

4 in & 4 out

Keyboard/Mouse

Supports PS/2 Keyboard/Mouse Connector

Expansion Slots

PCI slot x1, PIC-E (x1) slot x1 and Mini PCI socket x1

Edge Connectors

PS/2 Connector x1 for keyboard/mouse

Gigabit LAN1 RJ-45 + dual USB stack connector

Gigabit LAN2 RJ45 (option) + dual USB stack connector

DB9 x1 for COM 1; DB15 x1 for VGA

SPDIF-out connector x1; 1394 connector x1

RCA Jack 3x2 for Audio (Front-Out, Line-In, Mic, Center/LFE, Surround &

Surround Back)

Onboard Header/

Connectors

40-pin box-header x1 for IDE1; 26-pin header x1 for Slim Floppy

CF Connector x1 @ solder side

10-pin headerx1 for Digital I/O; 10-pin header x1 for COM2

10-pin header x 1 for USB 5,6; 5-pin header x 1 for IrDA

DF13 connector x2 for LVDS;

10-pin header x1 for audio Line-Out & Mic

7-pin header x1 for 1394

SATA connector x2 for SATA ports

Watchdog Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage

+5V, +3.3V, +12V, -12V, 5VSB (2A)

Others

Modem Wakeup, LAN Wakeup

Board Size

170mm x 170mm (Mini ITX)

INTRODUCTION

MI912 User’s Manual

[

Board Dimensions

INSTALLATIONS

MI912 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI912 in order to set up a workable system. The topics

covered are:

Installing the CPU ......................................................................6

Installing the Memory.................................................................7

Setting the Jumpers ....................................................................8

Connectors on MI912...............................................................12

INSTALLATIONS

MI912 User’s Manual

Installing the CPU

The MBI910 board supports a Socket 478MN (Merom) processor socket

for Intel®CoreTM 2 Duo, Intel®Celeron mobile processors.

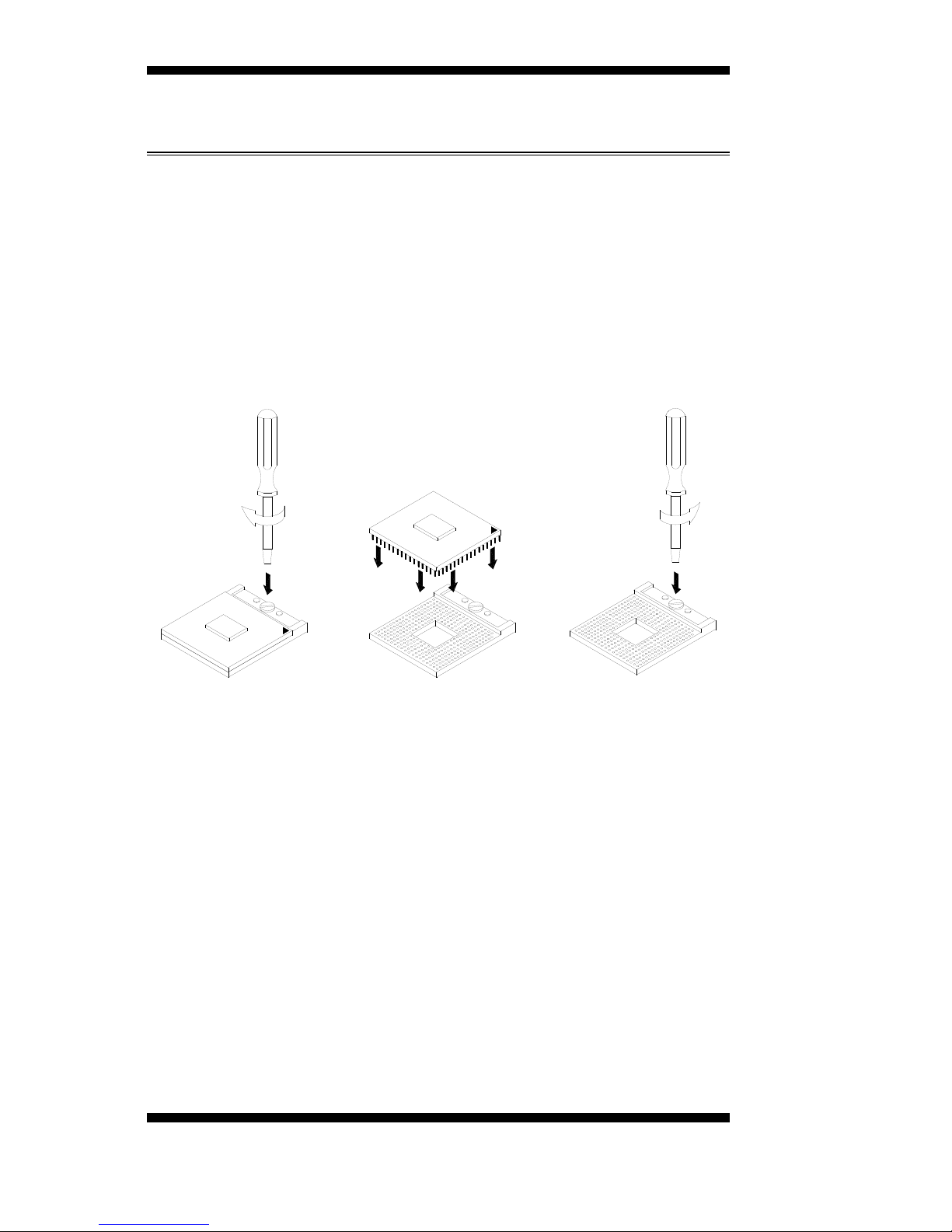

The processor socket comes with a screw to secure the processor. As

shown in the picture below, loosen the screw first before inserting the

processor. Place the processor into the socket by making sure the notch

on the corner of the CPU corresponds with the notch on the inside of the

socket. Once the processor has slide into the socket, fasten the screw.

NOTE:

Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.
