HyperX Cloud Stinger 2 Wireless

Find the language and latest documentation for your HyperX Cloud Stinger 2 Wireless here.

HyperX Cloud Stinger 2 Wireless User Manual

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 1 of 17

HyperX Cloud Stinger 2 Wireless

Part Numbers

676A2AA

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 2 of 17

TABLE OF CONTENTS

Overview ................................................................................................................................... 3

Specifications .......................................................................................................................... 4

Charging the Headset .............................................................................................................. 6

Setting up with PC ................................................................................................................... 7

Setting up with PlayStation 4 ............................................................................................... 10

Setting up with PlayStation 5 ............................................................................................... 11

Controls .................................................................................................................................. 13

Status LED .............................................................................................................................................................. 13

Power Button ......................................................................................................................................................... 13

Swivel to Mute Microphone .................................................................................................................................. 14

Volume Wheel ........................................................................................................................................................ 15

Tone Notifications ................................................................................................................................................. 15

HyperX NGENUITY Software ................................................................................................ 16

Manually Pairing the Headset and Wireless Adapter ......................................................... 17

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 3 of 17

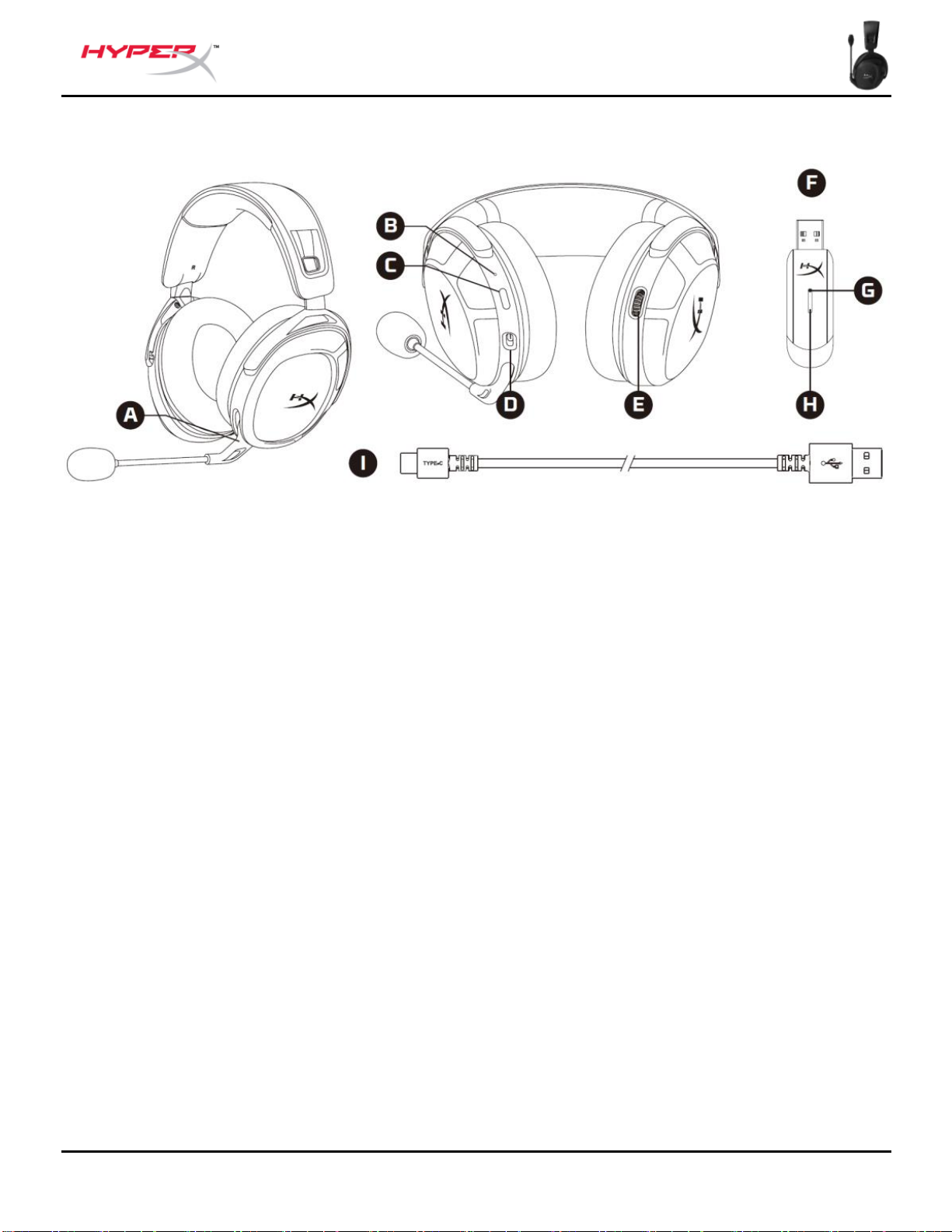

Overview

A.Swivel to mute microphone

B. Status LED

C. Power button

D. USB-C charge port

E. Volume wheel

F. USB wireless adapter

G. Wireless pairing pin hole

H. Wireless status LED

I. USB-C charge cable

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 4 of 17

Specifications

Headphone

Driver: Dynamic, 50mm with Neodymium magnets

Form factor: Closed Back

Frequency response: 10 Hz - 20.2 kHz

Impedance: 32 Ω

Sensitivity: 104.5 dBSPL/mW at 1 kHz

T.H.D.: ≤ 2%

Frame type: Plastic

Ear cushions: Memory foam and premium leatherette

Microphone

Element: Electret condenser microphone

Polar pattern: Bi-directional, Noise-cancelling

Frequency response: 20 Hz - 6.68 kHz

Sensitivity: -12 dBFS/Pa at 1kHz

Connections and Features

Audio connection: Wireless USB

USB audio format: Stereo

USB specification: USB 2.0

Sampling rates: 48 kHz

Bit-Depth: 16 bit

Included virtual surround sound: DTS Headphone:X

Audio controls: Onboard audio controls

Battery

Type: Rechargeable lithium-polymer

Battery life: 20 Hours*

Charge time: 3.5 hours

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 5 of 17

Wireless

Type: 2.4GHz

Wireless range: Up to 20 meters**

Physical

Weight: 275g

Cable length(s) and type(s): 0.5m USB charge cable

*Tested at 50% headphone volume. Battery life varies based on volume and usage.

**Wireless range may vary due to environmental conditions.

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 6 of 17

Charging the Headset

It is recommended to fully charge your headset before first use.

When charging the headset, the headset status LED will indicate the current charge status.

Charge Status Status LED

Fully charged Solid green

10% - 99% battery level Breathing green

< 10% battery level Breathing red

To charge the headset, plug the headset to a USB port with the USB-C charge cable.

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 7 of 17

Setting up with PC

1. Connect the wireless adapter to the PC.

2. Power on the headset.

3. Right click speaker icon > Select Open Sound settings > Select Sound Control Panel

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 8 of 17

4. Under the Playback tab, click on “HyperX Cloud Stinger 2 Wireless” and click on the Set

Default button.

5. Under the Recording tab, click on “HyperX Cloud Stinger 2 Wireless” and click on the Set

Default button.

Document No. 676A2AA.A01 HyperX Cloud Stinger 2 Wireless Page 9 of 17

6. Under the Playback tab, verify that “HyperX Cloud Stinger 2 Wireless” is set as Default

Device and Default Communication Device. Under the Recording tab, verify that “HyperX

Cloud Stinger 2 Wireless” is set as Default Device.

7. To set up DTS Headphone:X, please download the HyperX NGENUITY software at

hyperx.com/ngenuity and follow the instructions in the app to install the required drivers. DTS

Spatial Audio is controlled within NGENUITY software.
