CONTENTS

Questions?

Call Hunter Douglas Consumer Support at 1-888-501-8364.

their respective owners.

GETTING STARTED

Product View...........................................................................................1

Tools and Fasteners Needed ..................................................................2

INSTALLATION

Installation Overview .............................................................................3

STEP 1 — Install the Brackets ...............................................................3

Mount the Installation Brackets – Inside Mount...............................4

Mount the Installation Brackets – Outside Mount ............................6

Mount the Installation Brackets – End Mount...................................8

STEP 2 — Connect the Battery Wand/Mount, If Applicable.................9

STEP 3 — Install the Shading..............................................................11

STEP 4 — Connect the Power Source, If Applicable...........................12

Unpack the Wand and Attach to Activation Arm.................................17

OPERATION

Basic Operation.....................................................................................18

Express Mode .......................................................................................19

Set and Go to a Favorite Position.........................................................19

Troubleshooting ....................................................................................20

CARE

Removing the Shading..........................................................................29

Cleaning Procedures.............................................................................29

WARRANTY............................................................................Back Cover

GETTING STARTED

Product View

Installation

Brackets

Headrail

End Cap

Bottom Rail

Activation

Arm

Battery

Wand

Fabric-Covered

Headrail

Wand

Fabric

Not Shown:

Rechargeable Battery Wand, Satellite Battery Pack,

C-Size Satellite Battery Wand, and

18V DC Power Supply

Optional Dust Cover

(For Outside Mount)

Optional Back Cover

(For Inside and End Mount)

GETTING STARTED

Thank you for purchasing Hunter Douglas Pirouette®Window Shadings with SoftTouch®

Motorization. With proper installation, operation, and care, your new shadings will provide

years of beauty and performance.

Please thoroughly review this instruction booklet and the enclosed packing list before

beginning the installation.

Tools and Fasteners Needed

■

⁄

" hex and flat blade screwdrivers

■ Level (laser level is recommended)

■ Measuring tape and pencil

■ Pliers

■ Power drill,

⁄

" drill bit, and

⁄

" hex driver (or socket wrench with

⁄

" hex socket)

■ Scissors (heavy-duty)

In addition, you will need fasteners designed to work with your specific mounting surface(s).

■ #6 Hex Head Screws (Provided). Two 1

⁄

" screws are provided per installation bracket.

■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws

long enough for a secure attachment.

■ Speed Nuts and Screws (Provided). Extension brackets come with screws and

speed nuts.

■ Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.

Speed Nut

and Screw

(Provided with

Each Extension Bracket)

#6 x 1

∕

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

for Use with Spacer Blocks

(Not Provided)

Important Operating Note

If a shading has been fully lowered with the vanes open for a long period of time,

the vanes may become “set” — they may not easily close or flatten. This is a normal

characteristic of fabric products.

If this happens, move the shading up and down to coax the vanes as closed as possible.

If necessary, gently pull down on the lowest operable vane. You may also dress the vanes

gently with your hands to help them close. Then roll up the shading slowly to flatten the

vanes. Allow the fabric to remain in the headrail for up to 24 hours.

To prevent vane set, regularly “exercise” the shading by raising and lowering it and

opening and closing the vanes.

INSTALLATION

Installation Overview

To install your shading, you will need to perform the following four steps:

STEP 1: Install the Brackets

STEP 2: Connect the Battery Wand, If Applicable

STEP 3: Install the Shading

STEP 4: Connect the Power Source, If Applicable

STEP 1 — Install the Brackets

■ Your order will include the correct number of installation brackets for your shading width,

as shown in the table below.

■ Shading orders may also include spacer blocks or extension brackets, if they were

specified for added clearance.

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process follows

easily. To prepare for this important first step, review the mounting types and basic window

terminology illustrated below.

■ Refer to the appropriate page below based on your order:

➤ Inside Mount — Page 4

➤ Outside Mount — Page 6

➤ End Mount — Page 8

Shading Width Brackets

15" – 30"

∕

" – 60"

∕

" – 90"

∕

" – 96"

Installation Bracket For Added Clearance

∕

" Spacer

Blocks

Extension

Bracket

Outside Mount

Shadings mount

outside window

opening.

Inside Mount

Shadings ﬁt within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

INSTALLATION

Mount the Installation Brackets — Inside Mount

If Using the Optional Back Cover ...

■ Remove the top tab on the back cover brackets.

■ Snap each back cover bracket into a metal

installation bracket.

Mount the Installation Brackets

■ Mark 2" from each jamb for bracket location.

➤ If more than two installation brackets came with your order, space additional

bracket(s) evenly between the two end brackets and mark their location. Mount into

wood whenever possible. Allow a minimum of 20" from the motor side for the

battery wand/rechargeable battery wand.

NOTE: Before the headrail is installed, the bracket levers need to be fully to the left. Once

the headrail is properly in place, the levers automatically click to the right.

Back Cover Bracket

Top Tab

Bottom

Tab

Back Cover

Slots

Shadings with Battery Wand or Rechargeabl Battery Wand

Shadings with Optional Satellite Battery Pack or 18V DC Power Supply

Jamb

20" Minimum for Battery Wand or

Rechargeable Battery Wand

Space Evenly Space Evenly

2" 2"

Jamb

Space Evenly Space Evenly

2" 2"

Motor

Side

Motor

Side

Jamb

INSTALLATION

■ Center the brackets on your marks and mark the location of the screw holes.

➤ The minimum casement depth required for

installation brackets is 1" (1

⁄

" with a headrail-

mounted rechargeable battery wand).

➤ The minimum casement depth required for a fully

recessed mount is 3

⁄

" (4

⁄

" with a headrail-

mounted rechargeable battery wand).

■ Use a level to check that the mounting surface is level.

Shim the brackets.

■ Drill the screw holes using a

⁄

" drill bit.

CAUTION: Use drywall anchors when mounting

into drywall.

■ Attach the installation brackets using the screws provided.

IMPORTANT: Do not overtighten the screws. Check

to ensure the bracket lever can be moved easily side

to side. If not, loosen the screws

in one-eighth turn

increments until the lever can be moved easily.

IMPORTANT: The front edges of the installation

brackets must be level and aligned to each other.

Install the Optional Back Cover

■ Install the cover into the back cover brackets.

■ If necessary, trim the back cover to the desired width.

Proceed to “STEP 2 — Connect the Battery Wand, If Applicable” on page 9.

Casement

Depth

Back

Cover

INSTALLATION

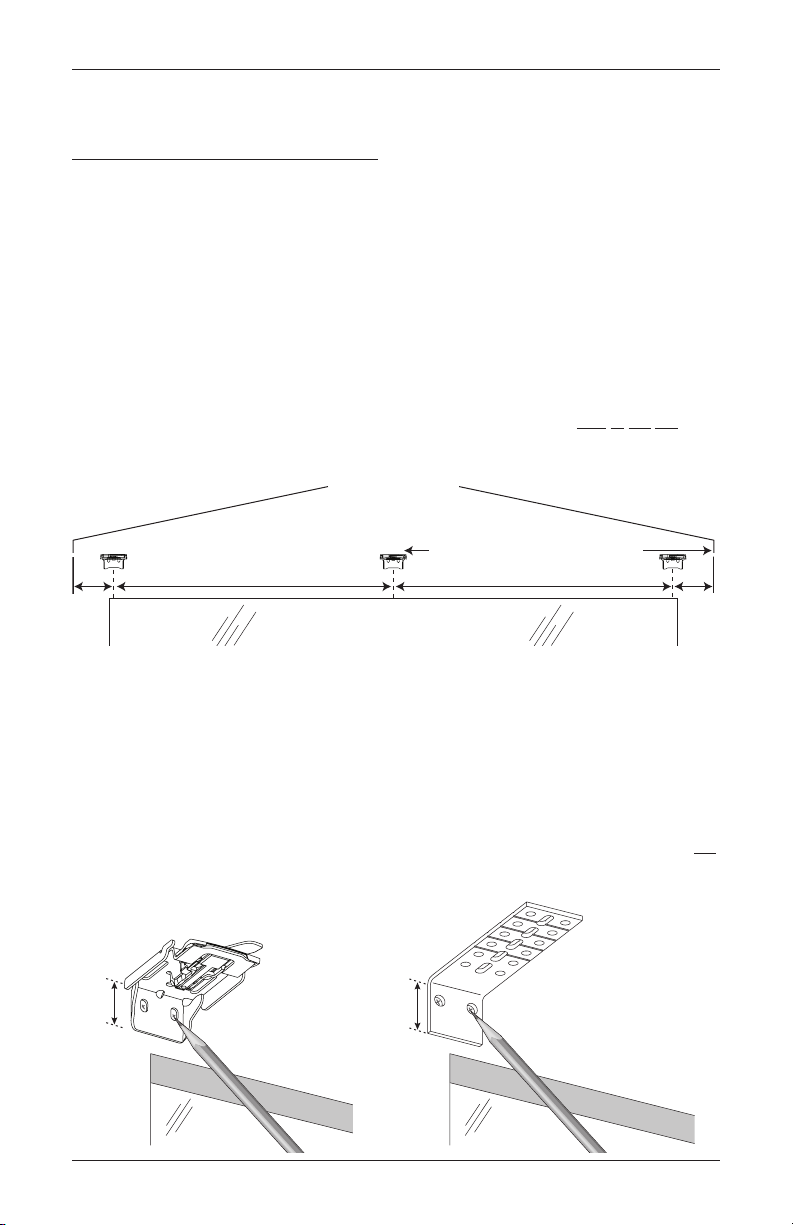

Mount the Installation Brackets — Outside Mount

Mount the Installation Brackets

■ Center the headrail over the window opening at the desired height. Use a pencil to lightly

mark the wall at each end of the headrail.

➤ Alternatively, measure the width of the headrail and use that width to mark the

headrail end points over the window opening.

■ Mark 2" from each end of theheadrail.

➤ If more than two installation brackets came with your order, space additional

bracket(s) evenly between the two end brackets and mark their location. Mount into

wood whenever possible. Allow a minimum of 20" from the motor side for the

battery wand/rechargeable battery wand.

NOTE: Before the headrail is installed, the bracket levers need to be fully to the left.

Once the headrail is properly in place, the levers automatically click to the right.

■ Center the installation brackets or extension brackets on your marks and mark where to

drill the screw holes.

➤ A minimum 1" flat vertical surface isrequired for the installation brackets. Extension

brackets require 1

⁄

➤ The top of the installation brackets or extension brackets should be at the desired

height. The brackets should be level and aligned to each other.

CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not

mount brackets on curved molding.

Headrail End Marks

Window Opening

Motor

Side

Space EvenlySpace Evenly

2" 2"

20" Minimum for Battery Wand

or Rechargeable Battery Wand

Extension

Bracket

∕

INSTALLATION

■ Drill the screw holes using a

⁄

" drill bit.

CAUTION: Use drywall anchors

when mounting into drywall.

■ Attach the installation or

extension brackets using the

screws provided.

IMPORTANT: The top of the

installation bracket or extension

brackets must be level with their

front edges aligned.

■ If using spacer blocks for added

clearance, attach the spacer

block(s) and installation bracket

to a flat vertical mounting surface

with #6 screws long enough for a

secure installation.

➤ The top of the spacer blocks should be at the

desired shading height.

IMPORTANT: Do not add more than 1

⁄

" of

clearance using spacer blocks.

IMPORTANT: The top of the installation brackets

must be level with the front edges aligned.

CAUTION: Use drywall anchors when mounting

into drywall.

■ If using extension brackets, attach an installation

bracket to the underside of each extension bracket

using the speed nuts and screws provided.

Proceed to “STEP 2 — Connect the Battery Wand, If Applicable”

on page 9.

∕

Maximum

Spacer

Blocks

Longer

Screw

Speed Nut

Screw

INSTALLATION

Mount the Installation Brackets — End Mount

End mount the headrail when conventional mounting techniques will not work — for example,

in an arched window opening.

Mount the Extension and Installation Brackets

■ Mount extension brackets to each side of the opening at the desired height of the shading.

➤ The mounting surface must be vertical and flat, not part of an arched curve.

➤ Minimum mounting surface width with a built-in battery wand is 2

⁄

➤ Minimum mounting surface width with a staellite battery pack and 18V DC Power

Supply is 1", and 1

⁄

" for rechargeable battery wand.

■ Attach the installation brackets to the extension

brackets using the provided screws and speed nuts.

WARNING: To end mount shadings into a

surface other than a secure wall stud, use

medium to heavy-duty wall anchors (not

provided) matched to the wall thickness.

Failure to mount the brackets securely may

result in injury or property damage.

Install the Optional Back Cover

■ Remove the top tab on the back cover brackets. See

“If Using the Optional Back Cover ...” on page 4.

■ Install the cover into the back cover brackets.

■ If necessary, trim the back cover to the desired width.

Proceed to “STEP 2 — Connect the Battery Wand, If Applicable”

on page 9.

Extension

Bracket

∕

Minimum

Depth

Back

Cover

Otros manuales para Pirouette

Tabla de contenidos

Otros manuales de Persiana de ventana de HunterDouglas

HunterDouglas

HunterDouglas Horizontal Aluminum Blinds Manual de operación

HunterDouglas

HunterDouglas Vignette Modern Roman Shades Manual de lista de piezas

HunterDouglas

HunterDouglas Country Woods Manual de operación

HunterDouglas

HunterDouglas RB 500 Guía de seguridad

HunterDouglas

HunterDouglas 5-216 Manual de usuario

HunterDouglas

HunterDouglas SCG 64 Manual de usuario

HunterDouglas

HunterDouglas Solera EasyRise Manual de lista de piezas

HunterDouglas

HunterDouglas Cadence Soft Vertical Blinds Manual de lista de piezas

HunterDouglas

HunterDouglas Sonnette Manual de usuario

HunterDouglas

HunterDouglas RB 500 Guía de seguridad

HunterDouglas

HunterDouglas Luxaflex PowerView Manual de usuario

HunterDouglas

HunterDouglas Duette Manual de usuario

HunterDouglas

HunterDouglas Decor Standard Cordlock Manual del propietario

HunterDouglas

HunterDouglas PowerView Gen 3 Manual de usuario

HunterDouglas

HunterDouglas Paramount Manual del propietario

HunterDouglas

HunterDouglas Palmetto Horizontal Shadings Manual

HunterDouglas

HunterDouglas Country Woods Manual de operación

HunterDouglas

HunterDouglas Standard Cordlock, Moveable Slat Specialty... Guía del usuario

HunterDouglas

HunterDouglas ZIP 100 Guía de mantenimiento y servicio

HunterDouglas

HunterDouglas Duette SkyLift Manual de usuario

HunterDouglas

HunterDouglas Silhouette Manual de lista de piezas

HunterDouglas

HunterDouglas VS 100 Guide rail Guía de mantenimiento y servicio

HunterDouglas

HunterDouglas RB 500 Guía de seguridad

HunterDouglas

HunterDouglas 2" Horizontal Aluminum Blinds Manual de lista de piezas

Manuales populares de Persiana de ventana de otras marcas

Jysk

Jysk ROGEN Manual de usuario

SOMFY

SOMFY 1241752 Manual de usuario

Rollos

Rollos S-Nanorollo V2 Guía de planificación

Teptron

Teptron Move Manual de usuario

Renson

Renson Outdoor Loggia Guía de seguridad

Project Source

Project Source CDLF2342W Manual de usuario

Domondo

Domondo PureNight Manual de instrucciones de instalación

rollease acmeda

rollease acmeda Easy Spring Air Guía de configuración

IKEA

IKEA KADRILJ Manual de usuario

Hallis Hudson

Hallis Hudson Rolls Super glide Manual de usuario

Benthin

Benthin P1614 Manual de usuario

MV LINE

MV LINE CLARA 015 Manual de instrucciones

Current

Current E-WAND Guía

weinor

weinor VertiTex ZipR Manual

Roto

Roto ZAR M R4/R7 Manual de usuario

SOMFY

SOMFY Movelite WT Series Manual de usuario

Acmeda

Acmeda RF400 Series Manual de usuario

Motura

Motura Pli_353/3 Manual de usuario
