HunterDouglas ZIP 100 Guía de mantenimiento y servicio

ZIP 100 Zip-screen

Screw-t side guides

INSTALLATION - MAINTENANCE

ZIP 100 Zip-screen

Screw-t side guides

Installation - Maintenance

1 Installing the guide rails

Use the drilled holes in the guide

rails to mark the hole positions on

the mounting surface (wall A or

niche B) and, if necessary, drill to

correct diameter.

Screw the guide rails to the surface

with suitable screws and check so

that the proles are vertical, paral-

lel and on the same level.

Before continuing, check that the

rails are installed with the same c-c

as the legs of the cassette gables.

Adjust if needed.

• Ensure that the awning is xed to a sufciently secure base. If needed - contact the

façade- or window supplier for specic information.

• Check that the Zip-screen ts where supposed to be installed.

• Opening windows and doors may limit the possibility for installing Zip-screens.

• The motor and any control equipment must be installed by an authorised electrician.

Wall

Niche

Left guide rail,

top view

ZIP 100 Zip-screen

Screw-t side guides

Installation - Maintenance

Measure the posi-

tions for the exten-

sion brackets - then

scew these to the

wall with proper

screws.

Pre-assemble the

ange nuts on the

T-slotted bolts. Slide

these into the guide

rails (2 pcs/bracket).

1b Installing extension brackets (optional)

Screw the guide rails

to the extension

brackets

Make sure the guide

rails are vertical, pa-

rallell and levelled.

Assemble the casset-

te according to the

manual.

60-150

hh((mmmm))No. brackets/railNo. brackets/rail

<<1100550022

11005511--1188000033

11880011--2255550044

22555511--3333000055

33330011--3355000066

x (product width)

ZIP 100 Zip-screen

Screw-t side guides

Installation - Maintenance

Lift the cassette on top of the guide rails,

make sure not to damage the motor cable.

Carefully assemble the legs of the cassette

gables into the guide rails, make sure the

cassette gables rest on the guide rails and are

levelled.

2. Assembling the cassette + cassette support (optional)

Screw the cassette support (optional) to the

wall

Assemble the upper slot on the back side of

the cassette on to the cassette support.

ZIP 100 Zip-screen

Screw-t side guides

Installation - Maintenance

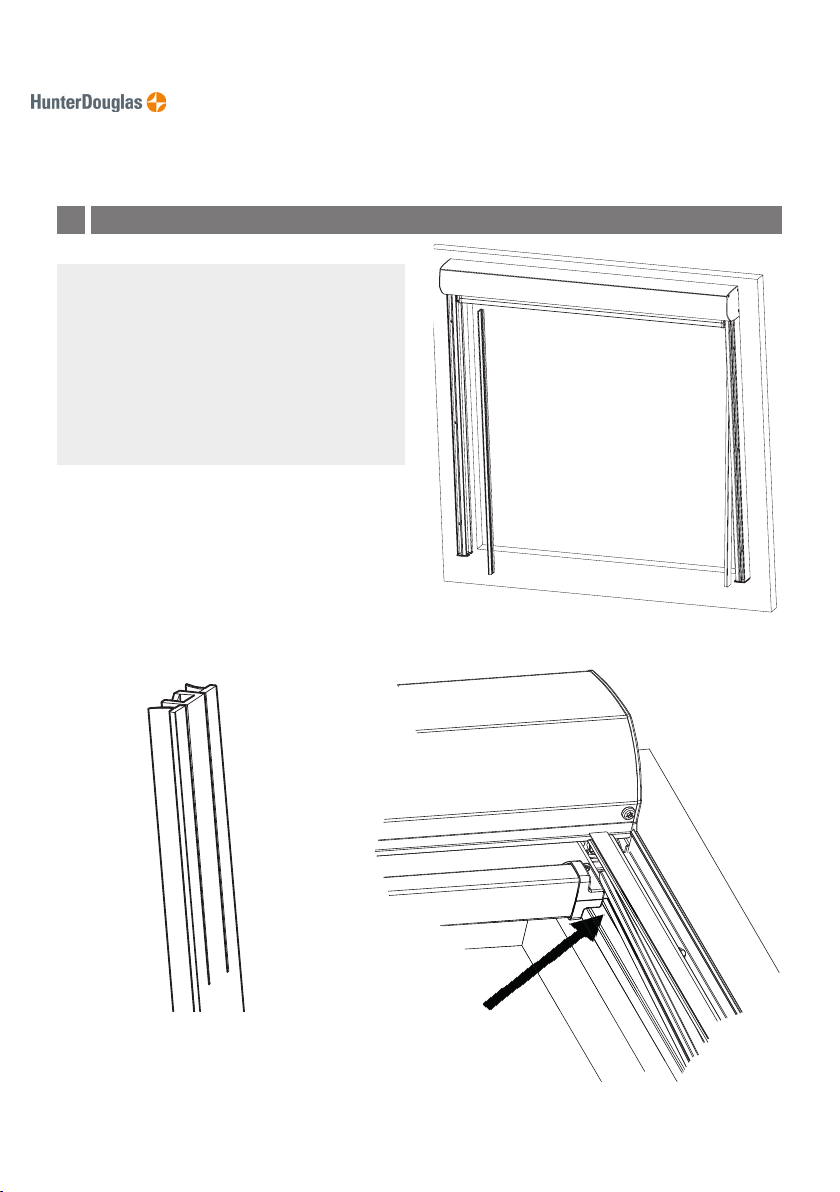

Assemble the plastic guides for the fa-

bric by sliding them onto the “zippers”

on the sides of the fabric/front prole.

See below.

Make sure the plastic proles are tted

correctly in the aluminium proles. The

inner rubber part of the prole must be

on the inside of the aluminium groove.

3. Assembling the Zip guides

Cut upper end on

plastic profile

ZIP 100 Zip-screen

Screw-t side guides

Installation - Maintenance

Finish the installation by assembling the

cover proles on both sides.

Steer in the side of the cover proles

that are facing the window, make sure

the plastic prole is not being stuck bet-

ween the aluminium proles, and that

both alu.proles and the plastic proles

are aligned at the bottom end cap.

Connect the motor to the electricity.

Run the Zip-screen down + up and check

that it operates smoothly.

If needed - program the end positions

according to relevant instructions from

the motor fabricator.

4. Assembling the cover proles

When the cover proles are in place

– gently screw* the proles onto the

guide proles using the pre-fabricated

holes.

*Use a screwdriver – do not overtighten.

ZIP 100 Zip-screen

Screw-t side guides

Installation - Maintenance

www.hunterdouglas.se Hunter Douglas • Alingsås • Sweden

Tel: +46-322 775 00 • E-mail: [email protected]

® Registered Trademark of Hunter Douglas Scandinavia, Sweden

The original document may not be altered in text or version without the

consent of Hunter Douglas Scandinavia

Maintenance

Maintenance:

The frame and the fabric are subjected to dirt and pollution and should be cleaned

at least once a year in order to retain their high  nish. This is particularly important

in more exposed installations, e.g. environments near the sea. Use a soft cloth, tepid

water and a mild cleaner. Do not use a high-pressure washer as it can damage the

awning fabric and any electrical equipment, etc. For a detailed description of cleaning

the fabric, please refer to its usage instructions.

Changing the fabric:

Before changing the awning fabric it is recommended to contact the company from

which the awning was purchased to arrange an inspection of the frame. This company

can provide more information about changing the fabric and also provides advice

in case some other components may need to be replaced in order for the awning to

maintain its  nish and function.

Warning!

Always allow a professional to perform work that requires the cassette to be opened.

The cassette needs to be opened when replacing the motor and/or fabric. When the

cassette is opened, other parts can be damaged or out of position, and moving parts

become accessible.

Any work with the motor requires proper authorization. This should therefore always

be carried out by a professional.
