Quidway® AR 18-2X Series Routers

http://www.huawei.com/products/datacomm/

Quidway® AR18-2X Series Routers

Product Overview

Quidway® AR 18-2X Series Routers, launched by Huawei Technologies, are oriented to Small

Office Home Office (SOHO) users. They include AR 18-21/18-22/18-22S-8 models.

Quidway® AR 18-2X Series Routers are Ethernet access routers, and provide 10BASE-T or

10/100BASE-TX interface in the uplink direction and 10/100BASE-T Ethernet interface in the

downlink direction. The interfaces provide Layer 2 data exchange and can implement port

isolation.

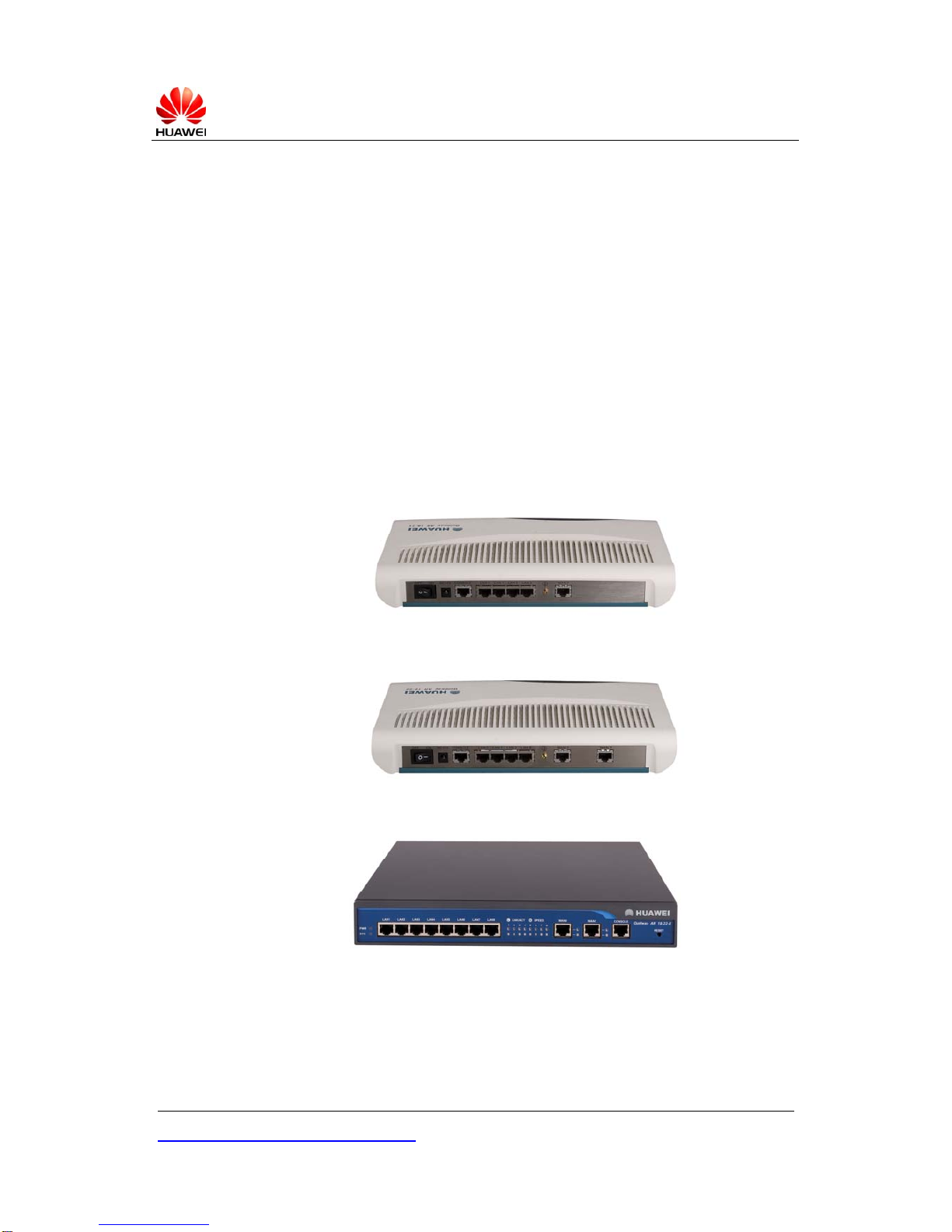

Quidway® AR 18-2X Series Routers are illustrated as follows:

AR18-21

AR18-22

AR 18-22S-8

Quidway® AR 18-2X Series Routers

http://www.huawei.com/products/datacomm/ 2

Product Features

Network Security

Quidway® AR 18-2X Series Routers provide abundant network security features, such as

firewall, packet filtering, network address translation (NAT), authentication, authorization and

accounting (AAA), and callback. Hence, users can select different security policies to build

enterprise networks.

VPN Function

Intranet virtual private network (VPN) interconnects the geographically dispersed branches of a

company via public networks, as an extension and replacement of traditional leased line

networks and other enterprise networks. Access VPN provides secure tunnels for small-sized

users like SOHO to access the resources of company headquarters via PSTN/ISDN. Extranet

VPN extends the enterprise networks to the business partners and clients, and enables different

companies to communicate securely and privately over the public networks. Quidway® AR

18-2X Series Routers are mainly used at the access end of VPNs.

Command Line Interface

The command line interface (CLI) of Quidway® AR 18-2X Series Routers can be configured in

common ways. No special training is needed for users.

Ethernet Access

Quidway® AR 18-2X Series Routers provide 10/100MBASE-T Ethernet WAN interface. By

configuring point-to-point protocol over Ethernet (PPPoE), hosts in LAN can access the Internet

via Ethernet, and the monitoring and accounting functions can be implemented on every access

host. Therefore, Quidway® AR 18-2X Series Routers are cost-effective and widely used in the

construction of campus broadband networks.

Chassis

Electromagnetic shielded plastic chassis, which theAR 18-2x Series Routers adopt, has not only

a smooth external appearance and small size, but also can effectively shield electromagnetic

interference from various sources to make the system work more stably and reliably.

Quidway® AR 18-2X Series Routers

http://www.huawei.com/products/datacomm/ 3

Product Specification

Item AR 18-21 AR 18-22 AR 18-22S-8

Interface

1 console port

1 10/100M Ethernet interface

(WAN)

4 10/100M Ethernet

interfaces (LAN)

1 console port

2 10/100M Ethernet

interface (WAN)

4 10/100M Ethernet

interfaces (LAN)

1 console port

2 10/100M Ethernet

interface (WAN)

8 10/100M Ethernet

interfaces (LAN)

SDRAM 64 MB 64M 128 M

Flash 8 MB 8M 16M

Encryption chip None None Yes

VLAN

management Supported Supported Supported

Max power

consumption 10 W 10W 10W

Power supply Rated voltage range: 100 to 240 VAC; 50 to 60 Hz

Physical

dimensions (H x W

x D) 300×180×45 mm 300 X 225 X 42 mm

Weight 1.0 kg (2.2 lb) 2.1kg(4.6 lb)

Operating

temperatu

re 0°C to 40°C (32°F to 104°F)

Relative

humidity

(noncond

ensing)

5% to 90%

Order Information

Name Description Remark

AR 18-21 Quidway AR 18-21 Router（100-240VAC）mandatory

AR 18-22 Quidway AR 18-22 Router（100-240VAC）mandatory

AR 18-22S-8 Quidway AR 18-22S-8 Router (100-240VAC) mandatory
