Huawei Mobile WiFi Manual de usuario
1
Smart Device Simple World
Thank you for choosing HUAWEI Mobile WiFi
Supported functions and actual appearance depend on the specific models you purchased.
The illustrations are provided for your reference only. For details about the model you
selected, consult your service provider.
This guide briefly describes the functions of the Mobile WiFi. For details about how to set
management parameters, see help on the web management page.
Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE
ANY KIND OF WARRANTIES.
2
Getting to Know HUAWEI Mobile WiFi
Connection Scenarios
A Wi-Fi device or computer can be connected to the Internet through the Mobile WiFi. The
actual connection procedure depends on the operating system of the Wi-Fi device or
computer. The connection scenarios illustrated here are for your reference.

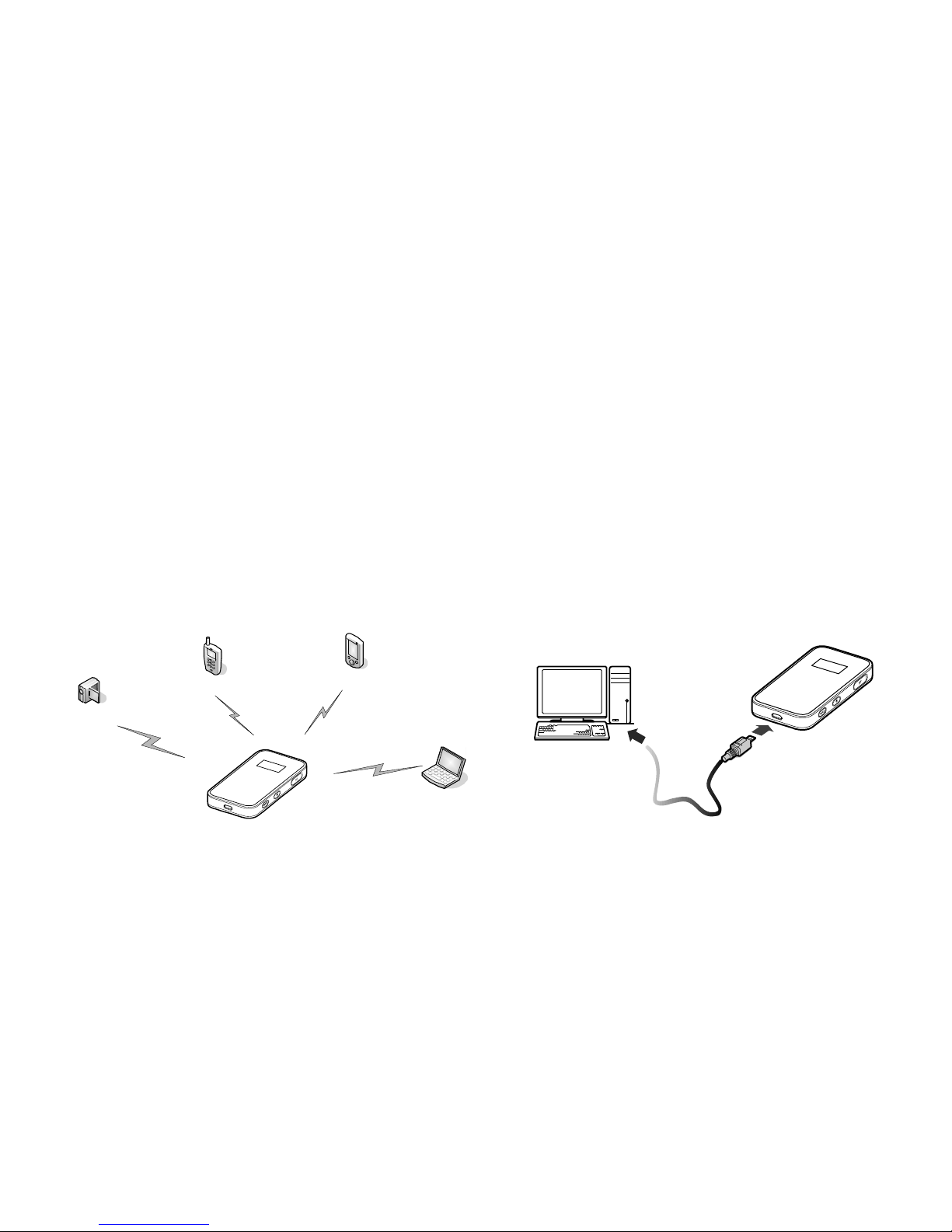

Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB
Smart phone Game machine
Digital camera
Laptop
3
Scenario 3: Multi-device access via Wi-Fi and USB at the same time
Smart phone Game machine
Digital camera
Laptop
4
Appearance
No. Item
1 Screen
2
Reset button
External antenna
interface
3 Power button
4 WPS button
5 USB port
6 microSD card slot
7 Strap hole
5
7
1
2
4
8
3
5
6
0B 00:00
Screen
No. Item
1 Signal strength
2 Network
3 Wi-Fi enabled
Number of devices connected
4 Internet connection status
5 New messages
Number of new messages
6 Battery level
7 International roaming state
8 Traffic data
Connection duration
6
Note:
Wi-Fi: Wireless fidelity
WPS: Wi-Fi protected setup
Traffic statistics are for your reference only. To obtain the actual traffic data, contact
your service provider.
7
Getting started
1 – Remove your SIM card
Remove your SIM card from the outer card and
keep the outer card in safe place, in case you need it for future reference.
8
2 – Insert your SIM card
Insert the SIM card into the Wi-Fi hotspot as shown. Make sure the SIM card is facing in
the right direction before you insert it.
Next to the SIM card slot and also on the inside of the battery back cover you’ll find two
sets of numbers marked ‘SSID’ and ‘Wi-Fi Key’. Make a note of the network key, as you’ll
need it when you set up a Wi-Fi connection.
Then insert the battery as shown and re-attach the back cover.
9
Charging the Battery
Note: If the battery has not been used for a long
time, it must be charged first.
Method 1: Using the charger
Caution:
Only use chargers compatible with the Mobile WiFi and provided by a designated
manufacturer. Use of an incompatible charger or one from an unknown manufacturer
may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use
voids all warranties, whether expressed or implied, on the product.
The charger is an optional accessory. If the charger is not
provided in the package, you can contact your
local dealer to buy one yourself.
Method 2: Connecting to a PC for charging
Connect the Mobile WiFi to a PC using a compatible data cable.
10
Getting connected
1 – Switch on your Mobile WiFi hotspot
Press and hold the until the screen lights up. When
you want to switch it off, press and hold the same button.
2 – Set up a Wi-Fi connection on your computer
Click the Start button on the bottom left hand corner of your screen, then select
Control Panel > Network connections> Wireless Network Connection.
A pop up screen will then ask you to ‘Choose a wireless
network'. Select the SSID of the device and click on the
Connect button.
A wireless connection icon should appear in the
status bar on the bottom right of your screen. That
shows your Wi-Fi connection is ready to go.
You’ll be then asked to enter your Wi-Fi key. If you didn’t make a note of this earlier,
