Huawei E5331 Instrucciones de montaje

Thank you for choosing HUAWEI E5331 Mobile Wi-Fi

This guide briefly describes the functions of the E5331 Mobile Wi-Fi.

THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE

ANY KIND OF WARRANTIES.

Getting to Know the HUAWEI E5331 Mobile Wi-Fi

Connection Scenarios

A Wi-Fi device or computer can be connected to the Internet through the Mobile Wi-Fi.

The actual connection procedure depends on the operating system of the Wi-Fi device or

computer. The connection scenarios illustrated here are for your reference.

Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB

Scenario 3: Multi-device access via Wi-Fi and USB at the same time

Appearance

No. Item

1 Signal indicator

2 Wi-Fi indicator

3 Battery indicator

4 SMS indicator

5 Power button

6 USB port(Micro USB Type B)

7 Strap hole

Note:

Wi-Fi: Wireless fidelity

Indicator

Indicator Status Color Description

Signal on

green The signal is strong.

orange The signal is weak.

red There is no signal, the SIM card does not

exist, or the PIN code is not verified.

Wi-Fi on green Wi-Fi is enabled.

off / Wi-Fi is disabled.

Battery on green on The battery level is normal.

blinking The battery is charging.

red on The battery level is low.

SMS on green

on There are unread messages.

blinking The inbox is full.

off / There is no unread message.

Caution: If no operation is performed on the Mobile WiFi within a preset period, only the

battery indicator displays. The status of the battery indicator is as follows:

Indicator Status Color Description

Battery on

green Slowly

blinking The battery level is normal.

red Slowly

blinking The battery level is low.

SSID and Wireless Network key

To connect a Wi-Fi device to your Mobile Wi-Fi, an

SSID and a wireless network key are required. The

SSID and wireless network key label can be found on

the inside of the back cover and on the keepsake

card that came with the Mobile Wi-Fi.

234

Before You Start

Installing the SIM Card and the Battery

Caution: Do not use any SIM card that is not standard or

is incompatible with the Mobile WiFi. Otherwise, the

Mobile WiFi may be damaged.

Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction,

as shown in figure 2, and then slide the SIM card into the slot.

Charging the Battery

Note: If the battery has not been used for a long time, it must be charged first.

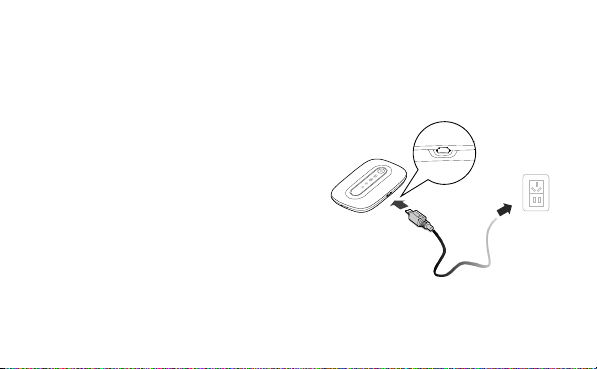

Method 1: Using the charger

Caution:

Only use chargers compatible with the Mobile

WiFi and provided by a designated

manufacturer. Use of an incompatible

charger or one from an unknown

manufacturer may cause the Mobile WiFi to

malfunction, fail, or could even cause a fire.

Such use voids all warranties, whether

expressed or implied, on the product.

Method 2: Connecting to a PC for charging

Connect the Mobile WiFi to a PC using a compatible data cable.

Accessing the Internet via Wi-Fi Connection

Note: By default, management parameters are preset on the Mobile WiFi according to the

requirements of the service provider. Follow the steps below to quickly access the Internet.

For the details about how to set management parameters, see help on the web

management page.

Step1: Power on the Mobile WiFi

Press and hold until the indicators display.

The Mobile WiFi is powered on.

Note:

In order to access to the network successfully,

make sure the signal indicator and the Wi-Fi

indicator are on green.

Press and hold to power off the Mobile

WiFi.
