iBAT 2.0-CIM01C2

Quick Guide

Issue: 06

BOM Number: 31010VJT

Date: 2020-03-20

Name Model Function Description

CIM CIM01C2 Intelligent battery

management module One CIM can support a maximum of 300

BIMs, and manage BIMs of a maximum of

four battery strings.

BIM BIM01C3 12 V intelligent battery

monitoring module The two models of BIMs are installed and

commissioned in the same manner. This

document uses the BIM01C3

as an example.

BIM02C1 2 V intelligent battery

monitoring module

1. The information in this document is subject to change without notice. Every effort has been made

in the preparation of this document to ensure accuracy of the contents, but all statements,

information, and recommendations in this document do not constitute a warranty of any kind,

express or implied.

2. This document describes the procedure for installing the CIM and BIM. Read the iBAT 2.0-

CIM01C2 User Manual before installation to learn the product information and safety precautions.

3. Use insulated tools when installing the equipment.

4. Only Huawei engineers or engineers certified by Huawei are allowed to install and maintain the

CIM and BIM. Otherwise, personal injury or equipment damage may occur, and the resulting

equipment faults are beyond the warranty scope of Huawei.

2Installing Equipment (Battery Cabinet)

Installation Position

2.1

BIM installation position

BIM Battery

CIM installation position

Battery

cabinet

BIB

CIM

Hall effect sensor

•The battery appearance is for reference only.

•In the figure, the circuit breaker panel of the battery cabinet has been removed. Before

removing the circuit breaker panel, knock off the cover on the CIM indicator hole on the panel.

•If battery cabinets are combined, remove the side panels between battery cabinets.

•If the battery string is configured with the neutral wire, measure the currents of the positive and

negative battery string cables. If the battery string is not configured with the neutral wire,

measure the current of either the positive or negative battery string cable. The following uses

the scenario where the battery string is configured with the neutral wire as an example.

Installing a BIM

2.2

Bolt

Spring washer

Flat washer

OT terminal

Battery connecting kit

1. Open the battery string switch. Connect the positive and negative BIM cables respectively to

the positive and negative wiring terminals or poles of the battery.

Use an insulated torque wrench during

battery installation. The terminal torque

depends on battery specifications.

•M6: 4–6 N·m

•M8: 13–15 N·m

•M10: 15–20 N·m

•Voltages on the BIM cable are hazardous. Therefore, wear insulation gloves when

performing operations on the cable.

•The red terminal is positive, and the black terminal is negative. Connect battery

terminals correctly.

2. Secure the BIM.

(1) Strip the adhesive tape from the

BIM fastener.

(2) Attach the BIM and press it for

more than 10 seconds.

•Ensure that the attaching area is clean.

•Ensure that the BIM fastener is evenly

and firmly attached.

•Ensure that terminals are visible when

installing the BIM.

3. After connecting all power cables to the system, connect the BIM cable to the BIM panel port.

•Before connecting the cable to the

BIM panel port, connect all power

cables to the system.

•Before disconnecting the BIM cable,

disconnect the cable from the BIM

panel port.

•After the product is installed, if the

battery is not charged for more than

30 days, you are advised to remove

the iBAT from the battery cables.

Installing a CIM

2.3

The CIM must be installed 1 meter above the ground to ensure proper wireless communication

between the CIM and the BIM.

1. Connect the antenna

delivered with the CIM to the

RF_Z port on the CIM.

2. Strip the adhesive tape from

the CIM fastener, and attach

the fastener to the bounding

frame on the CIM fixed mount.

Then press the fastener for

more than 10 seconds.

3. Clamp the CIM to the fastener.

•Ensure that the

attaching area is clean.

•Ensure that the fastener

is firmly attached with

even strength.

BIM

Battery

BIM

3Installing Equipment (Battery Rack)

Installation Position

3.1

BIM installation position

Top installation Side installation

The battery appearance is for reference only.

CIM installation position

Top installation Side installation

BIB

CIM

BIB

Hall effect

sensor

BCB box BCB box

Hall effect

sensor

•When selecting a position to install the CIM, ensure that the communication distance between

the CIM and the BIM is not greater than 15 meters.

•Dimensions (L x W) of the center hole of the Hall effect sensor are 40.5 mm x 30.5 mm (LEM) or

40.5 mm x 40.5 mm (TAMURA).

•If the battery string is configured with the neutral wire, measure the currents of the positive and

negative battery string cables. If the battery string is not configured with the neutral wire,

measure the current of either the positive or negative battery string cable. The following uses

the scenario where the battery string is configured with the neutral wire as an example.

When installing the CIM in the battery switch cabinet, do not use the delivered antenna. Attach the

external antenna to the top of the battery switch cabinet, and connect the antenna cable to the

RF_Z port on the CIM.

Installing a BIM

3.2

Installing a BIM by referring to section 2.2 "Installing a BIM."

Installing a CIM

3.3

Installing a CIM by referring to section 2.3 "Installing a CIM."

Installing a Hall Effect Sensor

3.4

1. Route the positive and negative battery string cables through the Hall effect sensor. The

positive and negative battery string cables must be routed in directions shown by arrows on the

Hall effect sensors. The positive battery string cable routes from the UPS to the battery, and the

negative battery string cable routes from the battery to the UPS.

2. Secure the Hall effect sensor to the positive and negative battery string cables using cable ties.

If the positive or negative battery string cable is too thick to be routed through the Hall effect

sensor, or the measurement range of the Hall effect sensor is insufficient, use multiple Hall effect

sensors to detect the current of one battery string. The CIM supports the sum of the monitoring

results of multiple Hall effect sensors, which is implemented by setting Multi-Hall cur. setting.

Installing an Adapter

3.5

ST3.5x35 tapping screw

Washer

6x30 plastic expansion sleeve

ST3.5

0.3 N·m

•Install an adapter if only the CIM communications cable connects to the UPS.

•Prepare ST3.5x35 tapping screws, washers, and 6x30 plastic expansion sleeves by yourself.

Smart ETH gateway

DC input

4Installing Cables (ECC Scenario)

This chapter uses the ECC scenario where the CIM communications cable connects to a smart ETH

gateway as an example to describe how to connect cables. In ECC scenarios, connect cables by

following instructions in this section.

System Networking

4.1

In the ECC scenario, the CIM

communications cable can

also connect to the PoE

switch.

Smart ETH gateway

Connecting Cables

4.2

When a battery system needs to be managed by multiple CIMs, the CIMs can be connected to

northbound devices through straight-through cables (the ECC supports four CIMs in parallel).

•Connect the Hall effect sensor on the positive battery string terminal to the HALL_1 current

monitoring port on the CIM, and connect the Hall effect sensor on the negative battery string

terminal to the HALL_2 current monitoring port on the CIM.

•The positive and negative battery string cables must be routed in directions shown by arrows

on the Hall effect sensors. The positive battery string cable routes from the UPS to the

battery, and the negative battery string cable routes from the battery to the UPS.

BCB box J1

CIM BCB

EXDRV+

EXDRV

EXAUX+

EXAUX

STA

DRV

GND

In the foregoing figure, the iBOX is equivalent to the CIM, and the iBAT is equivalent to the BIM.

5Installing Cables (UPS Scenario)

This chapter uses the UPS scenario where the CIM power cable connects to an adapter, and the

CIM communications cable connects to the UPS as an example to describe how to connect cables.

If only the UPS is used, connect cables by following instructions in this section.

System Networking

5.1

Adapter

AC input

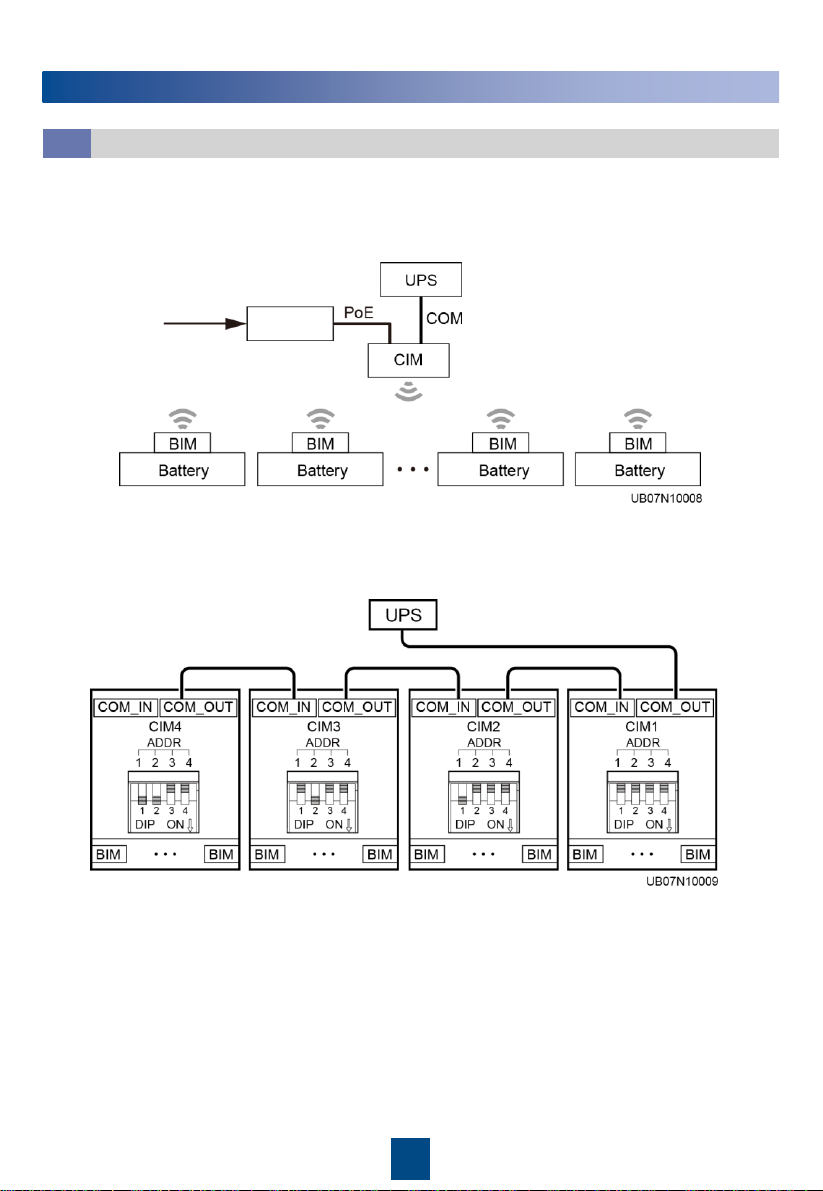

When a battery system needs to be managed by multiple CIMs, the CIMs can be cascaded

through RS485 buses for capacity expansion, and then connected to northbound devices (the UPS

supports four cascaded CIMs).

Connecting Cables

5.2

1. Connect the cable between the CIM and the Hall effect sensor.

•If each of the positive and negative battery string cables connects to one Hall effect sensor,

connect the Hall effect sensor on the positive battery string terminal side to the HALL_1 current

monitoring port on the CIM, and connect the Hall effect sensor on the negative battery string

terminal side to the HALL_2 current monitoring port on the CIM.

•If each of the positive and negative battery string cables connects to two or more Hall effect

sensors, connect the Hall effect sensors on the positive battery string terminal side to the former

HALL current monitoring ports, and the Hall effect sensors on the negative battery string terminal

side to the latter HALL current monitoring ports. For example, if each of the positive and negative

battery string cables connects to two Hall effect sensors, connect the Hall effect sensors on the

positive battery string terminal side to the HALL_1 and HALL_2 current monitoring ports on the

CIM, and connect the Hall effect sensors on the negative battery string terminal side to the

HALL_3 and HALL_4 current monitoring ports on the CIM.

When one CIM manages multiple battery strings, first connect the Hall effect sensors on the

positive and negative cables for battery string 1 to the corresponding ports on the CIM. Then

connect the Hall effect sensors on battery string 2 to the CIM in the same way, and so on.

UPS dry contact card (MUE05A)

3. Connect the cable between the UPS and the BIB.

Signal Port Mapping

Between the UPS and

the BIB

OL OL_5

STA STA_6

DRV DRV_7

0V GND_8

UPS monitoring interface card (MUS05A)

4. Connect a straight-through cable between the CIM and the adapter, and connect the adapter

AC power cable to a socket.

•Prepare a straight-through cable and socket by yourself.

•The socket and plug appearances are for reference only. The actual objects prevail.

•The socket can obtain power from the UPS AC output port.

•Prepare an RS485 cable

by yourself.

•The previous figure shows

how to prepare an RS485

cable and a straight-

through cable.

2. Connect the CIM communications cable.
