OptiX PTN 950 Packet Transport Platform of PTN Series

Quick Installation Guide

Issue: 17

Date: 2017-08-20

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

[email protected]

Installation Flow

Certain operations are optional. Before performing an optional operation, consult with the engineering

supervisor or software debugging engineer to decide whether to perform the operation. The other

operations are mandatory.

After you finish the installation, send the information about the bar code to Huawei Headquarters

according to the Tabulation for the Feedback of Bar Codes of Equipment at Stations.

Precautions

Pages 1

Tools for Installation

Introduction to the Chassis

Installing and Routing

Cables

Checking the Insatllation

Powering On the

Equipment

End

Start

Check Fiber Connection

Powering on the

Equipment

Preparation for

Installation

Installing the Chassis in a

19-Inch Cabinet

Installing the Chassis

Checking Cable

Connectivity

Common Cables for the

Chassis

Installing the Protection

Grounding Cable

(Mandatory)

Installing Power Cable

(Mandatory)

Installing the E1 Cable

Installing the Ethernet

Service Cable

Installing Fibers

Installing the NM

Cable

Page 2

Page 3

Pages 4-

Pages 6-

Page 12

Page 11

Page 13

Pages

14-15

Page 5

Page 6

Pages 7-

Page 8

Page 9

Page 10

Page 6

Page 14

Page 15

Installing the Chassis in an

ETSI Cabinet

Expected Effect of

Installation in a 19-Inch

Cabinet

Installing the External

Clock/Time Cable

Precautions

NOTE

Bundling cables

CAUTION

This document provides simple and distinctive guidelines for quick hardware installation of the PTN 950.

This document does not describe pre-delivery assembly. This document only describes procedures for onsite

installation.

Electrostatic Discharge

Always wear an anti-static ESD wrist strap when handling the equipment or sensitive components to prevent

electrostatic discharge causing possible bodily injury or damage to the equipment or sensitive components. Ensure

that the other end of the ESD wrist strap is properly grounded.

Binding intervals between cable ties or optical fiber binding straps inside the cabinet cannot exceed 250 mm.

(Binding intervals cannot exceed 200 mm for user cables).

Binding intervals between cable ties for all cables and corrugated pipes outside the cabinet are determined based on

the distance between the two horizontal beams. If the cable trough does not contain any beams, the binding intervals

between cable ties cannot exceed 250 mm.

Verify that the equipment room, power supply, ground cables and optical cables are ready for installation. Start the

installation according to the engineering design documents after confirming that conditions are met. Refer to the

Installation Guide for information about specific operational requirements and technical specifications.

Pre-Installation Check

CAUTION

The PTN 950 supports indoor and outdoor installation. Ensure that the requirements on device operating

environments are met before installation. Using the outdoor cabinets IMB network box, APM30H, and R01S200 can

moderately improve the device operating environments. You can use the ETP4830 external AC power system to

supply power to the network boxes and outdoor cabinets. If you need to use an outdoor cabinet other than the IMB

network box, APM30H, and R01S200 for the PTN 950, contact Huawei to determine whether the outdoor cabinet

meets requirements of Huawei devices on the device operating environments.

Measuring tape Phillips screwdriver

(M2-M6) Flat-head screwdriver

(M2-M6) Adjustable wrench

Level

Ratchet crimp tool Cable cutter

Wire stripper Network cable crimping

tool Diagonal pliers

Crimping tool Needle-nose pliers

Bayonet wrench

Paper knife

Marker

Soldering iron

Heat gun

Multimeter

ESD gloves

Binding strap Insulation tape

ESD wrist strap

Punching wire pliers

Cleaner

Tools for Installation

COAX stripper Cable tester

Optical power meter BER tester

1Introduction to Interfaces

Introduction to the Chassis

2Introduction to Installation Holes on Both Sides of the Chassis

Extended network interface PGND point (19-

inch cabinet)

Power interface

GE Optical interface

Clock and time interface

FE Optical interface

Antistatic jack interface

E1 interface

NM interface

Ethernet service interface

Installation holes for

N63E/19-inch cabinet

The PTN 950 is available in two models: common chassis and extended chassis, which are 2 U and 3 U

high, respectively. Installation modes of the two types of chassis are basically the same; therefore, the

common chassis is used as an example to describe the installation of the PTN 950 in this document. For

information about the installation of the extended chassis, refer to the Appendix.

Installing the chassis

1Scenario I: Installing the Chassis in a 19-Inch Cabinet

Installing the chassis in the cabinet

bInstalling the PGND cable

Introduction to the cable guiding frame Fixing the floating nuts

Mark the positions where floating nuts are to be

installed, and install four floating nuts on both sides of

the rack.

Part 1 (cable

guiding frame)

2. Place the chassis's

mounting ears and

cabling rack U-shaped

slots over the screws,

tighten the screws at the

bottom.

1.Hang the screws of

the mounting ears on

the chassis to the rack

loosely.

3. use screws to tighten

the top of the chassis.

1. Remove one screw for installing PGND cable before

installing the chassis in the cabinet.

Part 1 (for 19-inch

cabinets, ETSI cabinets,

and open racks)

U-shaped interfaces

used for prefixing

Part 3 (used to connect the

cable tray to the chassis

installed on the middle

columns of an N63B

cabinet)

3.0±0.3 N·M

To the

grounding point

of the cabinet

column

2. Install the PGND to the chassis.

1.2±0.12 N·M

Bridging

mounting ear

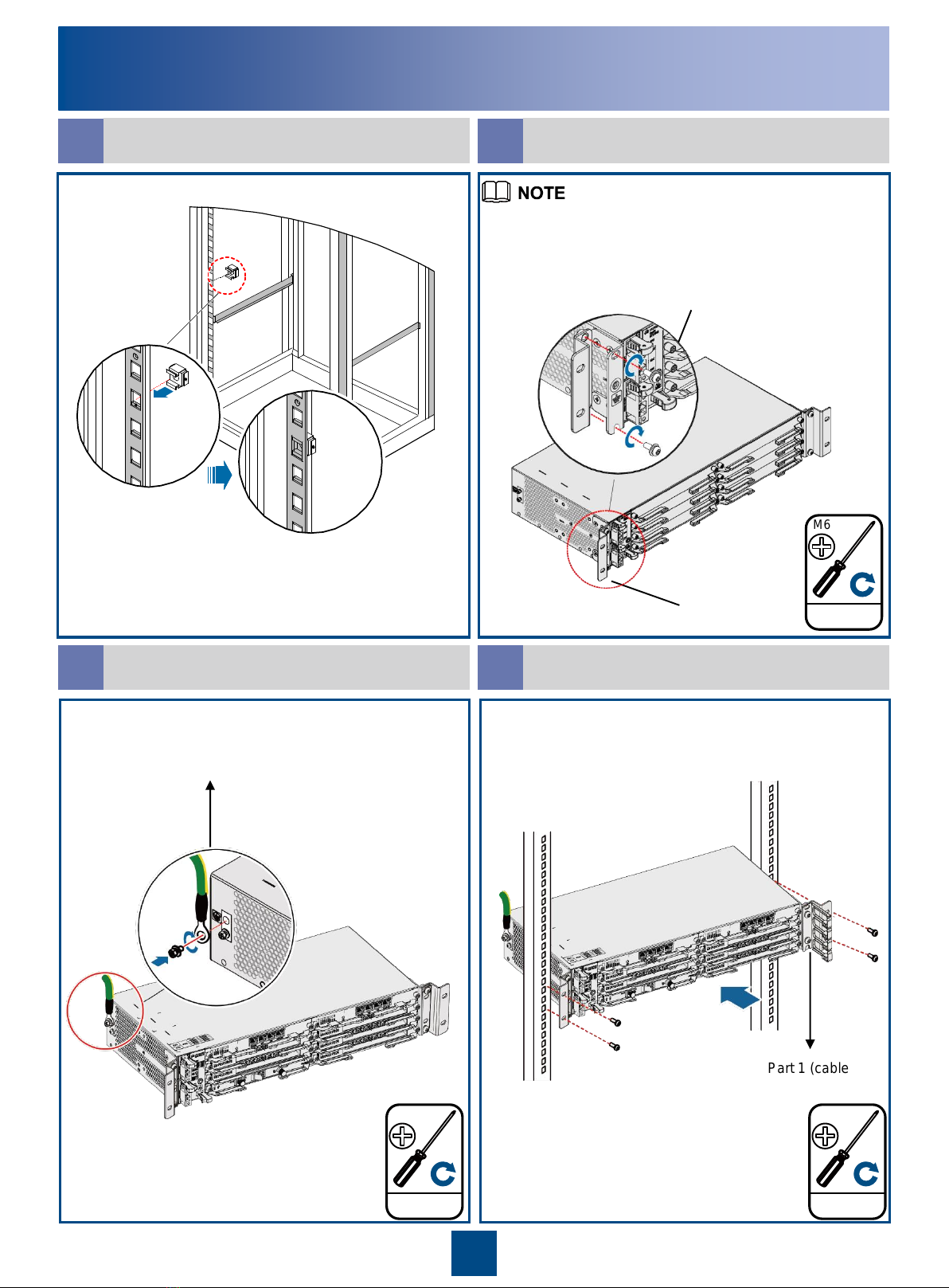

2Scenario II: Installing the Chassis in an ETSI Cabinet with

Front Columns

Fixing the floating nuts

aInstalling the mounting ears

Installing the PGND cable

cInstalling the chassis in the cabinet

To the grounding point on the

rear rack column of the cabinet

Part 1 (cable

guiding frame)

M6 screw assembly with flat

washers

Before installing the chassis in an ETSI cabinet, adjust

the mounting holes according to the cabinet type.

3.0±0.3 N·M

Mark the positions where floating nuts are to be

installed, and install four floating nuts on both sides of

the rack.

1.2±0.12 N·M

3.0±0.3 N·M

In the scenario where the chassis is installed in an

ETSI cabinet, on the wall, or on the desk, install

the PGND cable onto the grounding point on the

left side of the chassis.

If the PGND cable is installed in the19-inch cabinet,

connect the PGND cable to the grounding point of

the left mounting ear of the chassis.

Installing and Routing Cables

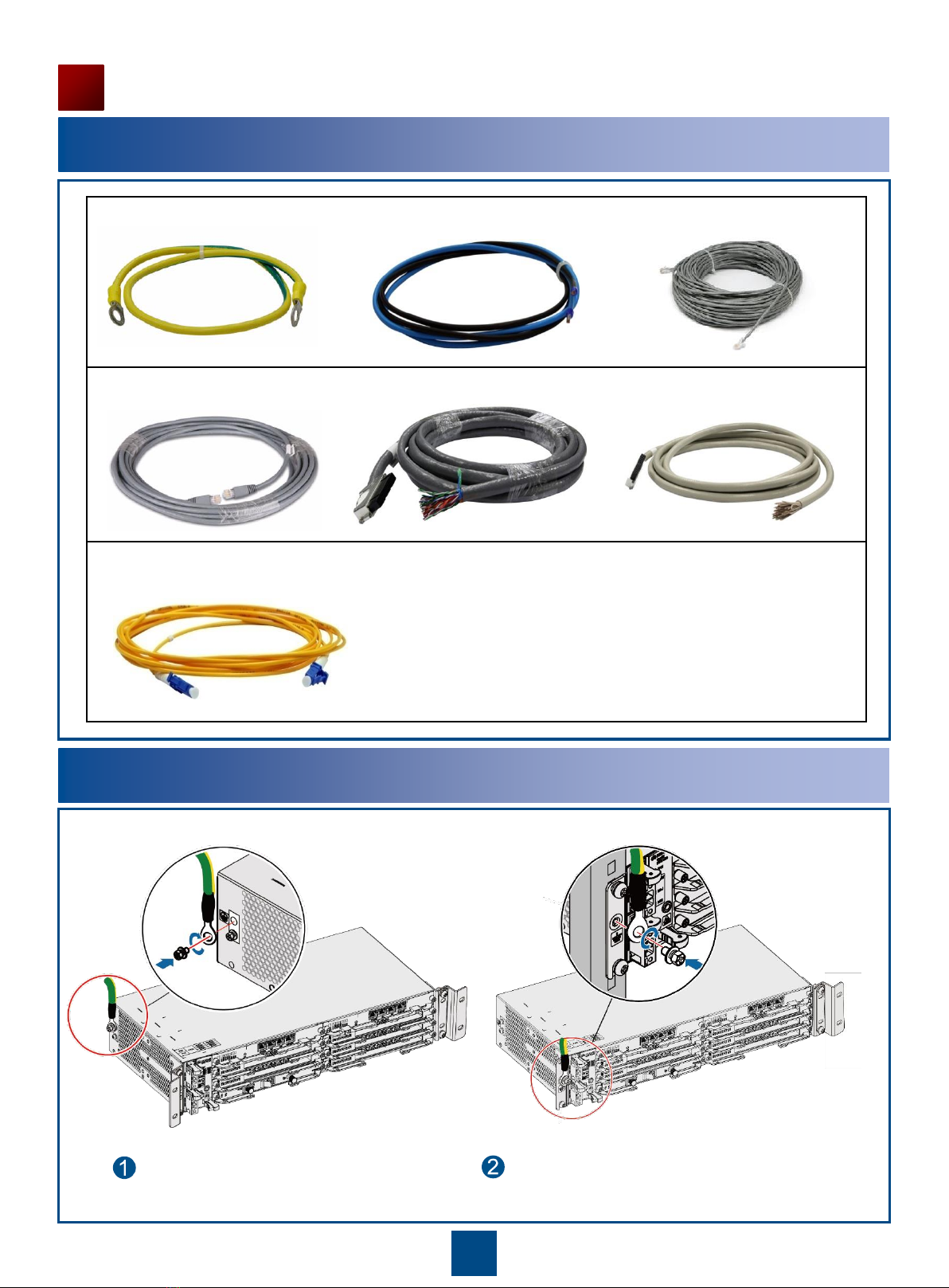

1Common Cables for the Chassis

2Installing the PGND Cable (Mandatory)

PGND cable Power cable Non-shielded network cable

Shield network cable 120-ohm E1 cable 75-ohm E1 cable

Fiber

Make a proper terminal for the power cable end

according to the electrical power cable processing

specifications. Then, insert the power cable in the

DC connector according to the wiring sequence.

-48 V power

cable (blue)

0 V power cable (black)

Insert the conductive part of the bare crimp

terminal of the power cable in the DC connector,

and then tighten the screws.

The preceding two operations are optional. Consult with the engineering supervisor to decide whether to

perform the operations.

NEG2(-)

INPUT

RTN2(+)RTN1(+) NEG1(-)

OFF

20A32A 32A 20A

OFF

123 4 1234

20A32A 32A 20A

OUTPUT OUTPUT

NEG(-)

Check the fuse current of the external power supply.

3Installing the Power Cable (Mandatory)

Check the voltage of the external power supply.

- 48 V to - 72 V- 60 V

- 38.4 V to - 57.6 V- 48 V

Standard Voltage of the Input Power Allowable Voltage Range

When installing or routing cables, refer to the engineering document on site to install and connect the power cable

at the opposite end.

0.22±0.03 N·M

It is recommended that one circuit breaker (fuse) in the power distribution cabinet corresponds to one set of equipment

(subrack). That is, one circuit breaker in the power distribution cabinet outputs one channel of power supply, which is

provided to only one set of equipment instead of multiple sets of equipment. If one circuit breaker in the power

distribution cabinet corresponds to multiple sets of equipment, when overcurrent occurs on one set of equipment, the

circuit breaker may perform the protection operation. Hence, the power of multiple sets of equipment fails.

The working current of the fuse on the power distribution cabinet may be affected by certain factors such as

temperature. Hence, derating should be adopted during design of power distribution.

Max. Power Consumption Max. Working Current Recommended Fuse Capacity

250 W 6.5 A ≥ 8 A

RTN(+)
