Huawei E156B Manual de usuario

All RightsReserved

Nopartofthisdocumentmaybereproducedortransmittedinanyformorbyany

meanswithoutpriorwritten consent ofHuaweiTechnologiesCo.,Ltd.

TrademarksandPermissions

andotherHuaweitrademarks aretrademarks ofHuaweiTechnologiesCo.,

Ltd.

Allothertrademarks andtradenamesmentionedinthisdocumentare the

property oftheirrespective holders.

Notice

The informationinthisdocumentissubjecttochangewithout notice.Everyeffort

hasbeenmadeinthe preparationof thisdocumenttoensureaccuracy of the

contents,butall statements,information,andrecommendationsinthisdocument

donotconstitutethewarranty ofanykind,express orimplied.

Tableof Contents

WhatIsinYour Package........................................................................1

GettingtoKnowYourE156B...................................................................2

Preparation.........................................................................................5

Installation/RemovalGuide.....................................................................7

Safety Information.............................................................................10

AcronymsandAbbreviations.................................................................17

Thankyoufor choosingHuaweiE156BHSDPAUSB

Stick(hereinafter referred toasthe E156B).With

the E156B,youcanaccess theInternetthrough

wireless networkatahighspeed.

Note:

Thismanualdescribestheappearance,installationandremovalofthe E156B.For

theoperationof the management program,refertotheUserManual.

WhatIsinYourPackage

The package ofyourE156Bcontainsthefollowingitems:

nOne E156B

nOne Quick Start

nOne USBcable

GettingtoKnowYourE156B

The followingfigure showstheappearance ofthe E156B.Itisonly foryour

reference.The actualproductmaydiffer.

USB Interface

Itconnectsthe E156Btoacomputer.

SIM/USIMCardSlot

Itiswhere youinsertthe subscriberidentity module/UMTS subscriberidentity

module (SIM/USIM) card.

MicroSDCardSlot

Itiswhere youinsertthe MicroSecureDigitalMemory(SD)card

RFtestingslot

Itconnectsthe RFtestcablesforRFtesting.

StrapHole

Indicator

Itindicatesthe statusoftheE156B.

Colour

Status Meaning

Green

Blinking(onfor100msand

off for100ms; thenonfor

100msandoff for

2700ms)

The E156Bispoweredon.

Green

Blinking(onfor100msand

off for2900ms) The E156Bisregisteredtoa

GSM/GPRS/EDGEnetwork.

Blue Blinking(onfor100msand

off for2900ms) The E156BisregisteredtoaUMTS

network.

Green

On The E156BisconnectedtoaGPRS/EDGE

network.

Blue On The E156BisconnectedtoaWCDMA

network.

Cyan On The E156BisconnectedtoaHSDPA

network.

- Off The E156Bisremoved.

Preparation

RequirementsfortheComputer

TousetheE156B,the computershouldmeetthe followingrequirements:

nUSB TypeAReceptacle,Compatible with USB 2.0HighSpeed.

nWindows2000SP4,WindowsXPSP2,WindowsVista.

nYour computershardwaresystemshouldmeetorexceedthe recommended

system requirementsfortheinstalledversionof OS.

nResolutionforthe display: 800 ×600orabove.

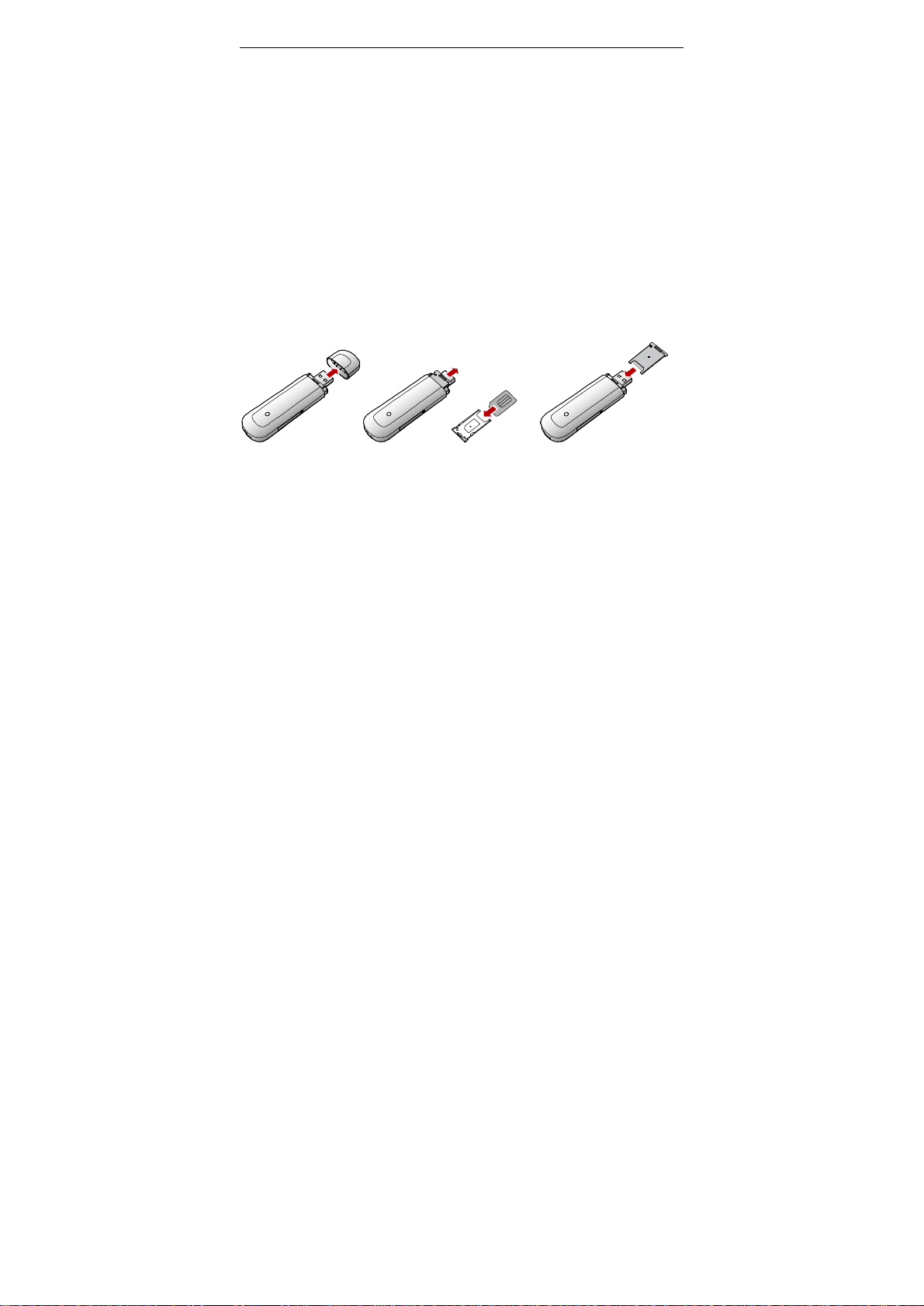

GettingYourE156B Ready

1. Removethe USIM/SIMcardslotfromthe E156B.

2. Insert the USIM/SIMcardintothecardslot.

3. Insert the cardslotintotheE156B.

InsertingtheMicroSDCard(Optional)

Insert the microSDcardintotheE156B,asshowninthe followingfigure.

Note:

Donotremovethe microSDcardwhen itisbeingused.Removingthecardduring

an operationmay damagethe microSDcardaswell asthe device,anddata

storedonthecardmaybe corrupted.

Installation/Removal Guide

Ondifferentoperatingsystems(OSs),the installationandremovalprocedures

may differ.Followthe systempromptsduringoperation.

ConnectingtheE156Bwith aComputer

Note:

First,poweronthecomputer.ThenconnecttheE156Bwith thecomputer.

Otherwise,theE156Bcannotbeinstalledasnormal.

1. Plugthe E156Bintothe USB interfaceof the laptopordesktopcomputer.

Youcan connectthe E156Btoalaptopordesktopcomputerusingthe USB cable

forbettersignals.

2. The OS automatically detectsandrecognisesnewhardware andstartsthe

installationwizard.

3. Followthe promptsoftheinstallationwizard.

4. Afterthe program isinstalled,ashortcuticonfortheE156Bmanagement

programisdisplayedonthedesktop.

StartingtheManagementProgram

AftertheE156Bisinstalled,themanagement programislaunchedautomatically.

Theneverytime the E156BisconnectedtothePC,the management programis

launchedautomatically.

Youcanalsodouble-click the shortcuticononthe desktoptolaunchthe

management program.

RemovingtheE156B

Removethe E156Bdirectly.

RemovingtheManagementProgram

1. Click StartMenu.

2. Click ControlPanel.
