Huawei ME909s-120 Instrucciones de instalación

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

Issue

Date

2017-12-11

No part of this manual may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").

The product described in this manual may include copyrighted software of Huawei and possible licensors.

Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract,

reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by

applicable laws or such actions are approved by respective copyright holders.

Trademarks and Permissions

, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.

LTE is a trade mark of ETSI.

Other trademarks, product, service and company names mentioned may be the property of their respective

owners.

Notice

Some features of the product and its accessories described herein rely on the software installed, capacities

and settings of local network, and therefore may not be activated or may be limited by local network

operators or network service providers.

Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.

Huawei reserves the right to change or modify any information or specifications contained in this manual

without prior notice and without any liability.

DISCLAIMER

ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE

LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS

MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE

LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF

PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS

REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.

THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL

INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING

FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE

AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and be responsible to

obtain all necessary governmental permits and licenses in order to export, re-export or import the product

mentioned in this manual including the software and technical data therein.

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

About This Document

Issue 03 (2017-12-11)

Huawei Proprietary and Confidential

About This Document

Revision History

Document

Version

Date

Chapter

Description

2015-08-07

Creation

2017-08-22

2.1

Updated Figure 2-3 Vacuum bag

inside a medium carton

2.2

Updated the Figure 2-5 ME909s-

120 LGA label

2017-12-11

Deleted privacy policy

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

Contents

Issue 03 (2017-12-11)

Huawei Proprietary and Confidential

Contents

1 Introduction....................................................................................................................................5

1.1 Purpose............................................................................................................................................ 5

1.2 Scope ............................................................................................................................................... 5

2 Acceptance Inspection..................................................................................................................6

2.1 Packaging Modes and Appearance ................................................................................................. 6

2.2 Label Inspection............................................................................................................................... 8

2.3 Performance Inspection ................................................................................................................... 8

2.4 Repack the Module after Inspection............................................................................................... 12

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

Introduction

Issue 03 (2017-12-11)

Huawei Proprietary and Confidential

1 Introduction

1.1 Purpose

This document describes the methods of inspecting Huawei's shipments of ME909s-

120 LGAmodule. Customers can refer to this document when formulating inspection

guides for accepting HUAWEI ME909s-120 LGA module.

1.2 Scope

This guide is applicable to the acceptance inspection of HUAWEI ME909s-120 LGA

module. The inspection methods provided in this guide are recommendations, which

can be modified by customers if necessary.

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 03 (2017-12-11)

Huawei Proprietary and Confidential

2 Acceptance Inspection

2.1 Packaging Modes and Appearance

The first-layer packages for the ME909s-120 LGAmodule are large cartons; the

second-layer packages are medium cartons, and the third-layer packages are

vacuum bags, as shown in the following figures.

Figure 2-1 Large carton packaging

Carton ID

Weight Label

Delivery Label

Check whether the package has serious damage or has been opened.

Check whether the number of Carton ID labels attached on the large carton is consistent

with the number of medium cartons in the large carton.

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 03 (2017-12-11)

Huawei Proprietary and Confidential

Figure 2-2 Medium carton

Figure 2-3 Vacuum bag inside a medium carton

Check whether the packaging modes are consistent with those shown in the previous

figures.

The ME909s-120 LGA modules are packed in vacuum bags. Check the vacuum bags for

damage and leakage.

Figure 2-4 Arrangement of the modules (after the vacuum bagis removed)

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 03 (2017-12-11)

Huawei Proprietary and Confidential

Check whether the six rings on the humidity indicator card are all brown, as shown in

Figure 2-4 .

Check that the arrangement of modules is consistent with that shown in Figure 2-4 .

Check that the number of modules is consistent with that labeled on the large carton.

After the vacuum bag is removed for inspection, repack the modules in a vacuum bag to

ensure the quality when the modules deliver to the customer.

2.2 Label Inspection

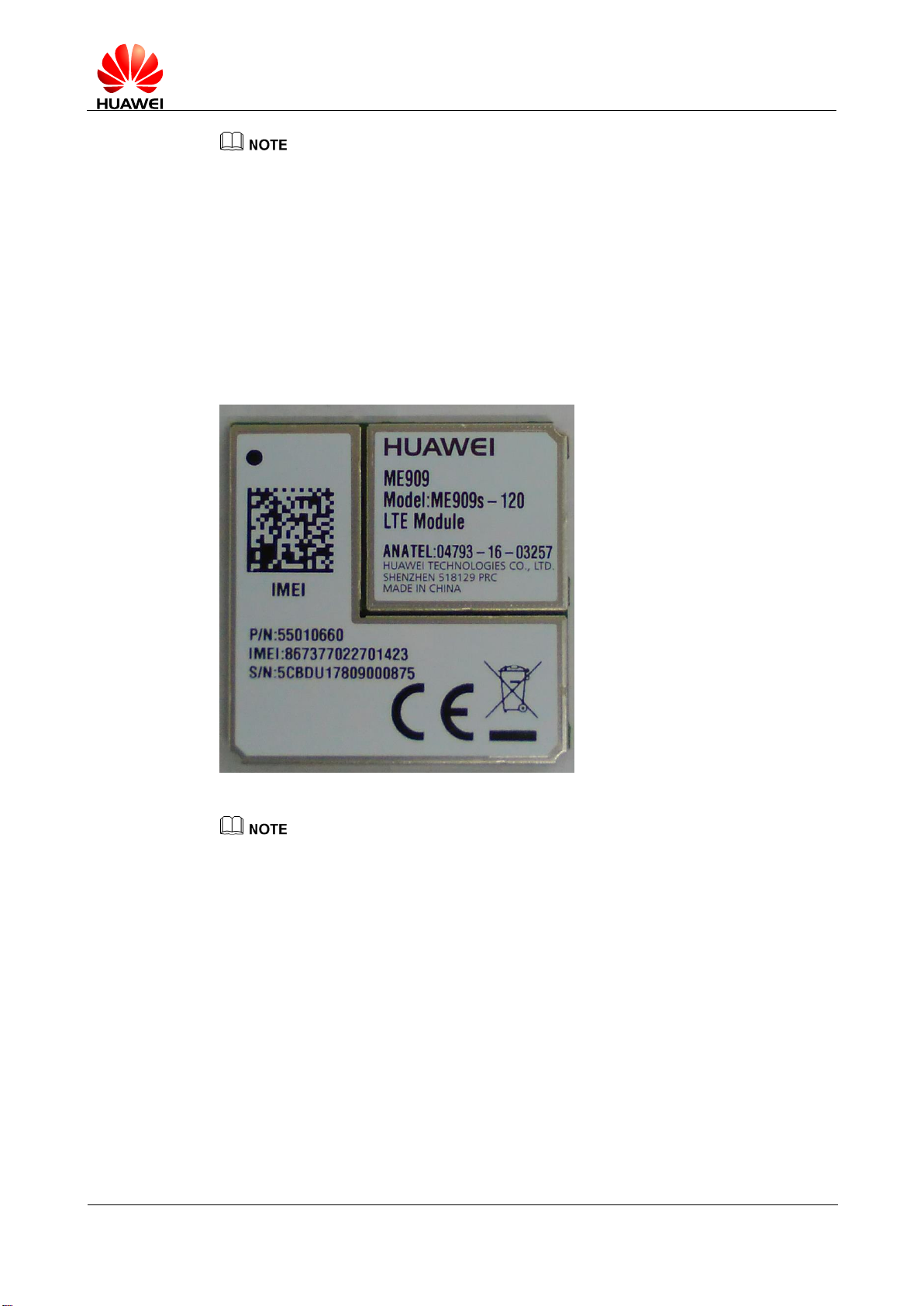

Figure 2-5 ME909s-120 LGAlabel

Check whether the information on the label of an ME909s-120 LGA module is consistent

with the corresponding label shown in Figure 2-5 . If the label is customized, see the

approval sheet.

Use a 2D barcode scanner to read the 2D barcode and check whether the number read

from the barcode is consistent with the IMEI number printed on the label.

It is recommended to take ESD protection during the inspection, for examlple, wearing ESD

wrist straps, ESD gloves, or ESD finger cots.

2.3 Performance Inspection

Testing tools: USB cable, development kit and PC

Testing system: Windows 8/Windows 8.1

The following is the procedure:

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 03 (2017-12-11)

Huawei Proprietary and Confidential

Step 1 Plug the module onto the development kit and connect the development kit to the PC

by USB cable.

Step 2 Enter Program Manager.

Step 3 Click Settings on Charm Bar.

HUAWEI ME909s-120 LTE LGA Module

Acceptance Inspection Guide

Acceptance Inspection

Issue 03 (2017-12-11)

Huawei Proprietary and Confidential

Step 4 Click Change PC settings in Settings.

Step 5 Click Network in PC settings.

Step 6 Click Connections > Unnamed in Network.
