HP C7791C - DesignJet 130 Color Inkjet Printer Guía de configuración

HP LF Printing Knowledge Center

Proof a press with CMYK

Application: Adobe InDesign CS

Printer: HP Designjet 30/90/130 series

Software: HP Driver

Operating System: Windows

1. First recommendations:

•See the Media type functionality & features and choose the most appropriate media.

•It is essential you have the media type correctly calibrated with the printer and print mode,

consult the Calibrate my printer document.

2. Open Adobe InDesign CS.

3. Configure the Color Settings, Edit menu > Color Settings…:

•Check the Enable Color Management checkbox.

•Make sure the Advanced Mode check box is ticked.

•Working Space > RGB: Adobe RGB (1998).

•Working Space > CMYK: Euroscale Coated v2 (for Europe), U.S. Web Coated (SWOP)

v2 (for US) and Japan Standard v2 (for Japan).

•Color Management Policies: Preserve Embedded Profiles.

•Profile Mismatches: check Ask When Opening and Ask When Pasting.

•Missing Profiles: check Ask When Opening.

•Conversion Options > Intent: Relative Colorimetric.

•Click OK.

4. Open the image, File menu > Open…:

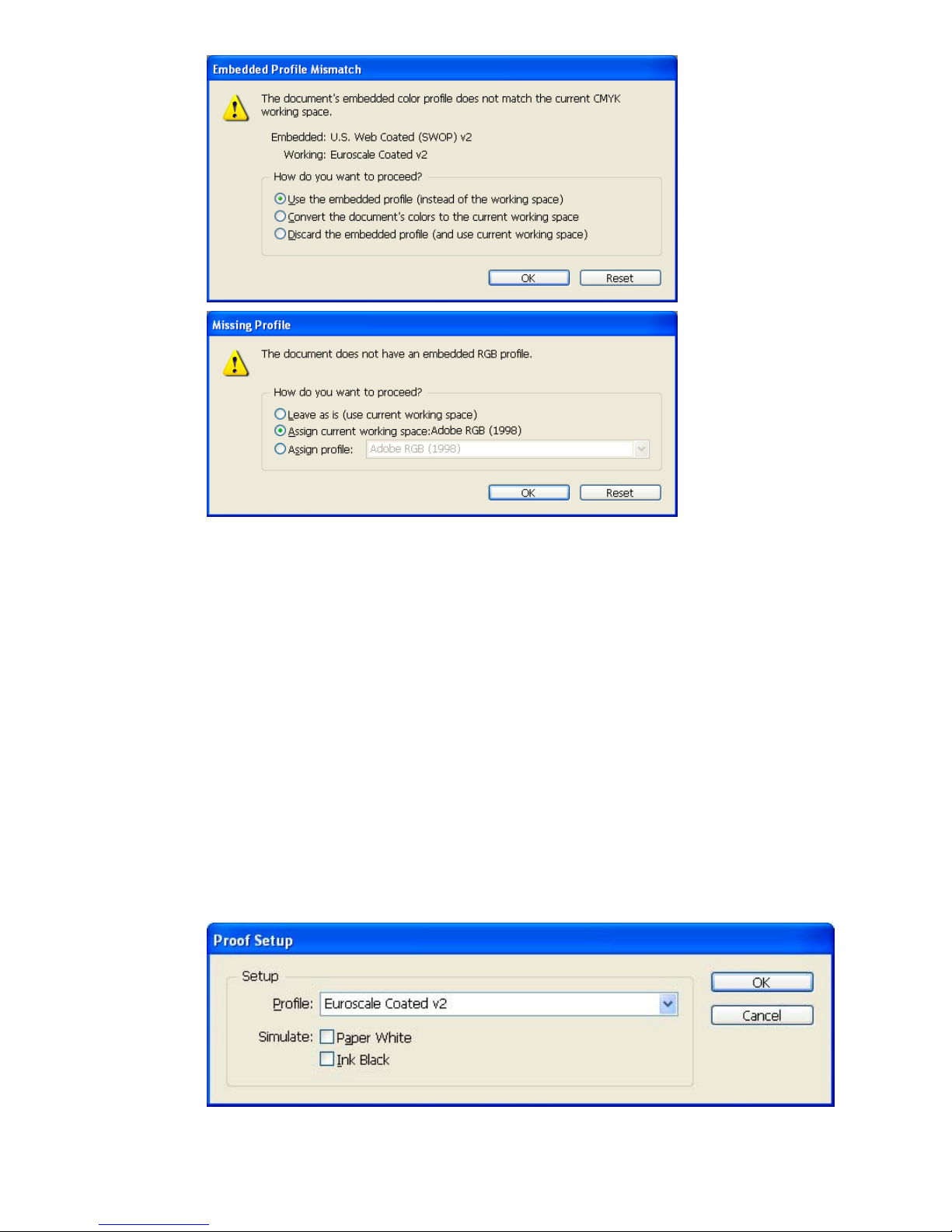

•If the document has an embedded color profile that does not match the current working

space, select Use the embedded profile. Otherwise, select Assign current working

space.

2

•Click OK.

5. Place the images if needed, File menu > Place…, browse the image and click Open….

6. So that you get a good display select a High Quality Display, View menu > Display

performace > High Quality Display.

7. Make sure you have configured the Document Setup appropriately for your document, File

menu > Document Setup….

6. Select your press profile in the Proof Setup dialog box, View menu > Proof Setup >

Custom…:

•Profile: Select the press profile. If you don’t have the press profile on the list, you should

copy it in the next folder:

Windows 98: WINDOWS>System>Color

Windows NT: WinNT>System32>Color

Windows 2000: C: > WINDOWS > System32 > Spool > Drivers > Color

Windows XP: C: > WINDOWS > System32 > Spool > Drivers > Color

•Simulate > Paper White: This setting only affects the display, check it if you want to

emulate the white of the paper.

•Click OK.

3

8. Printer settings, File menu > Print… > Setup… button:

•Select Printer...: Select the printer (ex. HP Designjet 130).

•Preferences:

oPaper/Quality tab:

•Paper Size is: Select the paper size of the media loaded on the printer.

•Type is: Select the media type that is loaded on the printer.

•Print Quality: Best.

oFinishing tab:

•Orientation: Select the orientation of your document on the paper.

oColor tab:

•Color Options: Manual.

•Color Matching Method: Managed by Application.

4

•Click OK until the InDesign Print dialog box.

9. Adobe InDesign Print… settings:

•Setup (left hand menu):

oPaper Size: Defined by Driver.

oOptions: Select the scaling option you need.

•Output (left hand menu):

oColor: Composite RGB.

•Color Management (left hand menu):

oSource Space: Proof.

oPrint Space > Profile: Select the profile of the printer and media type you will use

to print (the same media type selected in driver’s settings, always calibrated).

oIntent: Relative Colorimetric (Absolute Colorimetric if you want to emulate the white

of the paper).

5

•Click Print.

6

For more information on HP Designjet products

www.hp.com/go/designjet

7

© 2005 Hewlett-Packard Development Company, L.P. The information contained

herein is subject to change without notice. The only warranties for HP products and

services are set forth in the express warranty statements accompanying such

products and services. Nothing herein should be construed as constituting an

additional warranty. HP shall not be liable for technical or editorial errors or

omissions contained herein.

Adobe Photoshop and PostScript are trademarks of Adobe Systems Incorporated.

PANTONE is Pantone, Inc.'s check-standard trademark for color.

Rev. 1.0, 09/2005
