Honeywell XNX Universal Transmitter Manual de usuario

Installation Guide

XNX Universal Transmitter

Relay Board

Electrostatic Sensitive Device (ESD)

Electrostatic discharge (ESD) is the transfer, between bodies, of an electrostatic charge caused

by direct contact or induced by an electrostatic ﬁeld.

The most common cause of ESD is physical contact. Touching an object can cause a discharge

of electrostatic energy—ESD! If the charge is sufﬁcient and occurs near electronic components,

it can damage or destroy those components.

In some cases, damage is instantaneous and an immediate malfunction occurs. However,

symptoms are not always immediate—performance may be marginal or seemingly normal for an

indeﬁnite period of time, followed by a sudden failure.

To eliminate potential ESD damage, review the following guidelines:

Handle boards by their edges, taking care not to touch electronic components•

Wear grounded wrist or foot straps, or ESD shoes or heel grounders to dissipate•

unwanted static energy

Prior to handling boards, dispel any charge in your body or equipment•

Ensure components are transported and stored in static safe packaging•

When returning boards, carefully package in the original carton and static protective•

wrapping

Ensure ALL personnel are educated and trained in ESD Control Procedures•

In general, exercise accepted and proven precautions normally observed when handling

electrostatic sensitive devices.

A warning label is placed on the packaging, identifying product using electrostatic sensitive

semiconductor devices.

XNX Relay Board Installation Guide 3

1 Relay Option Board

The relay option (XNX-Relay) provides 3 form “C” contacts for alarm and fault indication. A remote

reset is provided to silence alarms.

Note

This option is not available with the Modbus®or Foundation FieldbusTM options.

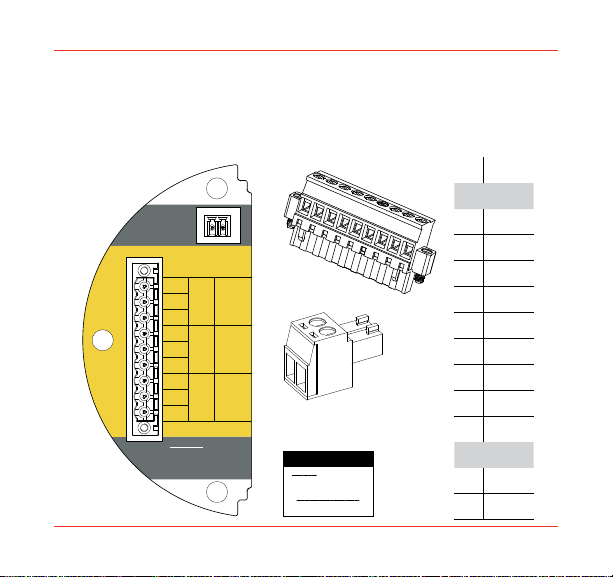

Wiring for the relays is through an available cable/conduit entry to terminal block TB3.

Warning: Power

externally supplied.

Disconnect at source

prior to servicing.

3-5

3-4

3-3

3-2

3-1

3-6

3-7

3-8

3-9

TB4

Remote

Reset SW

Relay Ratings

250VAC 5A

24VDC 5A

Fault Level 2 Level 1

TB-3 RELAY

TB3 Relay Connections

Warning: Power externally

supplied, disconnect at source

prior to servicing

Relay Contact Ratings:

250 VAC 5 amps

24 VDC 5 amps

Relay

TB3

1NC

3NO

4NC

6NO

7NC

9NO

TB4

TB3

TB4

XNX Relay Board Installation Guide

2 Option Board Installation

WarNiNg

If you are retrotting an option board into a previously installed unit, remove power from the

XNX unit to prevent potential electric shock

Release the cover locking screw with the provided 2mm hex key.1.

Unscrew, remove the cover and set it aside.2.

Using the handle provided, carefully slide the POD from the inside of the XNX3.

Transmitter housing. If your XNX is currently in use, carefully unplug the terminal

blocks from the rear of the POD.

Place the POD face down on a ﬂat work surface taking care to not damage the4.

LCD screen.

Remove the blank label from the POD and replace it with the label provided with the5.

new Relay option board

Remove the 6 case screws from the POD set them aside in a safe place.6.

Case screws (6)

XNX Relay Board Installation Guide 5

Lift the back cover off the POD revealing the personality board and components inside.7.

Personality

Board

Main Board

Option Board

Connector

Remove the option board from its packaging.8.

Install the option board onto the main board by carefully inserting the pins on the back9.

of the option board into the connector on the main board.

Option Board

Connector

Replace the back cover and screws, then wire accordingly or reconnect to existing wiring.10.

XNX Relay Board Installation Guide

Slide the POD back into the XNX housing and replace the cover.11.

Note:

Before replacing the cover on the transmitter housing, coat the threads with anti-seize

compound to prevent corrosion buildup.

When the XNX completes the startup routine, as it attempts to enter monitoring12.

mode, the XNX will show Fault 152 signifying that the XNX must be conﬁgured to

recognize the new option board.

Navigate the XNX to the Transmitter Data screens found under the Information Menu. In addition

to displaying the current transmitter conﬁguration, Transmitter Data is also used to update the

conﬁguration of the XNX when a new option board is added or removed. To add the new option,

use the

switches to navigate to the Option Revision screen, then swipe the



magnetic switch

on the front panel to display Accept New Option Screen. The screen will show the current option

(if any) and the newly installed option. Use the

switches to highlight the option then swipe the



magnetic switch on the front panel to accept the change. The XNX will update the part number

of the unit and the new option will be operational.

XNX Relay Board Installation Guide 7





Figure 1. Updating The XNX for Option Boards Added or Removed

1998-0751 Release 1

March 2009

MAN0884_EMEAI

Please Note:

While every effort has been made to ensure accuracy in this publication, no responsibility can be

accepted for errors or omissions. Data may change, as well as legislation, and you are strongly

advised to obtain copies of the most recently issued regulations, standards and guidelines.

This publication is not intended to form the basis of a contract.

Contact Honeywell Analytics:

Find out more

www.honeywellanalytics.com

Europe, Middle East, Africa, India

Life Safety Distribution AG

Weiherallee 11a

CH-8610 Uster

Switzerland

Tel: +41 (0)44 943 4300

Fax: +41 (0)44 943 4398

[email protected]

Americas

Honeywell Analytics Inc.

405 Barclay Blvd.

Lincolnshire, IL 60069

USA

Tel: +1 847 955 8200

Toll free: +1 800 538 0363

Fax: +1 847 955 8210

[email protected]

www.honeywell.com

Technical Services

EMEAI: [email protected]

US: [email protected]

AP: [email protected]

Asia Pacific

Honeywell Analytics Asia Pacific

#508, Kolon Science Valley (I)

187-10 Guro-Dong, Guro-Gu

Seoul, 152-050

Korea

Tel: +82 (0)2 2025 0300

Fax: +82 (0)2 2025 0329

[email protected]
