T8700B,C

An Electronic Round™

Programmable Thermostat

APPLICATION

The T8700 Electronic Round™ Programmable Thermostats

provide single-stage, programmable temperature control for

24V heating and/or cooling systems. See Table 1 for model

descriptions.

Table 1.T8700 Thermostat Description.

FEATURES

•Attractive neutral styling complements any decor.

•Easy-to-use means fewer homeowner questions and

increased homeowner satisfaction.

•Large easy-to-read display.

•Keys located near the display for easy access.

•Fan and System switches are located on the top of the

wallplate to eliminate accidental setting changes.

•Quick and easy installation.

Two-period programming for added energy savings.

• Manual changeover from heat to cool eliminates

unexpected system operation (T8700C).

•°F or °C temperature display for added model

flexibility.

•Selectable heating cycle rate (1, 3, 6 or 9 cph) allows a

variety of applications and reduced inventory.

•Cooling (T8700C) cycle rate fixed at 3 cph (the standard

setting for compressors) allows a speedy installation.

•Programming permanently held in memory (no

batteries needed) and retained during power outages

for increased installer and homeowner convenience.

•Compatible with most equipment and application

needs including gas, oil and electric forced air;

condensing gas furnaces; hydronic heat; and gravity

and radiant heat systems.

•Powerstealing eliminates need to run additional wires.

Contents

Application........................................................................... 1

Features .............................................................................. 1

Specifications ...................................................................... 2

Ordering Information ........................................................... 2

Installation ........................................................................... 3

Settings and Adjustments ................................................... 6

Setting the Clock ................................................................. 7

Programming....................................................................... 7

Operation ............................................................................ 8

Checkout ............................................................................. 10

Troubleshooting ................................................................... 11

68-0197-1

T8700C

Model System

Selection Fan

Selection

Wiring

Terminals

Used

T8700B1007 HEAT-OFF NONE R,W

T8700B1015 HEAT-OFF ON-AUTO R,G,W

T8700C1005 HEAT-OFF-

COOL ON-AUTO R,G,W,Y

T8700B,C AN ELECTRONIC ROUND™ PROGRAMMABLE THERMOSTAT

68-0197—1 2

ORDERING INFORMATION

When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the

TRADELINE® Catalog or price sheets for the complete ordering number.

1. Order number.

2. Accessory, if desired.

If you have additional questions, need further information, or would like to comment on our products or services, please write or

phone:

1. Your local Home and Building Control Sales Office (check white pages of your phone directory).

2. Home and Building Control Customer Logistics

Honeywell Inc., 1985 Douglas Drive North

Minneapolis, Minnesota 55422-4386

In Canada—Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9.

International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France,

Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.

SPECIFICATIONS

IMPORTANT

The specifications given in this publication do not

include normal manufacturing tolerances; therefore,

an individual unit might not exactly match the listed

specifications. Also, this product is tested and

calibrated under closely controlled conditions and

some minor differences in performance can be

expected if those conditions are changed.

T8700 TRADELINE® models include a thermostat, wallplate,

decorator cover plate and owner’s guide. The package also

includes a resistor for use with Taco zone valves. See Fig. 11.

Power:

T8700: 24 Vac nominal, 18 to 30 Vac, 60 Hz.

Electrical Ratings:

Heating: .02 to 1.2A run; 3.5A inrush.

Cooling: .02 to 1.2A run; 6.0A inrush.

Fan: .02 to 0.5A run; 2.5A inrush.

Current Draw:

T8700 Power Stealing Thermostat requires only 2.5 mA

current draw when the thermostat calls for heat or cool and is

compatible with most 24V systems. It can be used in most

non-millivolt applications. See Power Stealing in the Operation

section.

Temperature Adjustment:

Setpoint temperature is adjusted by using the or keys.

One press changes the setpoint one degree; pressing and

holding changes the setpoint several degrees.

Temperature Setting Range:

40°F (4°C) to 99°F (37°C).

Operational Ambient Temperature Range:

30°F (4°C) to 110°F (43°C).

Shipping Temperature Range:

-20°F (29°C) to 120°F (49°C).

Operating Relative Humidity:

5% to 90% RH, noncondensing.

Cycle Rates (at 50 Percent Load):

Heating: Selectable at 1, 3, 6 or 9 cph. See Table 2 for

heating cycle rates and corresponding system equipment.

Cooling (T8700C): Fixed at 3 cph.

Table 2. Heating Cycle Rates.

Finish:

T8700: Premier White® color.

Dimensions:

See Fig. 1.

Fig. 1. T8700 Thermostat dimensions (T8700C shown).

System Cycles per

Hour (cph)

Steam, Gravity 1

Hydronic Heat, Condensing Gas Furnaces 3

Gas or Oil Forced Air 6

Electric Furnace 9

Set

M12579

4-1/4

5-1/2

1-1/2

3-1/2

T8700

THERMOSTAT

DECORATOR

COVER PLATE

T8700B,C AN ELECTRONIC ROUND PROGRAMMABLE THERMOSTAT

68-0197—1

INSTALLATION

When Installing this Product…

1. Read these instructions carefully. Failure to follow them

could damage the product or cause a hazardous

condition.

2. Check the ratings given in the instructions and on the

product to make sure the product is suitable for your

application.

3. Installer must be a trained, experienced service

technician.

4. After installation is complete, check out product

operation as provided in these instructions.

CAUTION

Damage To Heating/Cooling System Possible.

Be careful when handling wires during installation.

Disconnect power at furnace or at main breaker/fuse

box before starting installation.

RECYCLING NOTICE

If this control is replacing a control that contains

mercury in a sealed tube, do

not

place your old

control in the trash.

Contact your local waste management authority for

instructions regarding recycling and the proper

disposal of an old control containing mercury in a

sealed tube.

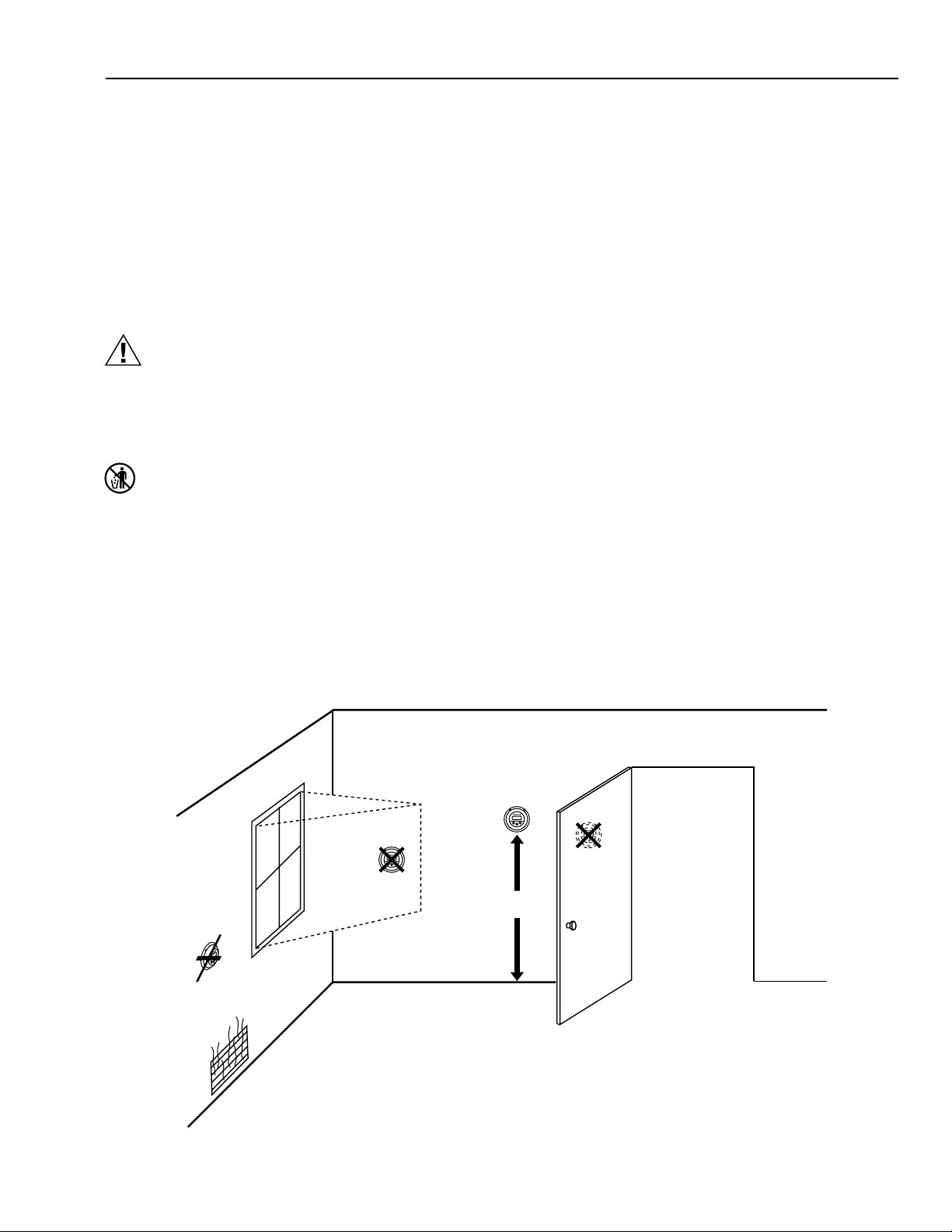

Fig. 2. Typical thermostat location.

Location

Install the thermostat about 5 ft (1.5m) above the floor in an

area with good air circulation at average temperature. See

Fig. 2. Do not install the thermostat where it can be affected by:

—Drafts or dead spots behind doors and in corners.

—Hot or cold air from ducts.

—Radiant heat from the sun or appliances.

—Concealed pipes and chimneys.

—Unheated (uncooled) areas such as an outside wall

behind the thermostat.

Mounting Decorator Cover

Plate and Wallplate to Wall

IMPORTANT

Position and level the wallplate for appearance only.

The thermostat functions properly even when not

level.

Mount decorator cover plate (if desired), wallplate, T8700 and

the screws as follows; see Fig. 3:

1. Place the decorator cover plate and the wallplate on the

desired wall location.

2. Pull the thermostat wire through the entrance hole on

the decorator cover plate, then through the wallplate

entrance hole.

3. Plug the wiring hole behind the thermostat to prevent

drafts from affecting the thermostat.

4. Select the two mounting holes that best fit the

application.

5. Fasten the decorator cover plate and the wallplate to

the wall using the provided anchors (if necessary) and

screws.

5 FEET

[1.5 METERS]

YES

M12524

T8700B,C AN ELECTRONIC ROUND™ PROGRAMMABLE THERMOSTAT

68-0197—1 4

Fig. 3. Mounting decorator cover plate

and wallplate on wall (T8700C shown).

Wiring

CAUTION

Damage To Heating/Cooling System Possible.

Be careful when handling wires

during installation.

Disconnect power at furnace or at main breaker/fuse

box.

IMPORTANT

Use an 18-gauge maximum wire for wiring the

T8700 Thermostat.

All wiring must comply with local electrical codes and

ordinances. A letter is located near each terminal for

identification.

NOTE: To ensure proper mounting of thermostat, restrict all

wiring to the left side of the terminals. See Fig. 4.

Fig. 4.T8700C wallplate wiring connections.

(Refer to Table 1 for T8700B wiring connections.)

The shape of the terminals permits insertion of straight or

wraparound wiring connections; either method is acceptable.

See Fig. 5.

Fig. 5. Wiring connections.

The T8700 Thermostat steals power through the heating and/or

cooling system controls and is adaptable to most, 24 Vac

systems. Refer to Fig. 6 through 11 for typical wiring hookups.

M12529

ALTERNATE

MOUNTING

SCREW HOLE

MOUNTING

SCREW

HOLE

MOUNTING

SCREW HOLE

ROUTE WIRING AS

SHOWN THROUGH

ENTRANCE

HOLE

WIRING ENTRANCE HOLE

ALTERNATE MOUNTING

SCREW HOLE

M12537

FOR WRAPAROUND, STRIP

7/16 IN. (11 mm)

FOR STRAIGHT INSERTION,

STRIP 5/16 IN. (8 mm)

Fig. 6. T8700B1007 Heat Only wiring diagram

T8700B1015 Heat Only with Fan includes dotted line.

M12532A

DECORATOR

COVER PLATE

WALL

WALLPLATE

PLASTIC SCREW

ANCHOR (2)

1WHEN USING WALL ANCHORS, DRILL 3/16 INCH HOLES FOR

DRYWALL, 7/32 INCH HOLES FOR PLASTER OR WOOD.

(HOT)

HEATING

PRIMARY

CONTROL

24V

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND

OVERLOAD PROTECTION AS REQUIRED.

M16005B

T8700B

FAN

RELAY

T8700B,C AN ELECTRONIC ROUND PROGRAMMABLE THERMOSTAT

68-0197—1

Fig. 7.T8700C heat-cool wiring diagram in single trans-

former system with gas or electric heat/electric cooling.

Fig. 9. T8700B1007 Heat Only wiring diagram in

electric baseboard or ceiling cable system.

Fig. 8. T8700C heat-cool wiring diagram

in oil heating/electric cooling system.

(Oil primary has its own transformer.)

Fig. 10. T8700B1007 Heat Only wiring diagram

for controlling 2-wire hot water zone valves.

Fig. 11. T8700B1007 Heat Only diagram used with TACO

zone valves.The 7870 OHM resistor is included.

(HOT)

COOLING

CONTACTOR

FAN

RELAY

OIL PRIMARY

CONTROL

24V

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND

OVERLOAD PROTECTION AS REQUIRED. M12526

T8700

M12623

(HOT)

2 2

3 3 3

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND

OVERLOAD PROTECTION AS REQUIRED.

CONNECT V8043E YELLOW LEADWIRE TO THERMOSTAT.

CONNECT V8043E RED LEADWIRES TO AQUASTAT®.

T8700T8700T8700

V8043E

CIRCULATOR

RWRWRW

2C1

BURNER

CONTROL

CIRCUIT

V8043EV8043E

RESISTOR

(HOT)

THERMOSTAT T8700B

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND

OVERLOAD PROTECTION AS REQUIRED.

CONNECT 7870 OHM RESISTOR TO THE TACO ZONE

VALVE TERMINALS 1 AND 2. (TO ORDER, USE PART

NO. 4074EYC.)

TAC O ZONE VALVE

M13178

(HOT)

COOLING

CONTACTOR

FAN

RELAY

HEATING

PRIMARY

CONTROL

24V

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND

OVERLOAD PROTECTION AS REQUIRED. M13207

T8700

(HOT)

1POWER SUPPLY. PROVIDE DISCONNECT MEANS

AND OVERLOAD PROTECTION AS REQUIRED. M12527B

RESISTANCE

HEATER

SWITCH

HEATER

BLACK

BLUE

RED

WHITE

R841C

BIMETAL

SWITCH

T8700

T8700B,C AN ELECTRONIC ROUND™ PROGRAMMABLE THERMOSTAT

68-0197—1 6

Adjust Fan Operation Switch

The thermostat fan operation switch, labeled Fuel switch, is set

at the factory in the F position. See Fig. 12. This is the correct

setting for most systems. If this system is an electric heat

system, set the switch to the E position.The E setting allows the

fan to turn on immediately with the heating or cooling

equipment in a system where the G terminal is connected.

Fig. 12. Fuel switch, rear view of thermostat.

Mounting Thermostat to Wallplate

1. Align and attach bottom center notch on the thermostat

with bottom center tab on wallplate.

2. Next align tabs and connector at top of thermostat to

the pins on the wallplate. Press firmly to attach.

Fig. 13. Mounting thermostat to wallplate.

NOTE: To remove the thermostat from the wallplate, grasp

the thermostat on both sides and pull the thermostat

straight out.

Fig. 14. T8700 time/temperature display

and System/Fan switches (T8700C shown).

Fan Switch

The Fan switch settings for the T8700B1015 with Fan and

T8700C are:

ON: The fan runs continuously. Use to improve air circulation.

AUTO: Normal setting for most homes. In cooling, the fan

starts and stops with the cooling equipment. In heating,

the heating system directly controls the fan equipment.

The fan may start a few minutes after the heating

equipment turns on (for most systems). When the

thermostat Fuel switch is set to the E position for electric

heat, the fan starts and stops with heating equipment.

Slide the Fan switch on the thermostat to the desired fan

setting.

System Switch

The T8700B System switch controls the thermostat as follows:

HEAT: The thermostat controls the heating system.

OFF: Heating is off.

The T8700C System switch controls the thermostat as

follows:

COOL: The thermostat controls the cooling system.

OFF: Both heating and cooling are off.

HEAT: The thermostat controls the heating system.

Slide the System switch on the thermostat to the desired

system setting.

Set

M12546A

TIME/TEMPERATURE

DISPLAY

INCREASE

SETTING

DECREASE

SETTING

FAN SWITCH

(SOME MODELS)

SYSTEM SWITCH

SETTINGS AND ADJUSTMENTS

Setting Fan and System Switches

Fan and system settings are controlled manually using the

switches located at the top of the thermostat wallplate. See

Fig. 14 for switch locations.

M12531A

FUEL SWITCH

1T8700C AND T8700B WITH FAN ONLY.

CONNECTOR

M13208

ALIGN AND ATTACH BOTTOM CENTER NOTCHS ON

THERMOSTAT/WALLPLATE.

ALIGN PINS ON WALLPLATE WITH CONNECTOR ON

THERMOSTAT. PRESS FIRMLY TO ATTACH.

BOTTOM CENTER

NOTCH

PINS

Set

T8700B,C AN ELECTRONIC ROUND PROGRAMMABLE THERMOSTAT

68-0197—1

2. Set your WAKE time.

a. Press the key

once.You will see a

flashing WAKE time.

b. Use the or keys to set your desired WAKE

time. The WAKE time is now set.

3. Set your WAKE

temperature.

a. Press the key

once.You will see a

flashing WAKE

temperature.

b. Use the or keys to set your desired WAKE

temperature.The WAKE temperature is now set.

4. Set your SLEEP time.

a. Press the key

once.You will see a

flashing SLEEP time.

b. Use the or keys to set your desired SLEEP

time. The SLEEP time is now set.

5. Set your SLEEP

temperature.

a. Press the key

once.You will see a

flashing SLEEP

temperature.

b. Use the or keys to set your desired SLEEP

temperature.The SLEEP temperature is now set.

6. Run program.

a. Press the key

once.You have

completed your

program changes.

End is displayed for

five seconds indica-

ting the end of

programming. The

thermostat then

displays the current

time and room temperature.

NOTE: To exit the programming mode at any time, press the

key until End is displayed.

SETTING THE CLOCK

1. To set the current time:

a. Press the key

once.You will see a

flashing clock.

b. Use the or keys to set the current time.

c. Press the key until End is displayed.

PROGRAMMING

The thermostat is preprogrammed for your convenience with

the following time and temperature settings, see Table 3.

Table 3. Preprogrammed Time/Temperature Settings.

M12506

M12507

M12508

SET

M12509

M12506

M12510

SET

M12511

M12542

Period Start Time Heating

Setpoint Cooling

Setpointa

WAKE 6:00 AM 70°F (21°C) 78°F (25.5°C)

SLEEP 10:00 PM 62°F (16.5°C) 82°F (28°C)

aT8700C only.

WAKE is the time period when you want the house at a

comfortable temperature during the day.

SLEEP is the time period you can set for an energy-saving

temperature while you sleep.

NOTE: The heating and cooling program times are the

same. Changing your cooling WAKE time also

changes your heating WAKE time.

The following is a heating program example. The System

switch is in the HEAT position. To change to the cooling

program (T8700C), move the System switch to the COOL

position and enter the cooling temperature settings.

IMPORTANT

When programming the T8700B, first move the

System switch to the heat position.

To program your own Time and Temperature settings

follow steps 1 through 6.

1. Set the current time.

a. Press the key

once.You will see a

flashing clock.

b. Use the or keys to set the current time. The

clock is now set.

Preprogrammed Time and Temperature settings.

After the clock is set, you can use the preprogrammed

Time and Temperature settings, (see table 3) press the

key until End is displayed.

The preprogrammed Temperature settings can now be

used.

T8700B,C AN ELECTRONIC ROUND™ PROGRAMMABLE THERMOSTAT

68-0197—1 8

3. Select Fahrenheit - CelsiusTemperature.

a. Press to

display the current

°F or °C setting.

b. Use or to

choose between °C

and °F.

4. Clock Format.

a. Press to

display the current

12- or 24-hour clock

setting.

b. Use or to

choose either a 12- or 24-hour clock format.

Press once to exit

Installer Setup. Upon

exiting, the temperature

setting will be at 52°F

(or 11°C). Press six

times to return the

thermostat to the normal operating mode with End

appearing on the display.

Operating the Thermostat

To Display Temperature

Setting.

Press or once to

display present tempera-

ture setting. After approxi-

mately five seconds, the

thermostat displays current time and room temperature.

To Make a Temporary

Temperature Change.

a. Press or until

desired temperature

is displayed.

b. TEMPORARY is

displayed. The

TEMPORARY

change is in effect

until the next

program period.

NOTE: To cancel your TEMPORARY change, press

until End is displayed.

To Use Hold Function.

To hold the thermostat at one temperature indefinitely,

program both WAKE and SLEEP to the same

temperature.

Installer Setup

The following instructions provide the information necessary

to change the heating cycle rate, select either Fahrenheit

(F °) or Celsius (C °) and 12- or 24-hour clock format.

NOTE: To exit at any time, press until End is displayed.

1. Enter Installer Setup.

a. Use or keys

to set the

temperature set-

point to 52°F (11°C).

b. After the thermostat

reverts back to

displaying room

temperature

(approximately

five seconds),

simultaneously

press and keys

and hold for three

seconds. Release

the keys after the

display changes.

c. Press within

five seconds.

2. Select Cycles Per Hour.

The display changes to

show current cycle

rate setting.

a. Use or to

select 1, 3, 6, or 9 cph.

Refer to Table 4.

Table 4. Heating Cycle Options

M12522

M12511

System

Program

Setting

(cph)

Steam, Gravity 1

Hydronic Heat, Condensing Gas Furnaces 3

Gas or Oil Forced Air 6

Electric Heat 9

SET

M12512

SET

M12513

TEMPORARY

M12514

SET

M12518

TEMPORARY

M12519

M12520

M12504

M12521

T8700B,C AN ELECTRONIC ROUND PROGRAMMABLE THERMOSTAT

68-0197—1

OPERATION

Zero Droop Performance

The T8700 Thermostat can control temperature closer to

setpoint than electromechanical thermostats. This is because

proportional plus integral control (P + I) maintains a constant

indoor temperature independent of the outdoor temperature.

This feature allows the T8700 Thermostat to provide tight

temperature control with virtually no noticeable swings in

temperature, a condition referred to as

droop

. This zero droop

performance provides improved comfort and occupants do not

need to continually adjust thermostat settings to be

comfortable, even during extreme weather.

Power Stealing

The T8700 Thermostat steals power through the heating and/or

cooling system controls; therefore, it can be used in applications

where it is not possible to run additional wires. See Fig. 15.

The T8700 Thermostat requires only 2.5 mA of load current

when the heating and/or cooling is on. When the heating and/or

cooling is off, the thermostat operates at 0.1 mA.This low

current draw allows the T8700C to be used with most 24V

heating and/or cooling systems.

The T8700 Thermostat operates only when mounted on the

wallplate with 24V applied. Batteries are not required for

operation. Temperature setpoints, programming and

configuration settings are retained permanently in memory.

Sequence of Operations

The Heat and Cool outputs are transistor controlled. A loss of ac

power or a change in the System switch setting can turn off

outputs.Table 5 shows the Fan and System sequence of

operations.

Fan Control

The FAN switch settings for the T8700B1015 with Fan and

T8700C are ON and AUTO.

ON: The fan runs continuously.

AUTO: In cooling, the fan starts and stops with the cooling

equipment. In heating, the fan starts a few minutes after

the heating equipment turns on. With the Fuel switch in

the E position for electric heat, the fan starts and stops

with the heating equipment.

Heat Mode

With the T8700 system switch in the HEAT position, the

thermostat controls the heating system. On a call for heat, the

W terminal is energized and a flame icon shows on the

digital display.

If the Fuel switch is in the E position, both the W and G

terminals are energized on a call for heat.

Cool Mode

With the T8700C System switch in the Cool position, the

thermostat controls the cooling system. On a call for cool,

the G and Y terminals are energized and a snowflake icon

shows on the digital display. A flashing snowflake indicates

that the minimum-off timer is in effect.

Minimum Off-Timer T8700C

A minimum off-timer for the T8700C assures that the cooling

compressor does not come on again for at least five minutes

after it turns off. The minimum-off timer is triggered when the

compressor turns off or when the System switch is changed.

If the compressor turns off when the setpoint is changed, the

minimum-off timer is triggered. Power interruption and power

restoration also trigger the minimum off-timer.

Fig. 15. T8700C power stealing internal schematic.

(HOT) L2

1POWER SUPPLY. PROVIDE DISCONNECT MEANS AND

OVERLOAD PROTECTION AS REQUIRED.

SYSTEM SWITCH

FAN SWITCH

AUTO

OFF

HEAT

COOL

FAN RELAY

COOL RELAY

HEAT RELAY

POWER

SUPPLY

LOGIC AND

CONTROL

THERMOSTAT

LOGIC

THERMISTOR

SENSOR

M10360

MOSFET

T8700B,C AN ELECTRONIC ROUND™ PROGRAMMABLE THERMOSTAT

68-0197—1 10

Table 5. Sequence of Operations.

a When fuel switch is in the E position. (T8700B with Fan and T8700C).

bT8700C only.

Fan Switch Settings System Switch Settings Call for Action Energize Terminals Display Icons

AUTO OFF None None None

ON Any Any G None

AUTO COOLbCoolingbG, Y

AUTO HEAT Heating W,Ga

CHECKOUT

Heating (T8700B,C)

1. Slide the System switch to HEAT and the Fan switch to

AUTO. (For T8700B1007 Heat Only model, a Fan switch

is not an option).

2. Press and hold the key to raise the temperature

setting several degrees above the room temperature

the heating equipment should start. In conventional

systems, the system turns on the fan through a limit

control. When using the thermostat with the fuel switch

set to the E position for electric heat, the fan starts

immediately.

3. Press the key to lower the temperature setting below

the room temperature. Heating equipment should stop.

Cooling (T8700C)

CAUTION

Equipment Damage Possible.

Operating at too low of an outdoor temperature

can cause compressor damage.

Do not attempt to operate cooling when outdoor

temperature is below 50°F (10°C). Refer to

manufacturer recommendations.

IMPORTANT

A mimimum off-timer for the T8700C assures that the

cooling compressor does not come on again for at

least five minutes after it turns off. The minimum-off

timer is triggered when the compressor turns off or

when the System switch is changed. If the compressor

turns off when the setpoint is changed, the minimum-

off timer is triggered. Power interruption and power

restoration also trigger the minimum off-timer.

1. Slide the System switch to COOL and the Fan switch to

AUTO.

2. To start the cooling equipment, press the key to

lower the temperature setting several degrees below

room temperature.The fan starts and stops with the

cooling equipment.

3. Press the key to raise the temperature setting above

the room temperature. Cooling system should shut down.

Fan (T8700B1015 with Fan, T8700C)

1. Slide the System switch to OFF and the Fan switch to

ON. The Fan should run continuously.

2. Slide the Fan switch to AUTO. In heating, the fan is

controlled directly by the heating equipment and starts

a few minutes after the heating equipment turns on (for

most systems). When using the thermostat with the

Fuel switch set to the E position for electric heat, the fan

starts and stops with the heating equipment. In cooling,

the fan starts and stops with the cooling equipment.

Make certain all equipment responds properly to the

thermostat.

Otros manuales para T8700B

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Termostato de Honeywell

Honeywell

Honeywell 2450A Series Manual de usuario

Honeywell

Honeywell TH2110DV1008/U Manual de usuario

Honeywell

Honeywell RTH111 series Manual de usuario

Honeywell

Honeywell FOCUSPRO TH6320R Manual de usuario

Honeywell

Honeywell FocusPRO TH5220D Manual de usuario

Honeywell

Honeywell RTH7500 Series Manual de usuario

Honeywell

Honeywell T921A Manual de usuario

Honeywell

Honeywell T7460A Manual de usuario

Honeywell

Honeywell ST6300 Manual de usuario

Honeywell

Honeywell T841A Manual de usuario

Honeywell

Honeywell RTHL2510 series Manual de usuario

Honeywell

Honeywell SUNDIAL Y PLAN Manual de usuario

Honeywell

Honeywell PRO TH2000DH Series Manual de usuario

Honeywell

Honeywell Digital Round T8775A Manual de operación

Honeywell

Honeywell Chronotherm III T8602A Manual de usuario

Honeywell

Honeywell T7525 Manual de usuario

Honeywell

Honeywell CT54 Manual de usuario

Honeywell

Honeywell VisionPRO IAQ Manual de usuario

Honeywell

Honeywell TROLATEMP T8601C Chronotherm Manual de usuario

Honeywell

Honeywell MagicStat T8132 Manual de usuario

Honeywell

Honeywell PRO TH2000 Series Manual de usuario

Honeywell

Honeywell TH7000 Series Manual de usuario

Honeywell

Honeywell Lyric T6 Manual de usuario

Honeywell

Honeywell T841A Manual de usuario

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario

Aube Technologies

Aube Technologies TH305 Manual de usuario

Powtier Controls

Powtier Controls 505MST Manual de usuario

Kanmor

Kanmor Zone Control 369e Manual de usuario
