Honeywell FOCUSPRO TH6320R Manual de usuario

Operating

Manual

FocusPro®TH6320R

Wireless Thermostat

Thermostat Sans Fil

Termóstato inalámbrico

Operating Manual

69-2093EFS-07

M28450

Read and save these instructions.

Need Help?

For assistance with this product please visit http://yourhome.honeywell.com

or call Honeywell Customer Care toll-free at 1-800-468-1502

® U.S. Registered Trademark. Patents pending.

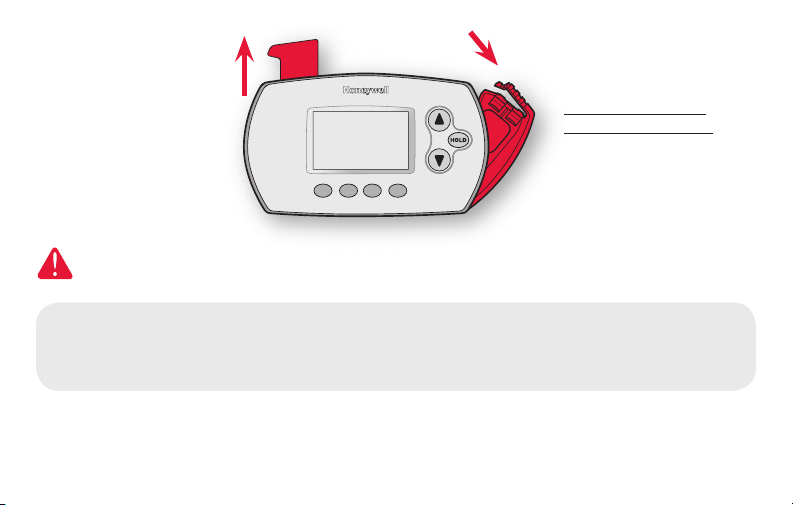

Battery Holder

Press down and pull to

remove batteries.

Batteries should be

replaced once a year

(see page 16).

Quick Reference

Card

Grasp and pull to

see basic operating

instructions at a

glance.

CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do

not operate cooling system when outdoor temperature is below 50 °F (10 °C).

Français : voir la page 20 • Español: vea la página 40

1 69-2093EFS—07

Contents

About your new thermostat

Programming at a glance ................... 2

Quick reference to controls................. 3

Quick reference to display .................. 4

Programming & Operation

Set time and day................................. 5

Fan settings (auto/on)......................... 6

System settings (heat/cool ................. 7

Program schedules............................. 8

Program schedule overrides............. 10

Auto-changeover (heat/cool)............. 12

Remote control ................................. 13

Display outdoor climate .................... 14

Find lost remote control.................... 14

Special features................................ 15

Appendices

Battery replacement ......................... 16

In case of difficulty............................ 18

Limited warranty ............................... 19

Regulatory information ..................... 60

Operating Manual

69-2093EFS—07 2

About your new thermostat

Your new thermostat is pre-programmed and ready to go. All you have to do is set

the time and day. Then check the settings below and change if needed:

1. Set time and day (required for proper operation)...................See page 5

2. Select fan setting (Auto/On)......................................................See page 6

3. Select system setting (Heat/Cool)............................................See page 7

4. Program schedules: Preset to energy-saving levels

while you’re at work or asleep (assumes you

wake at 6 am, leave at 8 am, return at 6 pm

and go to bed at 10 pm) .........................................................See pages 8-9

CAUTION: EQUIPMENT DAMAGE HAZARD. You can override the program schedule at any

time, and manually adjust the temperature (see pages 10-11).

Français : voir la page 20 • Español: vea la página 40

3 69-2093EFS—07

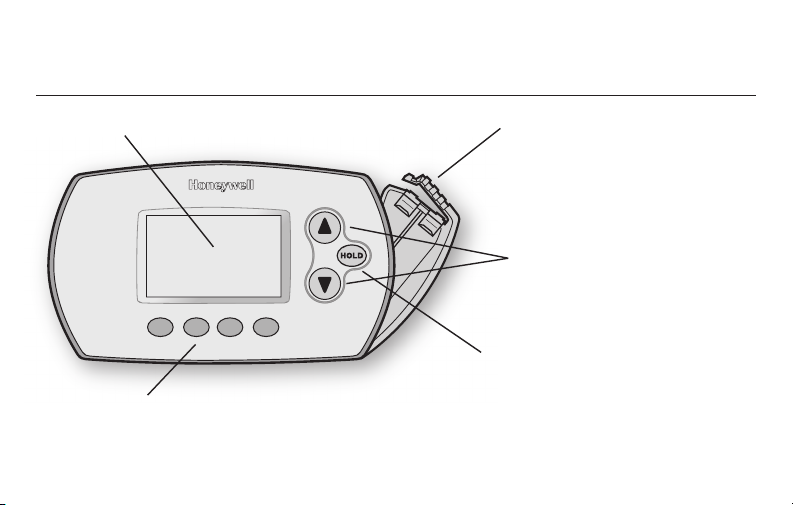

Quick reference to controls

M28451

Digital display (see page 4) Battery holder (see page 16)

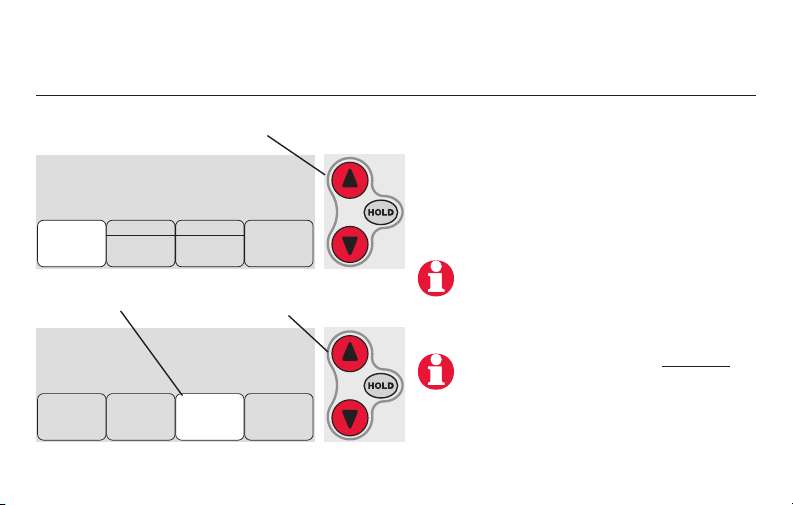

Temperature buttons

Press to adjust temperature

settings (see page 9–11)

Hold button

Press to override programmed

temperature control (see page 11)

Function buttons

Press to select the function displayed just above each button.

(Functions change depending on the task.)

Operating Manual

69-2093EFS—07 4

Auto

Wake

Fan

Clock/Day

Schedule

Set

Aux Heat On

System More

Heat

Setting

M28452

Indoor Recovery

6:30

Replace Battery

Quick reference to display screen

Current inside temperature Low battery warnings

(see pages 16–17)

Temperature setting

(see pages 9–11).

Current time/day

(see page 5)

Recovery

(see page 15)

Current program

period

Wake/Leave/Return/

Sleep (see pages 8-9)

Set Clock/Day/

Schedule

(see pages 5 and 9) More

Press to view outdoor climate (if

outdoor sensor is installed), or to find

a misplaced remote control if installed

(see page 14)

Auxillary heat

(Only for heat pumps with

auxillary heat)

System status

Heat On/Cool On

(If flashing, see page 15)

System setting

Heat/Cool/Auto/Off/Em

Heat (see page 7)

Fan Setting

Auto/On (see page 6)

Français : voir la page 20 • Español: vea la página 40

5 69-2093EFS—07

Set the time and day

1. Press SET CLOCK/DAY/SCHEDULE,

then press sor tto set clock.

2. Press SET DAY, then press sor t

to select the day of week.

3. Press DONE to save.

Auto

Fan

Clock/Day

Schedule

Set System More

Heat

M28453

4:30

DaySchedule

Wed

Done

Set Set

M28454

Note: If the SET CLOCK/DAY/SCHEDULE

option is not displayed, press DONE or

CANCEL.

Note: If the display flashes Set Clock,

the thermostat will follow your settings

for the weekday “Wake” time period until

you reset the time and day.

Press SET DAY, then select current day

Press SET CLOCK/DAY/SCHEDULE, then adjust time

Operating Manual

69-2093EFS—07 6

Select the fan setting

In “Auto” mode (the most commonly used

setting), the fan runs only when the heat-

ing or cooling system is on.

If set to “On,” the fan runs continuously.

Press FAN to select Auto or On.

Auto

Fan

Clock/Day

Schedule

Set System More

Heat

M28455

Clock/Day

Schedule

Set

FanSystem More

Heat

M28456

Note: Options may vary

depending on your heating/ cooling

equipment.

Français : voir la page 20 • Español: vea la página 40

7 69-2093EFS—07

Select the system setting

Auto

Fan

Clock/Day

Schedule

Set System More

Heat

M28457

Auto

Fan

Clock/Day

Schedule

Set System More

Cool

M28458

• Heat:Thermostat controls only the

heating system.

• Cool:Thermostat controls only the

cooling system.

• Off:All systems are off.

• Auto:Thermostat automatically selects

heating or cooling depending on the

indoor temperature.

• Em Heat: (only for heat pumps with

auxiliary heat): Thermostat controls

Emergency and Auxiliary Heat.

Compressor is locked out.

Press SYSTEM to select:

Note: Options may vary

depending on your heating/ cooling

equipment.

Operating Manual

69-2093EFS—07 8

Energy-saving settings for maximum cost savings

This thermostat is pre-set to use energy-saving program settings. We recommend

these settings, since they can reduce your heating/cooling expenses.

(See next page to adjust times and temperatures of each time period.)

Wake

(6:00 am)

Leave

(8:00 am)

Return

(6:00 pm)

Sleep

(10:00 pm)

Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)

70 °78 °70 °78 °

62 °85 °62 °

[Or cancel period]

85 °

[Or cancel period]

70 °78 °70 °

[Or cancel period]

78 °

[Or cancel period]

62 °82 °62 °82 °
