Honeywell LYNX Series Manual de usuario

800-07760 10/10 Rev. A

Connecting LYNX Series Controls to the GSMX, GSMV or

7845GSMR Communications De ice

For Online Support visit: http://www.security.honeywell.com/hsc/resources/MyWebTech/

Refer to the GSMX and LYNX PLUS, LYNXR-2 or LYNXR-I Installation Instructions for additional information

and procedures. If you are installing the Communications Device with a LYNXR PLUS control, ensure that the

cable is properly routed. If used, interconnecting wiring between the cable and the communications device

must not exceed 20ft in length.

Connecting the GSMX

1. Splice the stripped end of two cables (P/N 600-00151) to each other as shown in Fig re 1 and Table 1.

It is essential that the wires are spliced exactly as shown on Figure 1. If used, interconnecting wiring between

the two cables must not exceed 20ft in length.

2. Connect one end of the spliced cable (P/N 600-00151) to the receptacle on GSMX as shown in Fig re 1.

3. Connect the other end of the spliced cable (P/N 600-00151) to the comm nications port on the LYNX PLUS,

LYNXR-I or LYNXR-2 as shown in Fig re 1. For the LYNX PLUS, ens re that the cable is properly ro ted as

shown on Fig re 2.

Table 1 - Cable 600-00151 Splice Configuration

LYNX Series GSMX

Yellow Green

Red Black

Black Red

Green Yellow

BLACK

GREEN

RED

YELLOW

BLACK

GREEN

RED

YELLOW

SPLICE

1110

LYNX PLUS

Power Line

Carrier

Connector

Battery

Connectors

GSM/GSML

Port

Standard

RED

GREEN

YELLOW

BLACK

RED

GREEN

YELLOW

BLACK

CABLE

P/N 600-00151

Super Hi

LYNXGSMEXTCB-001-V0

GSMX

SALCLASSIC

Test

Button

LYNXR-I /

LYNXR-2

SERIES

GSM/GSML

Port

CABLE

P/N 600-00151

2 3 41 OR

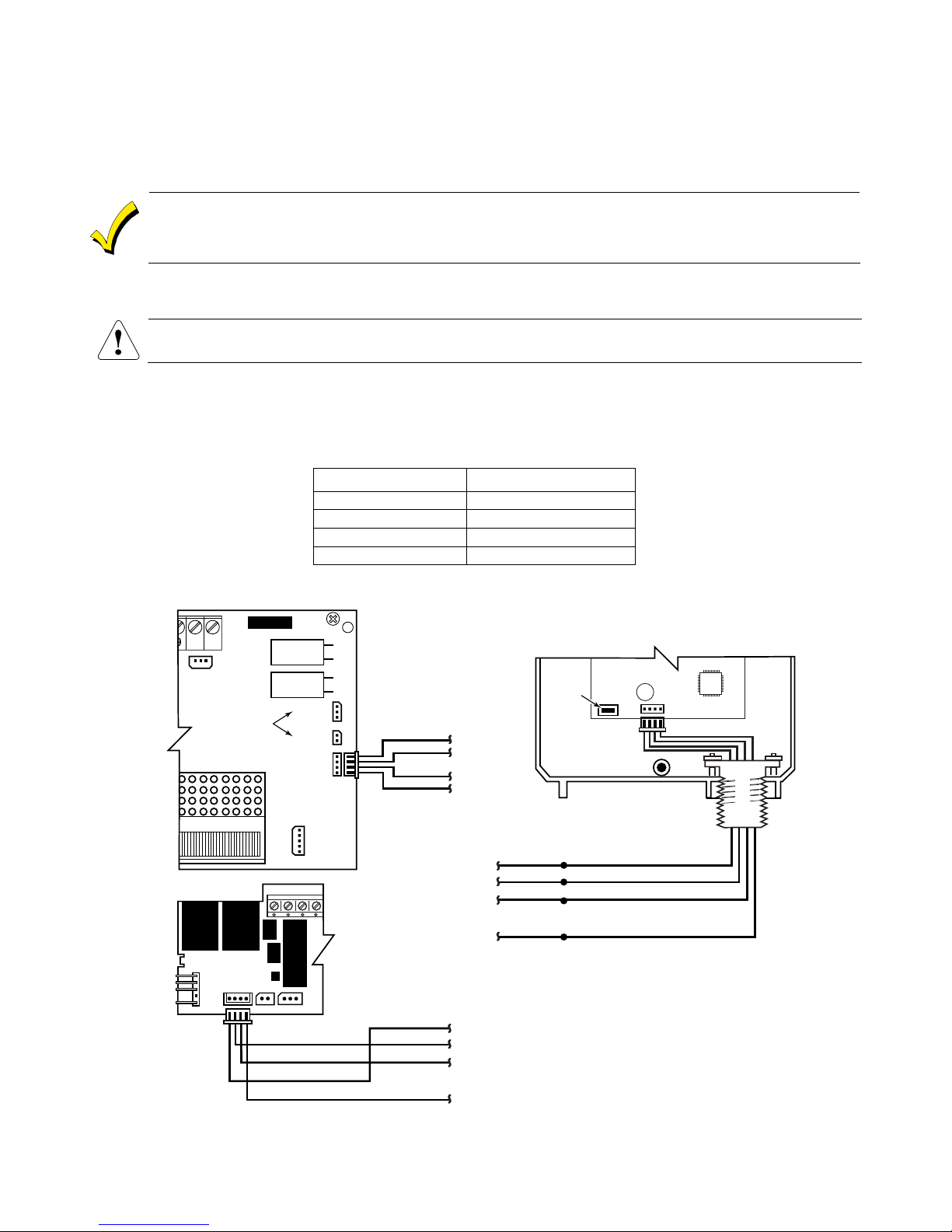

Figure 1. GSMX Connections

TIE-WRAP

POINT

WIRE

ROUTING

TUNNELS

TIE WRAP

NOTE

ENSURE ALL WIRING

IS ROUTED THROUGH

WIRE STRAIN

RELIEF CLIP

WIRE STRAIN

RELIEF CLIP

TIE WRAP

MOUNT

CABLE

P/N 600-00151

CABLE

P/N 600-00151

LYNXGSMEXTCB-005-V0

Figure 2. LYNXR PLUS Cable Routing

Connecting the GSMV and 7845GSMR

Power for the GSMV or 7845GSMR is provided by the LYNX Series Control. Do not install the battery in the

GSMV or 7845GSMR. Connecting the battery will significantly decrease the backup battery life of the LYNX

Series controls.

1. Connect the connector of the cable (P/N 600-00151) to the comm nications port on the LYNX PLUS, LYNXR-I or

LYNXR-2 as in Fig re 3. For the LYNX PLUS ens re that the cable is properly ro ted as shown on Fig re 2.

2. Connect the fo r stripped wires from cable (P/N 600-00151) to the GSMV or 7845GSMR as shown in Fig re 3.

3. Connect a j mper wire between Terminal 2 and 3 on the GSMV or 7845GSMR as shown in Fig re 3.

LYNXR-I /

LYNXR-2

SERIES 7845GSMR

OR

GSMV

GSM/GSML

Port

LYNXGSMEXTCB-006-V0

TB 1

8765 111094321

BLACK

GREEN

RED

YELLOW

BLACK

GREEN

RED

YELLOW

Jumper

Wire

Yellow

Red

Green

CABLE

P/N 600-00151

2 3 41

1110

LYNX PLUS

Power Line

Carrier

Connector

Battery

Connectors

GSM/GSML

Port

Standard

Super Hi

SALCLASSIC

BLACK

GREEN

RED

YELLOW

CABLE

P/N 600-00151

ECP +

ECP In

GND

ECP Out

Figure 3. 7845GSMR or GSMV Connections

Ê800-07760@Š

800-07760 10/10 Rev. A

2 Corporate Center Drive, Suite 100

P.O. Box 9040, Melville, NY 11747

www.honeywell.com/security
