HighPoint RocketU Quad USB3.0 Manual de usuario

1



RocketUQuadUSB3.0forMac

HostController



QuickInstallationGuide

V1.2



2



Content



HighPointRocketUQuadUSB3.0forMac–PCI‐Express2.0...........................................3

InstallingtheRocketUSeriesHostAdapter....................................................................4

DriverInstallation(RocketUQuadUSB3.0forMac)......................................................4

ConnectingUSBStorageDevices...................................................................................6

Kitcontents....................................................................................................................6

CustomerSupport..........................................................................................................6

FCCPart15ClassBRadioFrequencyInterferencestatement.......................................7



3



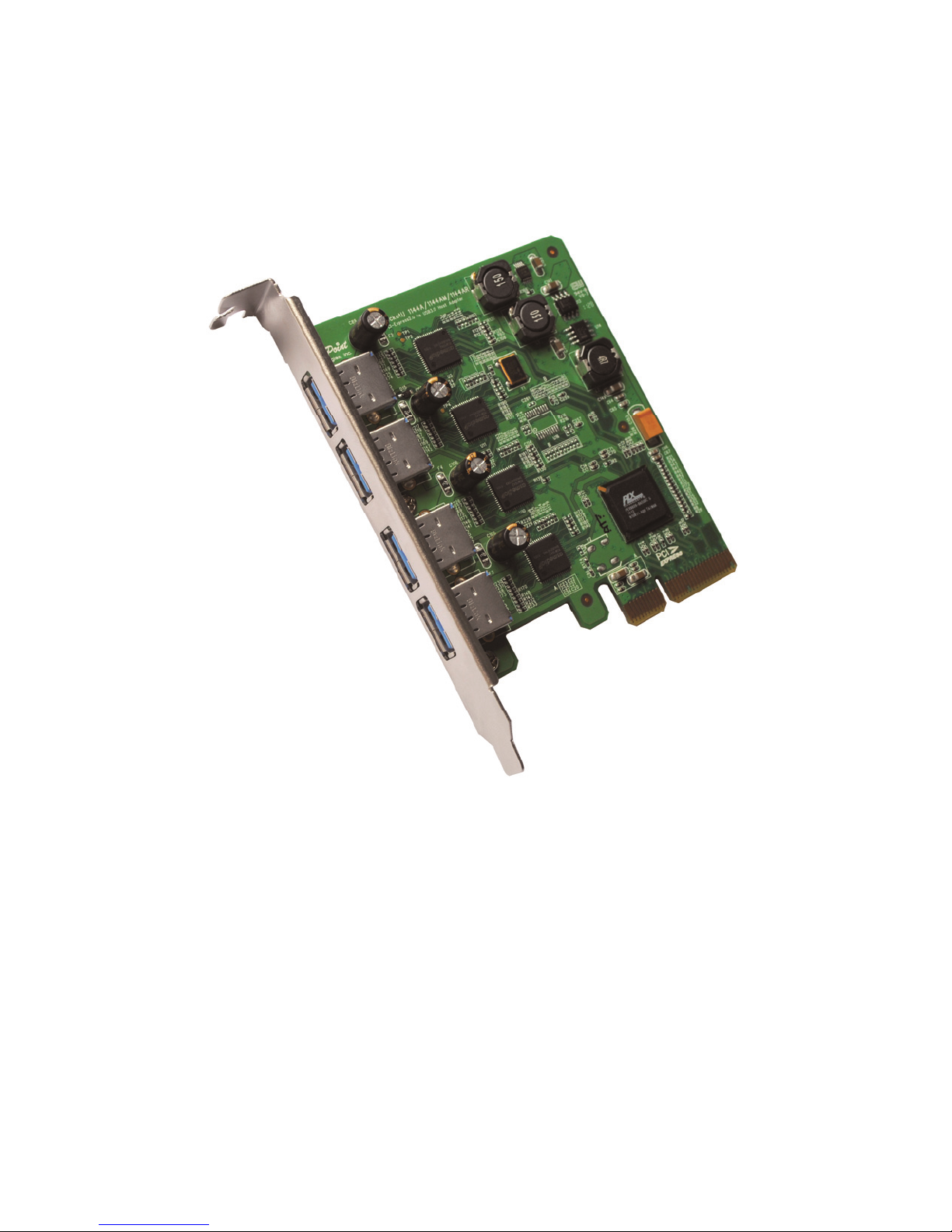

HighPointRocketUQuadUSB3.0forMac–PCI‐Express2.0

HighPointUSB3.0HBA’s–High‐PerformanceExternalStorageforYourMac



HighPointhascapitalizedonrecentadvancesinUSB3.0connectivity,andhasmade

5Gb/sper‐portperformanceareality.USB3.0isnolongerlimitedtoplug‐and‐play

devicehubs;RocketUHBA’stakeExternalUSB3.0storagetothenextlevel.



HighPointRocketUQuadUSB3.0forMac



RocketUseriesdeliverclass‐leading20Gb/stransferbandwidth,andareoptimizedfor

externalSSDandharddriveconfigurations.Eachofthe4dedicatedUSB3.0ports

supports5Gb/stransferspeeds.



TheRocketUQuadUSB3.0forMacHBA’salsoprovidedRAIDlevelsupportincluding

RAID0,1,5,10andJBOD.



KeyFeatures



PCI‐Express2.0x4

TotalTransferBandwidthupto20Gb/s

Fourdedicated5Gb/sSuperSpeedUSB3.0type‐Aports

OptimizedforexternalUSBdrivesanddriveenclosures

BackwardscompatiblewithUSB2.0&1.1

DriversupportforMacOSX

RocketUQuadUSB3.0forMacsupportRAIDLevel0,1,5,10andSingledisk.



4



InstallingtheRocketUSeriesHostAdapter

Note:Makesurethesystemispowered‐offbeforeinstallingtheRocketUserieshost

adapter.



1) OpenthesystemchassisandlocateanunusedPCI‐Express(2.0or1.0)×4(×8,

×16)slot.

2) RemovethePCI‐Expressslotcover.

3) GentlyinserttheRocketUseriesintothePCI‐Expressslot,andsecurethe

brackettothesystemchassis.

4) Afterinstallingtheadapter,attachtheharddisksordiskenclosuretothe

RocketUseriescardusingtheproperUSBcables.

5) Closeandsecurethesystemchassis.

DriverInstallation(RocketUQuadUSB3.0forMac)

OnceyouhaveinstalledtheRocketUQuadUSB3.0forMacandbootedyourMac

system,followtheseinstructionstoinstallthedriverandHighPointWebRAID

Managementsoftware:

1) InserttheRocketUQuadUSB3.0forMacCardInstallDiscintoyourMacand

navigatetotheDMGfolder.

2) Double‐clickonthe“dmg”filetomountthediscimagecontainingtheMacOS

Xsoftwareanddrivers.

3) Double‐clickontheinstallerpackagelabeledtostarttheinstallation

process.

4) Followtheon‐screenstepstocompletetheinstallationprocess.Aftertheinstall

hascompleted,youwillbepromptedtorestartyourcomputer.Youwillneedto

restartinordertousetheRocketUQuadUSB3.0forMacCard.

5) Then,restartthecomputer.

5



OpenaWebbrowser.ThefollowingexampleusesthedefaultOSXbrowser,Safari.

Clicktheicon  tostarttheSafariWebBrowser,andtypeinhttp://127.0.0.1:7402

intheaddressbartoLogintotheManagementInterface.Thefollowingpageshould

appear:



Note:Pleaserefertothefileoffolder:Install_HighPoint_RocketUQuadUSB3.0for

Mac.pdfforthespecificuseofsteps.



6



ConnectingUSBStorageDevices

1) Makesureyourcomputerisoperational.

2) ConnecttheenclosureorharddisktotheHighPointRocketUHBAwithUSB3.0

cables.

3) Allowthedrives/enclosuretospinupforafewmoments.Oncethedevicesare

ready,theywillberecognizedbytheoperatingsystemandcanbeaccessedas

needed.

Kitcontents

RocketUQuadUSB3.0forMacHBA

SoftwareCD

QuickInstallationGuide

CustomerSupport

IfyouencounteranyproblemswhileutilizingtheRocketUserieshostadapter,orhave

anyquestionsaboutthisoranyotherHighPointTechnologies,Inc.product,feelfreeto

contactourCustomerSupportDepartment.

WebSupport:http://www.highpoint‐tech.com/websupport/

HighPointTechnologies,Inc.websites:

http://www.highpoint‐tech.com

http://www.hptmac.com



7



FCCPart15ClassBRadioFrequencyInterferencestatement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto

providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.

Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby

turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe

interferencebyoneormoreofthefollowingmeasures:

Reorientorrelocatethereceivingantenna.

Increasetheseparationbetweentheequipmentandreceiver.

Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich

thereceiverisconnected.

Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Modificationsnotexpresslyapprovedbythemanufacturercouldvoidtheuser’s

authoritytooperatetheequipmentunderFCCrules.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe

followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)

thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.



EuropeanUnionComplianceStatement

ThisInformationTechnologiesEquipmenthasbeentestedandfoundtocomplywith

thefollowingEuropeandirectives:

EuropeanStandardEN55022(1998)ClassB

EuropeanStandardEN55024(1998)
