HighPoint SSD7749E Manual de usuario

1

SSD7749E

8x E1.S Port to PCIe 4.0x16 NVMe RAID Controller

Quick Installation Guide

2

V1.00

System Requirements

PC Requirements

•System with a free PCIe4.0 (or 3.0) x16 slot

•Windows 11, 10 / Server 2022, 2019, 2016 / Microsoft Hyper-V

•RHEL/Debian/Ubuntu/Fedora/Proxmox/ Rocky Linux

(Linux kernel 3.10 and later)

•Arch Linux (Kernel 5.17.5 and above)

•macOS 10.13.6 ~ macOS 13.x

•ARM Platform (NVIDIA model, Support Linux)

Kit Content

•SSD7749E Controller Card

•Quick Installation Guide

3

SSD7749E Hardware

Front View

Full-Length anodized aluminum heat sink

PCIe 4.0 x16 Host Interface

Full Height form factor

Low-Noise Cooling Fan

External power port

4

Hardware Installation

Step 1. Apply pressure to release the lock, turn it counter-clockwise.

Step 2. Gently insert the SSD into the slot.

PORT1

PORT8

5

Note: Make sure the SSD contacts (“golden fingers”) are clean

prior to installation.

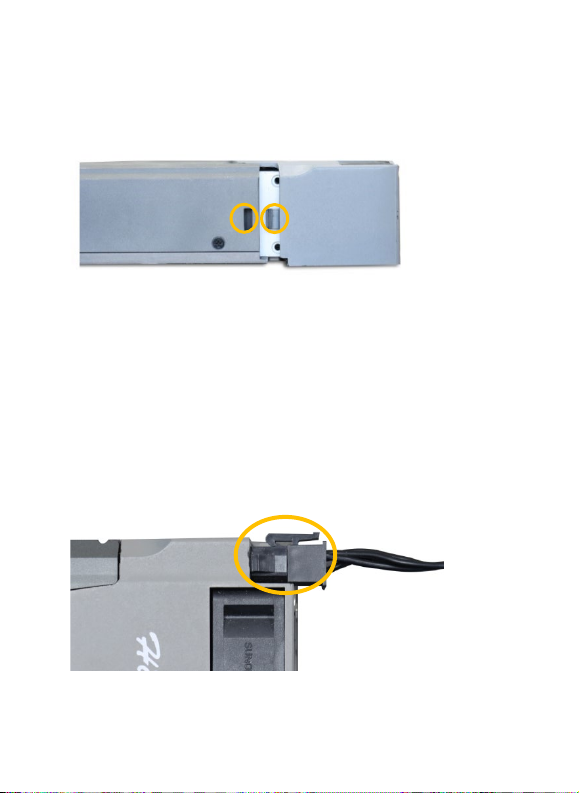

Step 3. Align the fan module and press down to secure.

Note: Make sure the SSDs are carefully, but securely installed into

each E1.S port. Loose connections can cause a variety of stability

and performance issues, and may ultimately result in data loss.

Step 4. Power up the SSD external power supply.

Note: If the external power supply is not powered on, the SSDs

may drop offline or remain undetected, which could lead to data

loss.

6

SSD7749E relies on two power sources to support eight SSDs;

power supplied through the PCIe bus, and power from the

system’s PSU via an external 6 pin PCIe power cable. If the

external cable is not connected, there will be insufficient power to

support all 8 SSD’s; this may cause the SSDs to drop offline.

Note

：

The SSD7749E does not require the external power cord

when used with a Mac Pro 2019

.

Note: Please be sure to connect NVMe before using the product to

reduce the occurrence of unnecessary errors!

Note: Make sure to install the driver before physically installing the

SSD7749E.

Connect 6 pin PCIe power cable

7

Resources

A variety of manuals, guides and FAQs are available for the SSD7749E

RAID controller.

In addition, we recommend visiting the Software Downloads webpage

for the latest drivers, management interfaces, and installation guides.

For Software Downloads, Documentation and more information

about this product, please visit the following website:

https://www.highpoint-tech.com/ssd7749e-overview

FAQ & Troubleshooting:

FAQ - HighPoint Technologies, Inc. (helpjuice.com)

8

Customer Support

If you encounter any problems while utilizing the SSD7749E, or have

any questions about this or any other HighPoint Technologies, Inc.

product, feel free to contact our Customer Support Department.

Web Support:

https://www.highpoint-tech.com/support-and-services

HighPoint Technologies, Inc. websites:

https://www.highpoint-tech.com

© Copyright 2022 HighPoint Technologies, Inc. All rights reserved.
