HighPoint RocketU 1144B Manual de usuario
1
RocketU 1144B / RocketU 1142A
Host Controller
USB 3.0 Host Adapters
User’s Guide
Revision: 1.0
Oct. 16, 2012
HighPoint Technologies, Inc.
2
Copyright
Copyright © 2012 HighPoint Technologies, Inc. This document contains materials protected by
International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted
or transcribed in any form and for any purpose without the express written permission of HighPoint
Technologies, Inc.
Trademarks
Companies and products mentioned in this manual are for identification purpose only. Product names or
brand names appearing in this manual may or may not be registered trademarks or copyrights of their
respective owners. Backup your important data before using HighPoint's products and use at your own
risk. In no event shall HighPoint be liable for any loss of profits, or for direct, indirect, special, incidental or
consequential damages arising from any defect or error in HighPoint's products or manuals. Information
in this manual is subject to change without notice and does not represent a commitment on the part of
HighPoint.
Notice
Reasonable effort has been made to ensure that the information in this manual is accurate. HighPoint
assumes no liability for technical inaccuracies, typographical, or other errors contained herein.
3
Table of Contents
1 Features and Specifications ................................................................................................................... 4
2 Physical Specifications........................................................................................................................... 5
3 Kit Contents .......................................................................................................................................... 6
4 Hardware Description and Installation.................................................................................................. 7
4.1 RocketU 1144B / 1142A Host Adapter Board Layout ..................................................................... 7
4.2 Installing the RocketU 1144B / 1142A Host Adapter...................................................................... 7
4.3 Using the 19PIN USB 3.0 Front Panel Port of the RocketU 1142A................................................... 7
5 RocketU Series Host Adapter Driver Installation ................................................................................... 9
5.1 Driver Installation - Microsoft Windows ........................................................................................ 9
5.2 Verify Installation of the Software - Microsoft Windows ............................................................. 10
5.3 Driver installation -Linux.............................................................................................................. 11
6 Connect Hard Disk to RocketU 1144B / 1142A Host Adapter............................................................... 13
7 Firmware Update ................................................................................................................................ 14
8 Thank You ........................................................................................................................................... 15
9 Customer Support ............................................................................................................................... 16
4
HighPoint RocketU 1144B/ 1142A
Highpoint Second Generation USB 3.0 HBA's - Dedicated 5Gb/s per-port technology with robust transfer
performance and improved energy efficiency
The RocketU 1144B is the industry’s fastest USB 3.0 HBA – each dedicated USB 3.0 port supports transfer
speeds up to 5Gb/s , for a combined bandwidth of up to 20Gb/s; perfect for today’s fastest SATA 6Gb/s
SSD’s and hard drives.
1 Features and Specifications
Host Adapter Architecture
PCI-Express 2.0 x4
Total Transfer Bandwidth up to 20Gb/s
Four dedicated 5Gb/s Super Speed USB 3.0 type-A ports (RocketU 1144B)
Two Super Speed USB 3.0 type-A ports and one 10Gb/s Internal USB 3.0 Front Panel Port (RocketU
1142A)
Optimized for external USB drives and drive enclosures
Backwards compatible with USB 2.0 & 1.1
Compliant with xHCI (Extensible Host Controller Interface) spec.
Low Profile (RocketU 1142A only)
Hot Swap and hot plug
RoHS complaint
Operating System Support
Windows Vista, Windows 2008, Windows 7 & 8 (32 and 64-bit versions)
Linux OS support with xHCI driver of Kernel v2.6.31 or later
Note:xHCI is a computer interface specification that defines a register-level description of a Host
Controller for Universal Serial bus (USB), which is capable of interfacing to USB 1.0, 2.0, and 3.0
compatible devices. The specification is also referred to as the USB 3.0 Host Controller specification.
5
2 Physical Specifications
Host Adapter Dimensions:
Size: 96mm x 95.0mm x 19mm
EMI: FCC Part 15 Class B and CE
Thermal and Atmospheric Characteristics:
Work Temperature Range: +5 ~ +55 ° C
Relative Humidity Range: 5% ~ 60% non-condensing
Storage Temperature: -20 ~ +80 ° C
MTBF: 920,585 Hours
Electrical Characteristics:
PCI-E
3.3V
12V
Power
4W max
1W max
6
3 Kit Contents
RocketU 1144B USB 3.0 HBA / RocketU 1142A USB 3.0 HBA
Low Profile Bracket (RocketU 1142A only)
CD (Driver Software)
Quick Installation Guide
7
4 Hardware Description and Installation
4.1 RocketU 1144B / 1142A Host Adapter Board Layout
4.2 Installing the RocketU 1144B / 1142A Host Adapter
Note: Make sure the system is powered-off before installing the RocketU host adapter.
1. Open the system chassis.
2. Locate an unused PCI-Express ×4 (×8, ×16) slot.
3. Remove the PCI-Express slot cover.
4. Gently insert the RU series into the PCI-Express slot, and secure the bracket to the system chassis.
5. After installing the adapter, attach the hard disks or disk enclosure to the RU series card using the USB
cables.
6. Close and secure the system chassis.
4.3 Using the 19PIN USB 3.0 Front Panel Port of the RocketU 1142A
The RocketU 1142A provides standardized USB 3.0 front panel support. It is compatible with any standard
USB 3.0 front panel device such as the RocketPanel Series USB 3.0 front panel adapter or the USB 3.0 all in
one card reader front panel adapters.
Note: Make sure the system is powered-off before installing the USB 3.0 Front Panel device.
RocketU 1144B
RocketU 1142A
8
9
5 RocketU Series Host Adapter Driver Installation

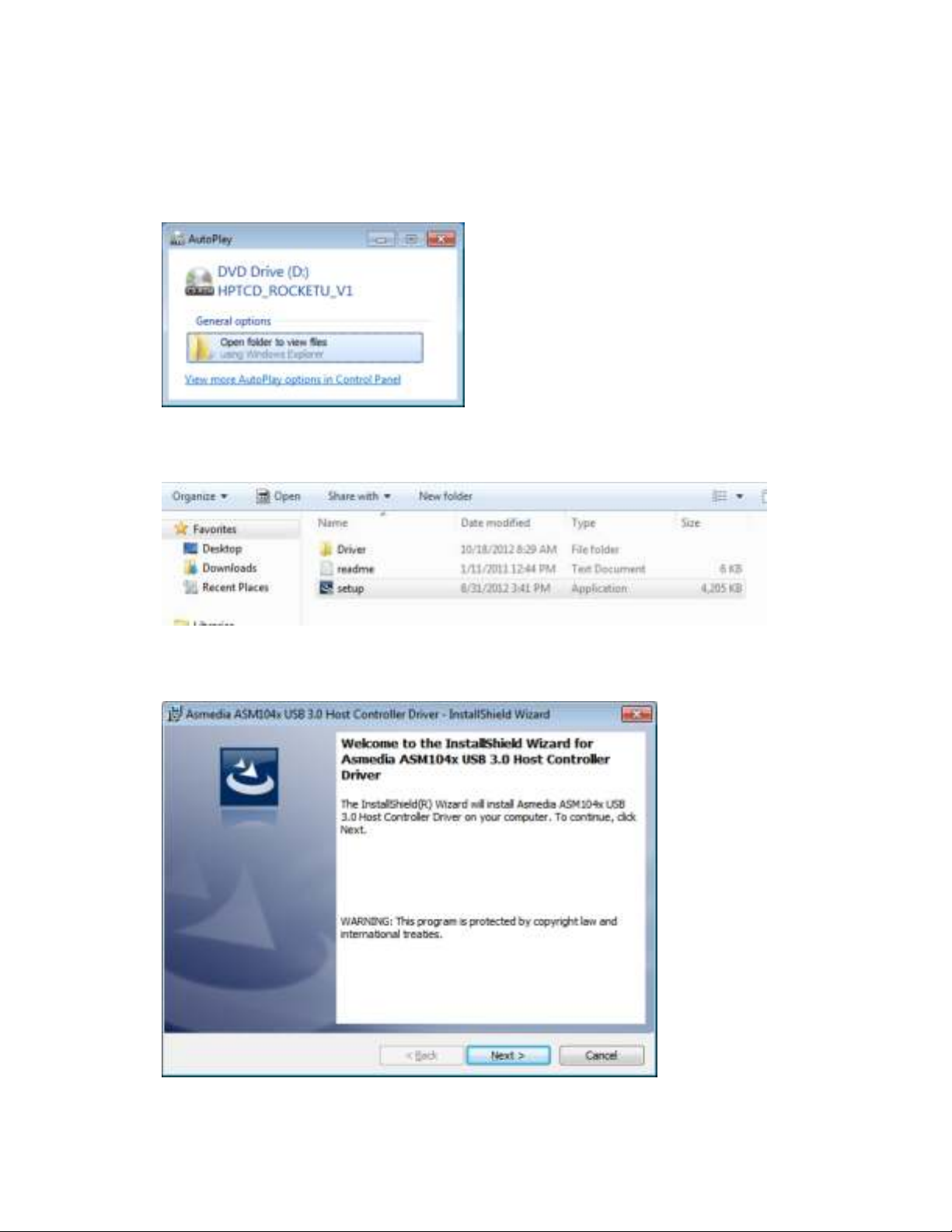

5.1 Driver Installation - Microsoft Windows
1. Insert the HighPoint Software CD to the CD/DVD drive.
2. CD will automatically run. Please see the following picture.
3. Or you can browse the software CD folder:
\RocketU\RU1022A_114X\Windows
Double click the “setup.exe” and follow the setup wizard steps to install the ASMedia ASM1042x USB
3.0 Host controller driver.
Note: ASMedia ASM1042x don’t support the way by which Device Manager
Update the driver
10
software. You can only follow up the above processes to install the driver.
4. Click Finish to exit the wizard when you has successfully installed driver.
Note: ASMedia ASM1042x driver was embedded into Windows 8 OS. That’s, the driver can be
installed into Windows8 automatically.
5.2 Verify Installation of the Software -Microsoft Windows
1. On the Start menu, select 'Control Panel'.
2. Open on the 'System' applet (you may first have to select 'Switch to Classic View').
3. Select the 'Hardware' tab.
4. Select the 'Device Manager' button.
5. Expand the 'Universal Serial Bus Controllers' entry. You can see four 'ASMedia xHCI Controller'.
