Genie WAHD2LBV Manual de usuario

User Manual

Please read these instructions carefully before operating the unit

and keep for further reference.

1080p AHD IR Bullet Camera

with 2.8-12mm Lens

WAHD2LBV

Intro Section

Please read this instruction carefully before operating the product and keep it for

further reference. All examples and pictures used here are for reference only.

The contents of this manual are subject to change without notice.

CAUTION:

• If the product does not work properly, please contact your dealer or the

nearest service centre. Never attempt to disassemble the camera yourself. We

shall not be responsible for any problems caused by unauthorised repair or

maintenance.

• Do not allow water or liquid into the camera while in use.

• When using the product, you must be in strict compliance with the electrical

safety regulations of the nation and region.

• When the product is mounted on wall or ceiling, the device needs to be ﬁrmly

ﬁxed.

• Make sure the power supply voltage is correct before using the camera.

• Do not drop the camera or subject it to any physical shock.

• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it

gently.

• Do not aim the camera at the sun or in any area where there is bright lighting.

• The device may be burned out by a laser beam, so when any laser equipment is

in use, make sure that the surface of the device will not be exposed to the laser

beam.

• Do not place the camera in extremely hot, cold , dusty or damp locations, and

do not expose it to high electromagnetic radiation.

• To avoid heat accumulation, good ventilation is required for operating

environment.

Contents

iii

1.0 Introduction..........................................................................................................4

1.1 Product Features...........................................................................................4

1.2 Product Dimensions.....................................................................................4

1.3 Speciﬁcation.................................................................................................5

1.4 Functions ......................................................................................................6

2.0 Cables ..................................................................................................................7

3.0 Product Installation..............................................................................................8

4.0 Call Up Main Menu ...............................................................................................9

The Genie WAHD2LBV is a 1080p AHD bullet camera with an integrated IR 2.8-

12mm lens.

1.1 Product Features

• 1080p real-time image

• Analogue high deﬁnition (AHD) video output

• True Day / Night

• 30 ~ 50m IR Range

• IP66 ingress protection

• NDAA compliant

1.2 Product Dimensions

1.0 Introduction

284mm 109mm

User Manual 1080p AHD IR Bullet Camera with 2.8-12mm Lens

1.3 Speciﬁcation

Camera

Image Sensor 1/3” CMOS

Image Size 1080p (1920 × 1080)

Image System PAL / NTSC

Resolution 1920 × 1080

Electronic Shutter 1/50s ~ 1/50000s (PAL),

1/60s ~ 1/50000s (NTSC)

Minimum Illumination 0 Lux (LED On)

Lens 2.8–12 mm

S / N Ratio >52dB (AGC Off)

Frame Rate 30 fps (60 Hz), 25 fps (50 Hz)

Video Output BNC x1

Functions

IR Distance 30 ~ 50 m

Function Control OSD

Day & Night Yes (ICR)

WDR Yes

3D NR Yes

AGC Yes

White Balance ATW, AWC, SET, Indoor, Outdoor, Manual

Advanced Image Sharpness, Saturation, Brightness etc are Adjustable

Defog Yes

Smart IR Yes

Mirror Yes

Privacy Mask Up to 8 Areas

Motion Detection Up to 4 Areas

Defect Correction Yes (Support Live and Static Defective Pixel Correction)

Language 12 languages supported

BLC & HLC Yes

Others

Ingress Protection IP66

Power Supply DC12V (±10°C)

Working Environment Temperature: -20°C ~ 50°C,

Humidity: 10% ~ 90%

Dimensions 109 × 284 mm

Weight 1010g

User Manual 1080p AHD IR Bullet Camera with 2.8-12mm Lens

1.4 Functions

High Resolution

Adopt high performance sensor, providing high deﬁnition and clear image.

High Transmission Performance

Real-time transmission with high speed and long distance.

DNR

Reduce noise from brightness and colour signal.

OSD

It’s easy for the user to call the setup menu and conﬁgure the menu. The camera

settings can be clearly displayed through the main menu.

White Balance

Adjust the colour temperature according to the environment automatically.

ICR Auto Switch

The ﬁlter will ﬁlter infrared light during the daytime and change to normal at night

to ensure a high sensitivity and clear image.

AGC

Adjust the gain of ampliﬁer, enabling the camera to output the standard video

signal in different lighting condition.

Wide Dynamic Range (WDR)

When there are both very bright and very dark areas simultaneously in the ﬁeld of

view, this function will balance the brightness level and provide clear images.

Backlight Compensation (BLC)

When the back of the captured object is too much bright, you can set BLC for the

captured object to make it clearer.

High Light Compensation (HLC)

Mask and compensation the high light area.

Privacy Masking

This function allows you to block or mask certain area of a scene for privacy

purpose.

Motion Detection

The alarm will be triggered when there are moving objects captured by the

camera.

The cables are only for reference. The default video output will be different for

different cameras.

For the camera with video switch cable, there are two kinds of video switches,

button switch and dial switch.

Button Switch: The video outputs will recycle by holding and pressing the button

in the video switch cable for 5 seconds.

Dial Switch: Please set the video output according to the directions described on

the tag of the video switch cable.

Note:

Before switching video outputs, remove the cover of the video switch cable ﬁrst.

* Some models do not have the video switch cable, please go to OSD to change

video outputs.

Video Output

Power Cable

Video Output

Video Switch Cable

2.0 Cables

Before you start, please make sure that the wall or ceiling is strong enough

to withstand 3x the weight of the camera. Please install the camera in the dry

environment.

1. Attach the drill template to the place where you want to ﬁx the camera and

then drill screw holes according to the drill template.

2. Route and connect the cables.

3. Secure the mounting base with the camera to the wall with screws as shown

below.

4. Bracket adjustment. Before adjustment, preview the image of the camera on a

monitor and then loosen the ﬁxed ring or screws to adjust the view angle of the

camera.

5. Focus and zoom adjustment (If the model you get is ﬁxed lens or motorised

lens, please skip this step). Remove the cover and then adjust the focus and

zoom levers to get a clear image. Finally, tighten the screws and the lens cover.

Rubber Plug

Fixed Ring

Pan 360°

Fixed Screws

Tilt 90°C

360°C Rotation

Lens Cover

Zoom

Focus

Tilt 90°

3.0 Product Installation

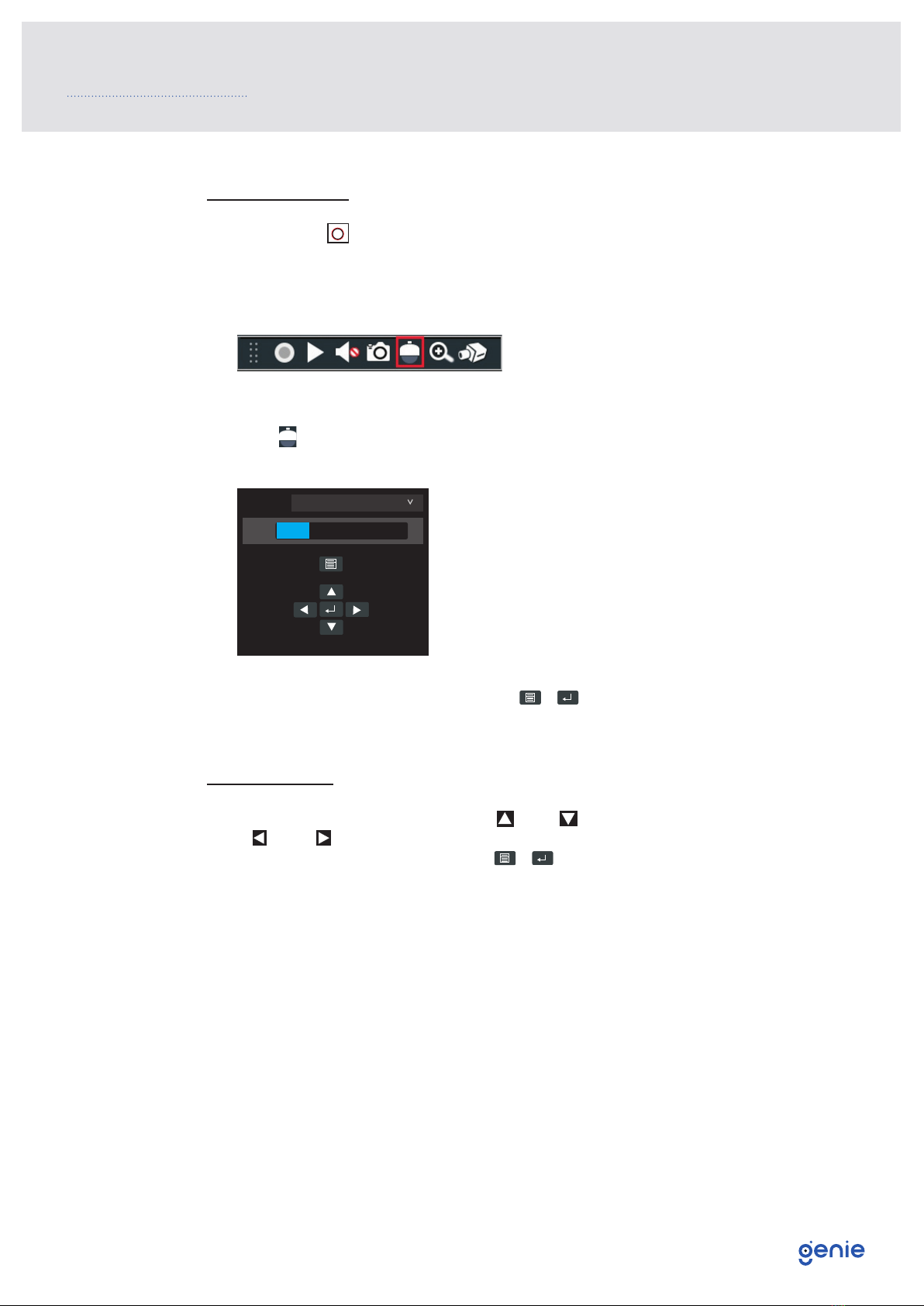

Access Main Menu

1. Press Enter key of the rear panel or cable of the camera to go to the main

menu.

2. Select the preview window and right click the mouse to show the following

menu list on the DVR.

3. Click on the toolbar at the bottom of the live preview window (or right click

the mouse to select “PTZ Control”).

4. Select the “OSD” tab and then click / to call up the main menu.

Menu Operation

You can select the menu by clicking (U) or (D) key on the direction area.

Click (L) or (R) key to select the menu on the left. The menu with arrow icon

which means it has sub-menu. Click / to go to the sub-menu or conﬁrm the

settings.

If there are direction keys and enter key on the cables of the camera, you can also

use these direction keys to select menu and the enter key to go to the sub-menu

or conﬁrm the settings.

Note:

This series of the camera must be connected to the DVR which supports calling

up main menu of camera. Different DVRs manufactured by different DVR

manufacturers may have different modes of menu operation. Please refer to the

relevant User Manual of DVR.

* Some models may not support calling up main menu, please take the ﬁnal

product as the standard.

Camera Camera1

OSD PresetCruise

4.0 Call Up Main Menu

Sales +44(0)1707 330541

Enquiries [email protected]o.uk

Website www.genieproducts.co.uk
