DLM112SD

USER’S MANUAL

LIGHT METER WITH

DATALOGGING D CARD

Please read this manual carefully and thoroughly before using this product.

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operating Instructions . . . . . . . . . . . . . . . . . . . . . 4 – 11

hat’s in the case . . . . . . . . . . . . . . . . . . . . 4 –5

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 –8

Normal Operation . . . . . . . . . . . . . . . . . . . . . 8 –9

Holding and Storing Measurements. . . . . . . . . . 9

Automatic vs. Manual Datalogging . . . . . . 9 – 10

Transferring Data from the SD Card

to a Computer . . . . . . . . . . . . . . . . . . . . . . 10 – 11

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Maintenance & Troubleshooting Tips . . . . . . . . . . . . 13

Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . 13

arranty Information . . . . . . . . . . . . . . . . . . . . . . . . 13

Return for Repair Policy . . . . . . . . . . . . . . . . . . . . . . 14

INTRODUCTION

Thank you for purchasing General Tools & Instruments’ DLM112SD UV Light Meter

with Datalogging SD Card. Please read this user’s manual carefully and thoroughly

before using the instrument.

The DLM112SD is a general-purpose handheld instrument suitable for measuring

the intensity of light in commercial, industrial and consumer settings. Applications

include photography, videography, construction, engineering and surveillance.

This light meter measures light intensity using either of two units: lux or foot-candles.

The lux is the standard international unit of illuminance, or how much luminous flux

is spread over a given area. One can think of luminous flux as a measure of the total

“amount” of visible light present, and illuminance as a measure of the intensity of

illumination on a surface. A given amount of light will illuminate a surface more dimly

if it is spread over a larger area, so illuminance is inversely proportional to area.

The standard international unit of luminous flux is the lumen, and one lux is equal to

one lumen/m2. For perspective on lux readings from the natural world, consider that

a moonless clear night sky has an illuminance of about 0.002 lux, while direct

sunlight has an illuminance of 30,000 to 130,000 lux.

The footcandle (or lumen per square foot) is a non-standard unit of illuminance.

Like the Btu, it is mainly in common use only in the U.S., particularly in construction-

related engineering and in building codes. Because lux and footcandles are different

units of the same quantity, it is perfectly valid to convert footcandles to lux and vice

versa. One footcandle (ft-cd) = 10.764 lux.

The DLM112SD has the performance and features needed to satisfy the most

demanding aspects of the above applications. It also has the ability to measure

surface temperature, using an optional Type K of Type thermocouple. A light probe

comes standard with the instrument.

Because it is microprocessor-based, the DLM112SD can make full use of the

portability, reliability and large storage capacities that SD memory cards offer.

Measurements of light intensity or temperature can be made automatically at any

of 11 sampling rates between one second and one hour. After time-stamping and

storing the measurements on an SD card plugged into the instrument (a process

called datalogging), the user can remove the card and transfer the measurements

to a laptop or desktop computer either directly or via a USB card reader.

The DLM112SD has a backlit 2-1/2 in. diagonal display and is powered by six “AA”

Alkaline batteries or an optional 9-VDC AC adapter.

KEY FEATURE

• Includes light probe

• Measures light intensity within three automatically switched full-scale

ranges: 2,000 lux, 20,000 lux and 100,000 lux (200 ft-cd, 2,000 ft-cd and

10,000 ft-cd)

• Selectable lux or foot-candle unit

• Displays maximum and minimum readings

• Performs real-time automatic datalogging at sampling time settable from

1 second to 1 hour

• Also supports manual logging and changing of card storage location

• Accepts SD memory cards of up to 16 GB capacity

• Big (2.5 in. diagonal) front-panel green backlit LCD is easy to read

• Auto power off function

• Powered by six “AA” batteries or optional 9V AC/DC adapter

OPERATING IN TRUCTION

WHAT’S IN THE CASE

The DLM112SD comes fully assembled in a carrying case along with a light

probe with a protective cover, a 2 GB SD memory card and this user’s manual.

Optional accessories available from General Tools & Instruments include Type K

and Type J thermocouples and a 9VDC adapter for a 110V power supply. See

the Replacement Parts & Optional Accessories section of this manual for more

details.

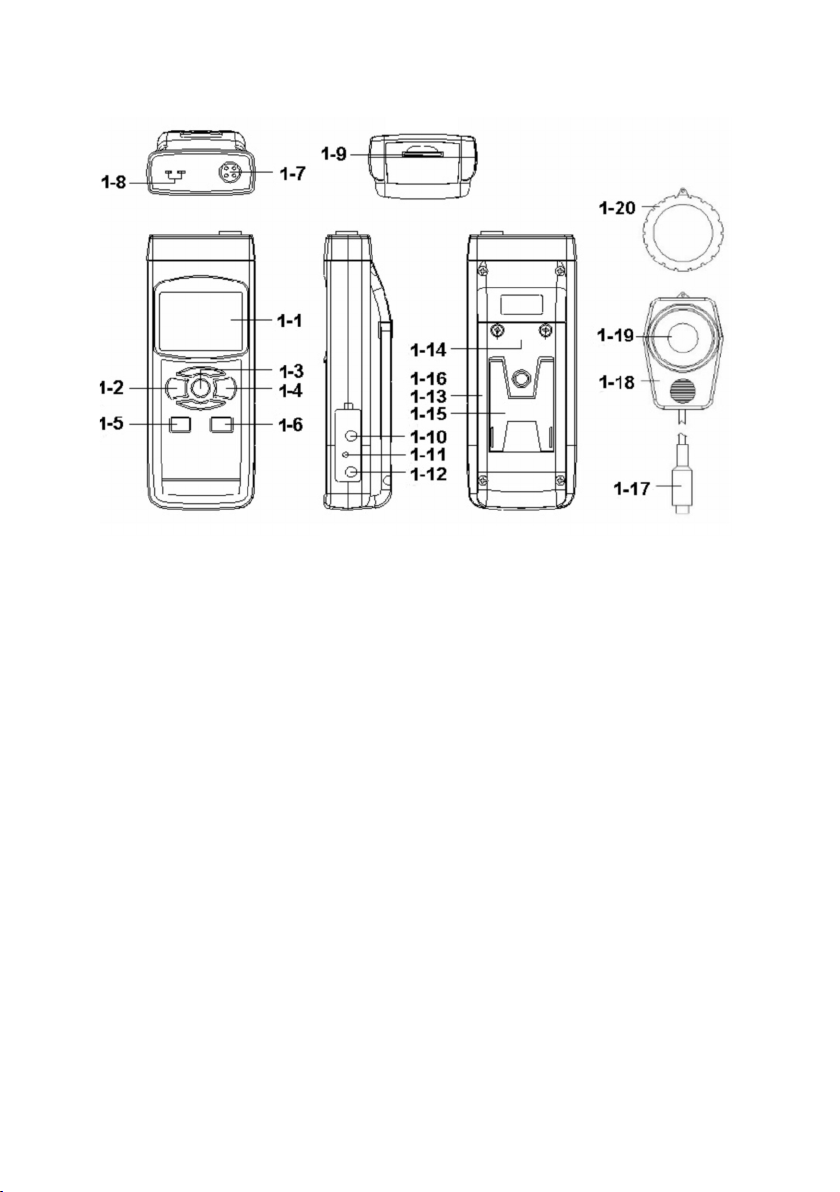

Figure 1 shows all of the controls and indicators on the front, back, top, bottom

and right side of the DLM112SD. It also shows (at right) the main components

of the supplied light probe. Familiarize yourself with their positions and

functions before moving on to the setup procedure.

1. The DLM112SD’s controls and indicators and other physical features

TOP

RIGHT

SIDE

BACK

BOTTOM

FRONT

Fig. 1

1-1 Liquid-crystal display

1-2 POWER/ESC button

1-3 FUNC./ OLD/NEXT button

1-4 REC/ENTER button

1-5 SET ▼button

1-6 LOGGER ▲button

1-7 Socket for light probe

1-8 Socket for Type-K or -J

thermocouple temperature probe

1-9 SD card socket

1-10 RS232 output jack

1-11 RESET Button

1-12 Socket for 9VDC AC adapter

1-13 Battery compartment cover

1-14 Battery compartment cover

screws

1-15 Kickstand

1-16 Tripod attachment nut

1-17 Light probe plug

1-18 Light sensor housing

1-19 Light sensor

1-20 Light sensor cap

SETUP

1. Choose the power source. Before using the DLM112SD, be sure it is powered by

fresh batteries or an optional 9VDC AC adapter plugged into the bottom jack on its

right side (callout 1-12).

To remove the battery compartment cover, remove the two screws holding it in place

(callout 1-14). Then install six “AA” batteries in the correct orientation, using the

polarity marks on the inside of the compartment as a guide. Replace the cover by

replacing the two screws.

2. Install an SD card. To prepare for setup, also install the supplied 2 GB SD memory

card or another card with a capacity from 1 GB to 16 GB in the socket on the

bottom of the DLM112SD (callout 1-9). When installing the card, make sure its gold

contacts are facing front and push the card into the socket until you hear a click.

To remove the card, push it in until you hear a click and the card pops out.

Now power on the instrument by pressing the POWER/ESC button (callout 1-2) to

generate a short beep. (To power off the DLM112SD, press the POWER/ESC button

and hold it until the instrument responds with a long beep.)

When the DLM112SD powers on, a series of transient startup screens will briefly

appear. Once the display has stabilized, perform the following series of eight setup

steps in the order presented.

3. Set the date and time. Press the SET ▼button (callout 1-5) and hold it for at

least five seconds, until the word “dAtE” appears in the center of the display, along

with the flashing value “00.00.00” at the lower left, above “yy.mm.dd”.

(If you press buttons too slowly in setup mode, the screen will revert to the normal

display. To return to the setup sequence, press and hold the SET ▼button again. To

move ahead to the next field in the sequence or to the next parameter, press the

FUNC./ OLD/NEXT button (callout 1-3).)

First set the current year by pressing the SET ▼or LOGGER ▲button repeatedly

until the correct value appears above “yy”. Press the REC/ENTER button to store the

setting. The next screen that appears will have the value above “mm” flashing. Use

the SET ▼or LOGGER ▲button to navigate to the current month and press the

REC/ENTER button to store the setting. When the next screen flashes the value above

“dd”, again use the SET ▼or LOGGER ▲button to navigate to the current day and

press the REC/ENTER button to store the setting.

Once you have set the date, the display will prompt you to set the hour, minute and

second of the current time. Again use the SET ▼or LOGGER ▲buttons to navigate

to the correct values, and the REC/ENTER button to store the settings.

4. Choose a decimal point or comma to represent the decimal division between

integers and fractions (for example, American-style 20.88 vs. European-style

20,88). Once you have finished setting the time, the display will show the word

“bASIC” above the phrase “dEC”. Press the SET ▼button to make “bASIC”

(American style) or “Euro” appear in the upper display, as desired. Press the

REC/ENTER button to store the selection.

5. Enable or disable auto power off. Once the format of decimal divisions has

been set and stored, the display will show the word “yES’ over the term “PoFF”.

Press the SET ▼button until the desired automatic power off management

scheme (“yES” for enable; “no” for disable) is displayed. Press the REC/ENTER

button to store the selection. If enabled, the power off function shuts off the

DLM112SD after a period of inactivity of ten minutes

6. Enable or disable the beeper. Once the desired power management function

has been set and stored, the display will show the word “yES” over the word

“bEEP”. Press the SET ▼button until the desired setting (“yES” or “no”) is

displayed, and then press the REC/ENTER button to store the selection.

7. Select the thermocouple type. Once the beeper has been enabled or disabled,

the display will show the word “Set” over the word “tYPE”. Press the SET ▼

button until the desired setting (“K” or “J”, for a Type K or Type J thermocouple)

appears on the right side of the display. Then press the REC/ENTER button to

store the selection.

8. Select the temperature unit. Once the thermocouple type has been set and

stored, the display will show the term “t-CF”. Press the SET ▼button until the

desired setting (“F” or “C”, for Fahrenheit or Celsius units) appears on the right

side of the display. Then press the REC/ENTER button to store the selection.

9. Set the datalogging sampling time. Once the temperature unit has been set

and stored, the display will show a value above the letters “SP-t”. Press the SET

▼button or the LOGGER ▲button to decrease or increase the value until the

desired sampling time appears above “SP-t”. The options are 0, 1, 2, 5, 10, 30,

60, 120, 300, 600, 1800 and 3600 seconds (0 seconds to 1 hour).

10. Format the SD card. Once the sampling time has been set and stored,

the word “no” or “yES” will be displayed over the term “Sd-F”. Press the SET ▼

button to make a selection.

Choose “yES” whenever a new SD card is being used, or when a used card is being

repurposed (from use with another SD card instrument or a camera, for example) and

all data on it is to be erased. Choose “no” to preserve any data on a card previously

used with this instrument.

If you choose “yES”, after you press the REC/ENTER button the instrument

will prompt you to confirm that decision by displaying the term “Ent” below “yES”

and sounding three beeps. To confirm that you want to begin the erasure/formatting

procedure, press the REC/ENTER. “Ent” will then flash several times and the

instrument will sound another three beeps to confirm

that the SD card has been erased and formatted.

Once the SD card has been formatted (or not), the display will then either return to

the first of the six steps in the setup sequence—setting the current date and time—

or show the term “ESC”. If “ESC” appears, press the POWER/ESC button to exit the

setup procedure and enter normal operating mode.

NORMAL OPERATION

The DLM112SD can measure and store two different kinds of values:

• The intensity of light, in lux or footcandles. The unit lux is analogous to the

radiometric unit mW/cm2, but with the power at each wavelength weighted

according to the luminosity function, a standardized model of human visual

brightness perception. One footcandle = 10.764 lux.

• Temperature (in oF or oC), as sensed by a Type K or Type J thermocouple.

Pressing and holding the FUNC./ OLD/NEXT button will bring up, in order, two blank

five-digit displays above the terms “LIg t” and “tP” (for temperature). Each display

also automatically shows the correct unit for the parameter.

1. To choose the measurement function, release the FUNC./ OLD/NEXT button

when the desired parameter appears. This becomes the instrument’s default

measurement function until you change it.

2. To measure the intensity of light, plug the light probe (with its sensor cap on)

into the socket at the top of the DLM112SD (callout 1-7) and use the

FUNC. OLD/NEXT button to select light measurement mode. If the display shows

a value other than zero, press the LOGGER ▲button and hold it for at least

three seconds until you hear a beep. Then remove the cap from the probe.

olding the sensor housing, point the sensor directly at the light source whose

intensity you wish to measure. The display will indicate the intensity in units of lux.

To change the unit of measurement to footcandles (Ft-cd), press the REC/ENTER

button. The last unit selected becomes the default unit.

3. To measure temperature, first make sure that the light probe is not plugged into

the instrument. Then use the FUNC. OLD/NEXT button to select temperature

measurement mode and plug either a Type K or Type J thermocouple into the

socket (callout 1-8) on the top of the DLM112SD. The display will read out the

sensed temperature in degrees F or C, depending on the setting chosen during

setup.

To change the unit of measurement, or to configure the instrument for use with a

Type J thermocouple probe, press the SET ▼button to reenter setup mode and

perform Step 7 or 8 of the procedure. Along with the measured value, the display also

shows the type of thermocouple the DLM112SD is configured for.

Whenever the DLM112SD is in measurement mode, you can turn off the backlight

(which is on by default) by briefly pressing (but not holding) the POWER/ESC button.

To reactivate the backlight, briefly press the button again.

Whenever the instrument is in measurement mode, you also can check the current

date and time by briefly pressing the SET ▼button. Doing so causes both values to

appear briefly at the lower left of the display.

HOLDING AND STORING MEASUREMENTS

4. To hold a measured value of light intensity or temperature, press the

FUNC./ OLD/NEXT button during the measurement. Doing so will cause the word

“ OLD” to appear at the top of the display. Pressing the FUNC./ OLD/NEXT button

again releases the hold.

5. To record and recall readings, press the REC/ENTER button while making

measurements. This will make the term “REC” appear at the top of the display.

Pressing the REC/ENTER button again, briefly, will make the term “MAX” appear to

the right of “REC” and switch the display to the maximum value stored in memory

during the last recording session. Pressing the REC/ENTER button again, briefly,

will make the term “MIN” appear to the right of “REC” and switch the display to

the minimum value stored during

the last session.

6. To exit recording mode, press and hold the REC/ENTER button for at least three

seconds, until the term “REC” disappears from the top line of the display. The

display will then revert to showing the current reading.

AUTOMATIC VS. MANUAL DATALOGGING

The DLM112SD can automatically log data using any of 11 sampling times from 1

second to 1 hour. To view the sampling time for which the instrument was set up,

press the LOGGER ▲button once. To change the datalogging sampling time, perform

Step 9 of the setup procedure.

7. To start automatic datalogging, press the REC/ENTER button once. The top line

of the display will then show the term “REC”. Pressing the LOGGER ▲button at

this point will make REC flash and add the flashing term “LOGGER” at the top right

of the display. This indicates that the instrument is currently storing measured

values and their time stamps in memory.

8. To pause automatic datalogging, press the LOGGER ▲button once; this action

makes the flashing term LOGGER disappear from the top right of the display and

changes the term “REC” from flashing to constant. Pressing the LOGGER ▲button

again resumes automatic datalogging.

9. To end automatic datalogging, press the REC/ENTER button and hold it for at

least two seconds. This action causes the “REC” message to disappear.

10. To log data manually, set the sampling time to zero Step 9 of the setup

procedure. Then press the REC/ENTER button once. The display will show the

term “REC” on the top line, a value in the middle, and below it the letter “P” on

the left and a number from 1 to 99 on the same line to the right.

The number indicates the position on the SD card that will be used to store

manually logged data.

Now press the LOGGER ▲button. This will cause the beeper to sound and the term

“LOGGER” to briefly appear at the upper right of the display. As in automatic

datalogging mode, in this mode the instrument is storing measurements and their

time stamps on the SD card.

In manual datalogging mode, however, measurements are being stored continuously

(with a sampling time of zero), and their locations on the card can be changed.

11. To change the storage location of manually logged data, press the

SET ▼button once; this causes the “P” to disappear from the left side of the

display and the value on its line to begin flashing. Once the flashing begins, you

can use the SET ▼and LOGGER ▲buttons to change the flashing value to any

number between 1 and 99. Once you have chosen the storage location, press the

REC/ENTER button to save the setting. This causes the value to stop flashing and

the “P” to return.

12. To end manual datalogging, press the REC/ENTER button and hold it for at least

three seconds. This action causes the “REC” message to disappear from the top

line of the display.

TRANSFERRING DATA FROM THE

SD CARD TO A COMPUTER

After automatic or manual datalogging of measurements, remove the SD card from

the DLM112SD and plug it into your computer either directly (if it has an SD card slot)

or through an SD card reader.

Because the files containing time-stamped data logs have the file extension .xls, they

open in Microsoft’s Excel application. Figures 2 and 3 show two kinds of Excel

presentations: a data-only screen and a graphics-only screen.

Tabla de contenidos

Otros manuales de Instrumento de medición de General

General

General DT4208SD Manual de usuario

General

General DCM7021 Manual de usuario

General

General MMD900 Manual de usuario

General

General MM80G Manual de usuario

General

General LD7 Manual de usuario

General

General P16181HP Manual de usuario

General

General MM7 Manual de usuario

General

General DT4208SD Manual de usuario

General

General DIGITAL POCKET WEATHERMAN SAM700BAR Manual de usuario

General

General TS01 Manual de usuario

General

General PTH8708 Manual de usuario

General

General MP905 Manual de usuario

General

General DCiS2 iBorescope2 Manual de usuario

General

General MM700D Manual de usuario

General

General CM660 Manual de usuario

General

General EP8710 Manual de usuario

General

General MMH800 Manual de usuario

General

General MMD7NP Manual de usuario

General

General DMM51FSG Manual de usuario

General

General DAMP60 Manual de usuario

General

General RHMG650 Manual de usuario

General

General DSM403SD Manual de usuario

General

General DM8252 Manual de usuario

General

General SAF-T-LITE I.S. 300 Guía

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
