Gembird KB-7000 Manual de usuario

Multimedia

keyboard

KB-7000 XP Office Multimedia keyboard

Page 2 of 8

Illuminated keyboard

Disclaimer

•We spared no efforts to make sure that the information in this manual is correct and

complete. Howe er no liability is accepted for any errors or omissions. Gembird

Electronics reser es the right to change the specifications of the hardware and

software described in this manual without prior notice.

•No part of this manual may be reproduced, transmitted or translated in any language

in any form, by any means, without the prior written permission of Gembird Electronics

Ltd.

•Gembird Electronics makes no warranties for damages resulting from corrupted or lost

data due to a mistaken operation or malfunction of the product, the software, personal

computers or peripheral de ices.

Gembird® is a registered trademark of GMB Tech (Holland) b .

Other names or products not mentioned abo e may be registered trademarks or trademarks

of their respecti e owners.

Page 3 of 8

Illuminated keyboard

Introduction

Thank you for buying the Gembird® Multimedia keyboard! This manual will help you install

and use it properly. KB-7000 is a Multimedia keyboard with PS/2 interface with the following

main features:

o22 hot keys for the Multimedia and Internet functions

oF-key function for the Office

oScrolling wheel

oErgonomic wrist rest

oSpecifications:

•Input power: 5±0.25V DC/25mA Max

•Switch acti ation mechanism: membrane

•Tra el distance: 3.5±0.5mm

•Force: 55g±8g

•Return force:>20G

•Dimensions: 515*226*45mm

•Cable length 1.5M

•Weight: 1280g (140g - palm rest)

•Keycaps pull force: >1.5KG

•Life time: 10 million

Use

anual

Page 4 of 8

Illuminated keyboard

Software Installation

Caution: If you ha e pre iously installed other keyboard or mouse dri ers on your

computer, please uninstall them first.

•Insert the enclosed disk into your disk dri e

•Follow the instructions on the screen to complete the installation

•After installation, there is a keyboard icon shown in the system tray, on the right

side of the tool bar, double click the icon and you can re-define the functions

•To uninstall the dri er, mo e t he mouse cursor to the keyboard icon in the system

tray, click the right mouse button, select "Uninst" to uninstall the dri er

Keyboard hotkeys

The Multimedia keyboard has 22 hotkeys.

Back : Go back to the pre iously iewed item in programs that support the "Back"

command, such as the Web browser.

Forward : Go to the next item if it was pre iously iewed in the same session in

programs that support the "Forward" command, such as the Web browser.

WWW : Start the default Web browser or go to the Home Web page. If the Web

browser is already acti ated it opens the Home Web page.

STOP : Stop loading or refreshing a new page, if it takes a long time to display.

E Mail : Start the default e-mail program. If you are not sure what your default

Page 5 of 8

Illuminated keyboard

e-mail program is, press this key to find out.

My Favorites : Open the Internet Explorer Fa orites pane. This is where you can store

shortcuts to frequently used files, websites or other items for easy access.

Search : Open the Internet Explorer Search pane.

Refresh : Update the information on an acti e Web page or the contents of a

particular window.

Word : Open Microsoft Word.

Excel : Open Microsoft Excel.

Power Point : Open Microsoft Power Point.

Calendar : Open the Calendar of Microsoft Outlook.

Play/Pause : Play or Pause music or a mo ie. Once paused, press this key again to

resume playing.

Stop : Stop the music or mo ie that is playing.

VolumeUp : Hold down this key to quickly increase the olume.

Volume Down : Hold down this key to quickly decrease the olume.

Mute : Turn the sound off. Press again to turn the sound back on.

PreviousTrack : Switch to the next media track. Pr ess once for each subsequent track.

Page 6 of 8

Illuminated keyboard

Next Track : Switch to the pre ious media track. Press once for each preceding track.

Application Switch : Press and hold this key, it will pop up all pre iously open

application icons and a "mark frame" jumping between icons. The target application can be

selected and launched (On top) – just mark the target application and release the

"Application Switch key".

Close : Close the acti e Windows application when the key is pressed.

Cut : Cut out the selected item.

Copy : Copy the selected item.

Paste : Paste the pre iously cut out or copied item at the cursor position.

Mark : Mark the selected item, and use arrow to mark the text.

Eject : Eject the CD from the CD-Rom dri e.

Back : Go back to the pre iously iewed item in programs that support the "Back"

command, such as a Web browser.

Forward : Go to the next item if it was pre iously iewed in the same session in

programs that support the "Forward" command, such as a Web browser.

My computer : Open the "My computer" window.

Calculato r : Start Microsoft Calculator.

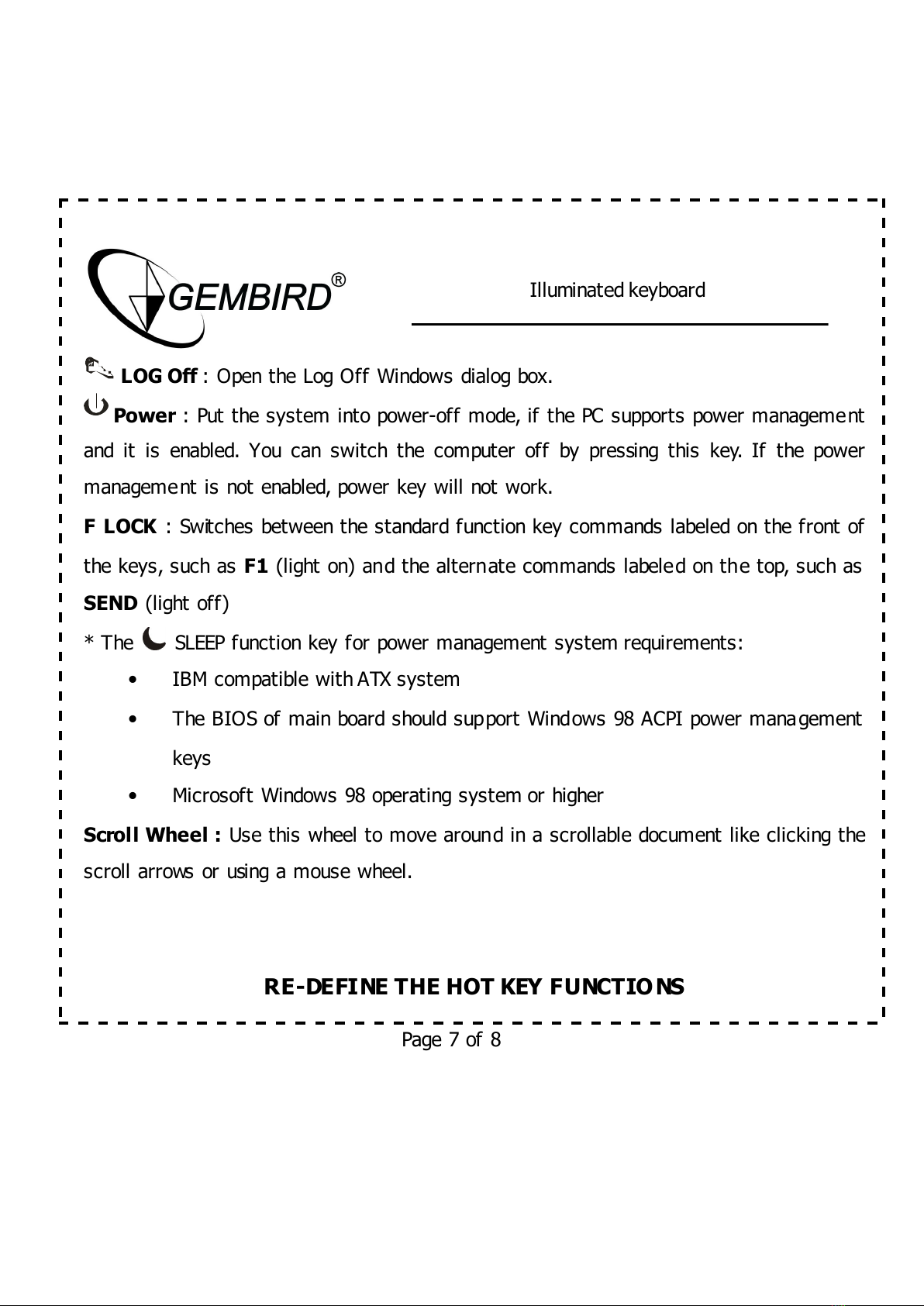

Page 7 of 8

Illuminated keyboard

LOG Off : Open the Log Off Windows dialog box.

Power : Put the system into power-off mode, if the PC supports power management

and it is enabled. You can switch the computer off by pressing this key. If the power

management is not enabled, power key will not work.

F LOCK : Switches between the standard function key commands labeled on the front of

the keys, such as F1 (light on) and the alternate commands labeled on the top, such as

SEND (light off)

* The SLEEP function key for power management system requirements:

•IBM compatible with ATX system

•The BIOS of main board should support Windows 98 ACPI power management

keys

•Microsoft Windows 98 operating system or higher

Scroll Wheel : Use this wheel to mo e around in a scrollable document like clicking the

scroll arrows or using a mouse wheel.

RE DEFINE THE HOT KEY FUNCTIONS

Page 8 of 8

Illuminated keyboard

All hot key functions can be re-defined to your fa orite program and actions.

After installation, you will see an icon in the system tray.

•Double click on the icon, in the window that would appear, select "FUNCTION"

•Select the key you would like to re-define, click on "EDIT", in the coming window,

you can choose:

oINNER FUNCTION: select one function as default setting, then click on

OK or APPLY to change the original key function

oOUTER FILE: select "Outer File" and then click on "FILE". I n the coming

window select the program file you like and then click on OK and APPLY

to change the original key function
