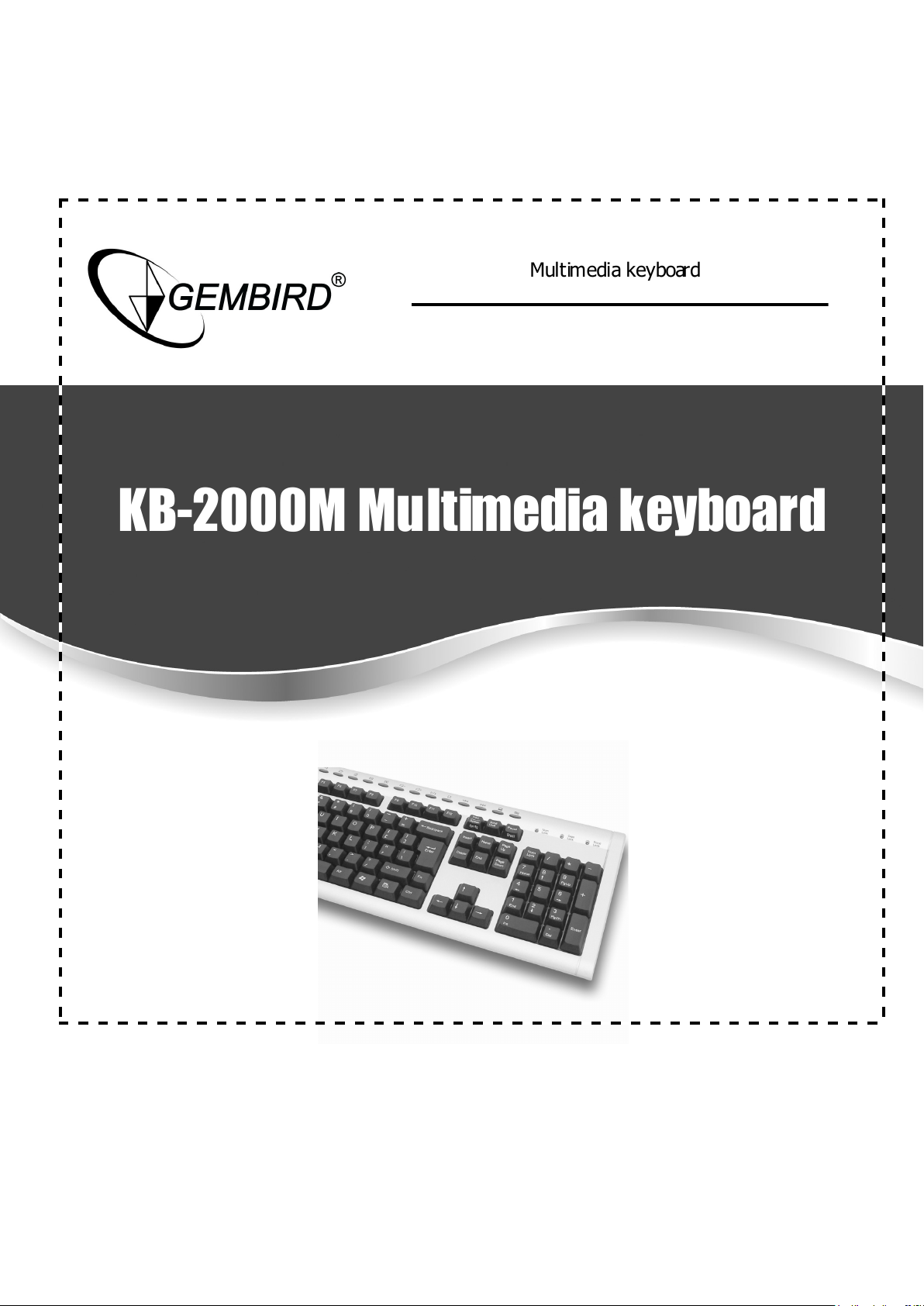

Gembird KB-2000M Manual de usuario

Multimedia

keyboard

2000M Multimedia keyboard

Page 2 of 9

Illuminated keyboard

Disclaimer

•We spared no efforts to make sure that the information in this manual is correct and

complete. Howe er no liability is accepted for any errors or omissions. Gembird

Electronics reser es the right to change the specifications of the hardware and

software described in this manual without prior notice.

•No part of this manual may be reproduced, transmitted or translated in any language

in any form, by any means, without the prior written permission of Gembird Electronics

Ltd.

•Gembird Electronics makes no warranties for damages resulting from corrupted or lost

data due to a mistaken operation or malfunction of the product, the software, personal

computers or peripheral de ices.

Gembird® is a registered trademark of GMB Tech (Holland) b .

Other names or products not mentioned abo e may be registered trademarks or trademarks

of their respecti e owners.

Page 3 of 9

Illuminated keyboard

Introduction

Thank you for buying the Gembird® Multimedia keyboard! This manual will help you install

and use it properly. KB-2000M is a Multimedia keyboard with PS/2 interface with the

following main features:

o18 hot keys for the Multimedia and Internet functions

oErgonomic wrist rest

oSpecifications:

•Input power: 5±0.25V DC/25mA Max

•Switch acti ation mechanism: membrane

•Tra el distance: 3.5±0.5mm

•Force: 55g±8g

•Return force:>20G

•Dimensions: 460*171*40mm

•Cable length 1.5M

•Weight: 1280g (140g - palm rest)

•Keycaps pull force: >1.5KG

•Life time: 10 million

KB-2000M User manual

Page 4 of 9

Illuminated keyboard

Keyboard installation

•Before installing the Hot Keys 6.12 dri er, please check to see if there are any

other keyboard dri ers already installed on your system. All other keyboard

dri ers must be uninstalled before installing the Hot Keys 6.12 dri er.

•Please insert the enclosed CD into the CD dri e.

•Click on "My Computer"

•Click on "CD Drive"

•Click on the executable file "Setup.exe"

•Follow the instruction on the screen to complete the installation

Note: After installing the Hot Keys 6.12 dri er, you need to restart your computer to enable

the software.

Un-installation

To un-install the Hot Keys 6.12, go to

START/PROGRAM FILE/HOT KEYS

, select "Uninstall"

to remo e the Hot Keys 6.12 dri er. The system will un-install the Multimedia Keyboard

dri er automatically.

Page 5 of 9

Illuminated keyboard

Keyboard hot eys

The Multimedia keyboard has 18 hotkeys.

BACK : Go back to the pre ious web page

FORWARD : Go to the next web page

STOP : Stop default web browser from loading or refreshing a web page

REFRESH : Update the contents of the current web page of the default web

browser

SEARCH : Open the "Find "window in the START menu

FAVORITES : Open the "Fa orites" group

WEB/HOME : Start your default browser and go immediately to your Home

Web page

MAIL : Start the default E-mail program

PLAY/PAUSE : Play or pause the default media player

STOP : Stops the media

PREVIOUS TRACK : Go to the pre ious track of the default media

player

NEXT TRACK : Go to the next track of the default media player

MEDIA : Start the music CD player or Microsoft Windows Media Player

Page 6 of 9

Illuminated keyboard

application

VOLUME DOWN : Press and release, or press and hold to decrease the

olume

VOLUME UP : Press and release, or press and hold to increase the

olume

MUTE : Stops all audio. Press again to resume audio

CALCULATOR : Start the "CALCULATOR" program

MY COMPUTER : Open the "My Computer" window

SLEEP : User can put the system into sleep mode, if the PC supports power

management. If the power management is not enabled, this key will not work

WAKE UP : Exit sleep mode, and return to normal mode

Note: Most hot keys may be re-configured to start other applications or Web pages. Please

refer to "How To Redefine The Hot Keys" for more details.

Page 7 of 9

Illuminated keyboard

How To Redefine The Hot eys

First, you will need to install the Hot Keys 6.12 dri er, see the section Keyboard

installation abo e.

Once installed, you will see a Keyboard icon at the bottom right of your screen. This

icon will appear e ery time you start the computer.

The Hot Keys are already set up once you ha e installed the dri er. If you want to re-define

the Hot Keys, you ha e to click on the Keyboard icon at the bottom right of your

screen.

The Keyboard properties window will open. Go to the Hot Keys section. You will see the

following screen with 18 Buttons, just like the buttons on your keyboard.

Page 8 of 9

Illuminated keyboard

Whene er you’d like to re-define the Hot Keys just click on the Button, then go to Custom,

and click on the Select button. Now go to the Browse File and find the executable file you

would like to associate with your Hot Key. When finished, click on the OK button then click

Apply. The Hot Key is now programmed and the keyboard properties' window can be closed.

Page 9 of 9

Illuminated keyboard
