Gembird SKY-KB1 Manual de usuario
Multimedia keyboard
SKY-KB1 Multimedia keyboard
Illuminated keyboard
Disclaimer
•We spared no efforts to make sure that the information in this manual is correct and
complete. However no liability is accepted for any errors or omissions. Gembird
Electronics reserves the right to change the specifications of the hardware and
software described in this manual without prior notice.
•o part of this manual may be reproduced, transmitted or translated in any
language in any form, by any means, without the prior written permission of
Gembird Electronics Ltd.
•Gembird Electronics makes no warranties for damages resulting from corrupted or
lost data due to a mistaken operation or malfunction of the product, the software,
personal computers or peripheral devices.
Gembird® is a registered trademark of GMB Tech (Holland) bv.
Other names or products not mentioned above may be registered trademarks or
trademarks of their respective owners.
Copyright © 2007 Gembird Electronics Ltd. All rights reserved.
Illuminated keyboard
Introduction
Thank you for buying the Gembird® Multimedia keyboard! This manual will help you
install and use it properly. SKY-KB1 is a VoIP Skype compatible USB multimedia keyboard
with a built-in microphone and stereo speakers with the following main features:
•Supports SKYPE Voice-over-IP software: 10 special Skype functions hotkeys -
call to any SKYPE user anywhere in the world free of charge!
•Built-in microphone and stereo speakers are convenient for any audio
applications, extra microphone input and stereo output jacks allow you to use
your favorite headset
•Plug-and-play USB interface with integrated Sound Card compatible with any
voice software: SKYPE, MS Messenger, Yahoo Messenger, ICQ etc
•eMic-Communicator software included: the easiest way to send spoken
messages
•14 multimedia keys
SKY-KB1 User manual
Illuminated keyboard
•Slim design, convenient separate arrow keys
Illuminated keyboard
Specifications
•Compliant with USB 1.1\2.0 specification
•Keys: 120pcs, including 14 multimedia keys and volume control wheel
•Microphone input and stereo audio output: 3.5mm jacks
•Speakers: 2x1W
•Product size: 480x230x22mm
•Product net weight: 1.1kg
•USB cable: 1.6m
System requirements
•Windows 2000\XP and Vista
•Free USB port
Illuminated keyboard
Installation
Install the supplied software first and then connect your keyboard.
On most operating systems the multimedia keys will only work once the software
has been installed.
Skype software should be installed from its server (distribution on CD is not
allowed): http://www.skype.com/download
Illuminated keyboard
Driver installation
•Insert the supplied driver CD into your CD-ROM drive
•On the installation menu, click on the button Driver
•If the installation menu does not automatically start click on Start/Run/Browse
and select your CD-ROM drive. Double click on the file Setup.exe
•Follow the on-screen instructions
•If prompted, restart your PC
Firstly you can select the desired driver interface language.
Illuminated keyboard
Following that, choose the folder where the driver for the Silent Keystroke keyboard is to
be stored.
After the driver has been installed click on Finish to complete the procedure.
Illuminated keyboard
In the notification area on the bottom right-hand side of the desktop you will find a green
exclamation mark. Click on it to adjust sound and microphone settings.
You can add further programs here along with Skype™. This gives you access to further
Internet communication programs using the hotkeys.
Illuminated keyboard
If you have already installed Skype™ on your computer then Skype™ will prompt you
immediately after installation of the driver if you want to allow Silent Keystroke keyboard
access. Click on Allow access so that the Skype™ hotkeys become activated.
Connecting to the PC
Plug the USB connector into one of the USB ports on your computer. The operating
system will automatically detect that a new device has been connected.
In some cases the operating system might prompt you to insert the Windows installation
CD. If it does, simply follow the on-screen instructions.
Tabla de contenidos
Otros manuales de Teclado de Gembird
Gembird

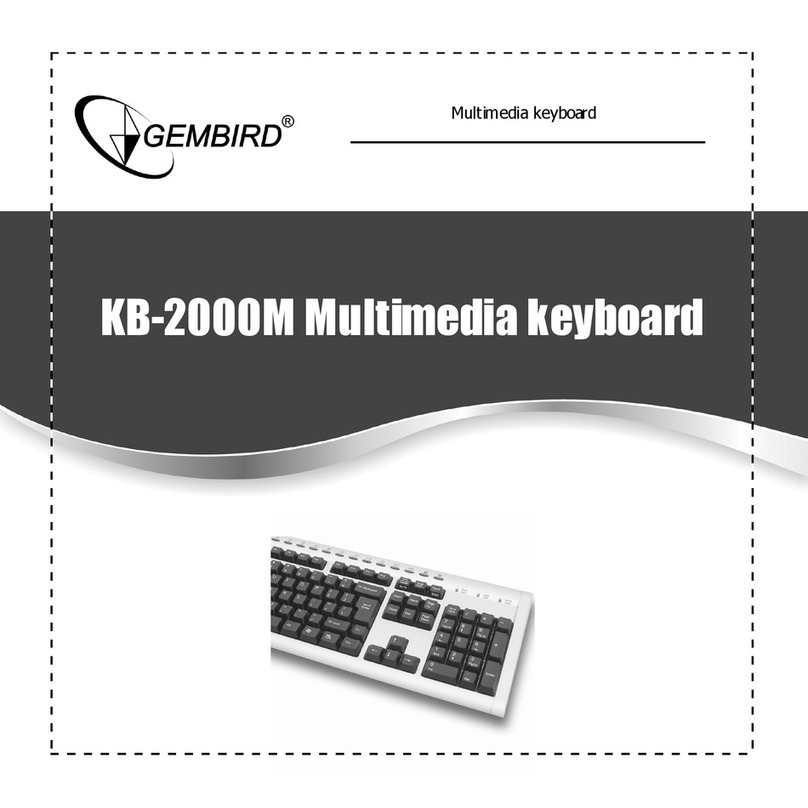

Gembird KB-2000M Manual de usuario
