1:2 Component
Audio Over CAT5
EXT-COMPAUD-CAT5-142
User Manual
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
1:2 Component Audio Over CAT5 is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective companies
ASKING FOR ASSISTANCE
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Panel Layout
5 Sender Panel Descriptions
6 Receiver Panel Layout
7 Receiver Panel Descriptions
8 Connecting And Operating The 1:2 Component Audio Over CAT5
9 Adjusting The Video Quality
10 Network Cable Wiring Diagram
11 Specifications
12 Warranty
1
Congratulations on your purchase of the 1:2 Component Audio Over CAT5. Your
complete satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 1:2 Component Audio Over CAT5
The 1:2 Component Audio over CAT5 extends and duplicates your audio and
component video signals at distances of up to 1000 feet away. Remote AV
signals are received from the 1:2 Component Audio over CAT5 Sender unit, via
industry-standard CAT5 network cables.
The 1:2 Component Audio over CAT5 will extend Analog Component as well as
Analog Audio or Digital Audio via S/PDIF or TOSlink and provide two full sets
of AV signal output on the receiving end. Audio is transmitted digitally over the
CAT-5 cable and both the analog and digital audio outputs are active on the
receiver side.
How It Works
The 1:2 Component Audio CAT5 Distribution Amplifier Sender unit is placed at
the source location. A standard CAT5 cable is run from the 1:2 Component Audio
over CAT5 Sender to the 1:2 Component Audio over CAT5 Receiver unit. The
1:2 Component Audio over CAT5 Receiver unit connects to your remote HDTV
component video displays, and audio inputs.
Note: Both analog and digital audio outputs are active on the receiver side when
two-channel analog audio is used. If multi-channel digital audio is used, then the
analog audio outputs will be inactive.
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 1:2 COMPONENT AUDIO OVER CAT5
Use only industry standard Category-5 Enhanced (CAT-5e) cable to operate• the 1:2 Component Audio Over CAT5. Cat-6 cables can also be used.
Unitwillconvertdigital audioto analogaudio andanalog audioto digitalaudio. It• willnothoweverdown-mixmultichanneldigitalaudio tracksto analog2 channel.
Please see page 8 for additional information.
Boththesending and receivingunitsmust be poweredwiththe suppliedpower• adapters for proper operation.
Field termination of CAT5e cabling must adhere to the TIA/EIA-568-B• specification. Please see page 10 for additional information.
2
OPERATION NOTES
3
Features
Supports up to 1080p component video•
Supports analog L+R audio and multichannel digital audio via optical Toslink• or S/PDIF jacks
Simple plug-and-play installation•
Equalizations for different CAT-5 skews•
No loss of quality over long distances•
Package Includes
(1) Component Audio Over CAT5 Sender
(1) 1:2 Component Audio Over CAT5 Receiver
(1) 6 Foot 5 RCA Component Video Cable
(2) 5V DC Power Supply
(1) User’s Manual
FEATURES
4

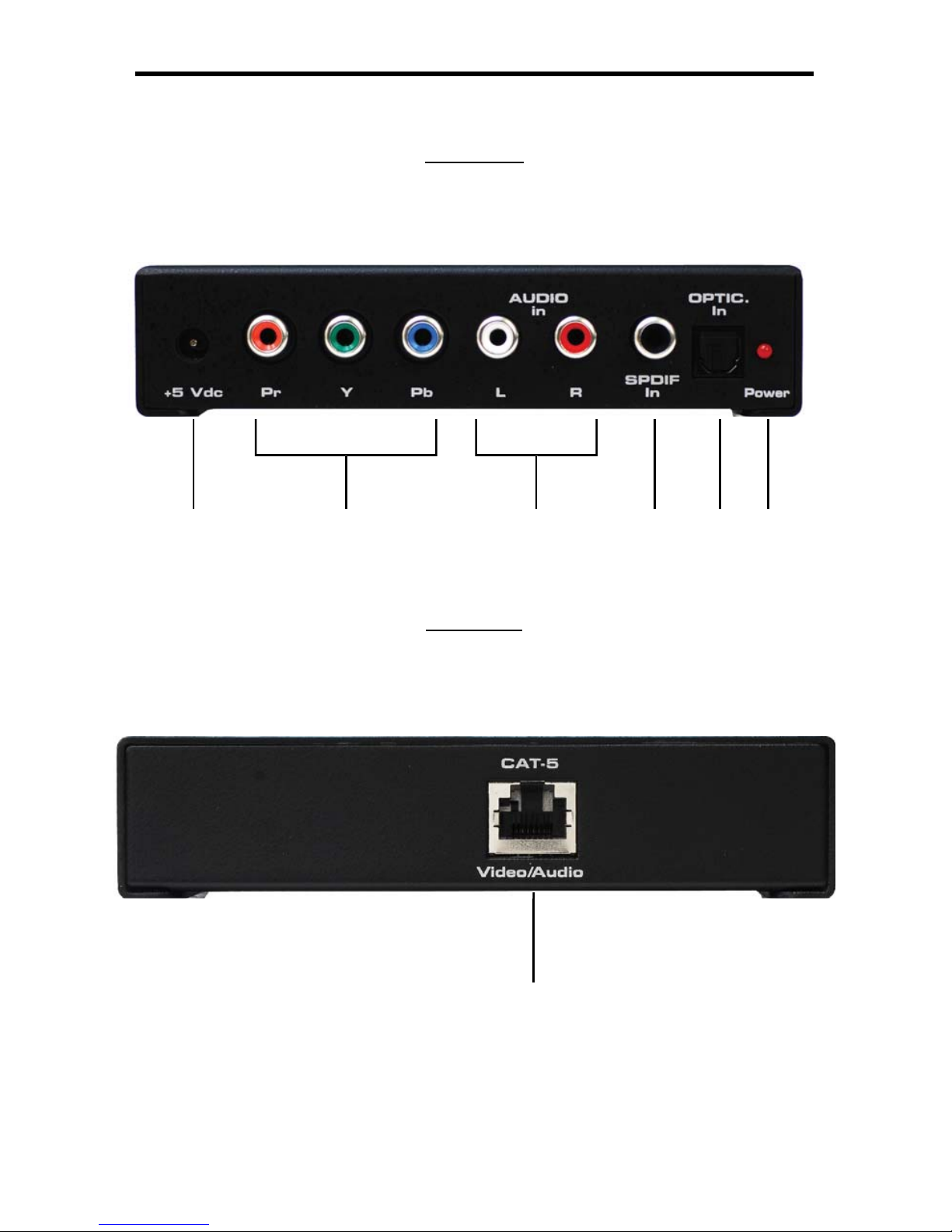

Front Panel
Back Panel
1
7
4 5 62 3
SENDER PANEL LAYOUT
5
SENDER PANEL DESCRIPTIONS
5V DC Power Input1 Connect the included 5V DC power supply input this port. Once this has been
properly connected the power LED will become active.
3 RCA Component Input2 Connect the component source device to this input.
2 RCAAnalog Stereo Input3 Connect the source’s analog audio to this input.
SPDIF Digital Audio Input4 Connect the source’s SPDIF digital audio to this input.
Optical Digital Audio Input5 Connect the source’s optical digital audio to this input.
Power LED Indicator6 This LED will become active once the included 5V DC power supply is properly
connected.
RJ-45 Jack7 Connect the sending and receiving units together using a TIA/EIA-568-B
terminated CAT-5, CAT-5e or CAT-6 cable. See page 10.
NOTE: Only one audio input type, digital or analog, should be connected at one time.
6
Front Panel
Back Panel
12 3
4 5 6 7 8 9 1110 12 13
RECEIVER PANEL LAYOUT
7
RECEIVER PANEL DESCRIPTIONS
Brightness Trim Pot1 Use this adjustment Trim Pot to brighten/darken the output video signal. See
page 9.
Focus Trim Pot2 Use this adjustment Trim Pot to focus/blur the output video signal. See page 9.
Power LED Indicator3 This LED will become active once the included 5V DC power supply is properly
connected.
5V DC Power Input4 Connect the included 5V DC power supply input this port. Once this has been
properly connected the power LED will become active.
3 RCA Component Output 15 Connect one component display device to this output.
3 RCA Component Output 26 Connect one component display device to this output.
2 RCAAnalog Stereo Output 17 Connect this output to either the display or audio receiver.
2 RCAAnalog Stereo Output 28 Connect this output to either the display or audio receiver.
SPDIF Digital Audio Output 19 Connect this output to either the display or audio receiver.
SPDIF Digital Audio Output 210 Connect this output to either the display or audio receiver.
Optical Digital Audio Output 111 Connect this output to either the display or audio receiver.
Optical Digital Audio Output 212 Connect this output to either the display or audio receiver.
RJ-45 Jack13 Connect the sending and receiving units together using a TIA/EIA-568-B
terminated CAT-5, CAT-5e or CAT-6 cable. See page 10.
