Notice

Gefen Inc. reserves the right to make changes in the

hardware, packaging and any accompanying documentation

without prior written notice.

CAT5•5000 is a trademark of Gefen Inc.

Macintosh is a trademark of Apple Computer Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

How it Works

Operation Notes

CAT5•5000S Front Panel Layout

CAT5•5000S Back Panel Layout

CAT5•5000S Back Panel Function Descriptions

CAT5•5000R Front Panel Layout

CAT5•5000R Back Panel Layout

CAT5•5000R Back Panel Functions

CAT5 Cable Length Setup

CAT5 Link Cable Wiring Diagram

CAT5•5000 - Wiring Diagram

System Specifications

Warranty

INTRODUCTION

Thank you for purchasing the new ex•tend•it CAT5-5000

series by Gefen, Inc.

The ex•tend•it CAT5•5000 by Gefen allows users the

benefits of extending USB, audio, and video signals

beyond the desktop. In a growing number of applications,

broadcast stations and production facilities need to

locate a computer remotely from the keyboard, mouse,

and video monitor. A CPU may need to be shared

between several users, for example, or moved to another

room because of annoying fan noise.

The CAT5•5000 series can be used to extend computers

with noisy fans, printers, hard drives, scanners, cameras,

keyboards, mouse, and any other USB-type device. With

the potential to cover the distance of 330 feet, industry

standard Category 5 (CAT-5) cables are used for the

extension of all the devices. One can connect additional

CAT5•5000 series to the same computer, allowing

access to the same computer from other locations up to

330 feet apart.

CONTENTS

The CAT5•5000 system consists of:

--- (1) CAT5•5000S sender unit

--- (1) CAT5•5000R receiver unit

--- (2) 12 VAC power supply

--- (2) Video cable (6FT)

--- (1) USB cable (06FT)

--- (1) User Manual

HOW IT WORKS

In its most basic application, the CAT5•5000S sender unit

resides next to the computer. Supplied with the system,

straight VGA cable and USB cables connect the computer

to the CAT5•5000S sender unit.

The CAT5•5000R receiver unit is placed next to the

monitors and USB device, at the remote location. The

monitors and USB device are connected to the CAT5•5000R

similar to the way they are connected to the back of the

computer (PC or Macintosh).

0Industry standard Category 5 (CAT-5) cables are used to

link CAT5•5000S sender and CAT5•5000R receiver units

together. The first monitor, and USB signals are extended

by one CAT-5 cable, while the second monitor is extended

by the second CAT-5 cable. Audio is extended using a

third CAT-5 cable.

HOW IT WORKS

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE CAT5•5000 SYSTEM

* Industry standard Category-5 (CAT-5) cables are used

to operate CAT5•5000 systems. Linking the sender and

receiver boxes together, the CAT5•5000 model requires

one CAT-5 cable to extend the first monitor, and single

mode USB. A second CAT-5 cable is required to extend

monitor 2, and third CAT-5 cable is used to extend audio.

* When two monitors are used in the local and remote

locations, the video monitors must be a multi-resolution

type. This pertains to monitors placed remotely, and

those divided between local and remote locations. The

video monitors will not initialize correctly at start-up if

they are different types.

* The CAT5•5000 units are housed in a metal box for

better RF shielding.

OPERATION NOTES

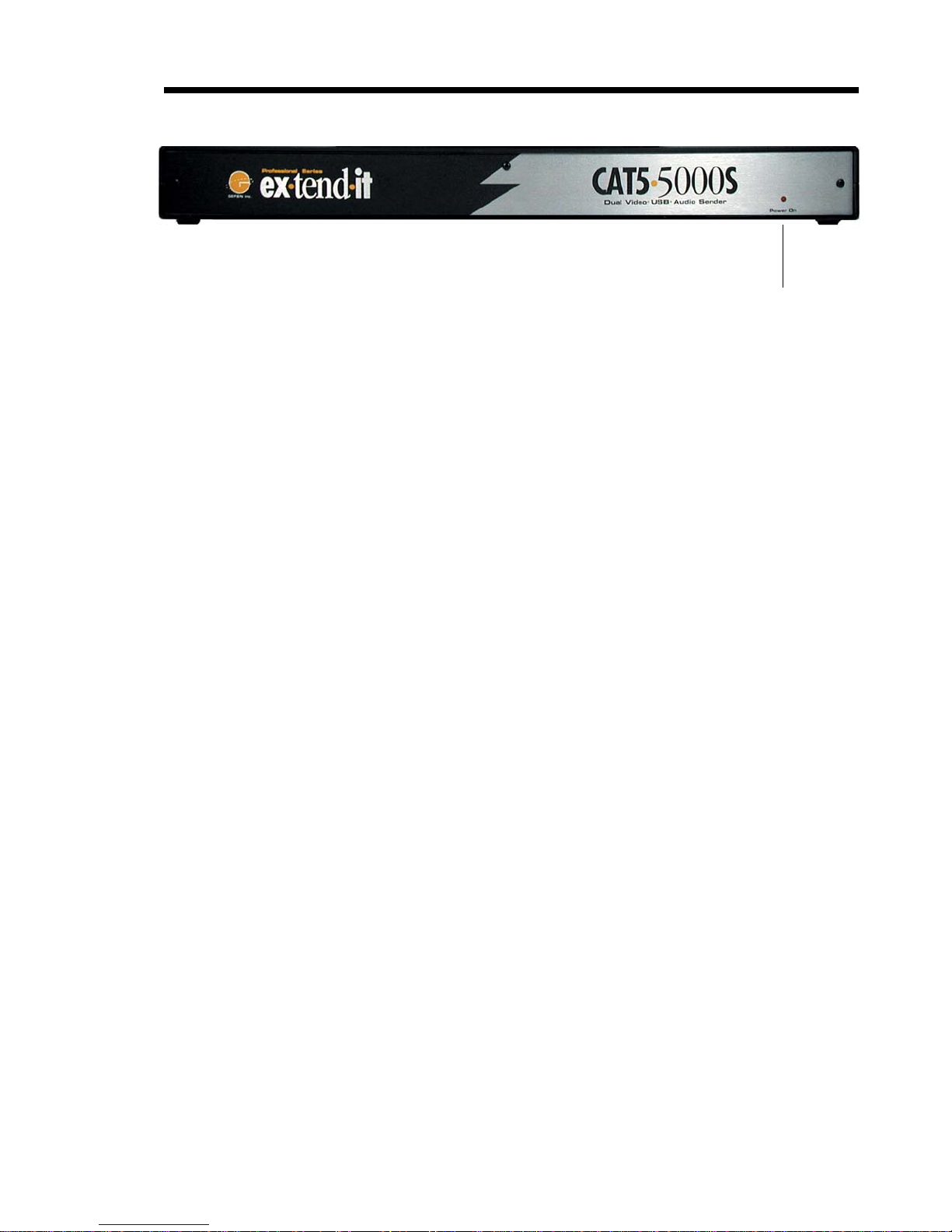

CAT5•5000S FRONT PANEL DESCRIPTIONS

FRONT PANEL FUNCTION DESCRIPTIONS

Power On Indicator

Indicates that the unit is on and plugged in.

CAT5•5000S BACK PANEL LAYOUT

12 3 4 5 678910

CAT5•5000S BACK PANEL LAYOUT

POWER - 12 VAC external power supply

MONITOR 1 - HD15 output connects to the monitor 1

for local video

VIDEO IN 1 - HD15 input from computer

MONITOR 2 - HD15 output connects to the monitor 2

for local video

VIDEO IN 2 - HD15 input from computer

CAT5 2 Video 2 - RJ-45 input extends video input 2

with CAT-5 cable

CAT5 1 VID1/USB - RJ-45 input extends video, and

USB signals with CAT-5 cable

CAT5 USB2/AUD - RJ-45 input extends audio signals

with CAT-5 cable

AUDIO IN - Audio Mini Jack input from computer

USB IN - USB Input from computer
