Gefen DVI-1000ST Manual de usuario

DVI•1000ST

Extender

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 884-6294

(800) 545-6900

Fax (818) 884-3108

Technical Support Hours:

9:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

C/O Customer Service

6265 Variel Ave.

Woodland Hills, CA91367-9897

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The DVI 1000 ST is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

DVI 1000 STS Panel Descriptions

DVI 1000 STR Panel Descriptions

How To Connect The DVI 1000 ST

DVI 1000 ST Wiring Diagram

CAT5 Link Cable Wiring Diagram

Speciﬁcations

Warranty

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE DVI 1000 ST

• The ﬁber optics cable must be treated carefully when connectors are exposed. They

are susceptible to dust which can contribute to loss of pixels.

• The DVI 1000 ST works for all DVI displays and supports resolutions up to 1920x1200

• The DVI 1000 ST is housed in a metal box for better RF shielding.

• Supports DDWG standard for DVI compliant monitors

• Uses CAT-5 cable for HDCP/DDC and control signals.

OPERATION NOTES

INTRODUCTION

Thank you for purchasing Gefen’ s ex•tend•it DVI 1000 ST. The DVI 1000 ST allows ex-

tension of DVI up to 1640 feet without losing any quality.

CONTENTS

The DVI 1000 ST consists of:

--- (1) DVI 1000 STS

--- (1) DVI 1000 STR

--- (1) DVI cable (6FT)

--- (1) 12VDC Power Supply

--- (1) User's Manual

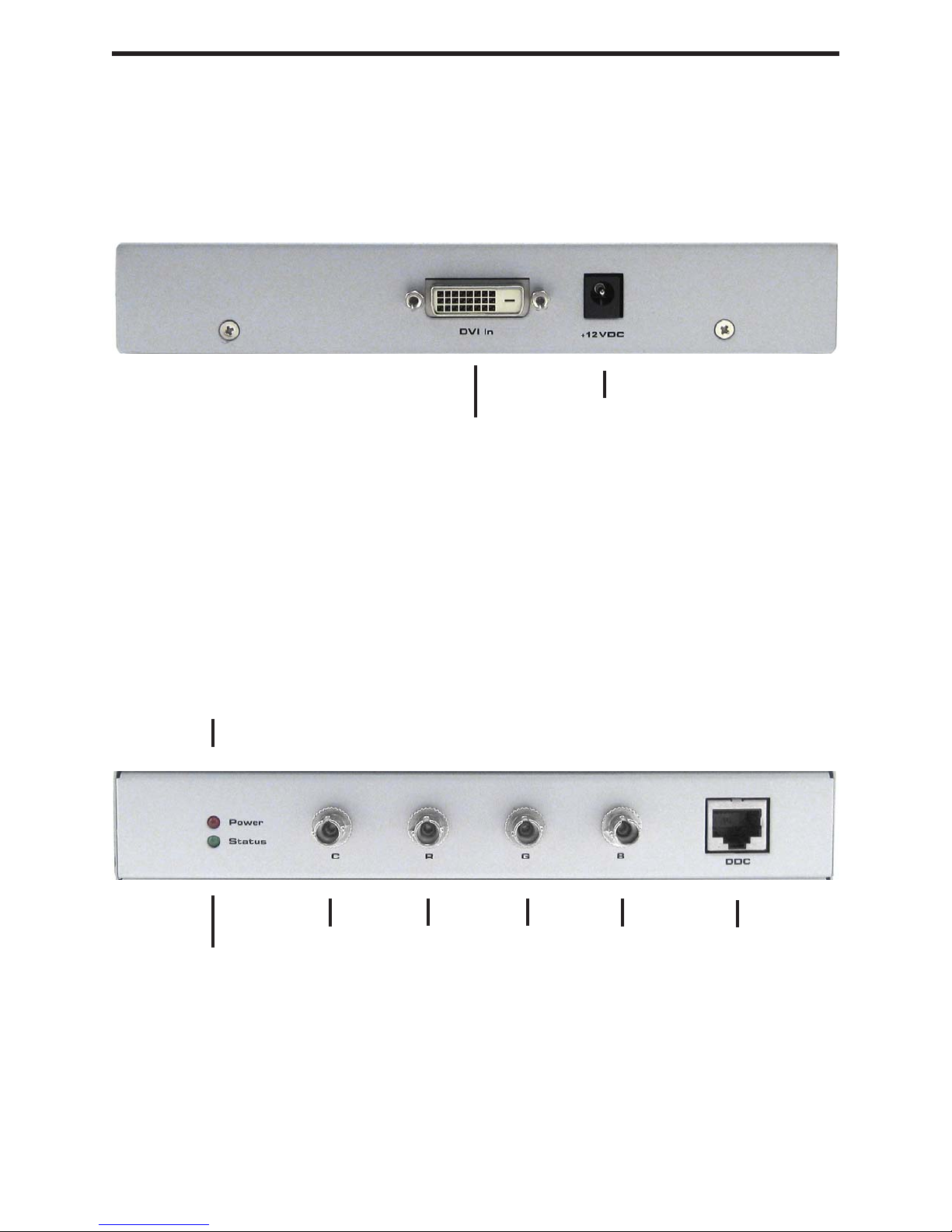

12 VDC

DVI 1000 STS (Front View Only)

DVI In

HDCP &

DDC Signals

BlueGreen

Red

Clock

Link Indicator

DVI 1000STS PANEL DESCRIPTIONS

DVI 1000 STS (Rear View Only)

Power LED indicates the unit is powered

12 VDC

DVI 1000 STR (Front View Only)

DVI Out

HDCP &

DDC Signals

Blue Green

Red Clock

Link Indicator

DVI 1000STR PANEL DESCRIPTIONS

DVI 1000 STR (Rear View Only)

Power LED indicates the unit is powered

Connect the DVI 1000 ST sender unit to the DVI source using the supplied cables.

Connect the DVI 1000 ST receiver unit to your DVI display.

Connect the four ﬁber optics and one CAT5 cable between the sender and receiver.

Plug the 12VDC power supplies into the DVI 1000 ST receiver.

You should see a beautiful picture.

* Cable Requirement - 50 or 62.5 micron multimode ﬁber optics cable

HOW TO CONNECT THE DVI 1000 ST

DVI 1000 ST WIRING DIAGRAM

CAT5 LINK CABLE - WIRING DIAGRAM

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

RJ-45 Jack RJ-45 Jack

1818
