Geberit 131.028 1 Manual de usuario

Installation

Manual

Montageanleitung

Instructions de montage

Istruzioni per il montaggio

D54139-001 © 04-2012

Product Specifications

Geberit Model No. 131.028.xx.1

Features

• Water consumption: Dual flush system allows for

0.8 GPF (3 l) or 1.6 GPF (6 l)

• Impact resistant high density polyethylene tank HDPE

• Anti-siphon fill valve meets ANSI / ASSE 1002-99

standard

Material Determination

Recommended material for wall surface construction

(2 x 1/2" or 2 x 3/8"):

• Gypsum / green board

• Cement board

• Tile backer board

• Ceramic tile surface

Warranty

Limited lifetime warranty on tank and carrier.

10 year warranty on fill valve and flush valve.

Product Data

Installation Requirements

Installation

To install Geberit Monolith, a 2 x 6" or 2 x 4" wood frame or

metal frame construction is required. Studs must be

placed where Geberit Monolith will be positioned.

9.00

9.25

9.75

10.25

10.50

16.13

16.38

16.88

17.38

17.63

17.25

17.50

18.00

18.50

18.75

~Rim Height H

Seat Height

D54139-001 © 04-2012

Drainage elbow installation

`Install protection plug (yellow)

Centerline of new

Geberit Monolith

installation

Center of HDPE

90 degree elbow

(supplied)

3" Sch 40 PVC

Up through ﬂoor.

Connect with

Flexible coupling

(supplied)

8½"

op view 2 x 4 wall

Hole through ﬂoor,

minimum dimensions

3½" square

1−¾" to center of

3" PVC and

90 degree elbow

op view 2 x 6 wall

Hole through ﬂoor,

minimum dimensions

3½" square

3½" to center of

3" PVC and

90 degree elbow

Water supply installation

1Stub out water supply line. Angle stop valve to be

installed later.

Top view

Front view

18½"1"

For ½" copper supply

5" 1"

Water supply

Alternate position

(same dimensions)

D54139-001 © 04-2012

Frame installation

`Strap drainage elbow to studs to prevent from

falling back into wall.

1Finish wall surface construction.

2Attach supplied angle valve.

Outlet of valve must point to 6 o‘clock position!

Option 1: Tile wall see page 4

Option 2: Painted wall see page 6

17½"

25"

33"

41"

43"

(2) 2 x 4 to ceiling

OR (1) 2 x 6 to ceiling

with centers as shown

8½"

½"

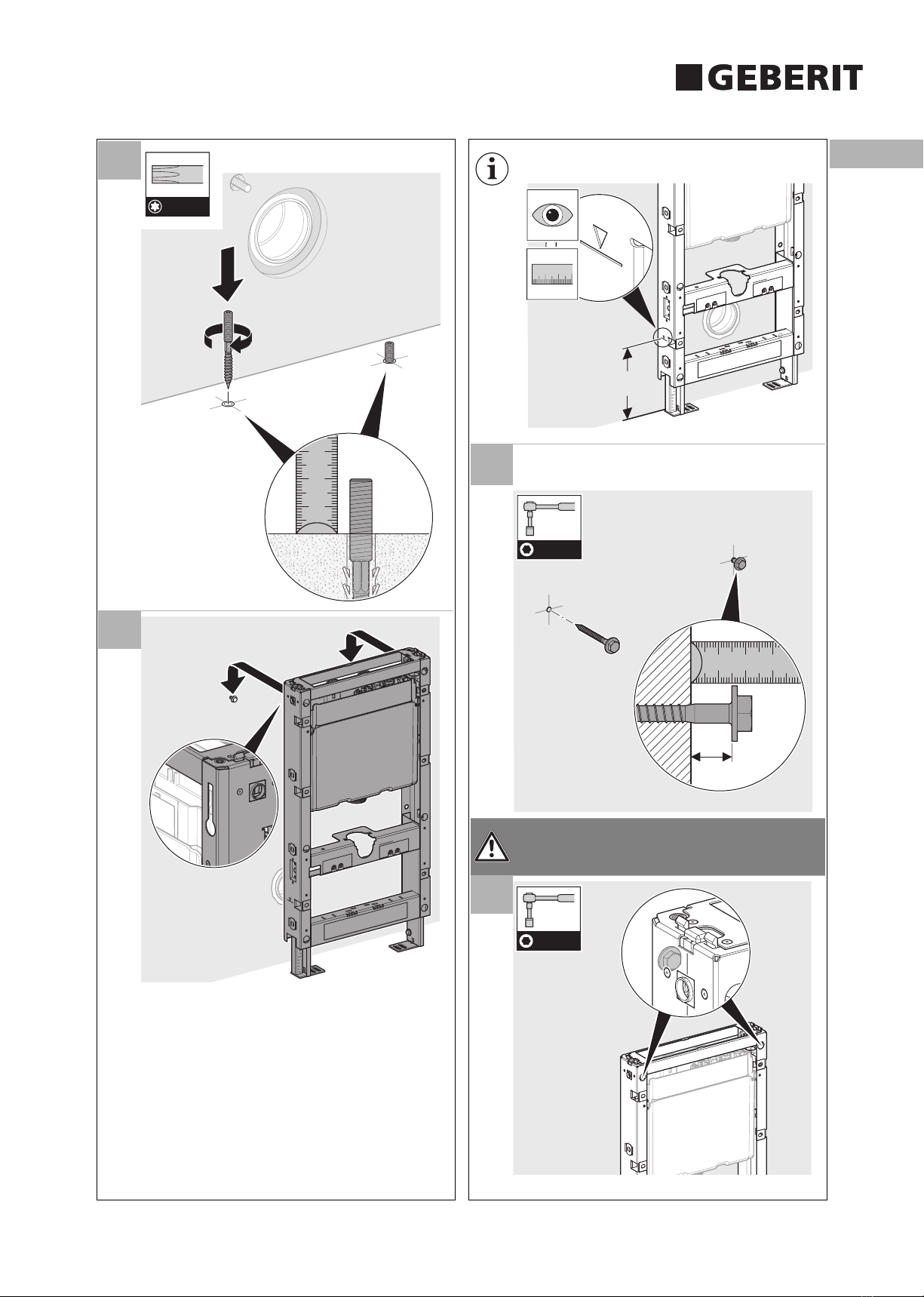

Option 1: Tile wall

F. F.

ø 3/8 ''

1 4

≥1/4

13 mm

D54139-001 © 04-2012

T 20

Be sure this mark is lined up at elevation "X".

It should also be equal to center of drainage elbow.

5Fine leveling adjustment. Raise or lower sides as

needed.

CAUTION

`Do not overtighten.

+ 3/8

- 3/8

5 mm

13 mm

D54139-001 © 04-2012

CAUTION

`Do not overtighten.

To complete the installaton continue on page 8.

ø 3/8 ''

13 mm

Option 2: Painted wall

F.F.

F. F.

ø 3/8 ''

ø 11/64 ''

1 4

≥1/4

13 mm

D54139-001 © 04-2012

T 20

Be sure this mark is lined up at elevation "X".

It should also be equal to center of drainage elbow.

5Fine leveling adjustment. Raise or lower sides as

needed.

CAUTION

`Do not overtighten.

1 4

≥1/4

13 mm

D54139-001 © 04-2012

CAUTION

`Do not overtighten.

ø 11/64 ''

13 mm

Common installation steps (tile and painted wall)

CAUTION

`Do not overtighten.

CAUTION

`Do not overtighten.

13 mm

D54139-001 © 04-2012

CAUTION

`Do not forget sealing washer.

D54139-001 © 04-2012

For water supply on right, filling valve can remain in

position as supplied.

For water supply on left, filling valve must be

repositioned (see next steps).

500:00:45
