GABOR LeviTouch DM-500 Manual de usuario
LeviTouch DM-500
SINGLE-ARM MONITOR MOUNT
For 15 – 27 in. (38.1 – 68.6 cm) desktop computer monitors
User Manual
2 Welcome
The Gabor Single-Arm Desktop Mount is a sturdy accessory that’s capable of securely
supporting monitors from 15–27 inches. The rugged aluminum build and durable gas spring
mechanism will hold monitors up to 17.6 pounds. The mount consists of two articulating
halves that give you maximum control over swivel, tilt, rotation, and height for precise
monitor placement.
This desktop mount includes a low-profile clamp that will fit into a space with tight clearance,
like a cubicle. Integrated USB 3.0 and audio cables connect with your computer to offer
convenient desktop access to a USB port and headphone or microphone jacks.
Thank you for
choosing Gabor.
3Welcome
4 Overview
OVERVIEW
Clamp locking knob
Tension
adjustment screw
Tilt / swivel
adjustment screws
Clamp mount Clamp
Audio in and
out jacks
USB 3.0 port
VESA mount
Quick release
Clamp screws (×2)
Cable guides
5Overview

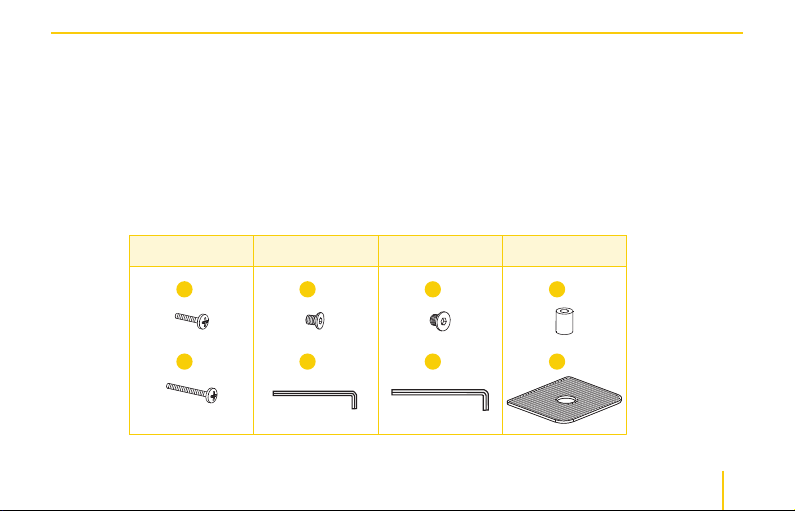

A M4 × 12 screws
B M4 x 30 screws
C M6 × 12 hex screws
D 4 mm hex key
E M8 × 12 hex screws
F 5 mm hex key
G Spacers
H Desk plate
Supplied Parts & Hardware
ALSO INCLUDED
×2
×1
×4
×1
×4×4
×4
Parts
M4 M8M6
×1
A
B
C
D
E
F
G
H
6
22.8 in. (58 cm)
±90°
+90°/-85°
75
75
100 14 in. (35.6 cm)
17.7 in. (45 cm)
100
±180°
±135°
PRODUCT SPECIFICATIONS
Monitor display size: 15–27 in. (38.1–68.6 cm)
Maximum load capacity: 17.6 lb. (8 kg)
Maximum desktop thickness: 3.5 in. (9 cm)
VESA standards: 75 × 75, 100 × 100
Tilt: -90°/+85°
Swivel: 180°
Rotation: 360°
Arm pivot: 180°
Base rotation: 135°
Maximum arm height: 17.7 in. (45 cm)
Arm height adjustment: 14 in. (35.6 cm)
Connectors:
USB 3.0: Standard-A
Audio: 1/8 in. (3.5 mm) stereo male (×2)
Ports:
USB 3.0: Standard-A
Audio: 1/8 in. (3.5 mm) stereo female (×2)
Cable length: 4 ft. (1.2 m)
Weight (without monitor): 7 lb. (3.2 kg)
Specifications
7
SAFETY WARNINGS
Please read and follow the instructions, and
keep this manual in a safe place.
Clean this product with only a soft, dry cloth.
Keep this product away from children.
Make sure everything is secure before
proceeding.
Make sure that this product is intact and
that there are no missing parts.
To avoid damage to this product, be careful
not to overtighten or improperly thread any
of the threaded fittings.
Do not exceed the maximum load capacity.
Do not install this product on an unsteady
structure or one that is prone to vibration,
has a chance of being impacted, or is
susceptible to other movements. Reinforce
the structure as necessary before installing
this product.
Mounting surfaces should be sturdy and flat.
Do not install this product on a weak, uneven
surface.
All images are for illustrative purposes only.
1 7
2
8
9
10
3
4
5
6
Safety Warnings
8
1. Attach the desk clamp
mount to the base with
the M6 × 12 hex screws.
Use the 4 mm hex key to
tighten the screws until
secure.
2. Align the desk plate with
the provided holes, and
press it into place over
the screws.
3. Attach the clamp to the
clamp mount with the
M8 × 12 hex screws. Use
the 5 mm hex key to
tighten the screws until
secure.
Assembly Instructions
ASSEMBLY INSTRUCTIONS
9
Important!
If installing the
desktop mount in a cubicle
or other space with limited
clearance, slide the clamp
mount between your desk
and the partition first.
Then attach the clamp
to the clamp mount from
underneath the desk.
4. Tighten the clamp with
the locking knob. For the
most stability, the clamp
should be parallel to the
back edge of your desk.
Make sure the desktop
mount doesn’t wobble
or shift and is securely
clamped to the desk
before proceeding.
Assembly Instructions
10 Attaching the Monitor
Flush Installation
1. Carefully place your
monitor facedown on a
flat surface.
Tip: To avoid scratching the
screen, place your monitor
on a soft cloth such as a
towel.
2. Align the holes in the
VESA mount with the
corresponding mounting
holes in your monitor.
Important:
Make sure the
raised edge of the VESA
mount is at the top of your
monitor.
3. Insert the four M4 × 12
screws (the shorter of
the Phillips screws) into
the VESA mount, and use
a Phillips screwdriver to
fasten them until fully
tightened.
ATTACHING THE MONITOR
