GABOR FM-4265 Manual de usuario
FM-4265 / FIXED
WALL MOUNT
For 42”- 65”Flat Panel Screens
User Manual
2 Welcome
Thank you for choosing Gabor’s fixed flat panel screen wall mount.
This heavy-duty wall mount has been engineered to provide your
42”-65” flatscreen monitor with sturdy, long-lasting support that
can be relied upon for years of viewing enjoyment.
With an impressive lineup of versatile mounting brackets
possessing various functionalities - along with a resilient, user-
friendly mounting method that simplifies the installation process
- Gabor’s reputation for providing quality viewing solutions and long-
lasting dependability is readily apparent...from every angle.
Thank you for
choosing Gabor.
3Welcome
4 Specifications / Tools Required / Contents
Product Specifications
• For Mounting 42”-65”
Flat Panel Screens
On Wooden Studs &
Concrete Walls
• Vesa Mounting
Pattern
Max. 800 × 400
• Maximum Load
Capacity
132lbs / 60kg
• Product Dimensions
35" × 25" × 1"
Product Contents
Tools Required For Installation
1. Power Drill
2. Phillips Screwdriver
3. Scissors
4. Socket Wrench
Supplied Parts & Hardware
A M4 Lock Washer
B M4 × 12 Bolt
C M4 × 30 Bolt
D M5 Lock Washer
E M5 × 12 Bolt
F M5 × 30 Bolt
G M6 Lock Washer
H M6 × 12 Bolt
I M6 × 35 Bolt
J M8 Lock Washer
K M8 × 16 Bolt
L M8 × 25 Bolt
M M8 × 40 Bolt
N M6 Spacer
O M8 Spacer
P M6 Flat Washer
Q Long Bolt
R M8 Flat Washer
S Wall Anchor
5
Wall Mount Brackets
Contents
J×4
K×4
N×4
O×4
P×4
Q×6
O×6
R×
L×4
O×4
M×4
O×6
S
H×4
I×4
G×4
E×4
F×4
D×4
A×4
B ×4
C ×4
Washer/Bolt/Anchor/Spacer
M5M4 M8M6
6 Installation Instructions
Installation Instructions

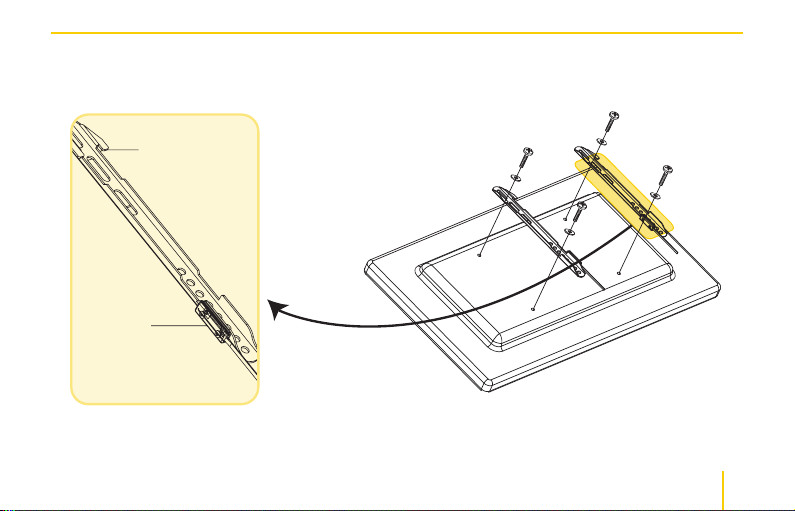

STEP 1:
Installing Dual Mounting
Brackets On Rear Of
Flatscreen
• Begin by aligning both
brackets on rear of
flatscreen device, while
ensuring that the
screen is resting on a
non-scratch surface.
The appropriate bolts
and washers should be
selected by measuring
the height, size and
position of holes on rear
of flatscreen device, and
determining which bolts
and washers fit best.
This may vary according
to specific brand, make
and model of flatscreen
device.
• Use the shortest
configuration of bolts,
washers and spacers for
a secure fit. Spacers may
or may not be required
depending on curvature
of flat screen device and
rear dimensions.
• Ensure that brackets
are in proper position
by confirming that
rectangular-shaped
safety locking/unlocking
rod mechanisms are
facing downwards and
toward each other;
align both brackets by
positioning them at equal
heights and secure bolts
tightly.
• Note that bolts must
be hand-fastened into
holes with a screwdriver
or socket wrench to
avoid overtightening and
possible damage.
7Installation Instructions
TOP
TOP
BOTTOM
BOTTOM
8
For Display
With Flat Back:
Install bracket directly
to flatscreen device using
only bolts and washers
provided; align bolt with
proper sized hole on
washer. (Fig.1)
For Display
With Curved Backs &
Recessed Mountings:
Install appropriate sized
spacer between bracket
and flatscreen device;
then fasten securely with
bolts and washers. (Fig.2)
Hardware Configurations
Installation Instructions
• Upon final installation
completion, you can use
scissors to trim length of
safety locking/unlocking
rods so they remain
hidden behind flatscreen
device, but only after
completing step 4.
(Fig.1) (Fig.2)
TOP
BOTTOM
9
STEP 2:
Positioning Mount
Correctly On Wall
• The optimal height to
position a flatscreen
device is by mounting it
at eye-level of viewer.
This can be accomplished
in one of two ways:
• Measure distance from
seating area to viewing
area to determine proper
placement. The ideal
position should place
the center of the panel
(where the diagonals
meet) as close as possible
to eye-level.
• For a simpler calculation,
cut a piece of sturdy
cardboard that’s
approximately the same
size as flatscreen device
and tape to wall; gaze at
cardboard to determine
if it is at a comfortable
level; reposition the
cardboard until it is
sitting at a perfect height
and mark location of
cardboard on wall with a
pencil.
Installation Instructions
15°
Viewing
Angle
Eyelevel
Height
10
STEP 3:
Installing Mount
Directly On Wall
• After confirming height
positioning is appropriate
by marking wall with a
pencil, hold wall mount
firmly against wall and
use pencil to mark exact
location of drill holes,
using built-in bubble
level to ensure a proper
balance; then remove wall
mount and pre-drill holes.
Wall-Type Mounting Details
Mounting To Wood Studs
Under Sheetrock Wall:
Pre-drill holes according
to markings on wall with a
3mm drill bit; be sure pre-
drilled holes are at least
30mm deep; use provided
hardware to attach wall
mount.
Mounting To Solid
Concrete Wall:
Pre-drill holes according
to markings on wall with
a 12.7mm drill bit; be sure
pre-drilled holes are at
least 60mm deep; use
appropriate wall anchors
to attach wall mount
(please verify that included
anchors are appropriate).
Installation Instructions
12.7mm
12.7mm
