fi-5650C Image Scanner Operator's Guide P3PC-E957-01EN

Cleaning and Maintenance

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

4.1 Cleaning materials and locations requiring cleaning

4.2 Cleaning the ADF

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

Chapter 4 DAILY CARE

This chapter describes how to clean the scanner.

Cleaning and Maintenance

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

4.1 Cleaning materials and locations requiring cleaning

4.2 Cleaning the ADF

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

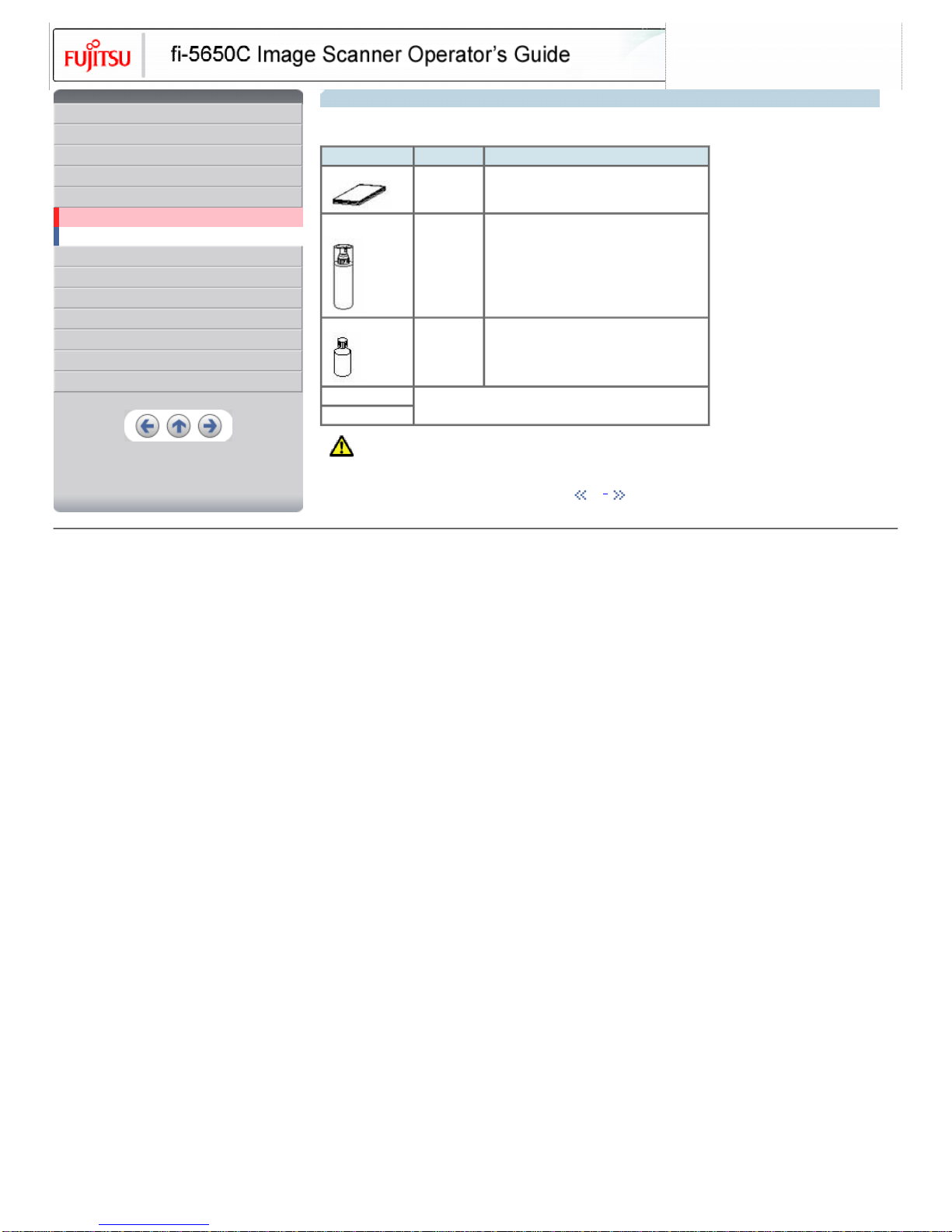

4.1 Cleaning material and locations requiring cleaning

1. Cleaning material

Cleaning material Part No. Remarks

Cleaning paper CA99501-0012 Used with Cleaner F1

Cleaner F1

(or isopropyl alcohol) CA99501-0013 1 bottle

Moisten cloth with this fluid and wipe the scanner clean.

Cleaner F2 CA99501-0014 1 bottle ( 70 ml)

For cleaning the plastic rollers only.

Cotton swab Commercially available one.

Cloth

CAUTION

Do not clean rubber rollers with Cleaner F2.

1 | 2

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

4.1 Cleaning materials and locations requiring cleaning

4.2 Cleaning the ADF

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

4.1 Cleaning material and locations requiring cleaning (Continued from the previous page)

2. Locations requiring cleaning

Part Names of parts Using cleaning paper with Cleaner F1 Using Cloth with Cleaner F1 Using Cotton swab with Cleaner F2

per 10,000 scans per 10,000 scans When stains are persistent

ADF Chute roller Yes

Pick arm Yes

Pick roller Yes Yes

Brake roller Yes Yes

Feed roller Yes Yes

Plastic roller Yes Yes Yes

Sheet guide Yes

Glass Yes

Ultrasonic sensor Clean this part with a dry lint-free

cloth.

You have to clean the scanner frequently as following cases :

mScan a smooth surface document such as a coated paper.

mScan a printed document almost fill in the paper.

mScan a processed with chemicals document such as carbonless paper.

mScan a document having a high calcium content.

mScan a lot of penciled document.

CAUTION

Do not clean rubber rollers with Cleaner F2.

1| 2

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

4.1 Cleaning materials and locations requiring cleaning

4.2 Cleaning the ADF

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

4.2 Cleaning the ADF

4.2.1 Cleaning the ADF using with a cloth moisten with Cleaner F1

Cleaning the Brake roller, Glasses, Sheet guides, Plastic rollers

1. Open the ADF while pushing the ADF button.

2. Using a cloth moisten with Cleaner F1, clean the Glasses, Sheet guides, Plastic rollers.

3. Open the brake roller holder and remove the brake roller. Using a cloth moisten with the F1Cleaner , clean the brake roller.

4. After cleaning the brake roller, reinstalled it in to the brake roller holder and close the holder.

5. Close the ADF.

CAUTION

Be careful not to pinch your fingers with the ADF cover.

When operating the scanner, the ADF’s inside glass becomes very hot. Please take serious caution as the heat can cause burns.

Before you clean the inside of the scanner, turn off its power and unplug the AC adapter from the outlet and wait (at least three minutes) until

it gets cold.

ATTENTION

Install the Brake roller aligning the flat part of the shaft to the holder.

Confirm that the Brake roller is installed completely. If not, document jams or other feeding errors may occur.

As a guideline, clean the ADF per 10,000 scans.

This value may vary depending on the type of document that you scan. For example, when you scan documents which toner is not

sufficiently fixed, the scanner must be cleaned more frequently.

HINT

For information on the number of pages scanned, see 5.1 Consumable and Replacement Cycle.

1 | 2|3|4

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

4.1 Cleaning materials and locations requiring cleaning

4.2 Cleaning the ADF

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

4.2 Cleaning the ADF (Continued from the previous page)

4.2.1 Cleaning the ADF using with a cloth moisten with Cleaner F1

(Continued from the previous page)

Cleaning the Pick roller set

1. Pressing on the ADF button pull slowly towards you the ADF to open and, remove the ADF paper chute from the scanner.

2. Open the pick roller cover. Remove the pick rollers (2 rollers) from the shafts and use a clean cloth with the F1 Cleaner to clean.

3. After cleaning the rollers, re-install them in their proper positions in the shafts.

4. Close the pick roller cover and attach the ADF paper chute.

5. Holding the upper center portion of the ADF, gently close it until the ADF button latches and clicks close.

Cleaning the Feed rollers

1. Open the ADF while pushing the ADF button. If you open the ADF when the indication of the Function No. display is "P" or "0", the

Feed rollers will not rotate even if you try operating the scanner as in step 2 below.

2. Hold a lint-free dry cloth moistened with the Cleaner F1 against the feed rollers.

3. Hold down both the "Send to" and "Scan" buttons on the operator panel. The Feed rollers start rotate a little. For details on locations of

the "Send to" and "Scan" buttons, refer to "1.2 Functions of the operator panel".

4. Perform 7 times the step 3 (the Feed rollers will rotate one full turn). Repeat this cleaning process until the rollers get completely

clean, otherwise any dirt on them can adversely affect the image pick-up performance.

5. Once you have cleaned the Feed Rollers, close the ADF by pushing it gently forward until the ADF button latches and clicks close.

CAUTION

-Be careful not to pinch your fingers with the ADF cover.

-The glass surface inside the ADF becomes hot during the operation of the scanner. Take care not to touch the glass.

1| 2 | 3|4

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

4.1 Cleaning materials and locations requiring cleaning

4.2 Cleaning the ADF

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

4.2 Cleaning the ADF (Continued from the previous page)

4.2.1 Cleaning the ADF using with a cloth moisten with Cleaner F1

(Continued from the previous page)

Cleaning the Chute roller

Open the Chute roller cover and clean the Chute roller using a cloth moisten with Cleaner F1.

Cleaning the Pick arm

Open the ADF while pushing the ADF button and clean the rollers located at the tip of Pick arm using a cloth moisten with Cleaner F1.

CAUTION

When closing the ADF, be careful not to pinch your fingers with the ADF cover.

1|2| 3 | 4

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

4.1 Cleaning materials and locations requiring cleaning

4.2 Cleaning the ADF

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

4.2 Cleaning the ADF (Continued from the previous page)

4.2.2 Cleaning the ADF using Cleaning paper

1. Open the ADF while pushing the ADF button.

2. Apply Cleaner F1 on a new piece of cleaning paper.

3. Place the cleaning paper on the ADF so that its edge contact the plastic rollers.

4. Close the ADF and the cleaning paper is ejected through the ADF.

5. Repeat steps 1 through 4.

ATTENTION

Leave the scanner on during the ADF cleaning.

1|2|3| 4

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

5.1 Consumable and replacement cycle

5.2 Replacing the brake roller

5.3 Replacing the pick roller set

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

Chapter 5 REPLACING CONSUMABLES

This chapter describes how to replace scanner consumables.

CONTENTS

Introduction

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATION

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

5.1 Consumable and replacement cycle

5.2 Replacing the brake roller

5.3 Replacing the pick roller set

6 TROUBLESHOOTING

7 ONLINE SETUP

8 DOCUMENT SPECIFICATION OF ADF

9 OPTIONS

10 SCANNER SPECIFICATIONS

Appendix

5.1 Consumable and Replacement Cycle

The following table shows the specifications of consumables and guidelines for the replacement cycle.

Description Parts No. Standard Replacement Cycle

Brake roller PA03338-K010 After 250,000 scans or one year

Pick roller* PA03338-K011 After 250,000 scans or one year

* A set of two rollers.

The replacement cycles above are rough guidelines for the case of using A4/Letter wood free or wood containing paper 64 g/m2(17 lb). This

cycle varies according to the type of the used paper and how frequently the scanner is used and cleaned.

ATTENTION

Use only the specified consumables.

1 | 2|3|4|5
