FS S5850-24S2Q Manual de usuario

MANAGED L2/L3 ROUTING SWITCH

Quick Start Guide

S5850-24S2Q

V1.0

Introduction

Thank you for choosing S5850-24S2Q switch. This guide is designed to familiarize you with the layout

of the switch and describes how to deploy the switch in your network.

S5850-24S2Q

1 2 345 6 78 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 26

40G

40GEBreakout 123 4

ID SYS

CON

ETH

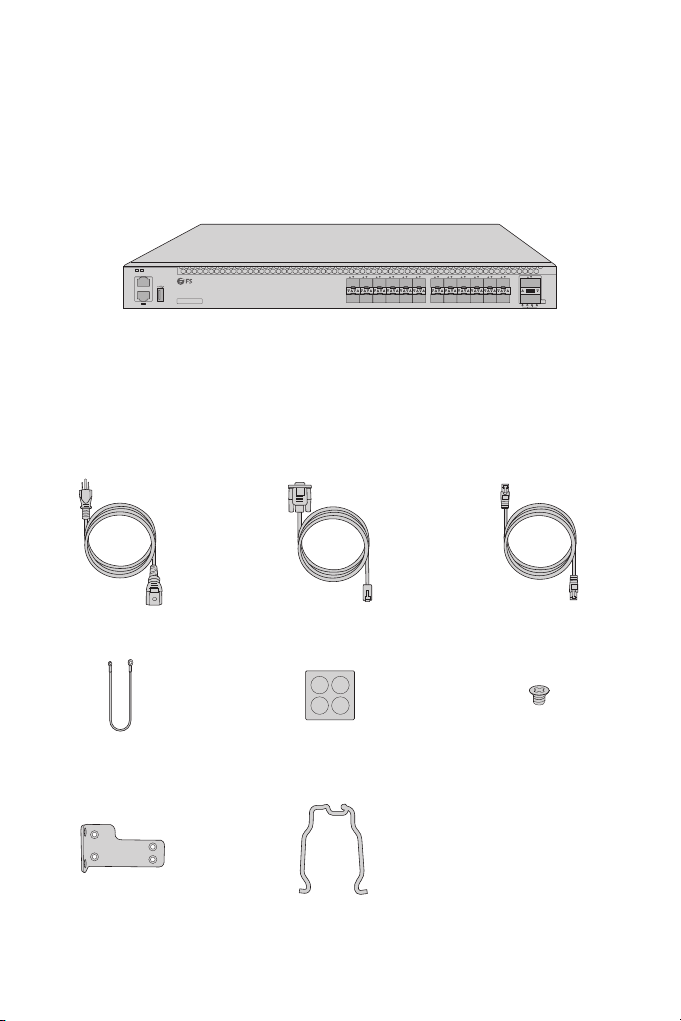

Power Cord x2

Grounding Cable x1 Rubber Pad x4 M4 Screw x8

Mounting Bracket x2 Spring Clip x2

Console Cable x1 Cat5e Cable x1

Accessories

S5850-24S2Q

1 2 345 6 78910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

40G

40GEBreakout 123 4

ID SYS

CON

ETH

Hardware Overview

Front Panel Ports

Front Panel LEDs

QSFP+

SFP+

USBETH

CON

S5850-24S2Q

1 2 345 6 78910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

40G

40GEBreakout 123 4

ID SYS

CON

ETH

QSFP+

SFP+

ETH 40G Breakout LED

ID SYS

Ports Description

SFP+

QSFP+

CON

SFP+ ports for 1/10G transceivers

QSFP+ ports for 40G or 4x 10G connection

An RJ45 console port for serial management

ETH

USB

An Ethernet management port

A USB management port for software and conguration backup

and oine software upgrade

SYS

ID indication function enable.Blue

Green

O

Amber

ID indication function disable.

The system is abnormal.

The system occurs alarm or error.

No power or no system runs or runs abnormally.

ETH

Green

Blinking Green

O

Port is linked.

Port is receiving or transmitting packets.

Port is not linked.

LEDs Status Description

Back Panel

Grounding Point 3 Fixed Fans

Breakout

One or more 40G ports are breakout.Loop Blinking

O None of the 40G port is breakout.

QSFP+

SFP+

Green

Blinking Green

O

Amber

Blinking Amber

Green

Amber

10G port is linked.

The SFP+ port is transmitting or receiving packets at 10G.

1G port is linked.

The SFP+ port is transmitting or receiving packets at 1G.

Port is not linked.

40G port is linked.

The QSFP+ port is transmitting or receiving packets at 40G.

10G port is linked.

The QSFP+ port is transmitting or receiving packets at 10G.

Port is not linked.

LEDs Status Description

2 Hot-swappable Power Supplies

Site Environment:

Installation Requirements

Do not operate it in an area that exceeds an ambient temperature of 45ºC.

The installation site must be well ventilated. Ensure that there is adequate air ow around the

switch.

Be sure that the switch is level and stable to avoid any hazardous conditions.

Do not install the equipment in a dusty environment.

The installation site must be free from leaking or dripping water, heavy dew, and humidity.

Ensure rack and working platforms are well earthed.

Before you begin the installation, make sure that you have the following:

Phillips screwdriver.

M6 Screws.

Standard-sized, 19" wide rack with a minimum of 1U height available.

Category 5e or higher RJ-45 Ethernet cables for connecting the network devices.

Mounting the Switch

Desk Mounting

1. Attach four rubber pads to the bottom.

2. Place the chassis on a desk.

Rack Mounting

1. Secure the mounting brackets to the two sides of the switch with eight M4 screws.

1 2 345 6 78910 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 26

40G

40GEBreakout 123 4

2. Attach the switch to the rack using four M6 screws and cage nuts.

910 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 26

40G

40GE Breakout 123 4

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the

switch is mounted.

2. Secure the grounding lug to the grounding point on the switch back panel with the washer and

screws.

Grounding the Switch

CAUTION: The earth connection must not be removed unless all supply connections

have been disconnected.

WARNING: Do not install power cables while the power is on.

1. Plug the AC power cord into the power port on the back of the switch.

2. Connect the other end of the power cord to an AC power source.

Connecting the Power

S5850-24S2Q

ID SYS

CON

ETH

S5850-24S2Q

ID SYS

CON

ETH

CAUTION: Laser beams will cause eye damage. Do not look into bores of optical modules

or optical bers without eye protection.

First install SFP+ transceivers and then connect ber optic cabling to the transceiver ports, or directly

connect DAC cables to the SFP+ slots.

Connecting the SFP+ Ports

1 2 345 6 78910 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 26

40G

40GE Breakout 123 4

First install QSFP+ transceivers and then connect ber optic cabling to the transceiver ports, or

connect DAC cables to the QSFP+ slots.

Connecting the QSFP+ Ports

1 2 345 6 78910 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 26

40G

40GE Breakout 123 4

Connecting the Management Ports

1. Insert the RJ45 connector of the console cable into the RJ45 console port on the front of the switch.

2. Connect the other end of the console cable to the RS-232 serial port on the computer.

1. Connect one end of a standard RJ45 Ethernet cable to a computer.

2. Connect the other end of the cable to the ETH port on the front of the switch.

Connecting the Console Port

Connecting the ETH Port

S5850-24S2Q

ID SYS

CON

ETH

S5850-24S2Q

1 2 345 6 7

ID SYS

CON

ETH

1 2 345 6 78910 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 26

40G

40GE Breakout 123 4

12 13 14 15 16 17 18 19 20 21 22 23 24

25 26

40G

40GE Breakout 123 4

Conguring the Switch

Insert the Universal Serial Bus (USB) ash disk to the USB port for software and conguration backup

and oine software upgrade.

Step1: Connect the computer to the Management port of the switch using the network cable.

Step 2: Set the IP address of the computer to 192.168.1.x. ("x" is any number from 2 to 254.). Set the

subnet mask of the computer to 255.255.255.0.

Connecting the USB Port

Conguring the Switch Using the Web-based Interface

S5850-24S2Q

1 2 34

ID SYS

CON

ETH

USB

OK Cancel

General

IP address:

Subnet mask:

Default gateway:

You can get IP settings assigned automatically if your network

supports this capability. Otherwise, you need to ask your network

administrator for the appropriate IP settings.

Internet Protocol Version 4(TCP/IPv4) Properties

Use the following IP address:

Obtain an IP address automatically

Preferred DNS server:

Alternate DNS server:

Validate settings upon exit Advanced...

. . . 21168192

0255

255255

. . .

Obtain DNS server address automatically

Use the following DNS server addresses:
