FS S3700-24T4F Manual de usuario

COMMUTATEUR D'ACCÈS FULL-GIGABIT

S3700-24T4F Switch

FULLGIGABIT ACCESS SWITCH

V3.1

Quick Start Guide

Quick-Start Anleitung

Guide de Démarrage Rapide

Introduction

Thank you for choosing FS S3700-24T4F Full-gigabit Access Switch. This guide is designed to familiarize

you with the layout of the switch and describes how to deploy the switch in your network.

S3700-24T4F

Accessories

Power Cord x 1 Console Cable x 1 Mounting Bracket x 2

Rubber Pad x 4 M3 Screw x 8

Grounding Cable x 1

Hardware Overview

Front Panel Ports

Front Panel Button

RJ45

RESET

Console SFP

Ports Description

RJ45 10/100/1000BASE-T ports for Ethernet connection

Hot swappable SFP ports for 1G ﬁber connection

An RJ45 console port for serial management

SFP

Console

Reset Keep the device powered on, press the button "RESET" for 6 seconds,

and the system will return to the default setting.

Button Description

Site Environment

Front Panel LEDs

Back Panel

Grounding Point

Power Supply

SYS

SFPPWR RJ45

Do not operate it in an area that exceeds an ambient temperature of 50°C.

The installation site must be well ventilated. Ensure that there is adequate air ﬂow around the

switch.

Be sure that the switch is level and stable to avoid any hazardous conditions.

Do not install the equipment in a dusty environment.

The installation site must be free from leaking or dripping water, heavy dew, and humidity.

LEDs Status Description

PWR Green Switch is powered on.

SYS

Orange 10/100M connection.

1000M connection.Green

Oﬀ

Green

Oﬀ No signal transmission.

1000M connection.

No signal transmission.

Blinking Green System is working properly.

RJ45

SFP

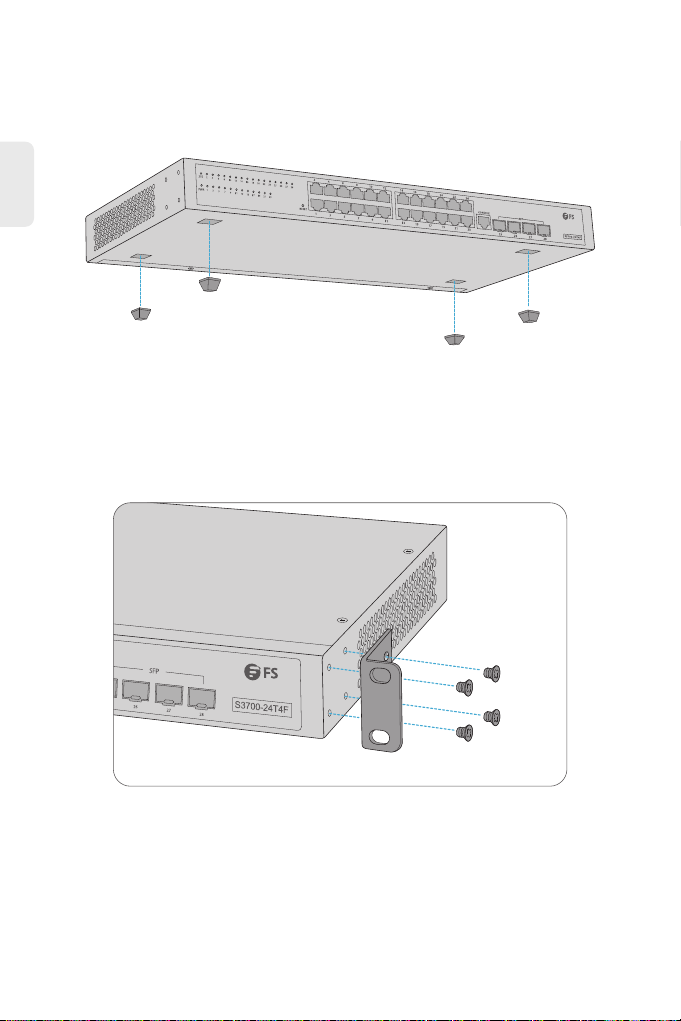

Installing

Desk Mounting

Rack Mounting

1. Secure the mounting brackets to the two sides of the switch with eight M3 screws.

1. Attach four rubber pads to the bottom.

2. Place the chassis on a desk.

Grounding the Switch

2. Attach the switch to the rack using four M6 screws and cage nuts.

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the

switch is mounted.

2. Secure the grounding lug to the grounding point on the switch back panel with the washers

and screws.

CAUTION: The earth connection must not be removed unless all supply connections have

been disconnected.

Connecting to the power

Connecting to the RJ45 Ports

1. Plug the AC power cord into the power port on the back of the switch.

2. Connect the other end of the power cord to an AC power source.

1. Connect an Ethernet cable to the RJ45 port of a computer, printer, network storage, or other network

devices.

2. Connect the other end of the Ethernet cable to the RJ45 port of the switch.

WARNING: Do not install power cables while the power is on.

Connecting to the SFP Ports

Connecting to the Console Port

1. Plug the compatible SFP transceiver into the SFP port.

2. Connect a ﬁber optic cable to the ﬁber transceivers. Then connect the other end of the cable to

another ﬁber device.

1. Connect the DB9 female connector of the console cable to RS-232 serial port on the computer.

2. Insert the RJ45 connector into the RJ45 console port on the front of the switch.

Conﬁguring the Switch

Troubleshooting

Conﬁguring the Switch Using the Web-based lnterface

Conﬁguring the Switch Using the Console Port

Power LED Working Abnormally

Step 1: Connect your computer to any Ethernet port of the switch using the network cable.

Step 2: Set up the lP conﬁguration on your computer.The lP address of your computer should be set in

the same subnet addresses of the switch.The lP address is 192.168.1.x("x" is any number from

2 to 254).

Step 3: Open a web browser window.Enter the default lP address of the switch http://192.168.1.1 in the

address bar and press Enter.

Step 4: When the login page appears choose the language that you prefer and enter the username and

password.

The default username is admin.The default password is admin.

Step 5: Click Sign in to display the web-based conﬁguration page.

Step 1:Connect a computer to the switch's console port using the supplied console cable.

Step 2:Start the terminal simulation software such as HyperTerminal on the computer.

Step 3:Conﬁgure the terminal simulation with the following parameters:

115200 bits per second

8 data bits

no parity

1 stop bit

no ﬂow control

Step 4:Enter the username and password.The default username is admin.The default password is

admin.

1. Check the power cable connections at the switch and the power source.

2. Make sure the power cord used matches the voltage and frequency of your local power.

HyperTerminal Displaying Abnormally

Accessing the Web-based Conﬁguration Page Unsuccessfully

1. Make sure the power supply is normal and the console cable is properly connected.

2. Check if the console cable is the right type.

3. Check if the control cable driver is properly installed on the computer.

4. Ensure the parameters of the HyperTerminal are correct.

1. Check every port LED on the switch and make sure the Ethernet cable is connected properly.

2. Try another port on the switch and make sure the Ethernet cable is suitable and works normally.

3. Power oﬀ the switch. After a while, power it on again.

4. Make sure the IP address of your PC is set within the subnet of the switch.

5. If you still cannot access the conﬁguration page, please restore the switch to its factory defaults.

Then the IP address of your PC should be set as 192.168.1.x ("x" is any number from 2 to 254) and

Subnet Mask as 255.255.255.0.

Online Resources

Download

Help Center

https://www.fs.com/products_support.html

https://www.fs.com/service/fs_support.html

https://www.fs.com/contact _us.html

Product Warranty

FS ensures our customers that any damage or faulty items due to our workmanship, we will oﬀer a

free return within 30 Days from the day you receive your goods. This excludes any custom made

items or tailored solutions.

Warranty: FS S3700-24T4F Switch enjoys 4 years limited warranty againist defect in

materials or workmanship. For more details about warranty, please check at

https://www.fs.com/policies/warranty.html

Return: If you want to return item(s), information on how to return can be found at

https://www.fs.com/policies/day_ return_ policy.html
