FS S2805S Series Manual de usuario

GIGABIT SFP L2 MANAGED SWITCHES

V1.0

Quick Start Guide

Guide de Démarrage Rapide

Quick Start Anleitung

S2805S Series Switches

SWITCHS MANAGEABLE GIGABIT SFP L2

SFP Gigabit L2 Managed Switches

RESET

Link/Act

PoE

1 3 5 7 9 11 13 15 17 19 21 23

PWR 2 4 6 8 10 12 14 16 18 20 22 24

CONSOLE

21 65 87

43 109 1211 1413 1615 2625 2827

1817 2019 2221 2423

SFP

S2805S-24TF-P PoE+

SYS

SYS 1 3 5 7 9 11 13 15 17 19 21 23

PWR 2 4 6 8 10 12 14 16 18 20 22 24

25 26 27 28

RESET

Link/Act

21 65 87

43 109 1211 1413 1615 1817 2019 2221 2423

CONSOLE

25 26 27 28

SFP

Link/Act

S2805S-24TF

Introduction

M3 Screw x8

Thank you for choosing S2805S Series Managed Switches. This guide is designed to familiarize you

with the layout of the switches and describes how to deploy the switches in your network.

Accessories

S2805S-24TF-P/S2805S-24TF

Rubber Pad x4Power Cord x1 Mounting Bracket x2

S2805S-24TF

SYS 1 3 5 7 9 11 13 15 17 19 21 23

PWR 2 4 6 8 10 12 14 16 18 20 22 24

25 26 27 28

RESET

Link/Act

21 65 8743 109 1211 1413 1615 1817 2019 2221 2423

CONSOLE

25 26 27 28

SFP

Link/Act

S2805S-24TF

S2805S-24TF-P

RESET

Link/Act

PoE

1 3 5 7 9 11 13 15 17 19 21 23

PWR 2 4 6 8 10 12 14 16 18 20 22 24

CONSOLE

21 65 8743 109 1211 1413 1615 2625 28271817 2019 2221 2423

SFP

S2805S-24TF-P PoE+

SYS

Front Panel Ports

Port/Button Description

Reset

SFP

CON

RJ45

Press down the button for 5 seconds to restore the switch to its

original factory default settings.

100/1000Mbps SFP port

For monitoring and conﬁguring the switch.

Connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbp.

Hardware Overview

S2805S-24TF-P

S2805S-24TF

RESET

Link/Act

PoE

1 3 5 7 9 11 13 15 17 19 21 23

PWR 2 4 6 8 10 12 14 16 18 20 22 24

CONSOLE

21 65 8743 109 1211 1413 1615 2625 28271817 2019 2221 2423

SFP

S2805S-24TF-P PoE+

SYS

RJ45 SFP

Console

RESET

SYS 1 3 5 7 9 11 13 15 17 19 21 23

PWR 2 4 6 8 10 12 14 16 18 20 22 24

25 26 27 28

RESET

Link/Act

21 65 8743 109 1211 1413 1615 1817 2019 2221 2423

CONSOLE

25 26 27 28

SFP

Link/Act

S2805S-24TF

Console SFPRJ45RESET

LED State Description

PWR

SYS

Link/Act

(1-24)

Link/Act

(25-28)

PoE

(1-24)

Oﬀ

Solid green

Solid orange

Blinking

Oﬀ

No PD is connected to the corresponding port,

or no power is supplied according to the power

limits of the port.

A Powered Device is connected to the port,

which supply power successfully.

Solid yellow

The port is NOT connected.

The port is connected at 1000Mbps.

The port is transmitting or receiving data.

Solid green

Blinking

Blinking green System is starting or the system starts

successfully.

Power Oﬀ

Power On

System not started.

The port is NOT connected.

The port is connected at 1000Mbps.

The port is connected at 100/10Mbps.

The port is transmitting or receiving data.

Solid green

Front Panel LEDs

S2805S-24TF-P

S2805S-24TF

Blinking The PoE power circuit may be in short or the

power current may be overloaded.

SYS 1 3 5 7 9 11 13 15 17 19 21 23

PWR 2 4 6 8 10 12 14 16 18 20 22 24

25 26 27 28

RESET

Link/Act

21 65 8743 109 1211 1413 1615 1817 2019 2221 2423

CONSOLE

25 26 27 28

SFP

Link/Act

S2805S-24TF

PWR

SYS Link/Act

SYS

RESET

Link/Act

PoE

1 3 5 7 9 11 13 15 17 19 21 23

2 4 6 8 10 12 14 16 18 20 22 24

CONSOLE

21 65 8743 109 1211 1413 1615 2625 28271817 2019 2221 2423

SFP

S2805S-24TF-P PoE+

PWR

PoE

SYS Link/Act

Link/Act

PWR

SYS

Phillips screwdriver.

Standard-sized, 19" wide rack with a minimum of 1U height available.

Category 5e or higher RJ-45 Ethernet cables, ﬁber optical cables, and console cable for connecting

network devices.

Back Panel

S2805S-24TF-P

S2805S-24TF

Installation Requirements

Before you begin the installation, make sure that you have the followings:

Grounding Terminal

AC Power Connector

50/60Hz

100-240V AC

Grounding Terminal

50/60Hz

100-240V AC

AC Power Connector

Note: Only S2805S-24TF-P has PoE status indicators.

1. Attach four rubber pads to the bottom.

2. Gently place the switch on a desk.

Mounting the Switch

Site Environment:

Do not operate it in an area that exceeds an ambient temperature of 50°C.

The installation site must be well ventilated. Ensure that there is adequate air ﬂow around

the switch.

Be sure that the switch is level and stable to avoid any hazardous conditions.

Do not install the equipment in a dusty environment.

The installation site must be free from leaking or dripping water, heavy dew, and humidity.

Ensure rack and working platforms are well earthed.

Desk Mounting

RESET

Link/Act

PoE

1 3 5 7 9 11 13 15 17 19 21 23

PWR 2 4 6 8 10 12 14 16 18 20 22 24

CONSOLE

21 65 87

43 1091211 1413 1615 2625 2827

1817 2019 2221 2423

SFP

S2805S-24TF-P

PoE+

SYS

P E

Link/Act

Rack Mounting

1. Fix the mounting brackets to the two sides of the switch with supplied M3 screws.

2. Attach the switch to the rack with four M6 screws and cage nuts.

RESET

CONSOLE

21 65 87

43 109 1211 1413 1615 2625 2827

1817 2019 2221 2423

SFP

P E

RESET

Link/Act

CONSOLE

21 65 8743 109 12

11 1413 1615 2625 28271817 2019 2221 2423

SFP

21 22

19 20

11 12 13 14 16 17 18 25 26 27 28

SFP

CONSOLE

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the

switch is mounted.

2. Fix the grounding lug to the grounding point on the back panel of the switch with the washers and

screws.

CAUTION: The earth connection cannot be removed unless all supply connections have

been disconnected.

Grounding the Switch

100-240V AC50/60Hz

1. Plug the AC power cord into the power port on the back panel of the switch.

2. Connect the other end of the power cord to an AC power source.

WARNING: Do not connect power cable while the power is on.

Connecting the Power

Link/Act

1 3 5 7 9 1 25

SYS

100-240V AC50/60Hz

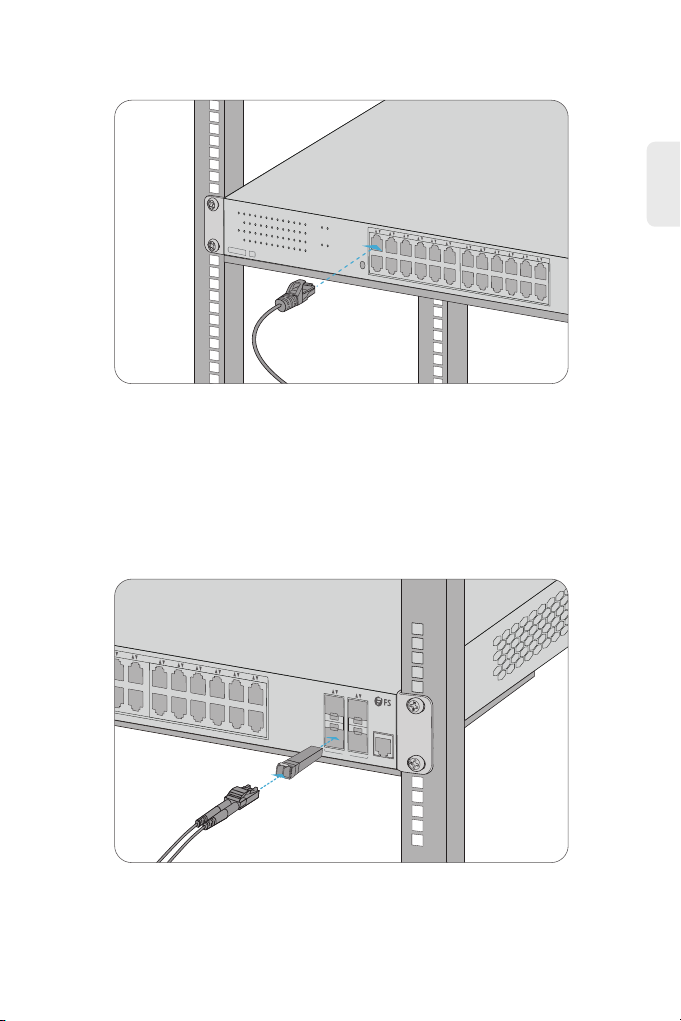

1. Plug the compatible SFP transceiver into the SFP port.

2. Connect a ﬁber optic cable to the ﬁber transceiver. Then connect the other end of the cable to

another ﬁber device.

1. Connect an Ethernet cable to a RJ45 port of IP cameras, IP telephone, Access Points (AP), or other

network devices.

2. Connect the other end of the Ethernet cable to the RJ45 port of the switch.

Connecting the RJ45 Ports

Connecting the SFP Ports

RESET

CONSOLE

21 65 87

43 109 1211 1413 1615 2625 28271817 2019 2221 2423

SFP

P E

PWR

13 15 17 19 21 23

2 4 6 8 10 12 14 16 18 20 22 24

S2805S-24TF-P PoE+ RESET

Link/Act

1 3 5 7 9 1 25

CONSOLE

21 65 87

43 109 1211 1413 1615 2625 2827

1817 2019 2221 2423

SFP

SYS
