FS S3260-8T2FP Manual de usuario
PoE+ Series Switches
Reset and Recovery System
Configuration Guide
Models: S3150-8T2FP
S3260-8T2FP
S3260-16T4FP
S3400-24T4FP
S3400-48T4SP
S5500-48T8SP
POE+ SERIES SWITCHES RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE
www.fs.com I
Contents
1. Configuration Considerations...............................................................................................................................................................1
2. Network Topology..................................................................................................................................................................................
1
3. Operation Steps.......................................................................................................................................................................................1
3.1 Connection Equipment..............................................................................................................................................................1
3.2 Download Configuration Software............................................................................................................................................1
3.3 Switch on and Use Login Software.............................................................................................................................................1
3.4 Restoration System.....................................................................................................................................................................2
3.5 Switch to Factory Reset...............................................................................................................................................................3
POE+ SERIES SWITCHES RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE
www.fs.com 1
1. Configuration Considerations
Table 1 products and versions for example
Series
Product
Support version
POE series
S3150-8T2FP
S3400-24T4FP
S3260-8T2FP
S5500-48T8SP
2. Network Topology
3. Operation Steps
3.1 Connection Equipment
#According to the way of networking topo to connect PC and switch to network cable and Console. One end of the RJ-45 network cable is
connected to the PC NIC, and the other end is connected to the SW's network port. Connect one end of Console line USB to PC's USB
interface, and the other end of RJ-45 is connected to console interface of front panel of switch.
3.2 Download Configuration Software
#After the connection is completed, there we recommend the super terminal, putty or Secure CRT tool to configure the switch.
3.3 Switch on and Use Login Software
#Energizing the switch, then open the installed login software, select the serial port of login mode, port through the device manager to
determine. Baud rate :115200, Data bits: 8, Parity: None, Stop bits: 1. (Reference below)
S3400-48T4SP
S3260-16T4FP
POE+ SERIES SWITCHES RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE
www.fs.com 2
NOTE: COM Number can be viewed through device manager. (right click on my computer.>manage>device manager>port (COM and LPT）
If it displays an unrecognized USB device, please download and install the corresponding driver.
3.4 Restoration System
*
*Set PC IP address
Please use Ctrl + P to enter the monitor # interface when restarting the switch, then configure the switch IP address.
monitor#ip address 192.168.1.1 255.255.255.0
POE+ SERIES SWITCHES RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE
www.fs.com 3
* Then start upgrading the system: run copy tftp flash
Monitor#copy tftp flash //From ftp to flash
Source file name[ ]? FS-S1400-24T4F-2.2.0C.bin //Firmware file name
Remote-server ip address[ ]? 192.168.1.2 //TFTP Server IP address
Destination file name[FS-S1400-24T4F-2.2.0C.bin]? //Switch.bin
When prompted: TFTP: successfulfully sent ...
After the success # reboot just fine
3.5 Switch to Factory Reset
Switch#delete startup-config
this file will be erased, are you sure? (y/n)y
Switch#reboot
If the file name is not entered, the startup-config files will be deleted by default

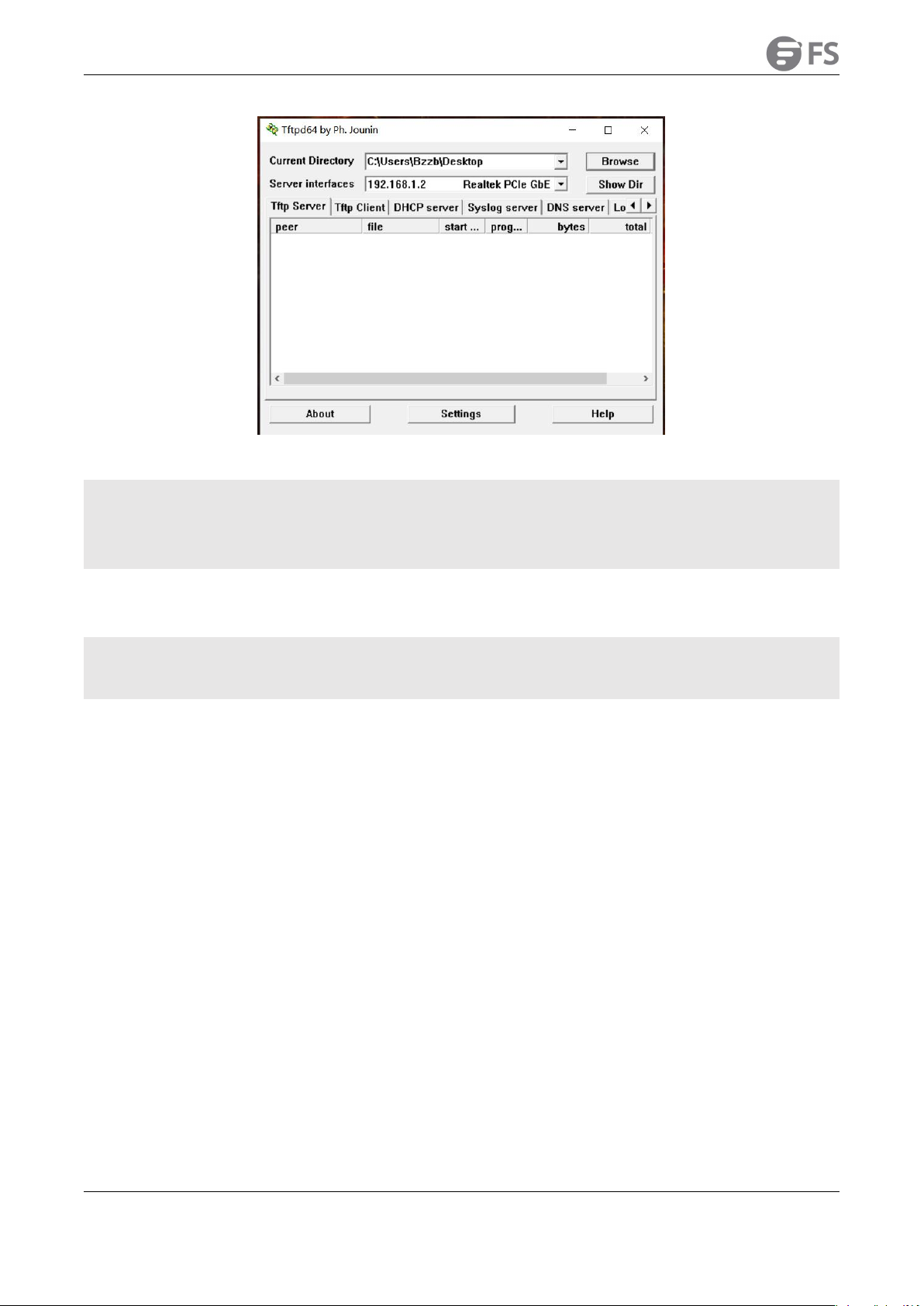

*Then prepare tftp
S3910 SERIES SWITCHES DATASHEET
www.fs.com 10
