Front Runner RRAC248 Manual de usuario

front runner

RRAC248

ENG

Thank you for purchasing a Front Runner Pro Water Tank Flat Mount Bracket.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

PRO WATER TANK FLAT MOUNT BRACKET

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

IN THE BOX

1 1 X Mounting Bracket

2 3 X M6 x 25 Button Head Screw

3 4 X M6 Jack Nut

4 1 X Jack Nut Tool

5 3 X M6 Nyloc Nut

6 3 X M6 x 19 x 1.2 Flat Washer

7 2 X PSA Strip PE60 (420mm)

8 1 X M6 x 30 Button Head Screw

Marker

10mm

13mm

24mm

4mm

5mm

4mm

6.5mm

12mm

Anti-

Rust

Denatured

Alchohol Sealant

Thread

Tape

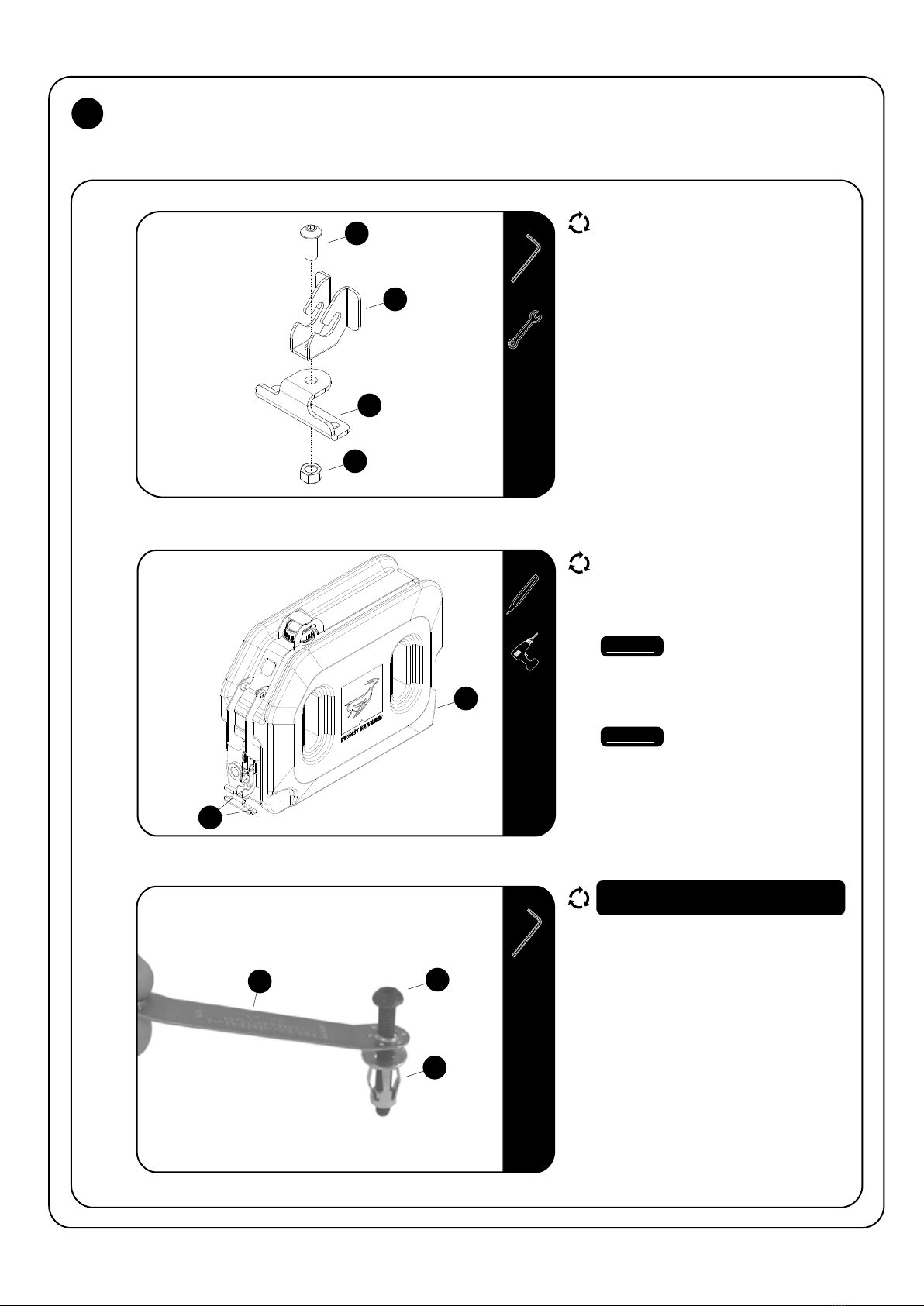

FIT AND SECURE

2.1

2.2

2.3

Assemble A, B and C (supplied with

RRAC179) to the Mounting Bracket (Item 1).

5mm

13mm

Marker

4mm

6.5mm

12mm

4mm

Determine where the Pro Water Tank

(Sold Seperately) will be Mounted. Loosly

ﬁt the Pro Tank Strap (Sold Seperately) and

Pro Water Tank (Sold Seperately) to the

Mounting Bracket (Item 1).

Mark holes (D) as shown.

Option A

Drill a 4mm Pilot hole and open to 6.5mm if

you want to Secure the Mounting Bracket

using M6 x 25 Button Head Bolt, M6 x 19 x

1.2 Flat Washer and M6 Nyloc Nuts (Items

2, 5 & 6).

Option B

Drill a 4mm Pilot hole and open to 12mm if

you want to Secure the Mounting Bracket

using M6 x 25 Button Head Bolts and M6

Jack Nuts (Items 2 & 3). Apply anti-rust

before 2.3.

Only Proceed with this step when using

mounting option B.

Insert an M6 x 30 Button Head Bolt (Item 8)

into the side of the Jack Nut Tool (Item 4).

Loosely ﬁt a jack nut (Item 3) to the button

head bolt as shown.

Insert the Jack Nut (Item 3) into the 12mm

hole.

Using a cordless driver and a 4mm allen

cordless bit, set the jack nut into the hole

while holding onto the handle of the Jack

Nut Tool (Item 4).

Repeat for the other holes.

FIT AND SECURE

2.4

2.5

2.6

Place the PSA Strips (Item 7) below the Pro

Water Tank as shown in 2.5.

Clean the area using a rag and denatured

alcohol.

Remove the Backing and stick The PSA

Strips (Item 7) to the position identiﬁed

earlier.

If you are ﬁtting the tap apply thread tape to

the thread of the tap.

This will allow the Tap to be aligned to your

chosen position and have a water tight seal.

Sold Seperately

Tap - WTAN059

Pro Water Tank / 42L - WTAN062

Pro Tak Strap - RRAC179

4mm

10mm

Sealant

Anti-

Rust

Denatured

Alchohol

Thread

Tape

24mm

Apply anti-rust around all the holes. Place

some silicone around each hole.

Option A

Secure the Pro Tank Strap (Sold Seperately)

and the Mounting Bracket (Item 1) using

M6 x 25 Button Head Bolt, M6 x 19 x 1.2 Flat

Washers and M6 Nyloc Nuts (Items 2, 5 & 6).

Option B

Secure the Pro Tank Strap (Sold Seperately)

and the Mounting Bracket (Item 1) using M6

x 25 Button Head Bolts (Item 2).

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
