Front Runner SLIMLINE II Manual de usuario

ENG

Don’t be a hero and muscle through this installation without reading these ﬁtting instructions ﬁrst! Improper installation of this gear may void certain

aspects of your warranty.

Before you begin, take a moment and open all your Front Runner rack kit boxes and gather the assembly instructions for the various components.

A complete kit will contain:

1. A Front Runner Mounting System speciﬁc to your vehicle

2. A Front Runner Rack Tray or Load Bar Slats

This document will guide you through the assembly of the mounting system and assist you in ﬁtting the roof rack tray or load bars to your speciﬁc

vehicle.

Please refer to the next page for a list of all the components, quantities and tools required.

KRFE004T

READ ME FIRST

START HERE!

front runner FORD EXPLORER (2020-CURRENT)

SLIMLINE II ROOF RAIL RACK KIT

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

FIGURE 1.1

IN THE BOX

1 1 X Slimline II Tray - 1345mm(W) X 1358mm(L)

2 1 X Spacer Set

3 3 X Grab On Foot Set

4 3 X Outer Grip Set

5 3 X Inner Grip Set

3mm

5mm 13mm

1GET ORGANIZED

TOOLS NEEDED

KRFE004T_REV_A00

FIT AND SECURE

2.1

2.2

2.3

Assemble your Slimline II Tray, referring to

the RRSTUNI ﬁtment guide.

Flip the Tray so that the bottom of the Tray

faces up.

Insert eight M8x16 Hex Bolts into the Slats

machined slots as shown.

Insert four M8x30 Hex Bolts into the Slats

machined slots as shown.

Refer to RRSTUNI and ﬁt your Wind Deﬂector.

Loosely assemble the three Grab On Foot

Sets (Item 3) onto the slats indicated in 2.2

as shown using M8 Flat Washers and M8

Nyloc Nuts.

Note the Spacers must be used on the rear

feet only.

KRFE004T_REV_A00

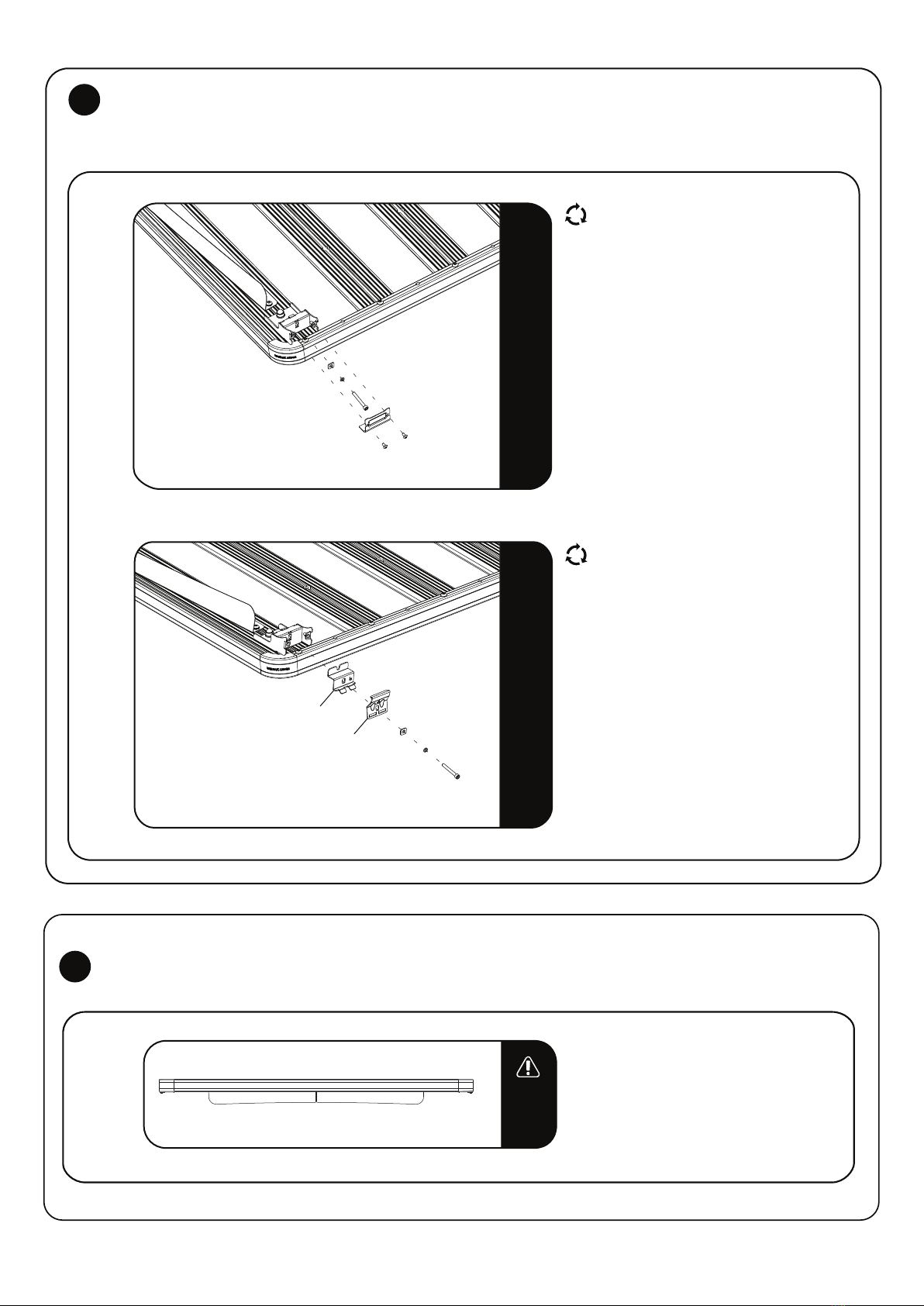

FIT AND SECURE

2.4

2.5

Refer to GOFR001 ﬁtment guide.

Remove the Front Covers from all the Base

Feet by loosening the two M5x10 Button

Head Screws.

Loosen and remove the M5x60 Cap Screw,

M5 Spring Washer and Cap Screw Washer.

Loosley ﬁt one Inner Grip and one Outer Grip

to each Grab On Foot using a M5 Cap Screw,

M5 Spring Washer and M5 Cap Screw

Washer removed.

Inner Grip

Outer Grip

FIT AND SECURE

3.1

4MM

Make sure that the wind deﬂector is

installed before you proceed to the next

step.

KRFE004T_REV_A00

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

IMPORTANT!

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FRONT RUNNER RACK KITS OFTEN HAVE A HIGHER LOAD RATING THAN THE VEHICLES THEY ARE MOUNTED TO. PLEASE REFER TO YOUR SPECIFIC VEHICLE MANUFACTURER

FOR A RECOMMENDED ROOF RATING. FRONT RUNNER CANNOT BE RESPONSIBLE FOR IMPROPER LOADING BEYOND THE VEHICLE MANUFACTURER'S STATED LOAD CAPACITY.

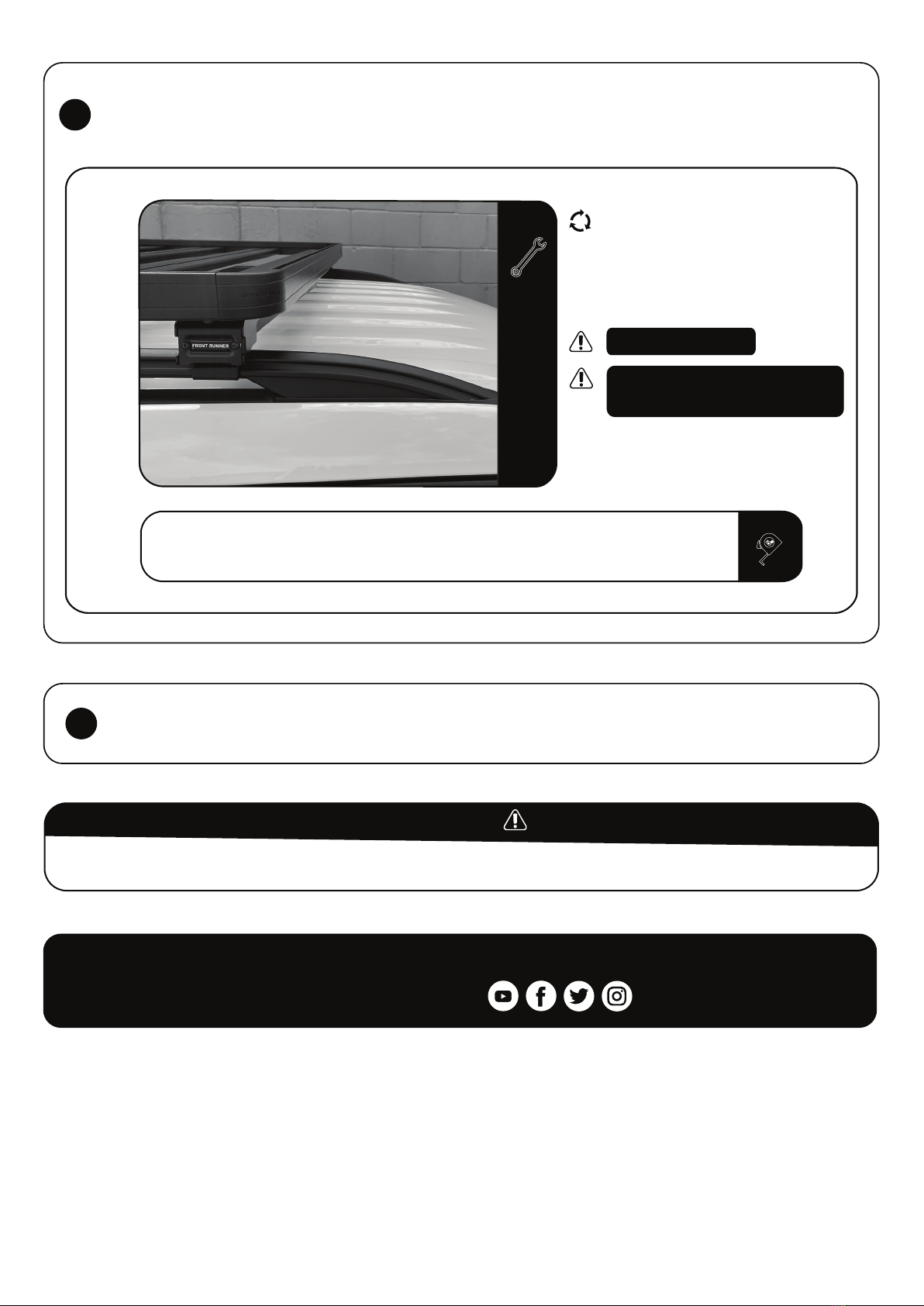

FIT AND SECURE

2.2

3.2

3.3

Center the rack and tighten fully. Finish off by placing M8 Nut Caps over the M8 Nyloc Nuts.

Place your Tray on the vehicle

positioning all the feet so that they rest

on top of the roof rails.

Position the LH and RH front Grab On

Feet as shown.

Fully tighten all the M6x50 Cap Screws

to secure the Tray onto the rails.

Reﬁt the Front Cover Plates.

13mm

Tightening Torque 6Nm

Make sure there are no movement on

the rack after fully tightening all the

fasteners.
