Front Runner LALD007 Manual de usuario
LALD007_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
front runner
LALD007
ENG
1
Thank you for purchasing Front Runner Land Rover Defender (2020-Current) Side Mount Ladder.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
LAND ROVER DEFENDER (2020-CURRENT)
SIDE MOUNT LADDER
LALD007_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
2

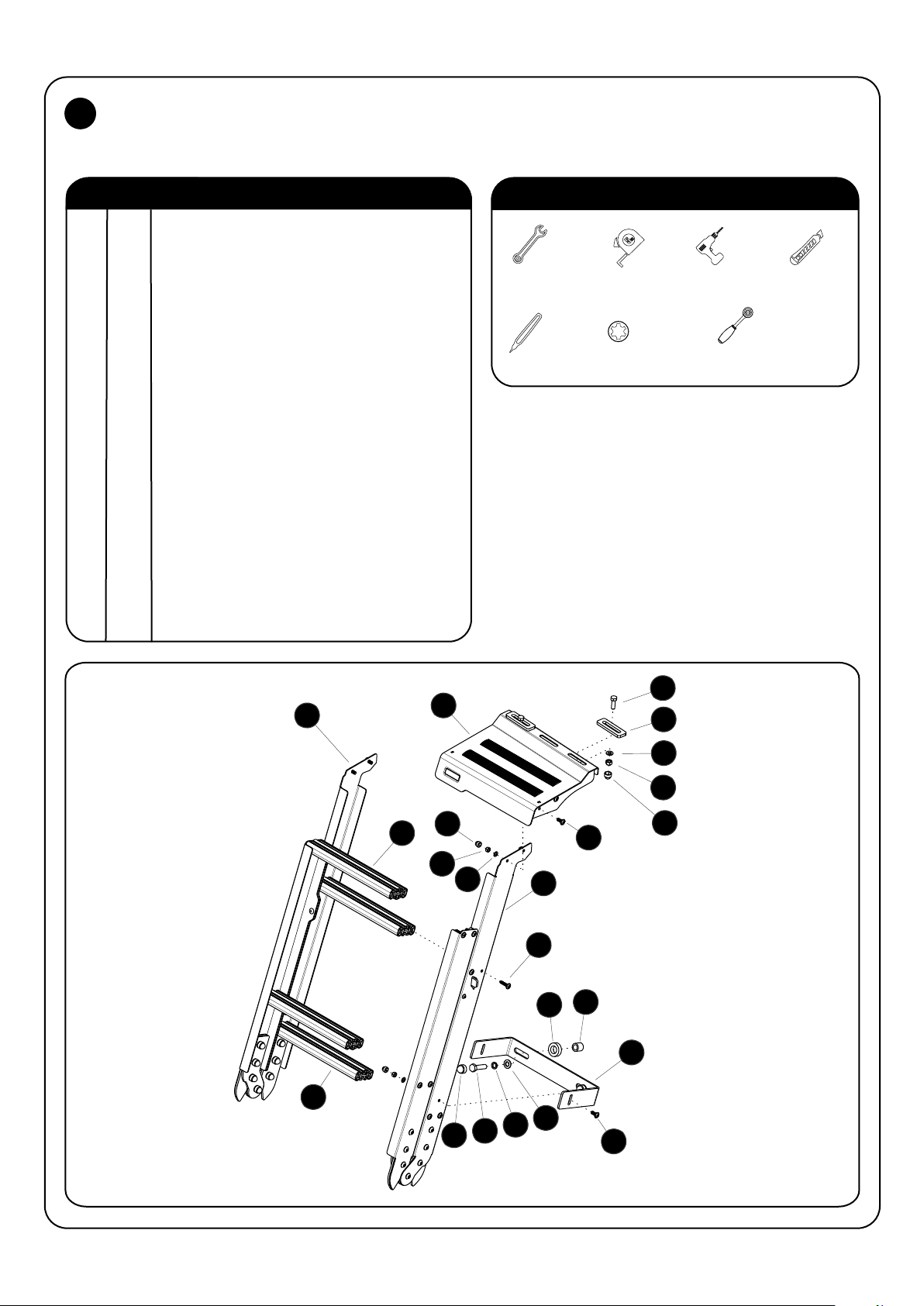

TOOLS NEEDED
FIGURE 1.1
GET ORGANIZED
1
IN THE BOX
1 1 X Ladder Side - LH
2 1 X Ladder Side - RH
3 2 X Ladder Rung ( T-Slot Rubber Both Sides )
4 2 X Ladder Rung ( T-Slot Rubber One Side )
5 1 X Ladder Top
6 1 X Ladder Support
7 6 X M6 x 16 Button Head Flange
8 6 X M6 x 12 x 1 Flat Washer
9 6 X M6 Nyloc Nut
10 16 X M6 x 25 Thread Forming Screw
11 6 X M6 Nut Cap
12 2 X Spacer 20 x 18
13 2 X Foam Washer
14 2 X M10 Flat Washer
15 2 X M10 Spring Washer
16 2 X M10 x 40 Hex Bolt
17 2 X M10 Nut Cap
18 2 X Plastic Spacer 6mm
19 2 X M8 x 25 Hex Bolt
20 2 X M8 x 16 x 1.6 Flat Washer
21 2 X M8 Nyloc Nut
22 2 X M8 Nut Cap
1
3
4
8
9
11
6
12
13
14
15
16
17
10
2
7
19
18
20
21
22
7
Torx
T30
5
13mm
10mm 6mm
20mm
Hole Saw
17mm
Loremipsum
LALD007_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
3
FIT AND SECURE2
6
7
8
9
11
2
1
2.1
2.2
2.3
Assemble the Ladder Rungs ( Item 3 & 4 )
to the Ladder Sides ( Items 1 & 2 ) using
M6 x 25 Thread Forming Screws ( Item 10 )
as shown.
Assemble Support Bracket ( Item 6 ) to
Ladder Sides ( Item 1 & 2 ) using
M6 x 16 Button Head Flange Bolts,
M6 x 12 x 1 Flat Washers and M6 Nyloc Nuts
( Items 7, 8 & 9 ) as shown.
Assemble the Ladder Top Assembly ( Item 5 )
to the Ladder Sides ( Items 1 & 2 ) using
M6 x 16 Button Head Flange Bolts,
M6 x 12 x 1 Flat Washers and M6 Nyloc Nuts
( Items 7, 8 & 9 ) as shown, Fully Tighten.
Place M6 Nut Caps ( Item 11 ) on all Nyloc
Nuts.
10
1
4
3
7
8
9
11
5
1
2
10mm
10mm
Apply a Little oil on screw threads
before inserting. Note these are Thread
forming screws.
Do Not Tighten, as the Bracket will
still need to be adjusted.
Torx
T30
Torx
T30
Torx
T30
LALD007_REV _A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
4
FIT AND SECURE2
2.4
2.5
2.6
Starting from the front ( Left Side ) of the
Plastic Trim.
Measure and mark the following distances
on the Plastic Trim.
Markings:
1 - 102mm
2 - 293mm
102mm
293mm
20mm
From the bottom of the Plastic Trim,
measure and mark to get the Centres.
Markings:
1 - 20mm
Drill 2 pilot holes using the marks you made
( Fig 2.4 & 2.5 ) with a 6mm Drill bitt.
6mm
LALD007_REV _A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
5
FIT AND SECURE2
2.7
2.8
2.9
Remove the Plastic Trim by using a
Plastic Panel Tool or similar.
Remove Sealing Patch that is located
behind the plastic trim shown in Fig 2.7.
Using a 20mm Hole Saw and a suitable
surface to drill on, open the two holes
in the Plastic Trim ( Fig 2.6 ) to 20mm.
20mm
Hole
Saw
LALD007_REV _A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
6
FIT AND SECURE2
2.10
2.11
2.12
Refit Plastic Trim removed in Fig 2.7.
Insert Spacer 20 x 18 & Foam Washer
( Items 12 & 13 ) into the holes Drilled earlier
Fig 2.8 into the Plastic Trim.
Fit your Land Rover Defender Side Mount
Ladder to your Roof Rack using
M8 x 25 hex Bolt, Plastic Spacer 6mm,
M8 x 16 x 1.6 Flat Washer, M8 Nyloc Nut,
( Items 19, 18, 20 & 21 ) as shown.
Do not fully tighten as the ladder needs to be
able to slide in the T-Slot for adjustment.
Secure your Land Rover Defender Side
Mount Ladder to your vehicle using
M10 x 40 Hex Bolt, M10 Spring Washer,
M10 Flat Washer ( Items 14, 15 & 16 )
Fully Tighten.
Place M10 Nut Caps ( Items 17 ) on all Nyloc
Nuts.
19
18
20
21
22
13mm
17mm
Depending on what Front Runner Rack
mounting system is used the spacer
position will vary
Spacer Position:
Front Runner Foot Rails , spacer as
shown.
OEM Tracks , one Spacer centered
LALD007_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
7
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
4
Now's the time to visit your favorite Front Runner Dealer in person or online.
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
Congratulations! You did it. Take a step back and admire your work!
3.1
FINISH
3
FIT AND SECURE2
2.13
A
Adjust Ladder angle to suit vehicle side
profile
Fully Tighten all fasteners inserted in step
2.2 & 2.11.
Place Nut Caps on all Nyloc Nuts.
FINISHED3
