Frigidaire FEFB7ABD Manual de usuario

Product No. FEFB7ABDCB

Series 30" f/s elec

Color stainless

Market North America

Wiring Diagram 316417755

Owner's Guide 316417009

Installation Instructions 316259206

Service Data Sheet 316417614

FEFB7ABDC.eps T20G0039.eps T20V0081.eps T20T0036.eps T20D0017.eps

316417755d.eps 316417755s.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995425468

05/01/04

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEFB7ABD

Publication No: 5995425468 FEFB7ABDCB

01/05 2

BACKGUARD

13A

8.8.

54B

1414

T20G0039

15A

20A

55A

FEFB7ABDCB Publication No: 5995425468

# Functional Parts 3 01/05

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

13 316414400 Control, bake, mini oven

13A 316095500 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316424172 Panel, control, stainless

20 # 316418304 Clock/Timer, electronic, ES340

20A 316419303 Overlay, clock, black, ES340

31 316223002 Knob, control, black

36 316223019 Knob, control, black

46 316040201 Lens, indicator light, red

54 # 316021500 Switch, infinite, small element

54B# 316238200 Switch, infinite, dual element

55 316247700 Nut, hex control mtg, (4)

55A 316247800 Washer, lock, control mtg

56 316234003 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316416906 Harness, mini oven cntl

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995425468 FEFB7ABDCB

01/05 4

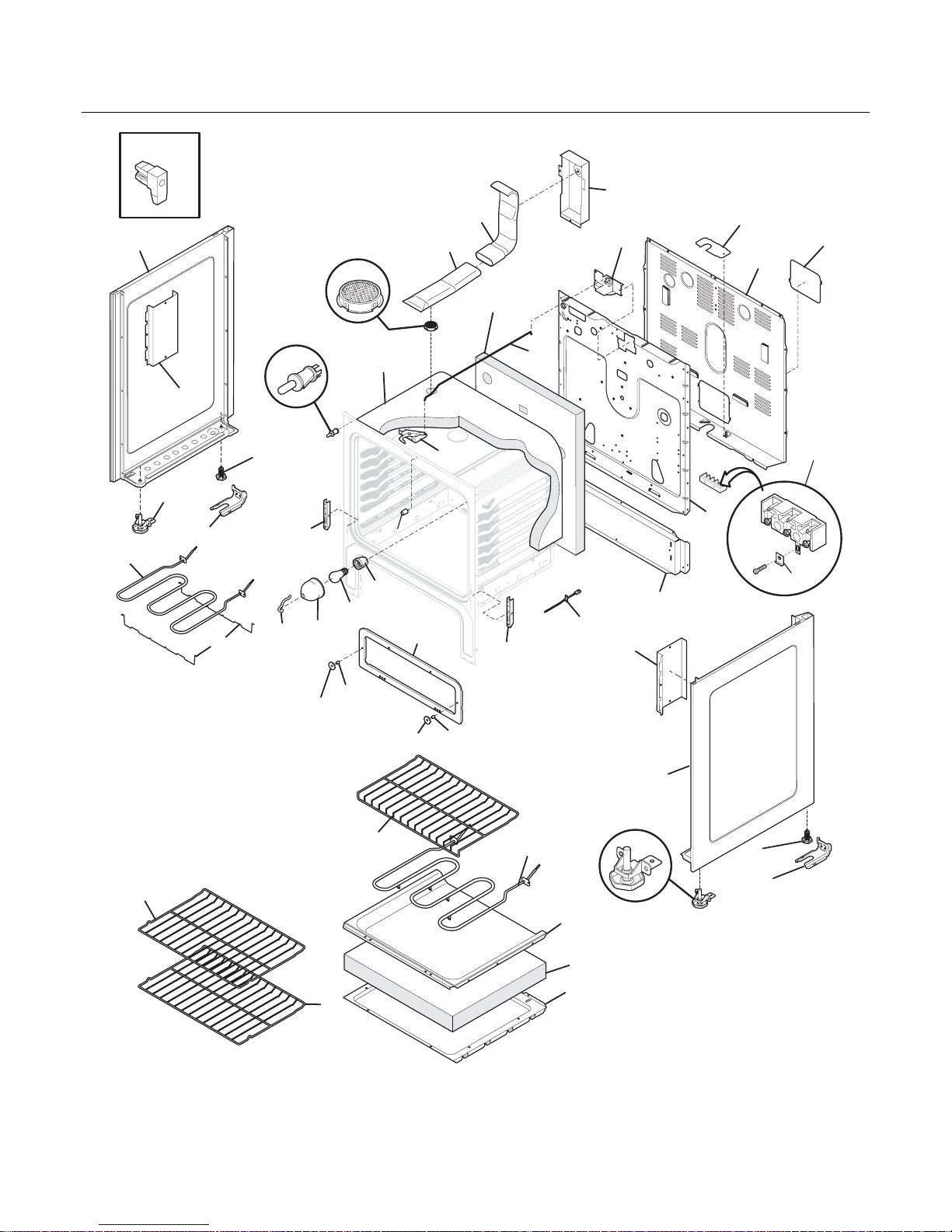

BODY

33A

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

1716

68164

113

112

170

151

T20V0081

59B

59A

FEFB7ABDCB Publication No: 5995425468

# Functional Parts 5 01/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401800 Panel, main back

3 316400104 Panel, bodyside, black, RH

3 316400105 Panel, bodyside, black, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407200 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 Rack, oven

6B 316425400 Rack, oven

8A 316411102 Base, bake element

12 # 316407100 Switch, oven light/door

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

33A 316402100 Shield, rear wall, lower

37 # 316217001 Probe, oven temp

42 316407700 Shield, wool, lower

44 316246501 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316422400 Cover, access

58 316403801 Insulation, oven sump

58A 316406600 Insulation, oven wrapper

58B 316406500 Insulation, oven back

59 316208200 Tube, oven vent, lower

59A 316208302 Tube, oven vent, upper

59B 316247300 Catalyst, oven vent, ceramic

62 5303935238 Terminal Block Kit, w/ground plate

62* 316085600 Insulator

62* 316205500 Nut, hex flange, 3/8 10-32

63 316278800 Plate, grounding strap

66 # 316430900 Element, broil, 4000W

67 316415900 Element, bake, 3500W, 6 pass

68 316429100 Support, element, broil

71 316422300 Shield, rear wall

86 316407000 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316415400 Motor, latch/lock

112 316435200 Standoff, strike plate

113 316431600 Plate, strike, mini oven

113* 316436700 Screw, countersunk HD, #10-16 x 1/4, (2)

151 316404600 Shield, bodyside

164 316410301 Trim, front, mini oven

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* # 316416431 Harness, wiring, main

Publication No: 5995425468 FEFB7ABDCB

01/05 6

BODY

33A

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

1716

68164

113

112

170

151

T20V0081

59B

59A

FEFB7ABDCB Publication No: 5995425468

# Functional Parts 7 01/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

* 3203550 Plug, button, oven bottom

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 5303305345 Paint, touch-up, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995425468 FEFB7ABDCB

01/05 8

TOP/DRAWER

100

14A

14B

110

109

T20T0036

108

105

107

106

104

103

102

101

18A

26B

26A

15A

15D

FEFB7ABDCB Publication No: 5995425468

# Functional Parts 9 01/05

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316414101 Drawer, mini oven

2 316409803 Liner, drawer, mini oven, w/ window

4 316432103 Panel, drawer, stainless, front

7 316437200 Insolator, heat, drawer front

8 316431901 Glass, inner door, mini oven

12 316410700 Seal, door, mini oven

13 316414000 Glide, drawer, mini oven, (2)

14 316414202 Insulation, door top, mini oven

14A 316414201 Insulation, door sides, mini oven, (2)

14B 316414203 Insulation, door bottom, mini oven

15 # 316010205 Element, surface, 6", 1200 W, radiant

15A# 316418400 Element, dual, 6"/9", surface, 1200W/1300W, radiant

15D# 318198816 Element, surface, warmer, 100 W

16 316421271 Maintop, frame/glass, black

17 316431801 Spacer, glass, mini oven, (2)

18 316235900 Hinge, main top, RH

18A 316235901 Hinge, main top, LH

26 316427600 Channel, element support, (2)

26A 316099202 Bracket, chassis support, rear

26B 316214200 Bracket, chassis support, front

29 316429000 Spacer, handle, (2)

30 316431700 Magnet Assembly, mini oven

33 316432000 Glass, drawer, front

37 # 316217003 Probe, oven temp, mini oven

39 316246100 Handle, door/drawer, stainless

52 316278300 Clip, element mtg

60 316001015 Screw, waf hd sq, 10-24 x 1.25, (2), handle mtg

81 # 316413900 Element, bake, mini oven

85 316411000 Rack, mini oven

100 316410900 Insulation, wrapper, mini oven

101 316410201 Panel, top, mini oven

102 316431201 Panel, oven side, RH, mini oven

103 316431203 Panel, oven side, LH, mini oven

104 316431500 Light Assembly, mini oven

105 316431303 Panel, main back, mini oven

106 316431400 Insualtion, oven back, mini oven

107 316431307 Shield, main back, mini oven

108 316410101 Panel, bottom, mini oven

109 316410800 Insulation, floor, mini oven

110 316410400 Shield, floor, mini oven

* # 316416820 Harness, wiring, surface

* 316416901 Harness, mini oven, to probe

* 316416902 Harness, mini oven, to light

* 316264000 Cleaner, cooktop

* 316279700 Cleaner, stainless steel

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995425468 FEFB7ABDCB

01/05 10

DOOR

60B

10B

T20D0017

14A
