Frigidaire FEF380MXD Manual de usuario

FEF380MXD.eps L20G0039.eps L20V1122.eps T20T0022.eps L20D0017.eps

316255354D.eps 316255354S.eps

Product No. FEF380MXDCA

Series 30" f/s elec

Color stainless

Market North America

Wiring Diagram 316255354

Owner's Guide 316257123

Installation Instructions 316259206

Service Data Sheet 316218513

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995419529

04/10/22

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEF380MXD

Publication No: 5995419529 FEF380MXDCA

10/04 2

BACKGUARD

FEF380MXDCA Publication No: 5995419529

# Functional Parts 3 10/04

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316239900 Shield, backguard, rear wall

13A 316095500 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316220216 Support, backguard, black, RH

15A 316220217 Support, backguard, black, LH

19 316232611 Panel, backguard, black

20 # 316207509 Clock/Timer, electronic, ES300

20A 316220805 Overlay, clock, black, ES300

23 316220900 Bracket, clock mtg

24 # 316246001 Switch, rocker, black, oven light

24C# 316114002 Switch, speed bake, black

31 316223002 Knob, control, black

46 316040201 Lens, indicator light, red

54 # 316021500 Switch, infinite, small element

54A# 316021501 Switch, infinite, large element

54B# 316238200 Switch, infinite, dual element

56 316234003 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995419529 FEF380MXDCA

10/04 4

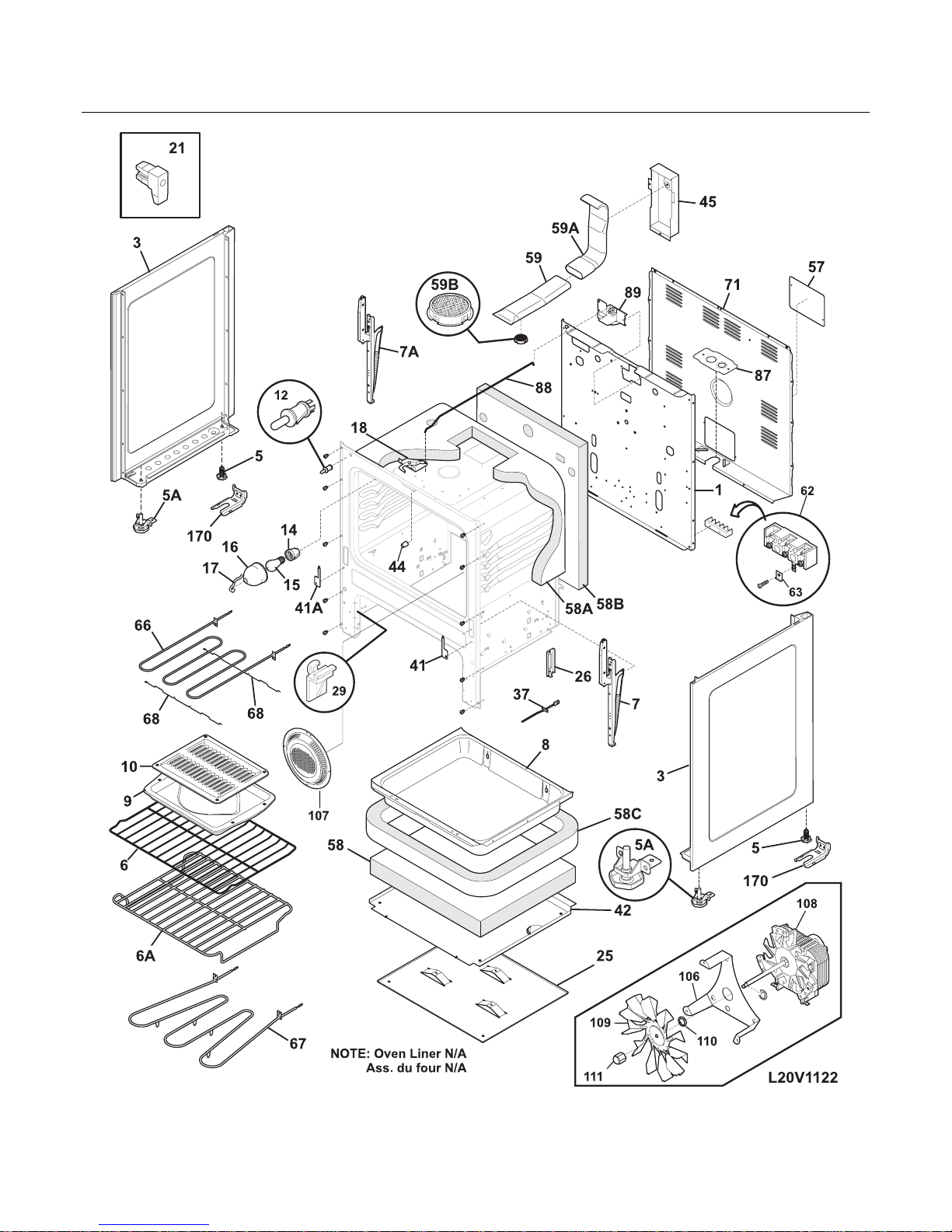

BODY

FEF380MXDCA Publication No: 5995419529

# Functional Parts 5 10/04

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316201300 Back, main

3 316400104 Panel, bodyside, black, RH

3 316400105 Panel, bodyside, black, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407200 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316216000 Rack, oven

6A 316262901 Rack, oven sump

7 316216500 Hinge, oven door, RH

7A 316216501 Hinge, oven door, LH

8 316201501 Panel, sump, oven bottom

9 316081900 Pan, broiler

10 316082000 Insert, broiler pan

12 # 316209901 Switch, oven light/door

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316213900 Latch, oven door

21 316408000 Clip, bodyside

25 5304403169 Shield, heat, lower

26 316206300 Support, chassis, (2)

29 3051162 Glide, drawer, front

37 # 316233900 Probe, oven temp

41 316233400 Cover, hinge cutout, RH

41A 316233500 Cover, hinge cutout, LH

42 316206200 Shield, wool, lower

44 316246500 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316081100 Cover, access

58 316240300 Insulation, oven bottom

58A 316047708 Insulation, 2", oven wrapper

58B 316240102 Insulation, oven back

58C 316240400 Insulation, oven sump

59 316208200 Tube, oven vent, lower

59A 316208302 Tube, oven vent, upper

59B 316247300 Catalyst, oven vent, ceramic

62 5303935238 Terminal Block Kit, w/ground plate

62* 316085600 Insulator

62* 316205500 Nut, hex flange, 3/8 10-32

63 316278800 Plate, grounding strap

66 # 316203301 Element, broil

67 # 316202200 Element, bake

68 316203400 Support, broil element

71 316015815 Shield, rear wall

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316415400 Motor, latch/lock

106 316026600 Bracket, motor mtg

107 316026701 Cover, fan

108# 316136300 Motor, fan

109 316136400 Blade, fan

Publication No: 5995419529 FEF380MXDCA

10/04 6

BODY

FEF380MXDCA Publication No: 5995419529

# Functional Parts 7 10/04

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

110 316136500 Washer, fan motor

111 316136600 Nut, fan retainer

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* 316269506 Harness, wiring, main

* 316231800 Cover, hole, conv. element

* 5303305345 Paint, touch-up, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316021132 Screw, 8-18 X 11/16, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303280311 Screw, wafer hd sq dr, 10-32 x 0.312

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995419529 FEF380MXDCA

10/04 8

TOP/DRAWER

FEF380MXDCA Publication No: 5995419529

# Functional Parts 9 10/04

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316011503 Drawer

2 316231500 Liner, drawer

4 316248801 Panel, drawer, stainless

7 3051163 Glide, drawer, rear

15 # 316010205 Element, surface, 6", 1200 W, radiant

15A# 316418400 Element, dual, 6"/9", surface, 1200W/1300W, radiant

15B# 316010206 Element, surface, 8", 2200 W, radiant

15D# 318198804 Element, surface, warmer, 100 W

16 316251912 Main Top Assy, glass/steel, black

18 316235900 Hinge, main top, RH

18A 316235901 Hinge, main top, LH

26 316427600 Channel, element support, (2)

26A 316099202 Bracket, chassis support, rear

26B 316214200 Bracket, chassis support, front

39 316246100 Handle, door/drawer, stainless

52 316278300 Clip, element mtg

* # 316416821 Harness, wiring, surface

* 316264000 Cleaner, cooktop

* 316279700 Cleaner, stainless steel

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 5303280311 Screw, wafer hd sq dr, 10-32 x 0.312

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995419529 FEF380MXDCA

10/04 10

DOOR
