Frigidaire FEF322BXA Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF322BXAWA FEF322BXA white North America

Publication No.

5995372793

020524

-EN/SERVICE /ECL

369

05/02 2

BACKGUARD

POS. NO PART NO DESCRIPTION

1 316081600 Shield,backguard ,galv steel ,rear wall

1* 316248900 Spacer,shield ,rear wall

2 316015907 Shield,backguard ,black ,inner

11 316083719 Trim,wrapper ,black

12 # 316032405 Thermostat,oven ,non self-clean

13 # 316032500 Switch,selector

14 316022503 Light/Lamp,indicator ,surface ,250 V

15 316023108 Support,backguard ,RH

15A 316023109 Support,backguard ,LH

19 316100529 Panel,backguard ,black

20 # 316120500 Clock/Timer

20A 316098007 Overlay,clock ,black

23 316033204 Bracket,timer

24 # 316118100 Switch,oven light ,black ,rocker

31 316109602 Knob,selector ,black

32 316109600 Knob,thermostat ,black

36 316025108 Knob,control ,black

46 316040201 Lens,indicator light ,red

54 # 316021500 Switch,infinite ,small element

54A# 316021501 Switch,infinite ,large element

69 5303288565 Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

05/02 4

BODY

POS. NO PART NO DESCRIPTION

1 316201300 Back,main

3 316230102 Panel,bodyside ,white ,RH

3 316230103 Panel,bodyside ,white ,LH

4 316201401 Burner Box

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316212908 Hinge,oven door ,RH

7A 316212909 Hinge,oven door ,LH

8 3203540 Panel,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

14 # 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

21 3014099 Spacer,bodyside

26 316206300 Support,chassis ,(2)

27 5303284616 Clip,thermo bulb mtg

29 3051162 Glide,drawer ,front

30 5303283574 Bracket,hinge ,main top RH

30A 5303283575 Bracket,hinge ,main top LH

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

42 316206200 Shield,wool ,lower

57 316081100 Cover,access

58 3200847 Insulation,oven bottom

58A 316047707 Insulation,1" ,oven wrapper

58B 316054202 Insulation,1" ,oven back

59 316073605 Tube,oven vent

60 316239100 Cover,oven front

62 # 5303935061 Terminal Block Kit

62* 5303308427 Nut,hex ,10-32

63 5301145190 Plate,grounding strap

66 # 316203200 Element,broil

67 # 316075103 Element,bake

68 316203400 Support,broil element

71 316015810 Shield,rear wall ,galv steel

87 316081200 Bracket,cable mtg

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316253114 Wiring Harness,main

* 5303305324 Paint,touch-up ,white

* 5303305345 Paint,touch-up ,black

* 3203550 Plug,button ,oven bottom

* 316073400 Plate,weight ,(3)

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 Screw,6-20 x 0.312

BODY

05/02 6

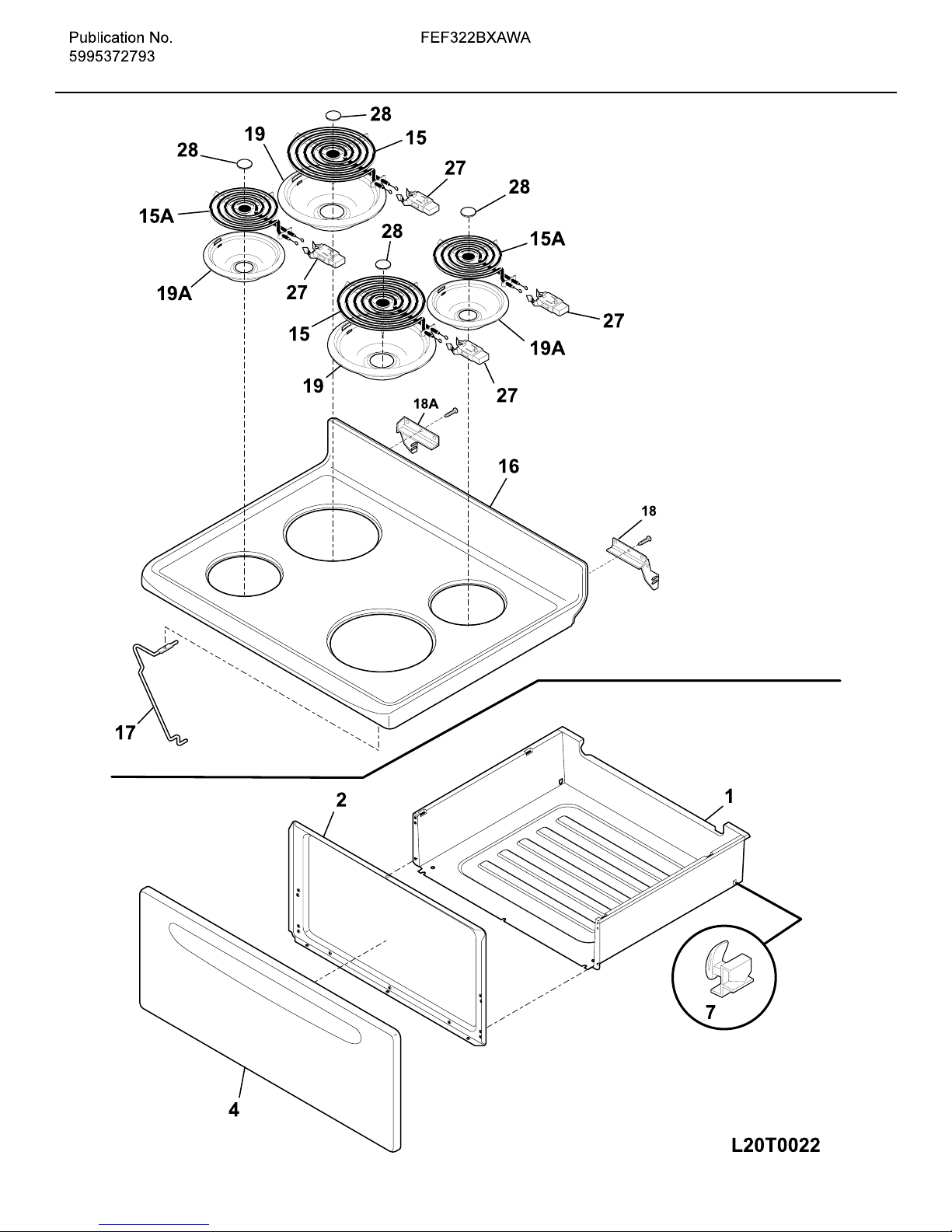

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011503 Drawer

2 316231500 Liner,drawer

4 316231305 Panel,drawer ,white

4* 316021112 Screw,8-18 x 0.500 ,white

7 3051163 Glide,drawer ,rear

15 # 5308011964 Element,surface ,large/8 inch ,(2) ,medallion incl

15A# 316115400 Element,surface ,small 6"

16 316020907 Main Top,white

17 316057601 Rod,support ,main top

18 5303273062 Hinge,main top ,RH

18A 5303273063 Hinge,main top ,LH

19 318067051 Pan,surface element ,large ,black

19A 318067041 Pan,surface element ,small ,black

27 # 5301167733 Terminal Block Kit,surface element

28 5303017715 Medallion,1 1/2"dia ,black ,surface element

* # 316253501 Wiring Harness,surface element

* 316058600 Clip,surface element ,chrome ,(4)

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 Screw,6-20 x 0.312

TOP/DRAWER

05/02 8

DOOR

POS. NO PART NO DESCRIPTION

3 5303935191 Trim kit-door,3 sided ,black ,w/tape and foil

4 5303935203 Glass,door kit ,black ,outer ,w/foil tape

6 316222709 Shield,oven door ,wool

7 316236801 Insulation,oven door

8 316088600 Glass,oven door ,inner

9 316230604 Liner,oven door

10 316001014 Screw,waf hd sq ,10-24 x 1.6 ,handle ,(2)

10* 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 316239700 Seal,oven door

20 316248400 Spacer,handle ,black ,(2)

39 316248300 Handle,oven door ,black

52 316201005 Cap,door trim ,black

60B 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 316021110 Screw,8-18 x 0.5 ,black

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

DOOR
