Frigidaire FRS367AQG Manual de instrucciones

FES367A.eps LA00BG78330-2G.eps LAP23V0072D-4.eps LA00CT76336-2.eps

LA00D07396-3F.eps 318045067.eps

Product No. FES367ABG FES367AQG FES367ASG

Series 30" slide-in 30" slide-in 30" slide-in

Color black bisque white

Market North America North America North America

Wiring Diagram 318045067 318045067 318045067

Owner's Guide 318200823 318200823 318200823

Installation Instructions 318201600 318201600 318201600

Timer Guide 318200191 318200191 318200191

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995401121

04/01/09

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

FES367A

Publication No: 5995401121 FES367A

01/04 2

BACKGUARD

FES367A Publication No: 5995401121

# Functional Parts 3 01/04

* Non-Ilustrated Parts

BACKGUARD

Model Index: AFES367A (FES367ASG)

BFES367A (FES367ABG)

CFES367A (FES367AQG)

POS. NO PART NO. DESCRIPTION

14 # 318076700 A B C Light, indicator, 125v

18 318039310 A - - End Cap, white, RH

18 318039312 - B - End Cap, black, RH

18 318039316 - - C End Cap, bisque, RH

18A 318039311 A - - End Cap, white, LH

18A 318039313 - B - End Cap, black, LH

18A 318039317 - - C End Cap, bisque, LH

19 318182990 A - - Panel, control mtg., white

19 318182991 - B - Panel, control mtg., black

19 318182992 - - C Panel, control mtg., bisque

20 # 318185446 A - - Clock/Timer, electronic, white, ES300

20 # 318185447 - B - Clock/Timer, electronic, black, ES300

20 # 318185448 - - C Clock/Timer, electronic, bisque, ES300

20* 316220804 A - - Overlay, clock, white, ES300

20* 316220805 - B - Overlay, clock, black, ES300

20* 316220806 - - C Overlay, clock, bisque

21 318027804 A - - Trim, backguard, white, top

21 318027803 - B - Trim, backguard, black, top

21 318027807 - - C Trim, backguard, bisque, top

23 318015042 A B C Bracket, clock mtg, upper

23A 318015043 A B C Bracket, clock mtg, lower

24 # 316005607 A - - Switch, rocker, white

24 # 316005602 - B - Switch, rocker, black

24 # 318037520 - - C Switch, rocker, bisque, oven light

36 318196633 A - - Knob, control, white

36 318196634 - B - Knob, control, black

36 318196635 - - C Knob, control, bisque

42 318106924 A - - Trim, backguard, white, bottom

42 318106927 - B - Trim, backguard, black, bottom

42 318106925 - - C Trim, backguard, bisque, bottom

46 5303297274 A B C Lens, indicator light

54 # 318220006 A B C Switch, surface unit, small

54A# 318220007 A B C Switch, surface unit, large

69 5303323134 A B C Screw, switch mtg., 8-32 x 0.188

102 318055601 A B C Bracket, mounting

* 08002868 A B C Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995401121 FES367A

01/04 4

BODY

FES367A Publication No: 5995401121

# Functional Parts 5 01/04

* Non-Ilustrated Parts

BODY

Model Index: AFES367A (FES367ASG)

BFES367A (FES367ABG)

CFES367A (FES367AQG)

POS. NO PART NO. DESCRIPTION

1 318066402 A B C Panel, main back

1A 318070910 A B C Panel, main back, upper

2A 318227600 A B C Shield, oven top

3 318159800 A B C Panel, body side, upper

3A 318160004 A B C Panel, lower side, RH

3B 318160005 A B C Panel, lower side, LH

5 318175503 A B C Screw, leveling

6 318025308 A B C Rack, oven

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089913 A B C Switch, light

14 318224000 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

25 318179107 A B C Panel, heat shield, sm oven bottom

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

56 318002612 A - - Trim, oven, white, front

56 318002611 - B - Trim, oven, black, front

56 318002614 - - C Trim, oven, bisque, front

58A 318133783 A B C Insulation, oven wrapper

58B 318133785 A B C Insulation, oven back

59 318072502 A B C Tube, oven vent

62 5303935061 A B C Terminal Block Kit

62* 5303323144 A B C Nut, 10-32

63 316208500 A B C Plate, grounding strap

66 # 5303310513 A B C Element, broil, 2750 W

67 # 5303310512 A B C Element, bake, 3000 W

68 5304403015 A B C Support, element hanger

70 318194400 A B C Shield, insulation

70A 318199802 A B C Deflector

71 5303310515 A B C Panel, wiring cover, rear

76 318124121 A B C Front, oven

80 5303324473 A B C Bracket, oven mounting

81 318192400 A B C Spring, oven

83 318089613 A B C Liner, oven

86 5303310524 A B C Receptacle, hinge

87 318111803 A B C Plate, mounting

88 318118904 A B C Rod, latch

89 # 318095937 A B C Motor, latch assy, w/brkt & switch

89* 318120711 A B C Switch

102 5303311142 A B C Support, oven front

108# 318073012 A B C Motor, blower

114 318175100 A B C Plate, filler

127 5303310542 A B C Adapter, vent tube, with converter

128 5303311163 A B C Bushing

Publication No: 5995401121 FES367A

01/04 6

BODY

FES367A Publication No: 5995401121

# Functional Parts 7 01/04

* Non-Ilustrated Parts

BODY

Model Index: AFES367A (FES367ASG)

BFES367A (FES367ABG)

CFES367A (FES367AQG)

POS. NO PART NO. DESCRIPTION

129 5303311164 A B C Spring

141# 318005201 A B C Switch, thermal cutout

142 318123901 A B C Deflector

170 5304405244 A B C Anti-tip & accessories

177 318053810 A B C Gasket, vent

191 5303304030 A B C Bracket, angle, corner

* 318003606 A B C Thermostat, safety

* 318235300 A B C Connector assy., w/3 lugs, & instructions

* 08002868 A B C Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303307980 A B C Screw, 8-32 x 0.437

Publication No: 5995401121 FES367A

01/04 8

TOP/DRAWER

FES367A Publication No: 5995401121

# Functional Parts 9 01/04

* Non-Ilustrated Parts

TOP/DRAWER

Model Index: AFES367A (FES367ASG)

BFES367A (FES367ABG)

CFES367A (FES367AQG)

POS. NO PART NO. DESCRIPTION

1 318107104 A B C Drawer

4 318134011 A - - Panel, drawer, white, front

4 318134012 - B - Panel, drawer, black, front

4 318134013 - - C Panel, drawer, bisque, front

6 318194800 A B C Support, element, (2)

11 5303311125 A B C Bracket, drawer

13 5303311129 A B C Channel, drawer, RH

13A 5303311130 A B C Channel, drawer, LH

15 # 316224200 A B C Element, surface, 9", 2500W, radiant

15A# 318198812 A B C Element, surface, 8", 2200 W

15B# 318198810 A B C Element, surface, 6", 1200 W

16 318154726 A - - Main Top, glass, white

16 318154728 - B - Main Top, glass, black

16 318154727 - - C Main Top, glass, bisque

51 # 318044820 A - C Light, indicator, red

51 # 318044822 - B - Light, indicator, clear

52 5303317177 A B C Spring, element mtg.

53 318125932 A B C Bracket, indicator light, hot surface

55 5303317178 A B C Spacer, element

56 5303317179 A B C Screw, element, 6 x 3/4

70 5303311143 A B C Bracket, slide, rear

71 5303311144 A B C Magnet & spring assy

72 5303311145 A B C Bracket & wheel assy

* 5303325173 A B C Cap, plug

* 5303325171 A B C Washer, plastic

* 08002868 A B C Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995401121 FES367A

01/04 10

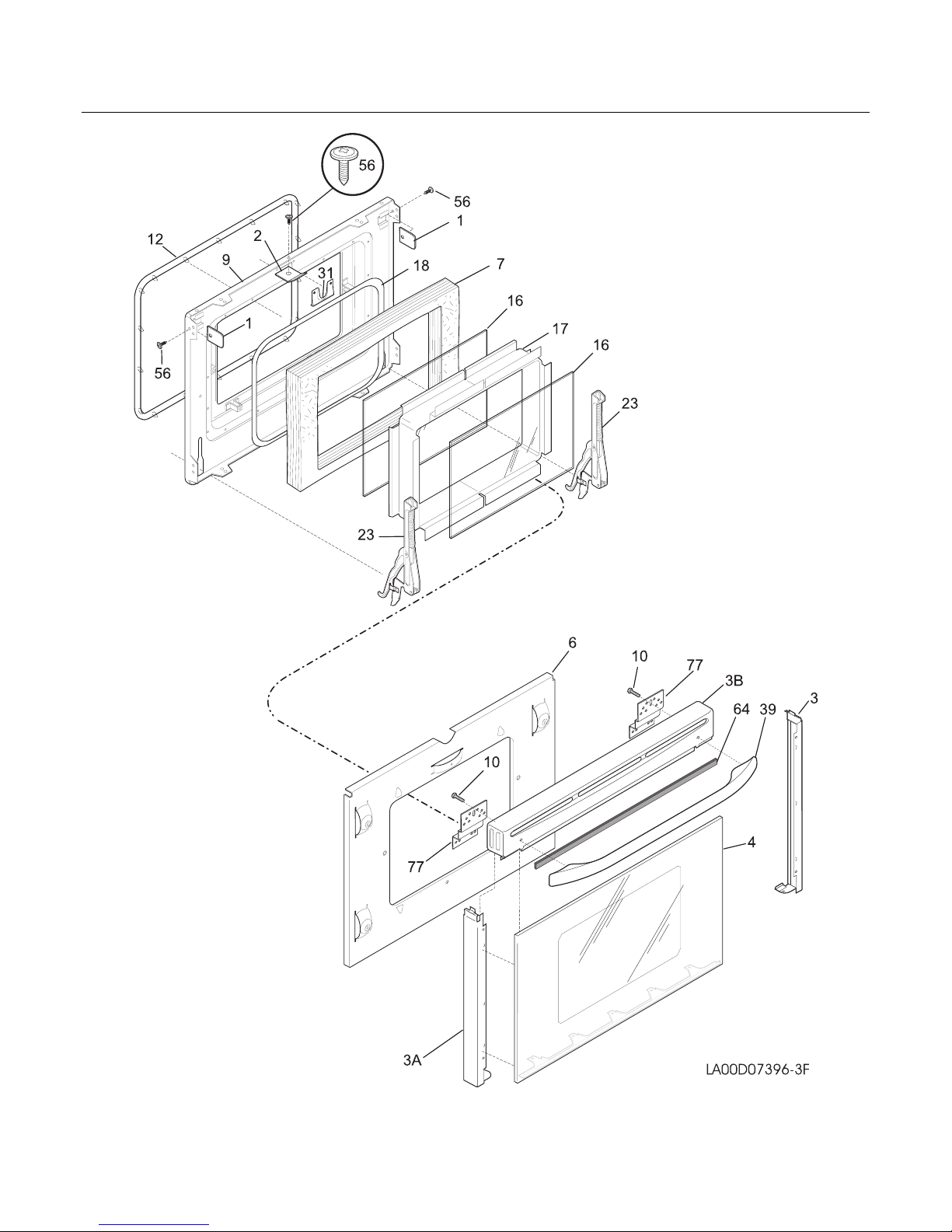

DOOR
