Freescale Semiconductor Inc.

TWRK60D100MQSDLAB

TWR-K60D100M Quick Start Demo

Lab Guide for MQX 4.0

Rev. 1

TWR-K60D100M Quick Start Demo Lab Guide Page 2 of 19

Contents

1Purpose .......................................................................................................................................................3

2Configure Hardware ...............................................................................................................................3

3Update OSJTAG .........................................................................................................................................3

4Run the Demo............................................................................................................................................5

5Development Software and Programming the Board ................................................................7

5.1 CodeWarrior for Microcontrollers 10.4 ....................................................................................................................8

5.2 IAR Embedded Workbench for ARM 6.50.6 ......................................................................................................... 11

6Task Aware Debugging....................................................................................................................... 14

7Demo Software Overview .................................................................................................................. 14

8Creating a new MQX project ............................................................................................................. 15

9OSJTAG...................................................................................................................................................... 16

TWR-K60D100M Quick Start Demo Lab Guide Page 3 of 19

1Purpose

This lab document describes how to use the TWR-K60D100M demo that is pre-programmed onto your

Tower module. It also covers how to configure your tower module to run the demo, and the steps to

re-flash this project back onto your board.

Use Sections 2, 3, and 4 to run the demo. Use Section 5 to learn how to re-flash the demo on the

board.

2Configure Hardware

If running the TWR-K60D100M board in stand-alone mode:

1) Insert the battery into the battery socket on the underside of the board

2) Change J12 to pins 2-3 to connect the VBAT domain to run off the battery

3) Add a jumper on J5 to use the potentiometer.

If using the TWR-K60D100M board with the TWR-SER board (required for web server and USB

demos):

1) Follow the steps in the section above plus:

2) On the TWR-K60D100M board:

a. Change J10 to pins 2-3 to use the 50Mhz clock from the TWR-SER board

3) On the TWR-SER board:

a. Change J2 to pins 3-4 to give a 50Mhz clock to the PHY

b. Add jumper to J3 pins 2-3 to bring up the 50Mhz clock from the TWR-SER

c. Add jumper to J12 pins 9-10 to put into RMII mode

If you do not have extra jumpers, you can use the ones on CAN_SEL (J5) on the TWR-SER board

4) Connect the TWR-K60D100M and TWR-SER boards via the elevator boards. Make sure the

primary side (often marked with a white stripe) goes into the elevator board with the white

edges. Detailed instructions are in the Quick Start Guide inside the TWR-ELEV module.

5) Connect an Ethernet cable between the TWR-SER board and an Ethernet port on your

computer

6) Note that the default jumper settings are in the Quick Start Guide for the TWR-K60D100M and

TWR-SER if you want to change back to the default settings after you are done running the

demo.

3Update OSJTAG

Open Source JTAG allows a user to program, debug, and get serial data from Kinetis devices via a USB

cable. The firmware runs on a Freescale MCFS08JM60 on the underside of the Kinetis tower board. To

ensure compatibility between the drivers, firmware, and terminal window, the latest versions of each

need to be installed.

TWR-K60D100M Quick Start Demo Lab Guide Page 4 of 19

First download and install both of the latest P&E Firmware Updates and Recovery and OSBDM Virtual

Serial Toolkit programs which can be found at http://www.pemicro.com/osbdm

Make sure your tower board is plugged in, and run the P&E Firmware Updater Utility to use the

OSJTAG boot loader to upgrade to the latest OSJTAG version.

Under “Select Hardware Type” make sure OSBDM/OSJTAG is selected. It should automatically detect

your board settings and fill out the rest of the fields automatically.

Click on “Update Firmware” to update the firmware. It will prompt you to disconnect the USB cord

from your computer, and then short the JM60 boot loader jumper header. It is J19and is labelled

JM60 Boot on the silk screen. Then re-connect the board to your computer.

TWR-K60D100M Quick Start Demo Lab Guide Page 5 of 19

The firmware will then be updated on your board. When it is finished, it will prompt you again to

disconnect the USB cable, remove the jumper, and then re-connect the board again. OSJTAG is now

updated.

4Run the Demo

1) Connect a mini-B USB cable to the TWR-K60D100M tower module.

2) Allow the PC to automatically configure the OSJTAG drivers used for debugging and the serial-

to-USB feature. If you have trouble connecting to the board or using the Serial Terminal, see

Section 9 for troubleshooting and make sure you completed the steps listed in Section 3.

Touch Demo

3) Press the E1-E4 touch pads to toggle on and off the LED’s

Memory Game

4) Press SW2 to play a memory game using the Touch pads E1-E4. A sequence will light up, and

then press the touch sensors in the order flashed. If an incorrect sequence is input or you

take too long, then all the lights will blink rapidly and the game will reset. See how far you can

go!

5) Press SW1 to go back to the touch and accelerometer demo

Accelerometer Demo

6) Tilt the board back and forth to see the LED’s light up as it is tilted

7) Press SW1 and SW2 at the same time to calibrate the accelerometer. It will store the calibration

into internal flash memory, so this will only need to be done one time while the board is flat.

Terminal Demo

8) Open a terminal window (115200 baud, 8 data bits, no parity, 1 stop bit) and connect to the

OSBDM/OSJTAG –CDC Serial port.

Note: If you disconnect power, you will need to close the terminal window, connect power,

and then re-open the terminal window

TWR-K60D100M Quick Start Demo Lab Guide Page 6 of 19

9) In the terminal program, there will be a shell prompt after you hit the Enter key. Type “help” to

see the full list of commands.

10) Type “settime HH:MM” to adjust the time to HH:MM.

11) Type “accel start” to print out the accelerometer data to the terminal. Type “accel stop” or

press SW1 or SW2 to stop the printout.

SD Card Demo

12) Insert a SD Card into the SD Socket on the underside of the board. You can then access the files

and create new files and directories on the SD Card via the shell interface. Type “help” to see

the full list of commands.

USB Mouse Demo - The following steps require the TWR-SER peripheral module:

13) Using a second USB mini-B cable, plug it into the USB mini-B connector on the TWR-SER.

14) The tower kit will then enumerate as a mouse on your computer. You can tilt the board around

to move the mouse cursor. Press SW2 to left click. Press SW1 to right click.

Web Server Demo - The following steps require the TWR-SER peripheral module:

15) Finally we will run the web browser. The default IP address of the board is 169.254.3.3.

Typically, when you connect your computer directly to the board, the computer will default to

an auto IP address on the same subnet as the board (169.254.x.x), therefore requiring no

setup.

Note: The PC may take a few minutes to default to the auto IP address and make the

connection. Also ensure any browser proxy settings, VPN connections, and wireless

connections are turned off since that can interfere with making a connection to the IP address.

16) However, if you have trouble connecting, you may configure the IP address of the computer

manually. Select Start >Settings > Network Connections > Local Area Connection. Note your

original TCP/IP settings, and then set your IP address to on your computer 169.254.3.4 and

TWR-K60D100M Quick Start Demo Lab Guide Page 7 of 19

your subnet mask to 255.255.0.0. Make sure the computer IP address is different than the

board address

17) Open a web browser and go to the target device address. In this case, 169.254.3.3

18) You should see the web server welcome page in the browser window, as seen in figure below:

19) Browse the links on the left hand side to see other pages. These pages include:

Accelerometer data

Real Time Clock (displaying elapsed time since first boot-up, or the time set by the settime

command)

Toggle LED’s

Status of the switches, LED’s, potentiometer, and ADC temperature sensor

The current score and high score in the memory game (not part of pre-flashed demo. This

page is only in web-downloaded version)

More information on the Kinetis K60 family

20) Browse web pages on the SD card you inserted earlier by clicking on the Browse SD Card link on

the left hand menu. It will link to an index.html file you can place on the SD Card. You can also

access any other webpage on the SD card by going to <board IP

address>\sdcard\file_name.html

(This feature is not part of the pre-flashed demo, and is only in web-downloaded version. Also

note the errata described in the SD Card demo section above for Rev D TWR-K60D100M

boards.)

5Development Software and Programming the Board

The following instructions describe how to build and flash the Kinetis Quick Start Demo using MQX

4.0 with both CodeWarrior MCU 10.4 and IAR 6.50.6

TWR-K60D100M Quick Start Demo Lab Guide Page 8 of 19

5.1 CodeWarrior for Microcontrollers 10.4

1) Follow the directions in Section 3 to update the OSJTAG firmware and drivers. See Section 9 for

OSJTAG Troubleshooting.

2) Install CodeWarrior for Microcontrollers 10.4. The Evaluation edition or Standard version or

higher will be required because of code size.

3) Install any CodeWarrior patches available.

4) Install MQX 4.0. You can find this from the MQX website

5) You must then compile the MQX libraries for the TWR-K60D100M board. The workspace at

<mqx_dir>\config\twrk60d100m\cw10\twrk60d100m.wsd has all the libraries to build and

can be imported going to the File->Import and then Other->Import Working Sets.

6) Click on the Build All button to re-compile all the K60 libraries.

Use the default “Debug” targets. See the Getting Started with Freescale MQX™ RTOS

document in the <mqx_dir>\doc folder for more information if needed on compiling the

libraries before continuing on with the lab.

TWR-K60D100M Quick Start Demo Lab Guide Page 9 of 19

7) If you did not install the K60 Quick Start Demo to the default location inside of

C:\Freescale\Freescale_MQX_4_0\demo folder, move the folder TWR-

K60D100M_Quick_Start_Demo to that location. The path after the move should be

C:\Freescale\Freescale_MQX_4_0\demo\TWR-K60D100M_Quick_Start_Demo

8) If MQX is installed in another location, move the folder to the <mqx_dir>\demo directory at

that location instead.

9) Next we need to import the Quick Start Demo into our CW10 workspace.

10) Click on File->Import in the menu bar. In the dialog box that comes up, select “Existing Projects

into Workspace” under the General folder. Then click Next

11) On the next screen, select the “Select root directory:” option, and click on Browse

12) Navigate to the C:\Freescale\Freescale_MQX_4_0\demo\TWR-

K60D100M_Quick_Start_Demo directory and hit OK.

13) Make sure TWR-K60D100M_Quick_Start_Demo is checked, and hit Finish.

TWR-K60D100M Quick Start Demo Lab Guide Page 10 of 19

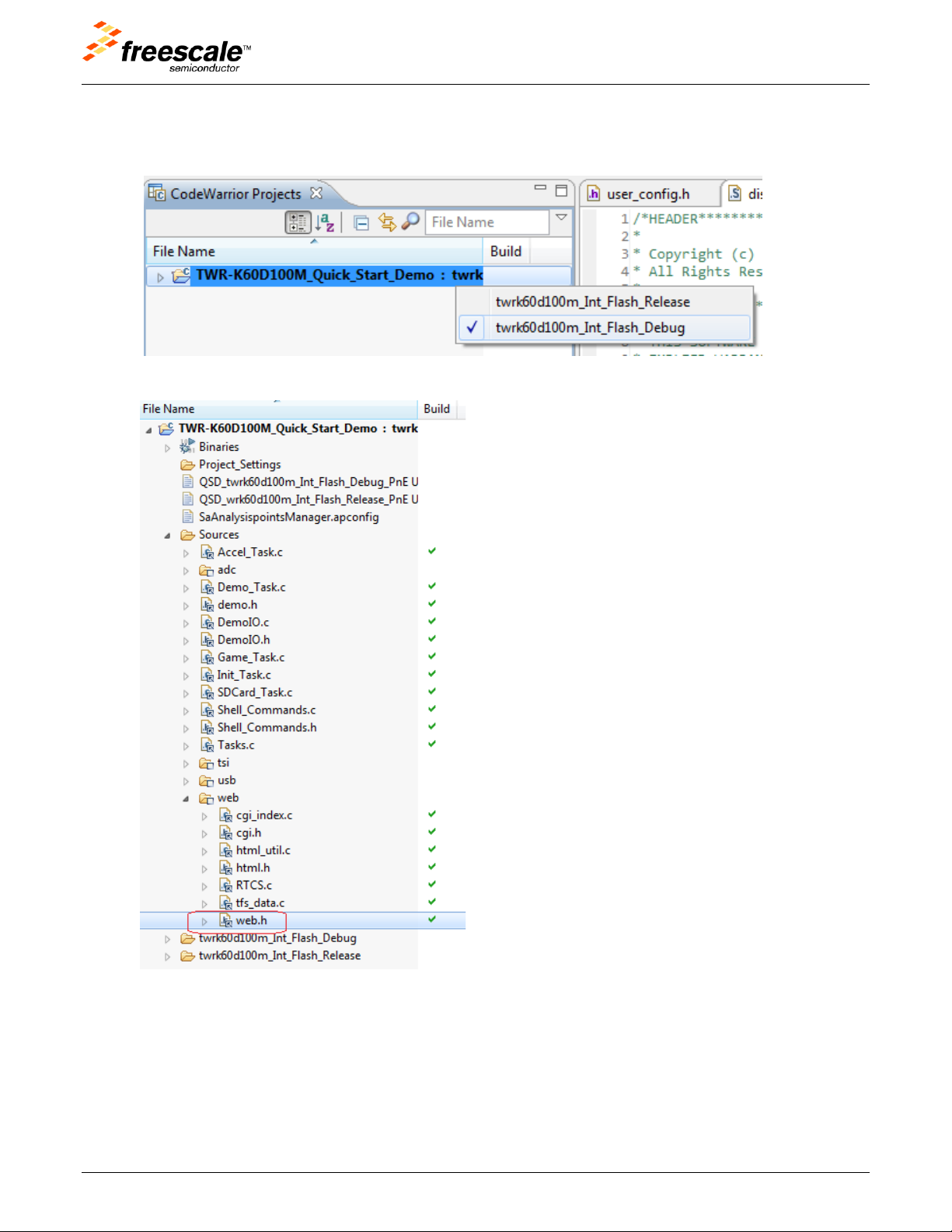

14) Make sure the Debug configuration is set for the project

15) Open the web.h file in the project pane window. Double-click the file item located in the

“Source/web” group in the project tree.

16) You can change the default IP address by modifying the ENET_IPADDR define. For example, to

set the target address to 169.254.3.3, and the line will be:

#define ENET_IPADDR IPADDR(169,254,3,3)

17) You could also use DHCP instead of a static IP address by setting

DEMOCFG_ENABLE_DHCP to 1in web.h

18) Save the file after you are done.

Tabla de contenidos

Otros manuales de Hardware de computadora de Freescale Semiconductor

Freescale Semiconductor

Freescale Semiconductor TWR-S12G64 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor 56F827 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor 802.15.4/Zigbee Manual de usuario

Freescale Semiconductor

Freescale Semiconductor MPC5604P Manual de usuario

Freescale Semiconductor

Freescale Semiconductor MPC8349EA PowerQUICC II Pro Manual de usuario

Freescale Semiconductor

Freescale Semiconductor MPC8349E PowerQUICC II Pro Manual de usuario

Freescale Semiconductor

Freescale Semiconductor i.MX53 SABRE Manual de usuario

Freescale Semiconductor

Freescale Semiconductor metrowerks CodeWarrior Manual de usuario

Freescale Semiconductor

Freescale Semiconductor USB-KW24D512 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor Motorola MMDS0508 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor MSC8144ADS Manual de usuario

Freescale Semiconductor

Freescale Semiconductor MCF52277 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor Windows Embedded CE 6.0/Windows CE 5.0 i.MX31 PDK... Manual de usuario

Freescale Semiconductor

Freescale Semiconductor TWR-PXD20 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor FRDM-KE06 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor MSC8156EVM Manual de usuario

Freescale Semiconductor

Freescale Semiconductor ColdFire MCF52210ColdFire MCF52211ColdFire MCF52212ColdFire... Manual de usuario

Freescale Semiconductor

Freescale Semiconductor e200z3 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor MC68HC08KH12 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor EVB9S12NE64 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor TWR-VF65GS10 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor NXP CodeWarrior USB TAP Manual de usuario

Freescale Semiconductor

Freescale Semiconductor DSP56374 Manual de usuario

Freescale Semiconductor

Freescale Semiconductor MPC8260 PowerQUICC II Family Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
