Fluke CableAnalyzer DTX-1500 Manual de usuario

PN 4615636 February 2015, Rev. 1 6/2015

All product names are trademarks of their respective companies.

*4615636*

DTX-1500

CableAnalyzer™

Getting Started Guide

The DTX-1500 CableAnalyzerTM is a rugged, hand-held instrument used to certify,

troubleshoot, and document copper cabling installations.

Accessing the Product Manuals

This guide provides basic information to help you get started using the tester. For more

detailed information, see the latest versions of the DTX-1500 CableAnalyzer Users Manual

and the DTX-1500 Technical Reference Handbook provided on the Fluke Networks

website. Go to www.flukenetworks.com, click SUPPORT > Manuals,then select DTX

CableAnalyzer Series.

Safety Information

Warning

To prevent possible fire, electric shock, or personal injury:



Read all safety information before you use the Product.



Carefully read all instructions.



Do not connect the tester to telephony inputs, systems, or equipment,

including ISDN inputs. Doing so is a misapplication of this product, which

could result in damage to the tester and create a potential shock hazard

to the user.

Warning or Caution: Risk of damage or destruction to equipment or

software. See explanations in the manuals.

Warning: Risk of fire, electric shock, or personal injury.

This key turns the Product on and off.



Do not open the case. You cannot repair or replace parts in the case.



Do not modify the Product.



Use only replacement parts that are approved by Fluke Networks.



Do not touch voltages > 30 V AC rms, 42 V AC peak, or 60 V DC.



Do not use the Product around explosive gas, vapor, or in damp or wet

environments.



Use this Product indoors only.



Do not connect the Product to voltages that are higher than the

maximum voltage rating for the Product.



For Products that have multiple connectors for different types of tests on

copper cabling, disconnect unused test leads from the connectors before

you do a test.



Use the Product only as specified, or the protection supplied by the

Product can be compromised.



Do not use and disable the Product if it is damaged.



Do not use the Product if it operates incorrectly.



Batteries contain hazardous chemicals that can cause burns or explode. If

exposure to chemicals occurs, clean with water and get medical aid.



Remove the batteries if the Product is not used for an extended period of

time, or if stored in temperatures above 50 °C. If the batteries are not

removed, battery leakage can damage the Product.



The battery door must be closed and locked before you operate the

Product.



Repair the Product before use if the battery leaks.



Recharge the batteries when the low battery indicator shows to prevent

incorrect measurements.



Turn off the Product and disconnect all test leads, patch cords, and cables

before you replace the battery.



Do not disassemble or crush battery cells and battery packs.



Do not put battery cells and battery packs near heat or fire. Do not put in

sunlight.



Do not operate the Product with covers removed or the case open.

Hazardous voltage exposure is possible.



Remove the input signals before you clean the Product.



Have an approved technician repair the Product.



Do not put metal objects into connectors.



For Products with rechargeable batteries, use only AC adapters approved

by Fluke Networks for use with the Product to supply power to the

Product and charge the battery.

Caution

To prevent damage to the Product or cables under test and to

prevent data loss, read all safety information given in all

documentation supplied with the Product.

Powering the Tester



You may power the tester with the ac adapter included or with the removable lithium

ion battery pack.



You may charge the battery when it is attached or detached from the tester

(Figure 1).



The battery charges fully in about 4 hours with the tester off. A fully-charged battery

lasts for at least 12 hours of typical use.

Y01.EPS

Figure 1. Charging the Battery (left) and Removing the Battery (right)

Setting the Reference

The reference procedure sets a baseline for insertion loss, ACR-F, and DC resistance

measurements.

Run the tester’s reference procedure at the following times:



When you want to use the tester with a different smart remote. You can reference

the tester to two different smart remotes.



Every 30 days. Doing so ensures maximum accuracy of test results.

You do not need to set the reference after changing link interface adapters.

To set the reference, do the following:

Note

Turn on the tester and smart remote and let them sit for 1 minute

before setting the reference. Set the reference only after the testers

have reached an ambient temperature between 10



C and 40



C (50



and 104



F).

Connect the main and remote testers together as shown in Figure 2.

Turn the rotary switch to SPECIAL FUNCTIONS.

Highlight Set Reference; then press .

Press .

Y04.EPS

Figure 2. Twisted Pair Reference Connections

Preparing to Save Tests



Check the memory space available:

Turn the rotary switch to SPECIAL FUNCTIONS; then select Memory Status.



Select a cable ID source:

You can select IDs from a pre-generated list or create an ID after each test. Turn the

rotary switch to SETUP, select Instrument Settings, select Cable ID Source; then select a

source.



Set up a job folder:

On the Instrument Settings menu select Current Folder. Select an existing folder or

press Create Folder to create a new folder.



Enter job information:

On the Instrument Settings menu press to show the tab with the Operator, Site, and

Company names. To enter a new name, select a setting, press Create if necessary;

then use the softkeys,  , and for editing. Press when you

are finished.

6 inch (15 cm)

RJ45 reference patch cord

Cat 6A/Class EAchannel

adapters Optional

permanent link

adapter

Channel

adapter

Autotest on Twisted Pair Cabling

Attach adapters appropriate for the job to the tester and the smart remote.

Turn the rotary switch to SETUP, then select Twisted Pair. Set the following on the

Twisted Pair tab:



Cable Type: Select a list of cable types; then select the cable type to be tested.



Test Li mi t : Select the test limit required for the job. The screen shows the last nine

limits used. Press More to see other lists of limits.

Turn the rotary switch to AUTOTEST and turn on the smart remote. Connect to the

cabling as shown in Figure 3 or 4.

Press on the tester or smart remote. To stop the test at any time, press .

The tester shows the Autotest Summary screen when the test is complete (Figure 5). To

view results for a specific parameter, use to highlight the parameter;

then press .

If the Autotest failed, press Fault Info for possible causes of the failure.

To save the results, press . Select or create a cable ID; then press again.

Y02.EPS

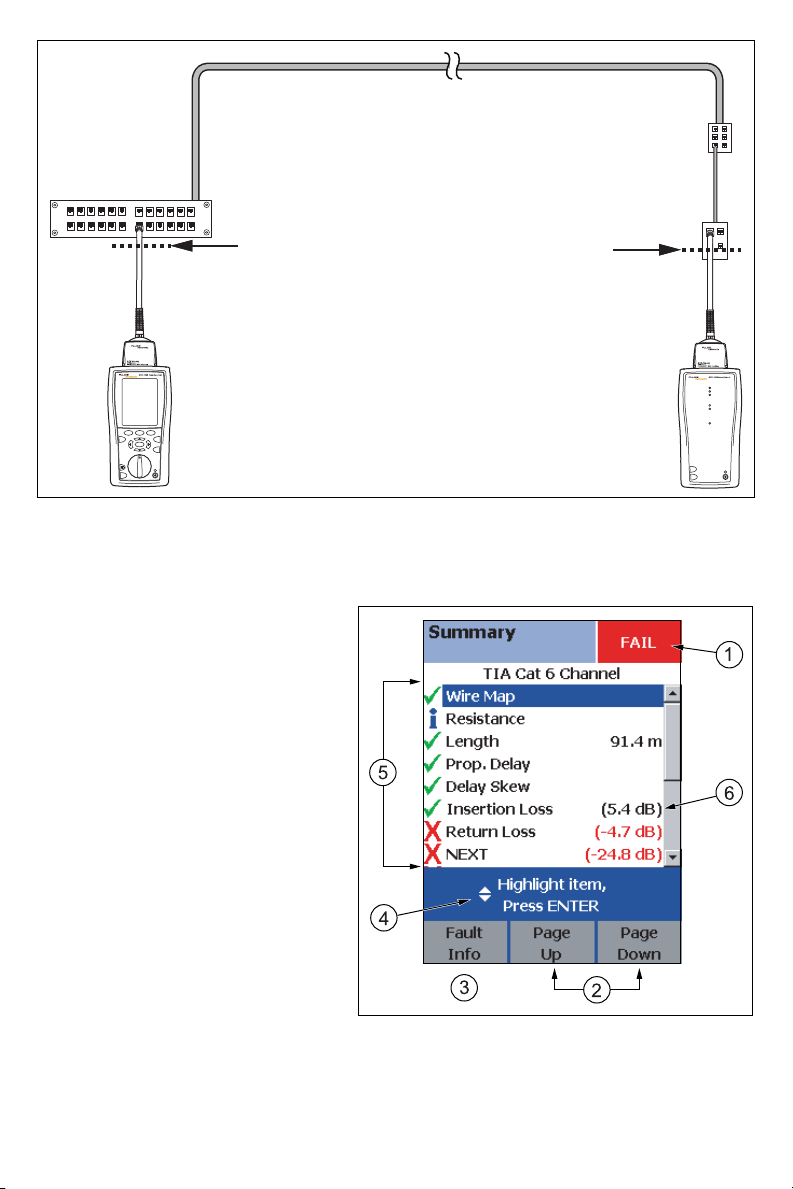

Figure 3. Channel Test Connections

Y03.EPS

Figure 4. Permanent Link Test Connections

Autotest Summary Results



PASS: All parameters are within

limits.

FAIL: One or more parameters

exceed the limit.

PASS*/FAIL*: One or more

parameters are within the

tester’s accuracy uncertainty

range, and the “*” notation is

required by the selected test

standard.



Press or to scroll the

screen.



If the test failed, press for

diagnostic information.



Action prompt for the screen.

Use to highlight

a parameter; then press .



: The test passed.

: The parameter was measured,

but has no PASS/FAIL limit in the

selected test limit.

X: The test failed.

AMD77F.EPS

Figure 5. Autotest Summary

for Twisted Pair Cabling

: See



PASS*/FAIL*.



The worst margin found for the test.

Optional

consolidation

point

Patch panel

Wall

outlet

Horizontal cabling

End

permanent

link

Start

permanent

link

Tester with optional

permanent link adapter

Smart remote with

optional permanent

link adapter

TALK

MONITOR

ENTER

TEST

SAVE

SPECIAL

FUNCTIONS

SETUP

AUTO

TEST

SINGLE

TEST

EXIT

F1 F2 F3

TEST

LOW BATTERY

TONE

TALK

FAIL

TEST

PASS

TALK

Registration

Registering your product with Fluke Networks gives you access to valuable information on

product updates, troubleshooting tips, and other support services.

To register, fill out the online registration form on the Fluke Networks website at

www.flukenetworks.com/registration.

Contacting Fluke Networks

www.flukenetworks.com

[email protected]

1-800-283-5853, +1-425-446-5500

Fluke Networks operates in more than 50 countries worldwide. For more contact

information, go to our website.

General Specifications

Certifications and Compliance

Battery Type Lithium-ion

Tempe r a t u re Operating: 0 °C to +45 °C; Storage: -20 °C to +60 °C

Altitude Operating: 4,000 m (3,048 m with AC adapter)

Storage: 12,000 m

Conformite Europeene. Conforms to the requirements of the European

Union and the European Free Trade Association (EFTA).

Listed by the Canadian Standards Association.

Conforms to relevant Australian standards.

CFR Title 47, Part 15, Subpart B

LIMITED WARRANTY AND LIMITATION OF LIABILITY

Fluke Networks mainframe products will be free from defects in material and

workmanship for one year from the date of purchase, unless stated otherwise herein.

Parts, accessories, product repairs and services are warranted for 90 days, unless

otherwise stated. Ni-Cad, Ni-MH and Li-Ion batteries, cables or other peripherals are

all considered parts or accessories. This warranty does not cover damage from

accident, neglect, misuse, alteration, contamination, or abnormal conditions of

operation or handling. Resellers are not authorized to extend any other warranty on

Fluke Networks’ behalf. To obtain service during the warranty period, contact your

nearest Fluke Networks authorized service center to obtain return authorization

information, then send your defective product to that Service Center with a

description of the problem.

For a list of authorized resellers, visit www.flukenetworks.com/wheretobuy.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS FITNESS

FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE NETWORKS IS NOT

LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR

LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not

allow the exclusion or limitation of an implied warranty or of incidental or

consequential damages, this limitation of liability may not apply to you.

4/15

Fluke Networks

PO Box 777

Everett, WA 98206-0777

USA

Otros manuales para CableAnalyzer DTX-1500

Tabla de contenidos

Otros manuales de Instrumento de medición de Fluke

Fluke

Fluke 353 Manual de usuario

Fluke

Fluke 434-II Manual de usuario

Fluke

Fluke 393 FC Manual de usuario

Fluke

Fluke 481 Manual de usuario

Fluke

Fluke 5790B Manual de usuario

Fluke

Fluke 1630 Manual de uso y cuidado

Fluke

Fluke 365 Manual de usuario

Fluke

Fluke 416D Manual de usuario

Fluke

Fluke 902 Manual de usuario

Fluke

Fluke 1587 FC Manual de uso y cuidado

Fluke

Fluke OptiView Manual de usuario

Fluke

Fluke 368 Manual de uso y cuidado

Fluke

Fluke 175 Manual de usuario

Fluke

Fluke i430-Flexi-TF-II Manual de usuario

Fluke

Fluke 377 Manual de usuario

Fluke

Fluke 805 Manual de usuario

Fluke

Fluke 321 Manual de uso y cuidado

Fluke

Fluke 305 Manual de usuario

Fluke

Fluke IRR2-BT Manual de usuario

Fluke

Fluke VIBGUARD IIoT Guía

Fluke

Fluke DTX-CLT CertiFiber Manual de usuario

Fluke

Fluke 345 Manual de instrucciones

Fluke

Fluke 714 Manual de usuario

Fluke

Fluke Victoreen 190 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
