FeiYu Tech G6 Manual de usuario

3-Axis Stabilized Handheld Gimbal

Guilin Feiyu Technology Incorporated Company

User Manual EN V1.0

1. Product Overview

The showing sports camera is not included in the package

1/4-20 Thread Mount

Pan Axis

Positioning Pin

Trigger

Button

Vertical Arm

Tilt Axis

Roll Axis

Single Hand Grip

Knob Ring

Cross Arm

Mounting Plate

Thumb Screw

Horizontal

Adjustment

Button

Micro USB Port

Function Button

Setting Button

Display

Joystick

1/4-20 Thread Mount

Retainer Bar

Shutter Button

Micro USB cable x1

26650 Li-ion

rechargable

battery x1

Type C charging

cable x1

Accessories

2. Quick Start Guide

1Install Battery

2Put the camera on

Please fully charge the battery before power on the gimbal for

the ﬁrst time.

Please mount the camera before power on the gimbal.

When not in use, turn oﬀ the gimbal and then remove the camera.

Remove the bottom cap, insert a 26650 battery and

then tighten the cap.

1-Normal Position1-Normal Position

Option 1

2-Reverse Position2-Reverse Position

Option 2

To work with RX0 camera, please change RX0 camera adapter kit.

RX0 Adapter

Plate

Put the RX0 camera on

*RX0 camera adapter kit is optional.

* It is suggested to turn on the camera before installation for normal position.

（1）Loose and take down the original ﬁxed plate of the gimbal

（2）Install RX0 adapter plate and tighten the screw

（3）Insert the set screw of the camera from the bottom of RX0 adapter plate

（4）Place the camera and tighten the set screw

Replacement steps

1 2

Put the camera on mounting plate,then tighten the camera

with retainer bar and screw.

Take the GoPro HERO 5 camera for example.

3Balance the Gimbal

Best balance

Right-tilting

Left-tilting

If camera tilts to the left, loosen the knob ring , pull cross arm out to the right until camera is horizontal.

If camera tilts to the right, loosen the knob ring , push cross arm in to the left until camera is horizontal.

4Power on / oﬀ

Best balance

Power on / oﬀ: Long press the function button, the display will show and release it when you hear the beep tone.

Cross arm

Knob ring

Cross arm

Knob ring

( Before power on )

Connect the camera with the gimbal via

Type C charging cable, the camera can be

charged when gimbal is powered on.

1Charging for Gimbal

2Charging for Camera

3. Charging

Type C

Portr

Type C

Port

USB Port

Camera G6

Type C Port Micro USB Port

Type C

Charging Cable

Micro USB Port USB Port

Micro USB

Cable

Option 1: Charging with Micro USB cable.

(Equipped by user)

Input： 5V / 2A

Option 2: Remove the battery and charge the battery with charger (equipped by user).

Camera power-

supply port

Camera power-

supply port

Charging

Charging icons on display screen

Charging

Completes

4. Functions

Instructions of Button

Note: The ﬁrmware upgrade may occur manual operation function and the actual product features do not match. Please ﬁnd the latest manual on the oﬃcial website.

Swith the interface for

camera parameters

Swith camera modes /

main interface

Long press in the main interface can swith to the interface for camera

parameters

In the panning mode or follow mode, press and hold the trigger button to

enter the lock mode, release it to return previous mode

Under follow mode, control the pan axis by moving the joystick to the left

or right

Single tap in the main interface can switch to camera modes (camera needs to be

connected)

Single tap in the interface for camera parameters can switch to the main interface

Double tap

Long press

Single tap

Press and hold Lock mode

Fifth tap

Quadruple tap

Triple tap

Double tap

Single tap Panning Mode / Lock Mode

Single tap to switch between panning mode and lock mode

Follow mode

Rotate 180° in horizontal Make the camera lens rotate 180 °

Auto-rotation Mode Enter auto-rotation mode

Initialization Enter initialization

Reset

Return to panning mode, tilt,roll and pan axis return to initial level

Please refer to the chapter "Auto-rotation Mode" in

page 7~8

Please refer to the chapter "Gimbal Initialization" in page 11

Function Button Function Explanation

Trigger Button Function Explanation

Setting Button Function Explanation

Single tap on the setting button can switch the camera

modes.

After connecting the gimbal to camera via Feiyu On App,

single tap the button can control the camera for shooting.

Setting Button Operation

Shutter Button Operation

Modes

Display Icons Mode / Status

Panning mode

Follow mode

Lock mode

SET WIFI VIA APP Prompt for users to open the App

settings in order to connect via WiFi

Display Description

The current mode or status of the gimbal can be

identiﬁed by the display

Bluetooth is connected

Bluetooth is not connected

Camera photo shooting

Camera video shooting

Camera time-lapse video shooting

WiFi is connected

WiFi is not connected

Battery level

Camera is not connected

Function Button

Shutter Button

Move to left / right Switch content

Joystick

Setting Button

Display

Left Right

Using the joystick

to set up parameters

Down

W4K

W12MP

W4K

OK30

Setting

button

Long press

Setting

button

Long press

Setting

button

Long press

Field of View

Conﬁrm Button

ResolutionResolution

Frame Rate

Mega PixelMega Pixel

Setting Parameters

Note: The parameters interface shall be diﬀerent when connecting to RX0 camera

Move to right again

for conﬁrmation

Move to right until

“OK” displays

Move to up / down Setting parameters

Time-lapse

video shooting

Photo shooting

Video shooting

Camera mode

Main interface of

the display screen

① Please refer to the chapter "Connecting to camera" in page 10

①

Main interface of

the display screen Interface for camera

parameters

The roll and tilt direction are ﬁxed, and the

camera moves according to the left-right

movements of the user's hand.

Panning Mode (Default mode )

The orientation of the camera is ﬁxed.

Lock Mode

Return to panning mode, three axises return to

default position.

Reset

Follow Mode

The roll direction is ﬁxed, and the camera moves

according to the left-right movements, up-down

movements of the user's hand.

Auto-rotation Mode

The G6 gimbal can easily create constant speed movements in the auto-rotation mode. This mode can be used for

recording both regular video and motion timelapse photography. For better performance, attach gimbal to the

FeiyuTech tripod, or other tripod, to keep it completely still.

( 1 ) Set rotation speed in Feiyu ON App

Note: Both the pan and tilt directions can be rotated.

Rotation Speed

18s/

turn

12s/

turn

24s/

turn

30s/

turn

1min/

turn

2min/

turn

15min/

turn

8min/

turn

4min/

turn

4h/

turn

1h/

turn

(Default)

8h/

turn

30min/

turn

Connect to the Feiyu ON App and select desired speed from the auto-rotation mode rate option in the settings menu.

Manual Lock

Manually move camera to desired position,and hold for half a

second. New tilt and/or pan positions are automatically saved.

Take the tilt axis setting for example:

Camera can be manually positioned while in panning mode ,

follow mode or lock mode. Both the pan axis and tilt axis can

be manually set up.

Horizontal Angle Control

You can control the horizon angle via the horizontal

adjustment button while in panning mode, follow

mode or lock mode.

Horizontal

adjustment

button

Horizontal

adjustment

button

Move the horizontal adjustment button

to left or right

Record the ﬁrst position (rotation start position) by manually moving

camera to desired position. Hold in position for half a second. Single

tap the function button to record rotation start position.

( 3 ) Set rotation start position

Record the second position (rotation end position) by manually

moving camera to desired position. Hold in position for half a second.

Single tap the function button to record rotation end position.

( 4 ) Set rotation end position

The gimbal automatically restores to the start position, while the

tilt axis and pan axis start rotating at a constant speed according

to pre-set speed to end position, it will enter the follow mode at

the end position.

( 5 ) Start auto rotation movements

( 2 ) Enter auto-rotation mode

Function

Button

(1)

After ﬁnishing the auto rotation, the gimbal shall automatically exit the auto-rotation mode and enter follow mode.

(2) In the process of auto-rotation mode or auto-rotation setting, double tap the trigger button to exit the auto-rotation mode and reset.

Function

Button

Tilt

Pan

Exit:

Tilt

Pan

Function

Button

Pan Axis

Tilt Axis

Enter auto-rotation mode by quadruple tapping the function

button.

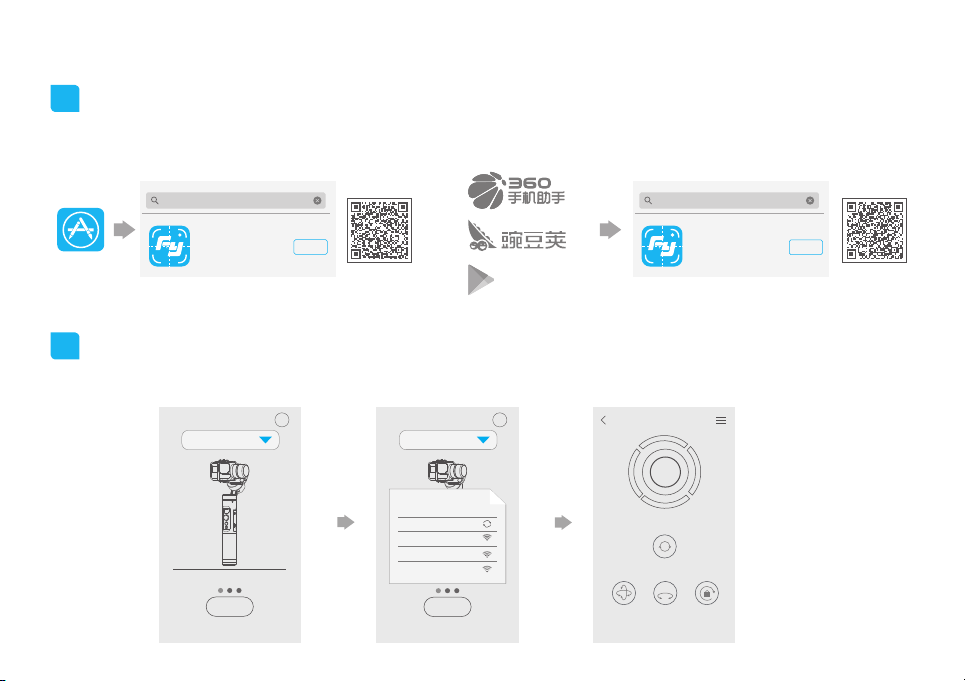

5. Download and connect App

2Connecting App

Download and install “Feiyu ON” App

Turn on the Bluetooth and run the App on smartphone, follow on the instructions to connect smartphone to gimbal via bluetooth.

(1) iOS version: (2) Android version:

α2000

G series G series

Connect Connect

RESET

FOLLOW TILT-LOCK LOCK

360°

FY_G6 _XX

Choose a gimbal

FY_XXX_XX

App Store

Google play

Feiyu ON Download

GuiLin FeiYu Technology Incorporated Company

Feiyu ON

GuiLin FeiYu Technology Incorporated Company

Feiyu ON

Download

* Scan QR codes to automatically link to

App download page.

Otros manuales para G6

Tabla de contenidos

Otros manuales de Accesorios para cámaras de FeiYu Tech

FeiYu Tech

FeiYu Tech AK2000S Manual de usuario

FeiYu Tech

FeiYu Tech SPG 2 Manual de usuario

FeiYu Tech

FeiYu Tech G4 PRO Manual de usuario

FeiYu Tech

FeiYu Tech G5 Manual de usuario

FeiYu Tech

FeiYu Tech FY-G4 Manual

FeiYu Tech

FeiYu Tech Vimble C Guía de inicio rápido

FeiYu Tech

FeiYu Tech FY WG2 Manual de usuario

FeiYu Tech

FeiYu Tech AK4500 Manual de usuario

FeiYu Tech

FeiYu Tech G4 Plus Manual de usuario

FeiYu Tech

FeiYu Tech SCORP Mini Manual de usuario

FeiYu Tech

FeiYu Tech VLOG pocket2 Manual de usuario

FeiYu Tech

FeiYu Tech AK Series Manual de usuario

FeiYu Tech

FeiYu Tech G5 Manual de usuario

FeiYu Tech

FeiYu Tech vimble 2 Manual de usuario

FeiYu Tech

FeiYu Tech AK4000 Manual de usuario

FeiYu Tech

FeiYu Tech FY-G4 Manual de usuario

FeiYu Tech

FeiYu Tech vimble 2 Instrucciones de operación

FeiYu Tech

FeiYu Tech SCORP Pro F4 Manual de usuario

FeiYu Tech

FeiYu Tech WG2 Manual de usuario

FeiYu Tech

FeiYu Tech MG Lite Guía de inicio rápido

FeiYu Tech

FeiYu Tech A2000 Manual de usuario

FeiYu Tech

FeiYu Tech SCORP FM1 Manual de usuario

FeiYu Tech

FeiYu Tech G6 Plus Guía de instalación

FeiYu Tech

FeiYu Tech Vimble 2A Guía de instalación

Manuales populares de Accesorios para cámaras de otras marcas

Viltrox

Viltrox EF-NEX Instrucciones de instalación

Calumet

Calumet 7100 Series CK7114 Manual de usuario

Ropox

Ropox 4Single Series Manual de usuario

Cambo

Cambo Wide DS Digital Series Instrucciones de funcionamiento

Samsung

Samsung SHG-120 Manual de usuario

Ryobi

Ryobi BPL-1820 Manual de operación

Aegis

Aegis ABL-36020P Manual de usuario

Pentax

Pentax Data Back Fc Manual de usuario

Fantasea

Fantasea EyeGrabber F Series Manual de usuario

Honeywell

Honeywell HDZ20HD Manual de usuario

EGO

EGO BA1400T Manual de usuario

Sima

Sima SRW-62 Manual de usuario

Shape

Shape A7SSMKIT Manual de usuario

Slide Kamera

Slide Kamera HST-2 Manual de usuario

Power works

Power works 2902613 Manual de usuario

SES

SES SE-2047-2 Manual de usuario

Olympus

Olympus PT-EP05L Manual de usuario

Starlite

Starlite OctoDome nxt Manual de usuario
