FeiYu Tech G6 Max Manual de usuario
3-Axis Stabilized Handheld Gimbal for Camera
Instructions
EN V 1.1
Catalogue
1. Overview 1
www.feiyu-tech.cn
2. Start to Use 3
3. Gimbal Balance 5
4. Function & Operation 8
Balance Adjustment of the Pan Axis
5
Balance Adjustment of the Roll Axis 6
Balance Adjustment of the Tilt Axis
7
Working mode 8
Touch Screen 9
Joystick 9
5. Advanced Operation 12
Manual Lock 12
Timelapse mode 13
Inception mode 14
Portrait mode 14
Function Button Operation 10
Shutter Button Operation 10
Power Button Operation
Camera Mode Button Operation
10
10
Trigger Button Operation 11
Multifunction Knob Operation -
Control the current axial rotation / follow focus and zoom 11
Download and connect App 12
Motor setup
How to connect Camera
14
15
15
Gimbal Initialization
Accessories Introduction
19
6. Specifications 20
Compatible Cameras for Reference 21
19
Firmware Upgrade
1. Catalogue
01
www.feiyu-tech.cn
Tilt Axis
Position Lock
Roll Axis Position Lock
Sliding Arm
Roll Axis
Thumb Screw
1/4-20 inch
Thread Hole
Function Button
Joystick
Shutter Button
Display
Roll Axis Knob Ring
Pan Axis Knob Ring
Pan Axis
Multifunction Knob
Sony Shutter Cable
X1
Gopro adapter
(1/4 Thumb Screw)
X1
Accessories
02
www.feiyu-tech.cn
Tripod
X1
Long Thumb Screw
X1
Panasonic
Shutter Cable
X1
Smartphone holder
X1
USB 2.0 to TypeC
X1
Tilt Axis
Safety Lock
Fixed
Plate
Tilt Axis
Knob Ring
Cross Arm
Quick
Release
Plate
Anti-drop Column
Vertical Arm
Handle
Pan Axis
Position Lock
1/4-20 inch
Thread Hole
Trigger Button
Power Button
Camera
Mode Button
Type C Port
Camera Installation
Unlock the safety lock, press and hold the anti-drop column to take out quick release plate as
the figure 1 shows, tighten the thumb screw to fix the quick release plate on the bottom of the
camera as the figure 2 shows.
Press and hold the anti-drop column , insert the camera in the fixed plate , and lock the safety
lock as the figure 3 shows.
If the camera doesn't have the 1/4-20 inch screw hole, please put the camera on mount adapter, which
has 1/4-20 inch screw hole, and then mount it in follow the steps above.
2. Start to Use
Camera/SmartPhone Installation
2
Charging
1
（Equipped by user）
Output: 5V / 2A
Charging with Type C USB cable, as the figure below shows:
Type C port USB port
Type C USB
Cable
Please fully charge the battery before powering on the gimbal at the first time.
TIPS
03
www.feiyu-tech.cn
Figure 1 Figure 2
Figure 3
LockUnlock
Lock
Unlock
Note: DO NOT charge the gimbal via the Type C port on the fixed plate. Otherwise, the circuit board may
be burnt.
*Pull the safety lock to left to unlock, and pull it to right to lock it when the safety lock is
locking as the figure 4.
Pull the safety lock to left to lock it, and pull it to right to unlock when the safety lock is
unlocked as the figure 5.
Power on/off:
Power on/off
3
(1) Please mount the camera or smartphone before powering on the gimbal.
(2) When the battery is low, please charge the gimbal.
(3) When not in use, please power off the gimbal.
TIPS
04
www.feiyu-tech.cn
Long press and release the power button when the display shows on screen and hear
the tone.
Smartphone
holder
Smartphone Mount into the
smartphone holder
Mount smartphone into the smartphone holder, and tighten the thumb screw to fix the
smartphone holder on the quick release plate.
The width of smartphone should be 54-88mm.
Smartphone Installation
Lock
Unlock
Figure 4
Lock Unlock
Locking
Figure 5
Lock Unlock
Unlocked
*Gimbal will vibrate slightly for a few seconds after power on it to adapt the camera weight.
05
www.feiyu-tech.cn
3. Gimbal Balance
Position Lock
4
If the gimbal is not well balanced, it will decrease the performance of stabilization or even cannot balance
the camera.
TIPS
( Before powering on )
Each of the three rotating axis has one position lock, take the pan axis lock for example.
*Before balancing the gimbal, please lock the gimbal at the balanced lock status, and unlock
the position lock in stages for convenient balancing.
3 Axis position lock Lock status Unlock status
Lock
Unlock
解锁状态
Lock
Unlock
Power on the gimbal after balanced it.
Balance Adjustment of the Tilt Axis
1
Steps

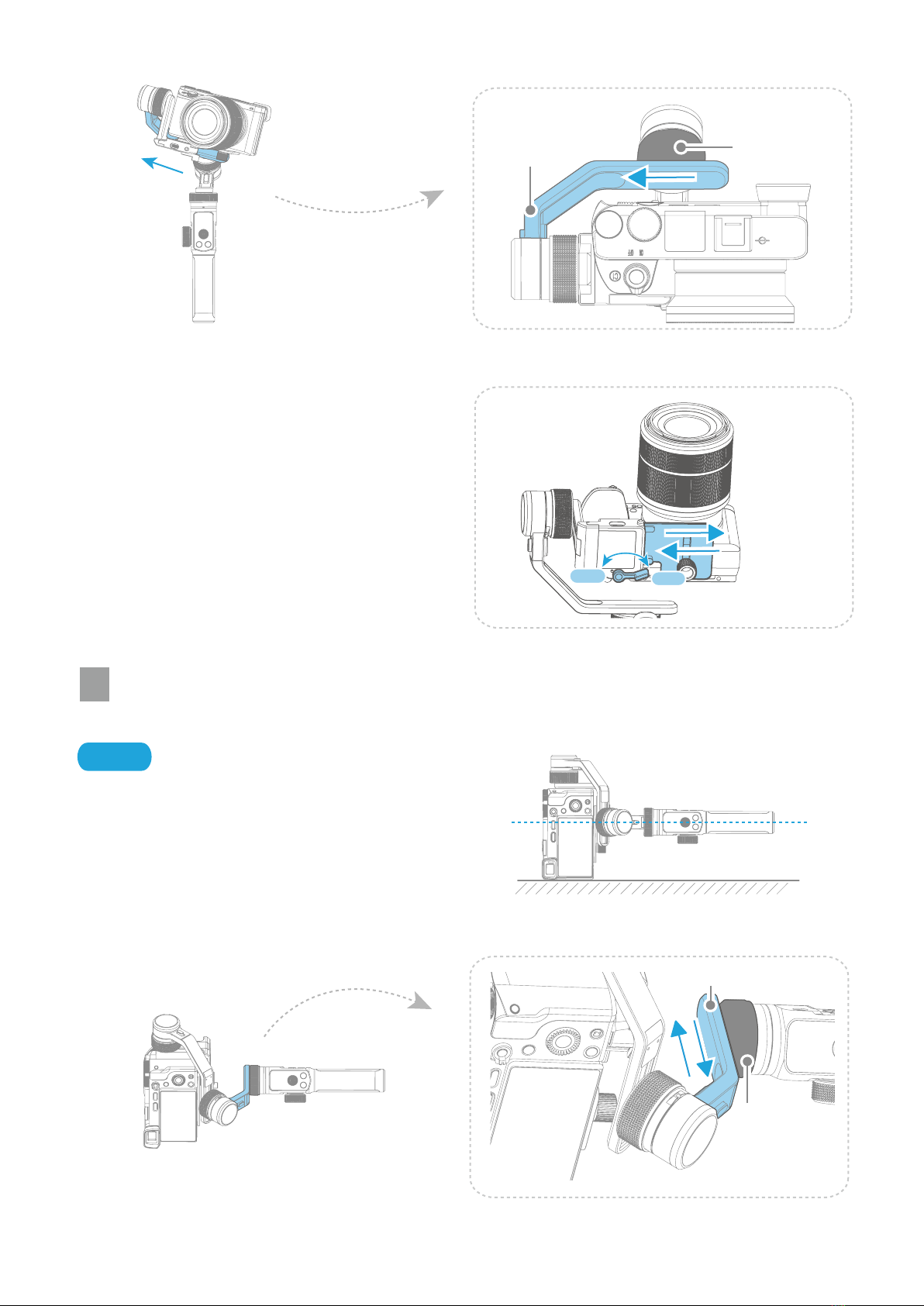

(1) Let the gimbal stand on a horizontal plane, unlock the tilt axis position lock.
(2) Loosen the Thumb screw on the camera bottom, slide the sliding arm to balance the camera
until the camera is parallel with the horizontal plane, tighten the Thumb Screw.
（Loosen the Thumb screw a little to let the camera can be moved）
Camera
move
Unlock
Horizontal Plane Thumb
Screw
Loosen
(2) Loosen the roll axis knob ring, slide the cross arm
to balance the camera. Then tighten the roll axis
knob ring, and tilt the camera to left or right, if the
camera can stay stable means balanced.
06
www.feiyu-tech.cn
Cross Arm
move
Roll Axis Knob
Ring
Loosen
* Please tighten the tilt axis knob ring after balanced the tilt axis.
Balance Adjustment of the Roll Axis
2
* Please tighten the roll axis knob ring after balanced
the roll axis.
Horizontal Plane
Horizontal Plane
Tilt Axis Knob
Ring
Loosen
(3) Loosen the tilt axis knob ring, rotate the tilt axis to any angle, and slide the sliding arm slightly,
until the camera can stay stable. Then tighten the tilt axis knob ring to finish the balance.
（If the camera cannot be parallel with the horizontal plane after balancing, repeat the steps
above until it is parallel.）
Sliding Arm
move
(1) Unlock the roll axis position lock, put gimbal on a
horizontal plane.
（Loosen the roll axis knob ring a little to let the cross
arm can be moved）
Steps
(3) If the camera cannot be parallel with the
horizontal plane after balancing, please
unlock the safety lock, and slide the quick
release plate until the camera is parallel with
the horizontal plane, then lock the safety lock.
07
www.feiyu-tech.cn
Pan Axis Knob
Ring
Loosen
Vertical Armmove
Horizontal Plane
Cross Arm
move Roll Axis Knob
Ring
Loosen
Balance Adjustment of the Pan Axis
3
(1) Unlock the pan axis position lock, hold the
gimbal horizontally, make the handle is parallel
with the horizontal plane.
(2) Loosen the pan axis knob ring, slide the
vertical arm to balance the camera. Then tighten
the pan axis knob ring, and rotate the pan axis to
any angles, if the camera can stay stable means
balanced.
* Please tighten the pan axis knob ring after balanced the pan axis.
Steps
* Please lock the safety lock after balanced
the roll axis.
Quick Release
Plate
move
Lock
Unlock
08
www.feiyu-tech.cn
The roll and tilt direction are fixed, and the lens moves according to the left-right movements
of the user's hand.
The orientation of the lens is fixed.
The roll direction is fixed, and the lens moves according to the left-right movements, up-down
movements of the user's hand.
Return to pan mode, three axis return to default position.
Pan Mode （Default mode）
Pan Mode Default
Follow Mode
The lens moves according to the user's hand.
All Follow Mode
Follow Mode
Reset
Lock Mode
Working mode
4. Function & Operation
All Follow Mode
Lock Mode Reset
Follow and rotate
Lock the position
